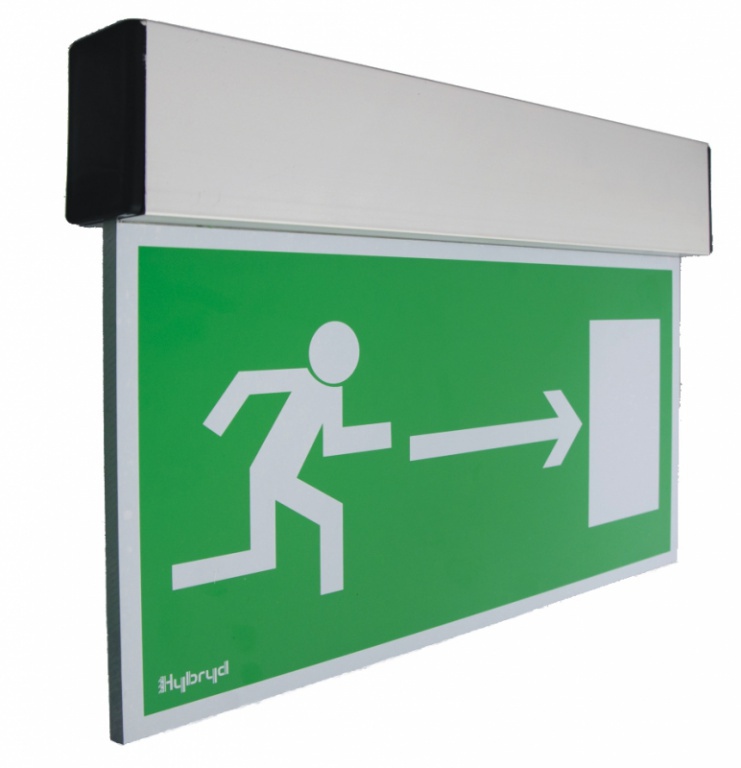

Profilight luminaire, equipped with LED light source, is supposed to indicate emergency escape routes and emergency exits with suitable pictograms. Profilight can be adopted in public facilities or in workplaces and it is compatible with all emergency lighting systems offered by Hybryd.
| CATEGORY | VALUE | ||
|---|---|---|---|
| Power supply | 230V 50Hz | ||
| Power consumption | <4VA | ||
| Protection class | I | ||
| Protection degree | IP 40 | ||
| Light source | White LED | ||
| Accumulator type | Ni-MH HT, Ni-Cd HT | ||
| Accumulator voltage | 4,8V | ||
| Accumulator capacity | 1,0Ah | ||
| Recharging type | 24h | ||
| Emergency work time | 3h | ||
| Ambient temperature | +10°C ÷ +40°C | ||
| Connector | 4 x 0,5 ÷2,5 mm2 (maintained) 3 x 0,5 ÷2,5 mm2 (non-maintained) |
||
– body material: aluminium
– casing colour: black or silver (different colours available)
– lamp cover: plexiglass with pictogram

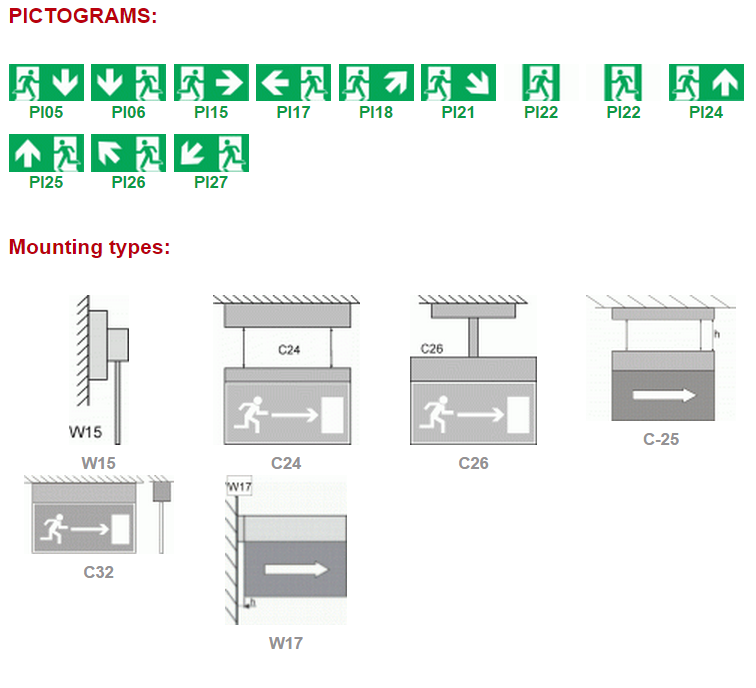

Luminaire type or lamp cover:
N – surface mount
P - recessed
DW – luminaire two-sided or lamp cover two-sided.
Execution:
ST – standard
AT – autotest
CT – central test
TS – testsystem
CB – central battery,
CB-MA – central battery plus changeover module,
CB-MP – central battery plus addressing module,
CB-MAP – central battery plus changeover + addressing module .
Work mode:
C – non-maintained
J – maintained
N – night (only for CT).
Defined for ST, AT, CT, TS, CB-MA (luminaires LED) and CB-MAP (luminaires fluorescent).
Temperature range:
Empty field - standard temperature range
T – extended temperature range (see technical data) with thermostat H-323.
Hybryd https://www.electrico24.eu/uploads/producer_logos/766a349386cca5c6d5952213685a8d38.jpg
Profilight LED
