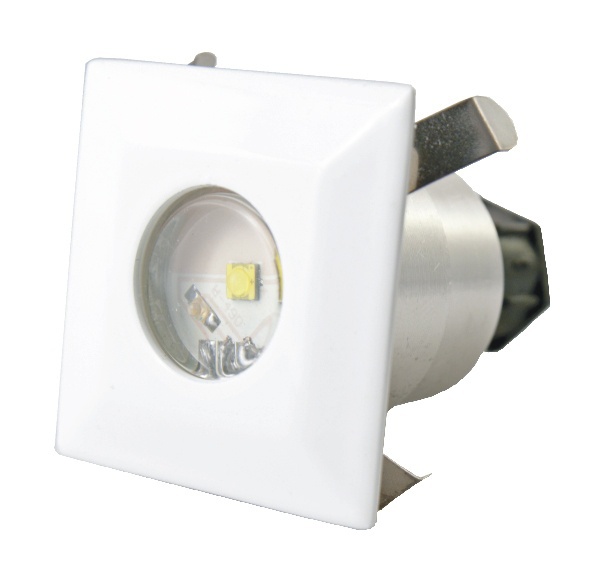

Owa Atom LED, equipped with LED light source, is a recessed highly efficient luminaire designed for emergency lighting. Its main task is to illuminate emergency escape routes, emergency escape exits and rooms in public facilities, work places, etc. It is compatible with all emergency lighting systems offered by Hybryd. Different versions available.
| CATEGORY | VALUE | ||
|---|---|---|---|
| Power supply | 230V 50Hz | ||
| Power consumption | <7VA | ||
| Protection class | I | ||
| Protection degree | IP 65 | ||
| Light source | Dioda Power LED (unchangeable light source) | ||
| Minimal luminous flux | 185 lm | ||
| Light source power | 2W | ||
| Light source lifespan | >50 000h | ||
| Accumulator type | Ni-Cd HT, Ni-MH HT | ||
| Accumulator voltage | 4,8V | ||
| Accumulator capacity | 1,5Ah, 2,5Ah | ||
| Recharging type | 24h | ||
| Emergency work time | 1h, 2h, 3h | ||
| Ambient temperature | +10°C ÷ +40°C | ||
| Connector | 4 x 0,5 ÷2,5 mm2 (maintained) 3 x 0,5 ÷2,5 mm2 (non-maintained) |
||
Body material: extruded aluminium
Casing colour: white, black, silver, different colours available
Lamp cover: flat, oval, transparent
Luminaire type or lamp cover:
N – surface mount
P - recessed
DW – luminaire two-sided or lamp cover two-sided.
Execution:
ST – standard
AT – autotest
CT – central test
TS – testsystem
CB – central battery,
CB-MA – central battery plus changeover module,
CB-MP – central battery plus addressing module,
CB-MAP – central battery plus changeover + addressing module .
Work mode:
C – non-maintained
J – maintained
N – night (only for CT).
Defined for ST, AT, CT, TS, CB-MA (luminaires LED) and CB-MAP (luminaires fluorescent).
Temperature range:
Empty field - standard temperature range
T – extended temperature range (see technical data) with thermostat H-323.
