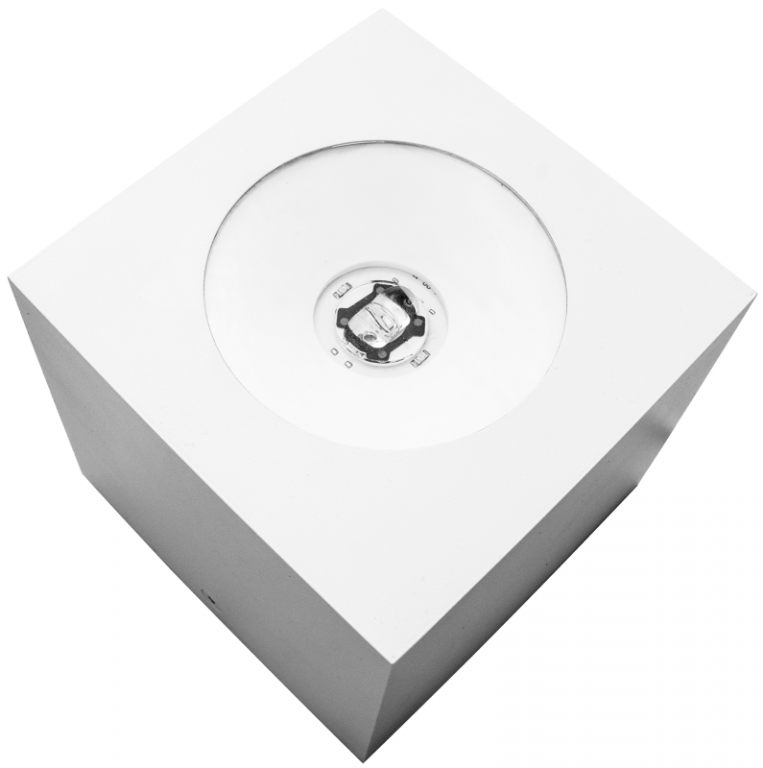

Kwadra LED, equipped with LED light source, is a highly efficient luminaire designed for emergency lighting. Its main task is to illuminate emergency escape routes, emergency escape exits and rooms in public facilities, work places, etc. It is compatibile with all emergency lighting systems offered by Hybryd. Different versions available including optics, LED type and mounting type: surface mounted or recessed.
| CATEGORY | VALUE | ||
|---|---|---|---|
| Power supply | 230V 50Hz | ||
| Power consumption | <7VA | ||
| Protection class | I | ||
| Radio noise | Level N | ||
| Protection degree | IP20 | ||
| Light source | Moduł LED (unchangeable light source) | ||
| Light source power | 1,5W, 3W | ||
| Light source lifespan | >50.000h | ||
| Emergency work time | 1h; 2h; 3h | ||
| Accumulator type | NiMH HT | ||
| Accumulator capacity [Ah] | 1,6Ah; 2,2Ah; 3,8Ah | ||
| Accumulator voltage | 4,8V | ||
| Recharging type | 24h | ||
| Ambient temprature ta | +5C - +50C | ||
Body material - steel
Casing colour - white, black
Different colours available
Luminaire type or lamp cover:
N – surface mount
P - recessed
DW – luminaire two-sided or lamp cover two-sided.
Execution:
ST – standard
AT – autotest
CT – central test
TS – testsystem
CB – central battery,
CB-MA – central battery plus changeover module,
CB-MP – central battery plus addressing module,
CB-MAP – central battery plus changeover + addressing module .
Work mode:
C – non-maintained
J – maintained
N – night (only for CT).
Defined for ST, AT, CT, TS, CB-MA (luminaires LED) and CB-MAP (luminaires fluorescent).
Temperature range:
Empty field - standard temperature range
T – extended temperature range (see technical data) with thermostat H-323.
