DIM MCU LED Drivers

Product code: 56777
Price € 31,40 incl. VAT
€ 31,40 netto
pc(s)
pc(s)
  • Nominal voltage 230.00 V
  • Length 80.0 mm
  • Width 80.0 mm
  • Height 40.0 mm
  • Product weight 140.00 g
  • Dimming interface 1…10 V
  • Type of installation Integrated in flush device box
  • Number of control outputs 1
  • Load contact 6 A
  • Type of protection IP20
  • Protection class II
  • Product color White
  • ▼ see full specification ▼

1 variant available

 DIM MCU
Product code: 56777
€ 31,40 € 31,40 ex. VAT
pc(s)
pc(s)

Electrical data

Nominal voltage 230.00 V

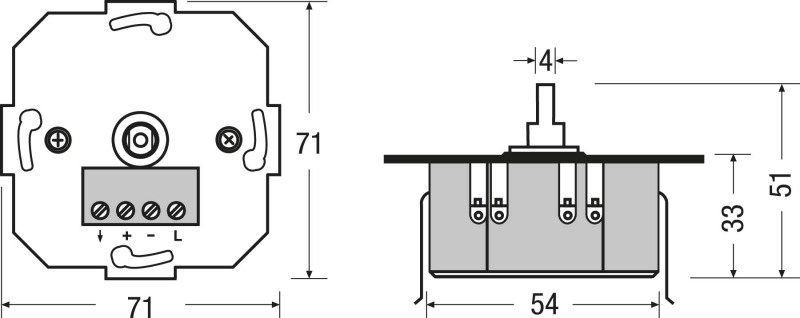

Dimensions & weight

Length 80.0 mm
Width 80.0 mm
Height 40.0 mm
Product weight 140.00 g

Capabilities

Dimming interface 1…10 V
Type of installation Integrated in flush device box
Number of control outputs 1
Load contact 6 A

Certificates & standards

Type of protection IP20
Protection class II

Colors & materials

Product color White

Temperatures

Ambient temperature range 0…+50 °C

Product features
  • Switching load contact: 250 V/6 A (10 1-lamp or 5 2-lamp ECGs)

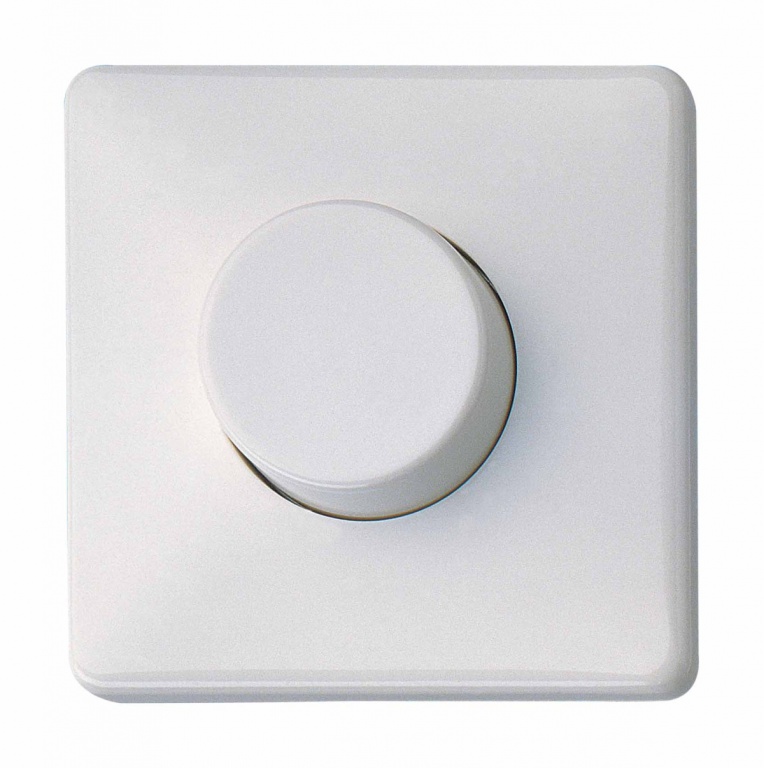

  • Cover and rotary knob in cream white
Equipment / Accessories

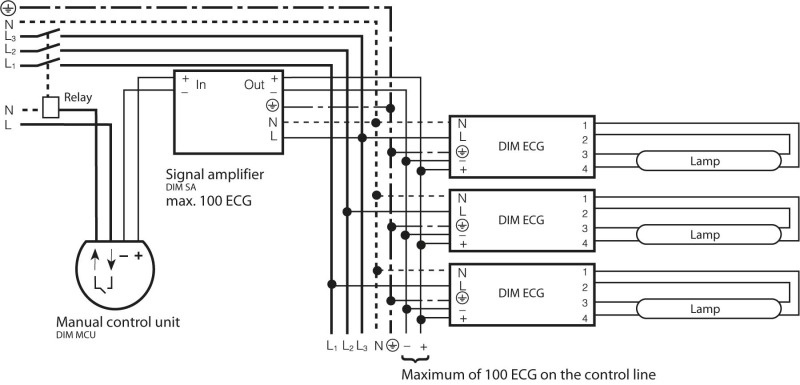

  • Suitable for up to 100 electronic control gears (external load contact required)
  • Flexible expansion via external load contact and via signal amplifier DIM SA
  • Cover and rotary knob included
