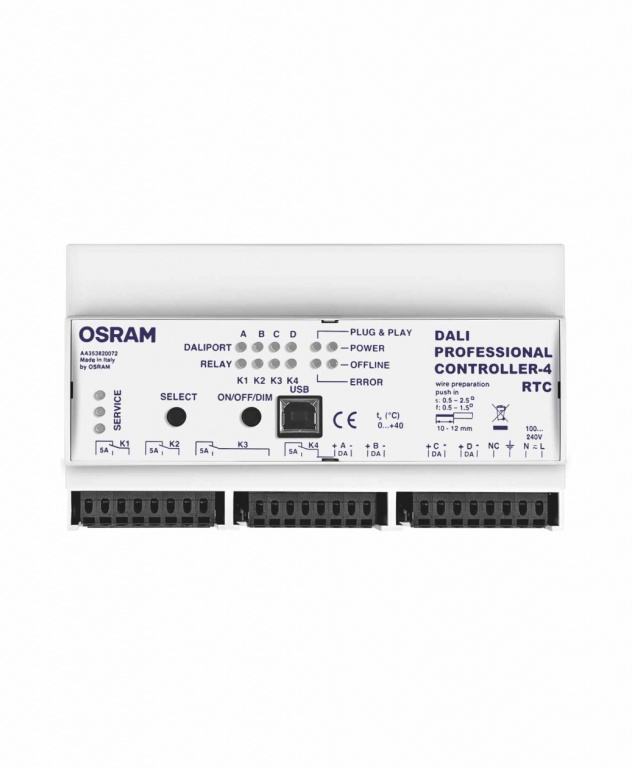

DALI PRO CONT-4 LED Drivers

Product code: 56762
Price € 1 741,40 incl. VAT
€ 1 741,40 netto
pc(s)
pc(s)
  • Nominal voltage 100…240 V
  • Mains frequency 50/60 Hz
  • System wattage 20.00 W
  • Length 90.0 mm
  • Width 160.0 mm
  • Height 62.0 mm
  • Product weight 400.00 g
  • Dimming interface DALI
  • Type of installation DIN rail mounting
  • Number of control outputs 4
  • Type of protection IP20
  • Protection class I
  • ▼ see full specification ▼

1 variant available

 DALI PRO CONT-4 RTC
Product code: 56762
€ 1 741,40 € 1 741,40 ex. VAT
pc(s)
pc(s)

Electrical data

Nominal voltage 100…240 V
Mains frequency 50/60 Hz
System wattage 20.00 W

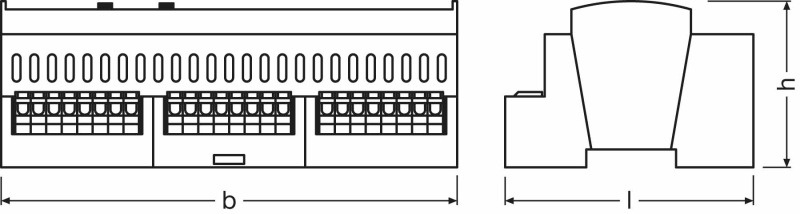

Dimensions & weight

Length 90.0 mm
Width 160.0 mm
Height 62.0 mm
Product weight 400.00 g

Capabilities

Dimming interface DALI
Type of installation DIN rail mounting
Number of control outputs 4

Certificates & standards

Type of protection IP20
Protection class I

Temperatures

Ambient temperature range 0…+40 °C

Product benefits

  • Plug&Play preconfigured for instant use without any startup procedure
  • Mains voltage interruption buffer battery
  • All the luminaires in the system can be dimmed or switched
  • Simple creation of scenes and sequences
  • Switching and dimming of up to 256 DALI ECGs
  • A setpoint for daylight-dependent control can be stored by double clicking
  • Sensor integration in DALI

Areas of application

  • Room control, floor control, daylight-dependent control
  •  Connection of light and presence sensors in DALI systems
  • Conference rooms
  • Offices: Individual and group workplaces
  • Production and assembly facilities
  • Suitable for indoor applications
  • Large luminaire groups
  • Industry

Product features

  • Controller for 4 DALI lines
  • Up to 50 pushbutton/sensor couplers can be integrated
  • Integrated DALI supply
  • 4 freely programmable switchover relays; load contact: 4x 5 A
  • Daylight-dependent and/or presence-dependent or manual control
  • Up to 4 x 16 groups can be controlled
  • USB PC connection

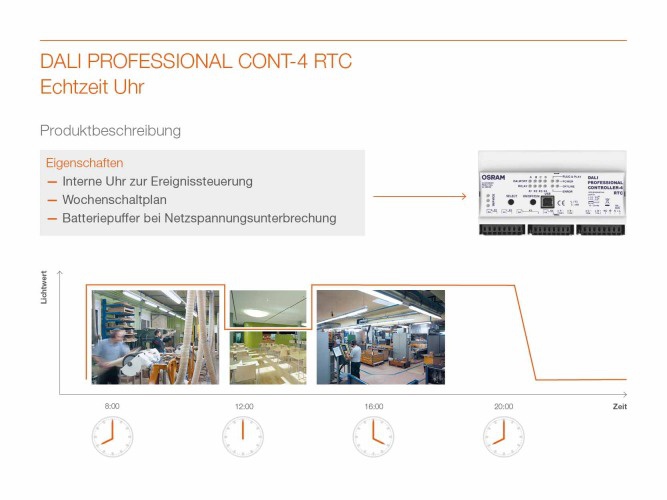

  • Integrated clock for event control
  • Weekly scheduler
  • Connection via screwless push wire terminals
  • Control of lighting scenes and sequences (recall/store)
  • 4 DALI lines

Equipment / Accessories

  • Suitable for up to 256 electronic control gears with DALI interfaces
  • Graphic configuration software with Windows user interface
