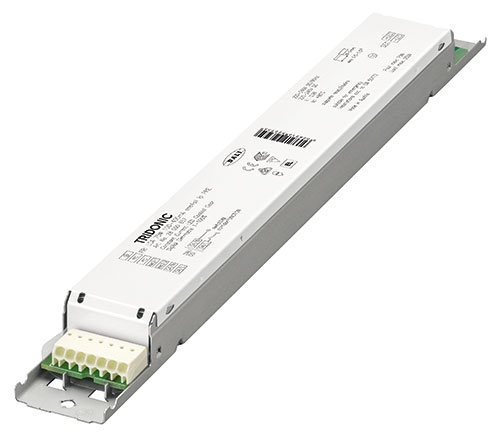

TALEXXdriver LCA 50W 350-1050mA one4all lp PRE LED Drivers

Product code: 71619
Price € 49,02 incl. VAT
€ 40,18 netto
szt.
szt.
  • Pack­ag­ing, carton 10 pc(s).
  • Pack­ag­ing, pallet 760 pc(s).
  • Weight per pc. 0.244 kg
  • Min. forward voltage 20 V
  • Output current 1,050 mA
  • Max. for­ward volt­age 48 V
  • Max. output power 50.0 W
  • Typ. power con­sump­tion (at 230 V, 50 Hz, full load) 56.0 W
  • Ambient temperature ta -25 ... +65 °C
  • Typ. current consumption (at 230 V, 50 Hz, full load) 248 mA
  • tc point max. 80 °C
  • I-select 2 resistor value 0.00 kΩ
  • ▼ see full specification ▼

1 variant available

 LCA 50W 350-1050mA one4all lp PRE
Product code: 71619 Pack­ag­ing, carton: 10 pc(s). Pack­ag­ing, pallet: 760 pc(s). Weight per pc.: 0.244 kg Min. forward voltage: 20 V Output current: 1,050 mA Max. for­ward volt­age: 48 V Max. output power: 50.0 W Typ. power con­sump­tion (at 230 V, 50 Hz, full load): 56.0 W Ambient temperature ta: -25 ... +65 °C Typ. current consumption (at 230 V, 50 Hz, full load): 248 mA tc point max.: 80 °C I-select 2 resistor value: 0.00 kΩ
€ 49,02 € 40,18 ex. VAT
szt.
szt.
Pack­ag­ing, carton 10 pc(s).
Pack­ag­ing, pallet 760 pc(s).
Weight per pc. 0.244 kg
Min. forward voltage 20 V
Output current 1,050 mA
Max. for­ward volt­age 48 V
Max. output power 50.0 W
Typ. power con­sump­tion (at 230 V, 50 Hz, full load) 56.0 W
Ambient temperature ta -25 ... +65 °C
Typ. current consumption (at 230 V, 50 Hz, full load) 248 mA
tc point max. 80 °C
I-select 2 resistor value 0.00 kΩ

Tridonic - parametry

tick 110
tick CE
tick EAC
tick EL
tick ENEC
tick IP20
tick RCM
tick RoHs
tick SELV
tick Short Circuit Proof
tick r2m
AC voltage range 198 – 264 V
Rated supply voltage 220 – 240 V
DC voltage range 176 – 280 V
Mains frequency 0 / 50 / 60 Hz
Overvoltage protection 320 V AC, 48 h
Leakage current (at 230 V, 50 Hz, full load)(1)(2) < 440 µA
Max. input power 56.5 W
Typ. efficiency (at 230 V, 50 Hz, full load)(2) 91 %
Typ. input current in no-load operation 33 mA
Typ. input power in no-load operation 0.42 W
In-rush current (peak / duration) 26.5 A / 180 µs
THD (at 230 V, 50 Hz, full load)(1) < 6.1 %
Time to light (DC mode) < 0.3 s
Time to light (at 230 V, 50 Hz, full load)(1) < 0.6 s
Switchover time (AC/DC) < 0.2 s
Turn off time (at 230 V, 50 Hz, full load) < 20 ms
Max. output current peak (non-repetitive) ≤ output current + 40 %
Output current tolerance(1) ± 3 %
Max. output voltage (no-load voltage) 60 V
Output LF current ripple (< 120 Hz) ± 5 %
Mains surge capability (between L - N) 1 kV
Mains surge capability (between L/N - PE) 2 kV

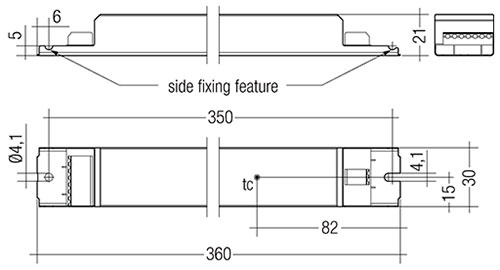

Dimensions L x W x H 360 x 30 x 21 mm
λ (at 230 V, 50 Hz, full load)(1) 0.98
Typ. current (at 230 V, 50 Hz, full load)(1)(2) 102 – 248 mA
Typ. current (220 V, 0 Hz, full load, 15 % dimming level)(2) 71.5 mA
Typ. power input on stand-by(3) < 0.15 W
Dimming range 1 – 100 %
Surge voltage at output side (against PE) < 500 V

  • Dimmable built-in constant current LED Driver
  • Output current adjustable between 350 – 1,050 mA via ready2mains™ Programmer, I-select 2 plugs or DALI
  • Max. output power 50 W
  • Up to 91 % efficiency
  • Power input on stand-by < 0.15 W
  • Dimming range 1 to 100 %
  • Nominal life-time up to 100,000 h
  • 5-year guarantee

Housing properties

  • Low profile metal casing with white cover
  • Type of protection IP20

Interfaces

  • one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
  • ready2mains™ (configuration and dimming via mains)
  • Terminal blocks: 0° push terminals

Functions

  • Adjustable output current (DALI, ready2mains™, I-select 2)
  • Constant light output function (CLO)
  • Power-up fading at AC
  • Configurable via ready2mains™
  • Service monitor to log certain events
  • Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
  • Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

  • Application-oriented operating window for maximum compatibility
  • Best energy savings due to low stand-by losses and high efficiency
  • Flexible configuration via DALI, ready2mains™ and I-select 2
  • Reliability proven by life-time up to 100,000 h and 5-year guarantee

Typical applications

  • For linear/area lighting in office applications
