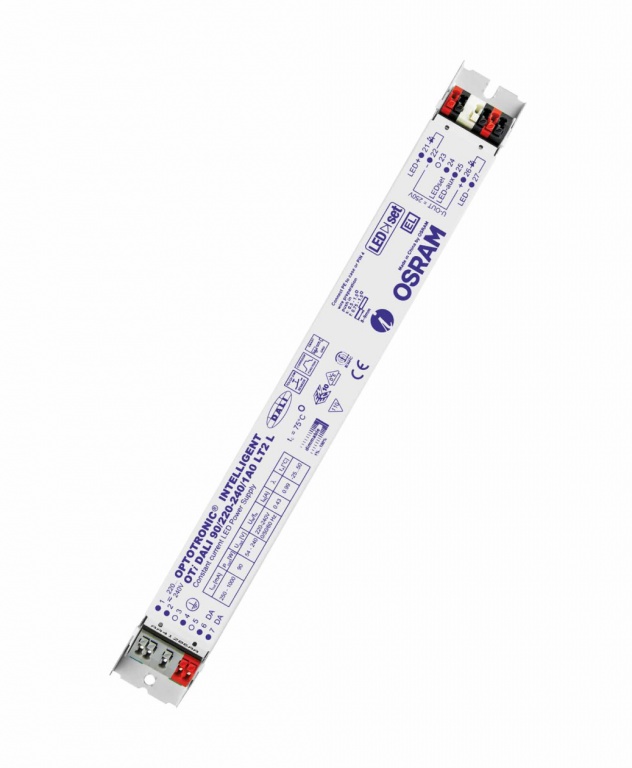

OPTOTRONIC Intelligent Dimmable DALI LED Drivers

From € 59,17 incl. VAT
From € 59,17 ex. VAT
See variants (2)
  • Nominal voltage 220…240 V
  • Mains frequency 50…60 Hz
  • Surge capability (L-N) 1 kV
  • Surge capability (L/N-Ground) 2 kV
  • Power loss in stand-by mode
  • Width 30.0 mm
  • Height 21.0 mm
  • Encapsulated No
  • Dimmable Yes
  • Suitable for fixtures with prot. class I
  • Overheating protection Automatic reversible
  • No-load proof Yes
  • ▼ see full specification ▼

Select your product from the 2

 OTi DALI 80/220...240/1A6 LT2 L
Product code: 55453 Power factor λ: 0.95  Length: 360.0 mm Nominal output power: 80 W Input voltage AC: 198…264 V  Nominal output voltage: 20…54 V  Device power loss: 8.5 W  ECG efficiency: 90 %  Nominal current: 0.42 A Inrush current: 53 A Max. no. of ECGs on circuit breaker 10 A: 8 see more »
Galvanic isolation primary/secondary: 3.75 kV  Max. no. of ECGs on circuit breaker 16 A: 13 Cable cross-section, input side: 0.5…1.5 mm²  Product weight: 285.00 g Cable cross-section, output side: 0.5…1.5 mm²  Wire preparation length, input side: 8.5…9.5 mm Ambient temperature range: -25…+50 °C Maximum temperature at tc test point: 80 °C Temperature range at storage: -25…75 °C ECG lifetime: 50000 h  Max. cable length to lamp/LED module: 2.0 m Standards: Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384 Nominal output current: 600…1550 mA  Dimming interface: DALI / Touch DIM / Touch DIM Sensor « hide more
€ 59,17 € 59,17 ex. VAT
pc(s)
pc(s)
 OTi DALI 80/220...240/2A1 LT2 L
Product code: 55454 Power factor λ: 0.95  Length: 360.0 mm Nominal output power: 80 W Input voltage AC: 198…264 V  Nominal output voltage: 20…54 V  Device power loss: 9.0 W  ECG efficiency: 90 %  Nominal current: 0.42 A Inrush current: 53 A Max. no. of ECGs on circuit breaker 10 A: 8 see more »
Galvanic isolation primary/secondary: 3.75 kV  Max. no. of ECGs on circuit breaker 16 A: 13 Cable cross-section, input side: 0.5…1.5 mm²  Product weight: 285.00 g Cable cross-section, output side: 0.5…1.5 mm²  Wire preparation length, input side: 8.5…9.5 mm Ambient temperature range: -25…+45 °C Maximum temperature at tc test point: 80 °C Temperature range at storage: -25…75 °C ECG lifetime: 50000 h  Max. cable length to lamp/LED module: 2.0 m Standards: Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384 Nominal output current: 1000…2100 mA  Dimming interface: DALI / Touch DIM / Touch DIM Sensor « hide more
€ 64,00 € 64,00 ex. VAT
pc(s)
pc(s)

Electrical data

Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Surge capability (L-N) 1 kV
Surge capability (L/N-Ground) 2 kV
Power loss in stand-by mode

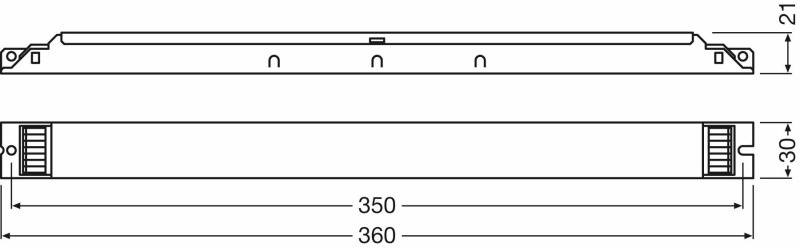

Dimensions & weight

Width 30.0 mm
Height 21.0 mm

Additional product data

Encapsulated No

Capabilities

Dimmable Yes
Suitable for fixtures with prot. class I
Overheating protection Automatic reversible
No-load proof Yes
Overload protection Automatic reversible
Short-circuit protection Automatic reversible
Constant lumen function Programmable
NTC input No
Dimming range 1…100 %

Certificates & standards

Approval marks – approval ENEC 10 / VDE / EMC / EL / CE
Type of protection IP20

Colors & materials

Casing material Metal

Temperatures

Max.housing temperature in case of fault 110 °C

Product benefits

  • Versatile DALI window driver up to 90 W due to flexible output characteristic
  • Very high efficiency and reliability
  • Protection of the system thanks to thermal management and Smart Control

Versatile scope of application due to OSRAM DALI Technology:

  • Easy to use in corridors and restrooms because of three-level Corridor function
  • Touch DIM application: easy to control via pushbutton or sensor
  • Energy efficient Touch DIM operation due to  automatic switch-off at sufficient residual light
  • Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
  • Feedback of power consumption and operating hours (Fit for SMART GRID)
  • Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting

Areas of application

  • Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
  • Suitable for use in luminaires with flexible current setting (DALI, CLO, LEDset)
  • Suitable for indoor SELV and non-SELV installations
  • Suitable for luminaires of protection class I

Product features

  • Supply voltage: 220…240 V
  • Line frequency: 0 Hz | 50 Hz | 60 Hz
  • Line voltage: 198…264 V
  • Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384
  • RI suppression according to EN 55015:2007+A1:2007/CDN
  • Line harmonics according to EN 61000-3-2
  • Immunity according to EN 61547
  • Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
