CV Dimmers with DALI LED Drivers

Product code: 56436
Price € 62,80 incl. VAT
€ 62,80 netto
pc(s)
pc(s)
  • Nominal voltage 10…24 V
  • Nominal output power 120 W
  • Input voltage AC 10.5…24 V
  • Mains frequency 0 Hz
  • Nominal output voltage 10.5…24 V
  • Device power loss 2.6 W
  • ECG efficiency 97 %
  • Galvanic isolation primary/secondary 3.75 kV
  • Length 172.0 mm
  • Width 42.0 mm
  • Height 20.0 mm
  • Mounting hole spacing, length 164.0 mm
  • ▼ see full specification ▼

1 variant available

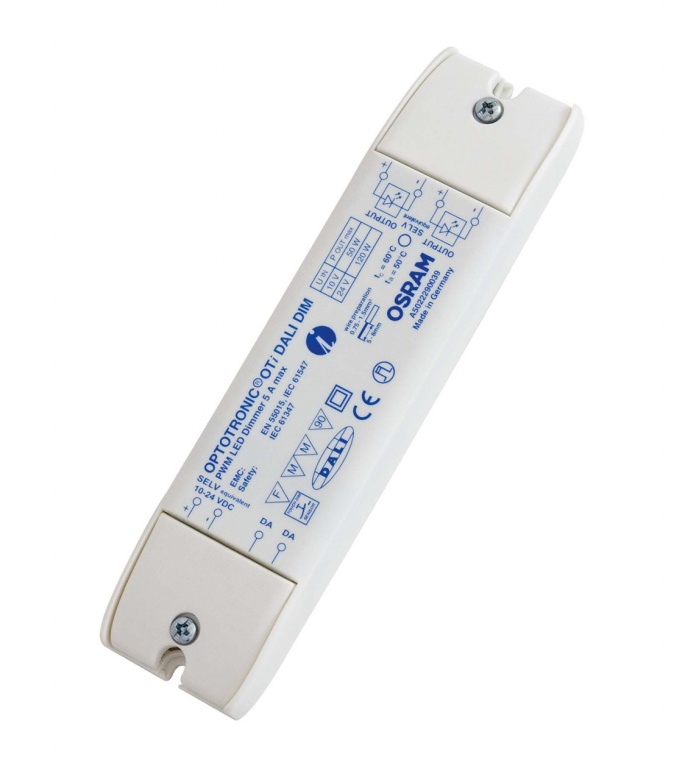

 OTi DALI DIM
Product code: 56436
€ 62,80 € 62,80 ex. VAT
pc(s)
pc(s)

Electrical data

Nominal voltage 10…24 V
Nominal output power 120 W
Input voltage AC 10.5…24 V
Mains frequency 0 Hz
Nominal output voltage 10.5…24 V
Device power loss 2.6 W
ECG efficiency 97 %
Galvanic isolation primary/secondary 3.75 kV

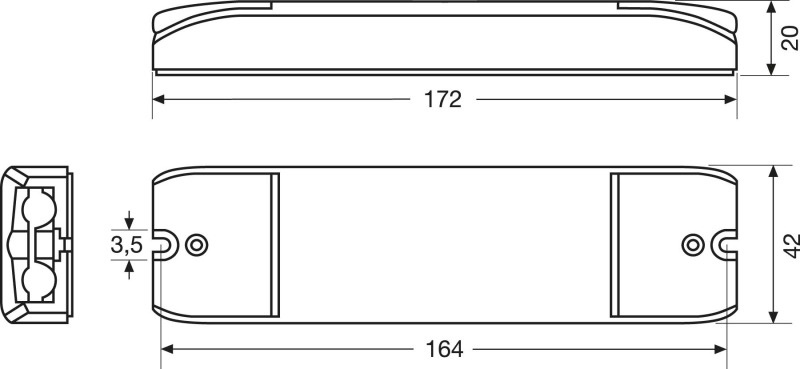

Dimensions & weight

Length 172.0 mm
Width 42.0 mm
Height 20.0 mm
Mounting hole spacing, length 164.0 mm
Cable cross-section, input side 0.5…1.5 mm²
Product weight 75.00 g
Cable cross-section, output side 0.5…1.5 mm²
Wire preparation length, input side 10 mm

Lifespan

ECG lifetime 50000 h

Capabilities

Dimmable Yes
Suitable for fixtures with prot. class II
Overheating protection Automatic reversible
Max. cable length to lamp/LED module -
No-load proof Yes
Overload protection Automatic reversible
Dimming range 0.1…100 %

Certificates & standards

Approval marks – approval CE / C-Tick / UR
Standards Acc. to EC 61347-2-13/Acc. to EN 62384/Acc. to EN 55015/Acc. to EN 61547
Type of protection IP20

Colors & materials

Casing material Plastic

Temperatures

Ambient temperature range -20…+50 °C
Maximum temperature at tc test point 60 °C
Temperature range at storage -25…85 °C
Max.housing temperature in case of fault 100 °C

Product benefits

  • Safety requirement due to overload, overtemperature, short-circuit protection

Areas of application

  • Suitable for indoor installations
  • Separate installation (ceiling mounting)

Product features

  • Intelligent digital dimmer (DALI) with constant output voltage
  • Dimming range: 0.1…100 %
  • Device fits also for special applications where dimming below 1 % is required
