PXF - Mechanical data
|
Type of installation |
Ceiling mounted |
Housing material |
Steel sheet |
PXF - Electrical data
|
Light source |
T8 |
Type of equipment |
EVG |
Voltage rating |
230 V |
Lamp holder |
G13 |
PXF - Infromations
|
Color |
White |
PXF - Light data
|
Light distribution |
DI |
PXF - Certificates
|
Degree of protection (IP) |
IP20 |
Class of protection |
I |
Energy class |
A |
CE |
Yes |
CNBOP |
Yes |

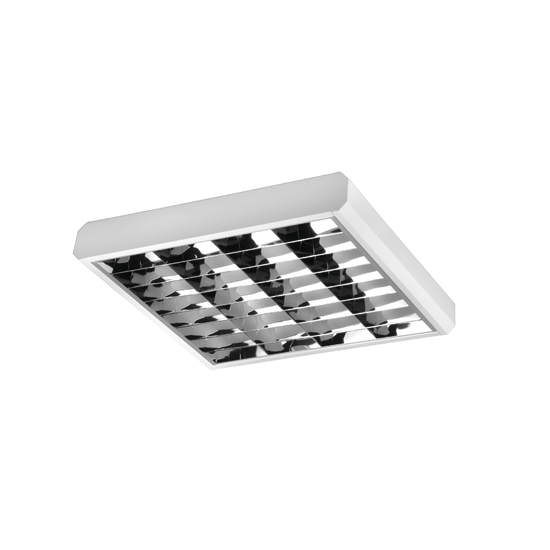

A surface mounted lighting luminaire with bevelled edges of two sides. Available with 4 different louvers and 2 diffusers.
Materials: powder painted housing made of steel sheets (standard color: white), parabolic louvre made of high quality polished PAR and matt PAR-S anodized aluminum, straight louvres of polished SLA or white SLB aluminum, opal or prismatic diffuser made of PMMA
Installation: ceiling mounted
Power: 230 V
| L | W | H |
PX1708122 2x18W |
618 |
345 |
90 |
PX1708129 2x36W |
1225 |
345 |
90 |
PX1708136 4x18W |
618 |
643 |
90 |
PX1712122 2x18W |
618 |
345 |
90 |
PX1712129 2x36W |
1225 |
345 |
90 |
PX1712136 4x18W |
618 |
643 |
90 |
PX1688150 1x36W |
1233 |
215 |
90 |
PX1688157 1x58W |
1533 |
215 |
90 |
PX1688164 2x18W |
618 |
345 |
90 |
PX1688171 2x36W |
1225 |
345 |
90 |
PX1688178 2x58W |
1525 |
345 |
90 |
PX1688185 4x18W |
618 |
643 |
90 |
PX1688192 4x36W |
1225 |
643 |
90 |
PX1696150 1x36W |
1233 |
215 |
90 |
PX1696157 1x58W |
1533 |
215 |
90 |
PX1696164 2x18W |
618 |
345 |
90 |
PX1696171 2x36W |
1225 |
345 |
90 |
PX1696178 2x58W |
1525 |
345 |
90 |
PX1696185 4x18W |
618 |
643 |
90 |
PX1696192 4x36W |
1225 |
643 |
90 |
PX1700150 1x36W |
1233 |
215 |
90 |
PX1700157 1x58W |
1533 |
215 |
90 |
PX1700164 2x18W |
618 |
345 |
90 |
PX1700171 2x36W |
1225 |
345 |
90 |
PX1700178 2x58W |
1525 |
345 |
90 |
PX1700185 4x18W |
618 |
643 |
90 |
PX1700192 4x36W |
1225 |
643 |
90 |
PX1704150 1x36W |
1233 |
215 |
90 |
PX1704157 1x58W |
1533 |
215 |
90 |
PX1704164 2x18W |
618 |
345 |
90 |
PX1704171 2x36W |
1225 |
345 |
90 |
PX1704178 2x58W |
1525 |
345 |
90 |
PX1704185 4x18W |
618 |
643 |
90 |
PX1704192 4x36W |
1225 |
643 |
90 |

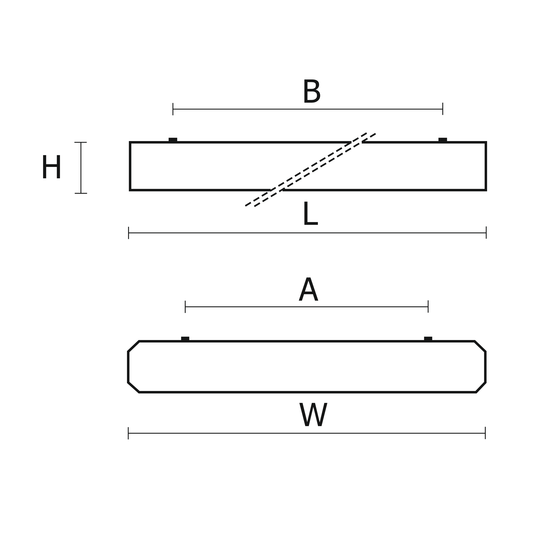

L - Length
W - Width
H - Height / Depth
Used marks:
SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum
OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass
DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution
NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling
EVG - electronic ballast
VVG - magnetic ballast
NM - non maintained
M - maintained
