Electrico24 code: 63446 | PXF Plexiform code: PX0320199
Price € 63,70 incl. VAT
€ 63,70 netto
pc(s)
pc(s)
  • Light source power 2x58W
  • Light distribution DI
  • Weight 5.08 kg
  • Type of installation Universal mounting
  • Housing material Aluminum
  • Reflector High gloss
  • Light source T8
  • Type of equipment EVG
  • Voltage rating 230 V
  • Lamp holder G13
  • Color White
  • Degree of protection (IP) IP20
  • ▼ see full specification ▼

1 variant available

 Vega 2x58W DI
Electrico24 code: 63446 | PXF Plexiform code: PX0320199 Light source power: 2x58W Light distribution: DI Weight: 5.08 kg
€ 63,70 € 63,70 ex. VAT
pc(s)
pc(s)
Light source power 2x58W
Light distribution DI
Weight 5.08 kg

PXF - Mechanical data

Type of installation Universal mounting
Housing material Aluminum

PXF - Optical data

Reflector High gloss

PXF - Electrical data

Light source T8
Type of equipment EVG
Voltage rating 230 V
Lamp holder G13

PXF - Infromations

Color White

PXF - Certificates

Degree of protection (IP) IP20
Class of protection I
Energy class A
CE Yes
Light source protection Yes

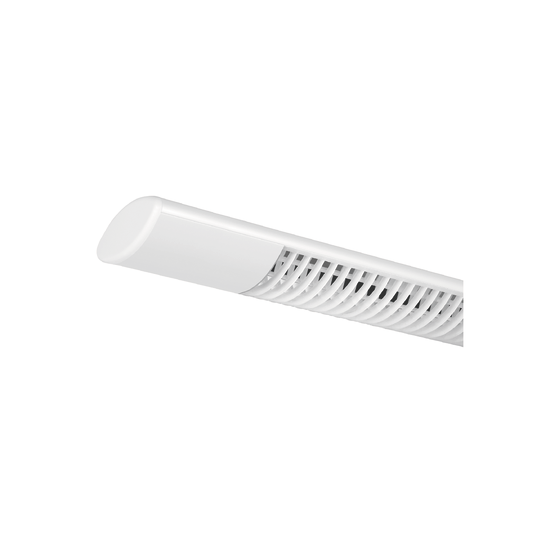

A system lighting luminaire with universal shape made of aluminum profile for T8 fluorescent tubes or LED. The luminaire offers two lighting beams: direct (DI - T8; LED) and direct-indirect (DI-IN - only T8). The wide range of accessories gives many possibilities to connect the luminaires in complexe lighting system.

Materials: powder painted aluminum profile (standard color: white), parabolic louvre PAR made of polished anodized aluminum, opal diffuser made of PMMA, lamella white or metalized louvre, LED version comes with a diffuser in a set

Installation: ceiling mounted, suspenden, wall mounted

Accessories: connector (linear, 90°, flexible, T, X, ceiling, iniversal single and double); suspensions (simple, electric)

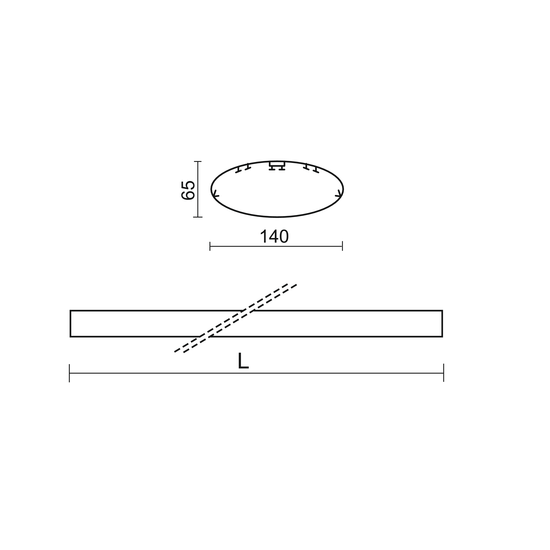

 LWH
PX0320101 1x18W 1080 140 65
PX0320129 1x36W 1680 140 65
PX0320143 1x58W 1980 140 65
PX0320157 2x18W 1080 140 65
PX0320171 2x30W 1380 140 65
PX0320185 2x36W 1680 140 65
PX0320199 2x58W 1980 140 65
PX0340101 1x18W 1080 140 65
PX0340115 1x36W 1680 140 65
PX0340129 1x58W 1980 140 65
PX0340143 2x18W 1080 140 65
PX0340157 2x36W 1680 140 65
PX0340171 2x58W 1980 140 65

L - Length
W - Width
H - Height / Depth

Used marks:


SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum

OPAL - opal lampshade
PRM - prismatic lampshade
MPRM -  microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass

DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution

NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling

EVG - electronic ballast
VVG - magnetic ballast

NM - non maintained
M - maintained
