PXF - Mechanical data |
|
| Type of installation | Universal mounting |
| Housing material | Aluminum |
PXF - Optical data |
|
| Diffuser color | None |
| Louver/shutter | Transparent plastic |
| Diffuser material | Transparent plastic |
PXF - Electrical data |
|
| Light source | LED |
| Number of light sources | 1 |
| Type of equipment | AC |
| Voltage rating | 230 V |
| Light source included | Yes |
| Power factor | 0.97 |
| SELV | Yes |
PXF - Infromations |
|
| Color | Grey |
PXF - Light data |
|
| Light color | White |
| Color rendering index | 80 |
| Class of luminarie | I |
| Light distribution | DI |
PXF - Certificates |
|
| Class of protection | I |
| Energy class | A+ |
| CE | Yes |
| Light source protection | Yes |

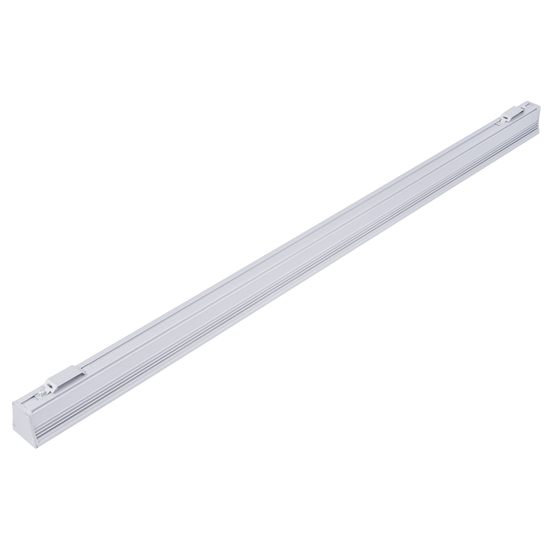

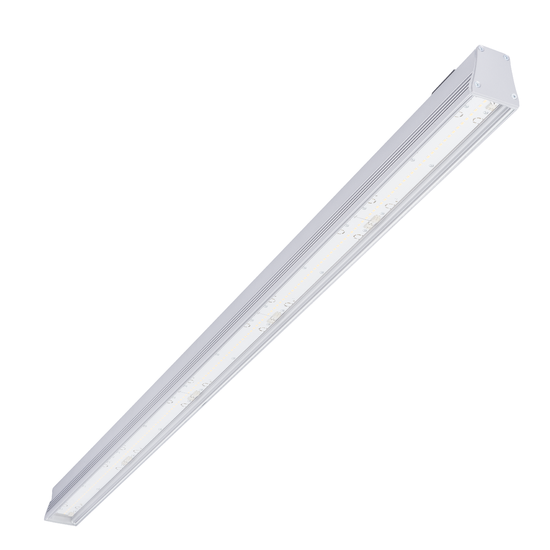

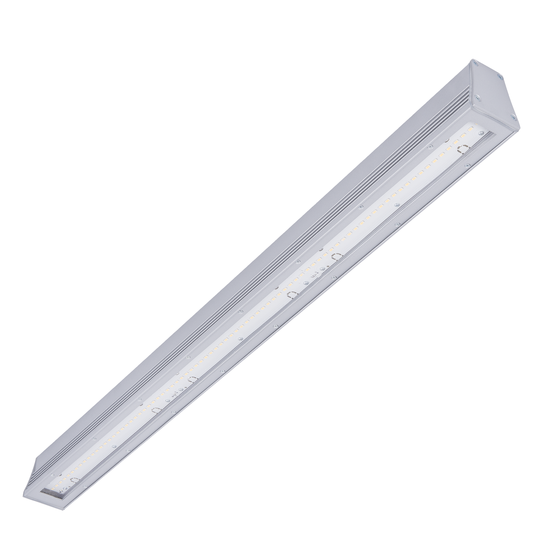

Modern, hermetic luminaire with multiple functions. Perfect for lighting aisles, passageways, storage areas, warehouses and all types of industrial spaces. Matrius is equipped with the latest generation of LED sources closed in the aesthetic, aluminum housing with IP54 degree of protection. Easy installation and smooth adjustment of fasteners spacing.
Materials: aluminum profile, transparent polycarbonate diffuser

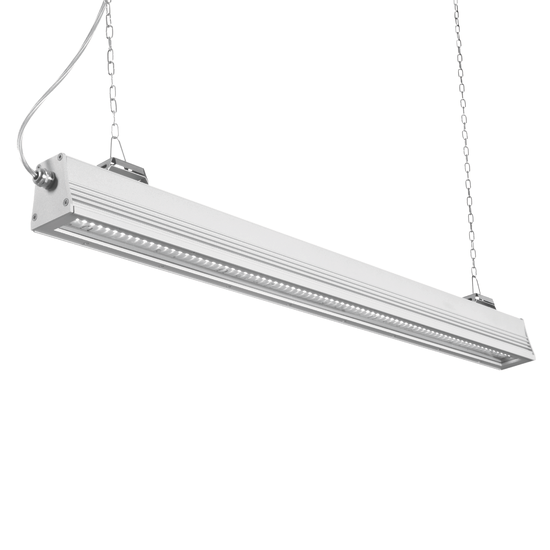

Installation: suspended, ceiling mounted, wall mounted (additional wall bracket, possibility of installation only with luminaire pointing down)
Power: 230 V

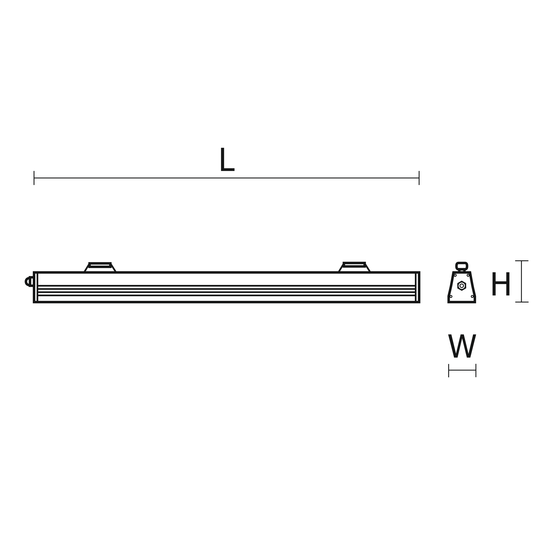

| L | W | H | |
|---|---|---|---|
| PX4010152 35W | 900 | 62 | 93 |
| PX4010159 45W | 1200 | 62 | 93 |
| PX4010166 55W | 1490 | 62 | 93 |
| PX4010101 35W | 900 | 62 | 93 |
| PX4010108 45W | 1200 | 62 | 93 |
| PX4010115 55W | 1490 | 62 | 93 |
| PX4010201 35W | 900 | 62 | 93 |
| PX4010207 45W | 1200 | 62 | 93 |
| PX4010213 55W | 1490 | 62 | 93 |
| PX4010219 35W | 900 | 62 | 93 |
| PX4010225 45W | 1200 | 62 | 93 |
| PX4010231 55W | 1490 | 62 | 93 |
| PX4010321 35W | 900 | 62 | 93 |
| PX4010328 45W | 1200 | 62 | 93 |
| PX4010335 55W | 1490 | 62 | 93 |
| PX4010342 35W | 900 | 62 | 93 |
| PX4010349 45W | 1200 | 62 | 93 |
| PX4010356 55W | 1490 | 62 | 93 |
| PX4010363 35W | 900 | 62 | 93 |
| PX4010370 45W | 1200 | 62 | 93 |
| PX4010377 55W | 1490 | 62 | 93 |
| PX4010384 35W | 900 | 62 | 93 |
| PX4010391 45W | 1200 | 62 | 93 |
| PX4010398 55W | 1490 | 62 | 93 |
L - Length
W - Width
H - Height / Depth
Used marks:
SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum
OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass
DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution
NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling
EVG - electronic ballast
VVG - magnetic ballast
NM - non maintained
M - maintained
PXF Plexiform https://www.electrico24.eu/uploads/producer_logos/2855e4bbbfab7c351abefdfa4e5ea3b0.jpg
Hermetic luminaire Matrius
