PXF - Mechanical data
|
Type of installation |
Recessed |
Housing material |
Steel sheet |
PXF - Electrical data
|
Light source |
LED |
Number of light sources |
1 |
Type of equipment |
AC |
Voltage rating |
230 V |
Light source included |
Yes |
Type of LED |
LG6030 |
SELV |
Yes |
PXF - Infromations
|
Color |
White |
PXF - Light data
|
Light color |
White |
Color rendering index |
80 |
Class of luminarie |
I |
Light distribution |
DI |
PXF - Certificates
|
Degree of protection (IP) |
IP65 |
Class of protection |
I |
Energy class |
A+ |
CE |
Yes |
Light source protection |
Yes |

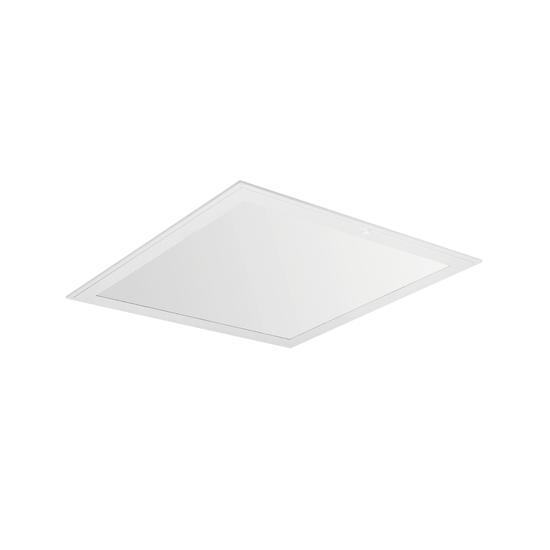

Series of luminaires recommended for industrial areas and for clean rooms where increased IP protection degree is required. Version for LED light sources with two types of diffusers: microprismatic and opal available. Luminaire dedicated for installation in recessed and 600x600 ceiling with visible grid.
Materials: powder painted housing made of galvanized steel sheets (standard color: white), microprismatic diffuser (MPRM) made of PMMA or opal diffuser (OPAL) made of polycarbonate
Installation: for 600x600 ceiling, for cardboard ceiling
Power: 230 V

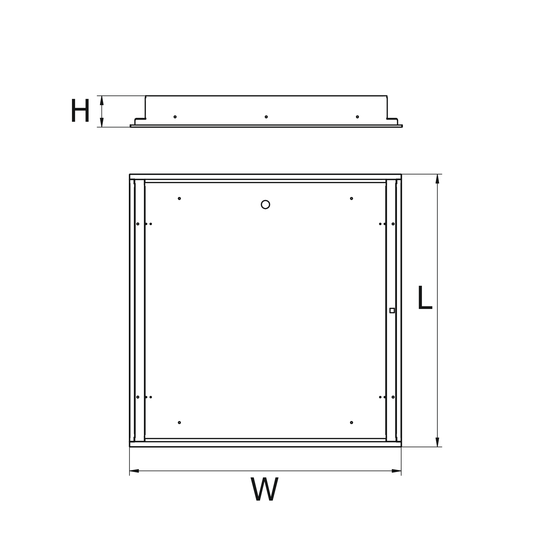

| L | W | H | C | D | E |
PX3715001 44W |
596 |
596 |
69 |
575 |
575 |
70 |
PX3715008 44W |
596 |
596 |
69 |
575 |
575 |
70 |
PX3715015 55W |
1196 |
296 |
69 |
275 |
1175 |
70 |
PX3715022 55W |
1196 |
296 |
69 |
275 |
1175 |
70 |
PX3715029 44W |
596 |
596 |
69 |
575 |
575 |
70 |
PX3715036 44W |
596 |
596 |
69 |
575 |
575 |
70 |
PX3715043 55W |
1196 |
296 |
69 |
275 |
1175 |
70 |
PX3715050 55W |
1196 |
296 |
69 |
275 |
1175 |
70 |
L - Length
W - Width
H - Height / Depth
C - Installation length
D - Installation width
E - Installation depth
Used marks:
SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum
OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass
DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution
NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling
EVG - electronic ballast
VVG - magnetic ballast
NM - non maintained
M - maintained
