CoreLine LED Panel LED Panels Recessed

Product code: 60604
Price € 183,62 € 191,08
€ 183,62 netto
pc(s)
pc(s)
  • Dimmable No [No]
  • Full product code 910503910025
  • Full product name RC125B LED34S/840 PSU W60L60
  • Order code 910503910025
  • Order product name RC125B LED34S/840 PSU W60L60
  • Pieces per pack 0
  • Bar code on outerbox - EAN3 8718696067314
  • Packs per outerbox 1
  • Logistic code(s) - 12NC 910503910025
  • Net weight per piece 4.500 kg
  • Product family code RC125B [RC125B]
  • Lamp family code LED34S [LED Module, system flux 3400 lm]
  • ▼ see full specification ▼

RC125B - LED Module, system flux 3400 lm - Power supply unit

1 variant available

 RC125B LED34S/840 PSU W60L60
Product code: 60604 Dimmable: No [No] Full product code: 910503910025 Full product name: RC125B LED34S/840 PSU W60L60 Order code: 910503910025 Order product name: RC125B LED34S/840 PSU W60L60 Pieces per pack: 0 Bar code on outerbox - EAN3: 8718696067314 Packs per outerbox: 1 Logistic code(s) - 12NC: 910503910025 Net weight per piece: 4.500 kg see more »
Product family code: RC125B [RC125B] Lamp family code: LED34S [LED Module, system flux 3400 lm] Light source color: 840 [840 neutral white] Ingress protection code: IP20 [Finger-protected] Input voltage: 220-240 V [220 to 240 V] Protection class IEC: CLII [Safety class II] Mech. impact protection code: IK02 [0.2 J standard] Color: WH [White] CE mark: CE [CE mark] ENEC mark: No Flammability mark: F [For mounting on normally flammable surfaces] Light source replaceable: false [No] Connection: PIP [Push-in connector and pull relief] Driver included: true [Yes] Driver/power unit/transformer: PSU [Power supply unit] Housing material: STL [Steel] Input frequency: 50-60 Hz [50 to 60 Hz] Initial input power: 41 W [41 W] Initial LED luminaire efficacy: 83 Lm/W Initial luminous flux: 3400 Lm Init. Color Rendering Index: > 80 [> 80] Init. Corr. Color Temperature: 4000 [4000 K] Initial chromaticy: (0.38, 0.38) SDCM Driver failure rate at 5000 h: 1.5 % Median useful life L80B50: 30000 hr Ambient temperature range: +10 to +40°C [+10 to +40 °C] Average ambient temperature: T25 [+25 °C] Suitable for random switching: Yes [Yes (relates to presence/ movement detection and daylight harvesting)] Optic material: PMMA [Polymethyl methacrylate] Median useful life L90B50: 15000 hr Safety device: SC [Safety cable] Geometry: W60L60 [Width 0.60 m, length 0.60 m] UL mark: No Luminous flux tolerance: 5% Luminaire light beam spread: 110 [110 degrees] Median useful life L70B50: 50000 hr « hide more
€ 183,62 € 183,62 ex. VAT
pc(s)
pc(s)
Dimmable No [No]
Full product code 910503910025
Full product name RC125B LED34S/840 PSU W60L60
Order code 910503910025
Order product name RC125B LED34S/840 PSU W60L60
Pieces per pack 0
Bar code on outerbox - EAN3 8718696067314
Packs per outerbox 1
Logistic code(s) - 12NC 910503910025
Net weight per piece 4.500 kg
Product family code RC125B [RC125B]
Lamp family code LED34S [LED Module, system flux 3400 lm]
Light source color 840 [840 neutral white]
Ingress protection code IP20 [Finger-protected]
Input voltage 220-240 V [220 to 240 V]
Protection class IEC CLII [Safety class II]
Mech. impact protection code IK02 [0.2 J standard]
Color WH [White]
CE mark CE [CE mark]
ENEC mark No
Flammability mark F [For mounting on normally flammable surfaces]
Light source replaceable false [No]
Connection PIP [Push-in connector and pull relief]
Driver included true [Yes]
Driver/power unit/transformer PSU [Power supply unit]
Housing material STL [Steel]
Input frequency 50-60 Hz [50 to 60 Hz]
Initial input power 41 W [41 W]
Initial LED luminaire efficacy 83 Lm/W
Initial luminous flux 3400 Lm
Init. Color Rendering Index > 80 [> 80]
Init. Corr. Color Temperature 4000 [4000 K]
Initial chromaticy (0.38, 0.38) SDCM
Driver failure rate at 5000 h 1.5 %
Median useful life L80B50 30000 hr
Ambient temperature range +10 to +40°C [+10 to +40 °C]
Average ambient temperature T25 [+25 °C]
Suitable for random switching Yes [Yes (relates to presence/ movement detection and daylight harvesting)]
Optic material PMMA [Polymethyl methacrylate]
Median useful life L90B50 15000 hr
Safety device SC [Safety cable]

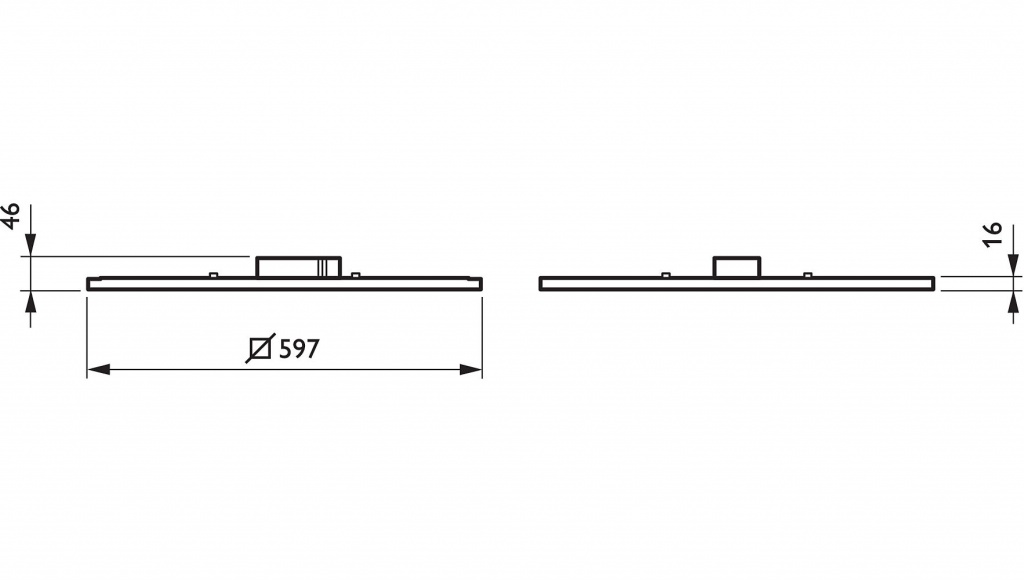

Geometry W60L60 [Width 0.60 m, length 0.60 m]
UL mark No
Luminous flux tolerance 5%

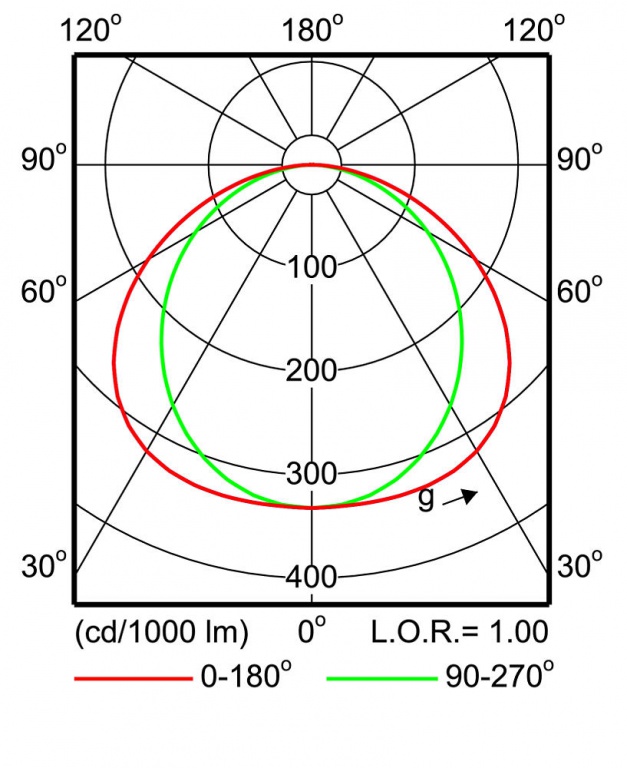

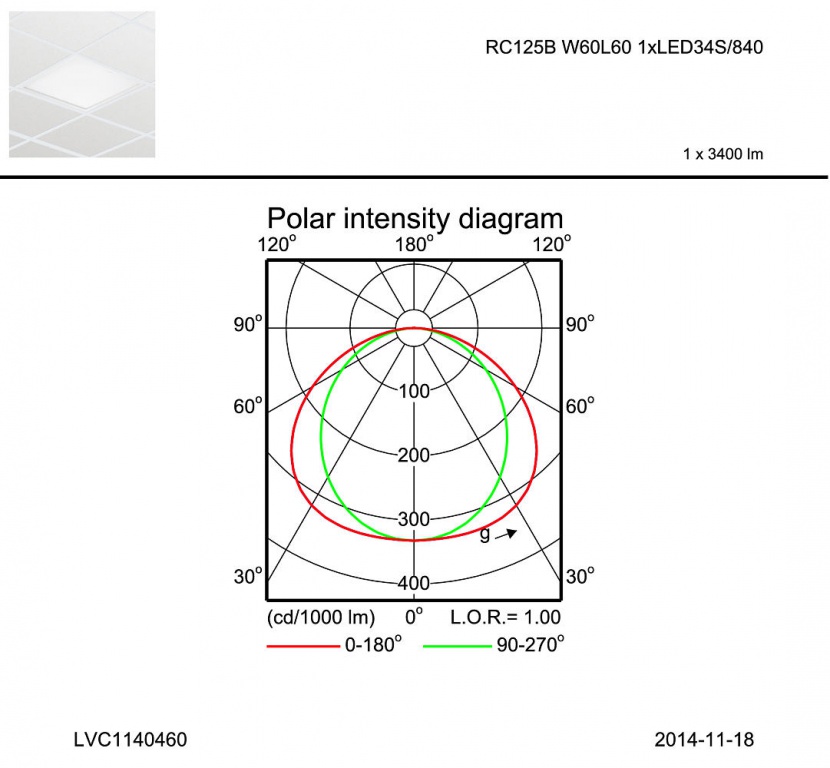

Luminaire light beam spread 110 [110 degrees]
Median useful life L70B50 50000 hr

Whether for a new building or renovation of an existing space, customers want lighting solutions that provide quality of light and substantial energy and maintenance savings. The new CoreLine Panel range of LED products can be used to replace functional luminaires in general lighting applications. The process of selecting, installing and maintaining is so easy – it’s a simple switch.

Features

Integrated LED technology
Slim square housing
Choice of two color temperatures: 3000 and 4000 K

Applications

General lighting

If you buy goods in partial package that is not currently available in our store (available on request), we reserve the rights to charge additional increments of 5 EUR ex. VAT.
