Luminaire MODENA MINI LED LED Plafonds

From € 33,44 incl. VAT
From € 33,44 ex. VAT
See variants (12)
  • Type of installation Surface mounted
  • Housing material Policarbonate
  • Diffuser color White
  • Louver/shutter OPAL
  • Diffuser material Opal/mat plastic
  • Light source LED
  • Number of light sources 1
  • Type of equipment AC
  • Voltage rating 230 V
  • Light source included Yes
  • Type of LED LG6030
  • SELV Yes
  • ▼ see full specification ▼

Select your product from the 12

 Modena Mini LED 10W 3000K White
Product code: 62777 Light source power: 1x10W Luminarie luminous efficacy: 48 lm/W Luminarie luminous flux: 483 lm Color temperature: 3000K Weight: 2.00 kg Color: White
€ 33,44 € 33,44 ex. VAT
pc(s)
pc(s)
 Modena Mini LED 10W 4000K White
Product code: 62778 Light source power: 1x10W Luminarie luminous efficacy: 53 lm/W Luminarie luminous flux: 533 lm Color temperature: 4000K Weight: 2.00 kg Color: White
€ 33,44 € 33,44 ex. VAT
pc(s)
pc(s)
 Modena Mini LED 10W 3000K Grey
Product code: 62779 Light source power: 1x10W Luminarie luminous efficacy: 48 lm/W Luminarie luminous flux: 483 lm Color temperature: 3000K Weight: 2.00 kg Color: Grey
€ 33,66 € 33,66 ex. VAT
pc(s)
pc(s)
 Modena Mini LED 10W 4000K Grey
Product code: 62780 Light source power: 1x10W Luminarie luminous efficacy: 53 lm/W Luminarie luminous flux: 533 lm Color temperature: 4000K Weight: 2.00 kg Color: Grey
€ 33,66 € 33,66 ex. VAT
pc(s)
pc(s)
 Modena Mini LED 20W 3000K Grey
Product code: 62773 Light source power: 1x20W Luminarie luminous efficacy: 62 lm/W Luminarie luminous flux: 1237 lm Color temperature: 3000K Weight: 1.30 kg Color: Grey
€ 42,31 € 42,31 ex. VAT
pc(s)
pc(s)
 Modena Mini LED 20W 3000K White
Product code: 62769 Light source power: 1x20W Luminarie luminous efficacy: 62 lm/W Luminarie luminous flux: 1237 lm Color temperature: 3000K Weight: 1.30 kg Color: White
€ 42,31 € 42,31 ex. VAT
pc(s)
pc(s)
 Modena Mini LED 20W 4000K Grey
Product code: 62774 Light source power: 1x20W Luminarie luminous efficacy: 64 lm/W Luminarie luminous flux: 1275 lm Color temperature: 4000K Weight: 1.30 kg Color: Grey
€ 42,31 € 42,31 ex. VAT
pc(s)
pc(s)
 Modena Mini LED 20W 4000K White
Product code: 62770 Light source power: 1x20W Luminarie luminous efficacy: 64 lm/W Luminarie luminous flux: 1275 lm Color temperature: 4000K Weight: 1.30 kg Color: White
€ 42,31 € 42,31 ex. VAT
pc(s)
pc(s)
 Modena Mini LED 20W 3000K White AW 3H
Product code: 62771 Light source power: 1x20W Info: AW 3H Luminarie luminous efficacy: 62 lm/W Luminarie luminous flux: 1237 lm Color temperature: 3000K Weight: 2.00 kg Color: White
€ 94,81 € 94,81 ex. VAT
pc(s)
pc(s)
 Modena Mini LED 20W 4000K White AW 3H
Product code: 62772 Light source power: 1x20W Info: AW 3H Luminarie luminous efficacy: 64 lm/W Luminarie luminous flux: 1275 lm Color temperature: 4000K Weight: 2.00 kg Color: White
€ 94,81 € 94,81 ex. VAT
pc(s)
pc(s)
 Modena Mini LED 20W 3000K Grey AW 3H
Product code: 62775 Light source power: 1x20W Info: AW 3H Luminarie luminous efficacy: 62 lm/W Luminarie luminous flux: 1237 lm Color temperature: 3000K Weight: 2.00 kg Color: Grey
€ 95,03 € 95,03 ex. VAT
pc(s)
pc(s)
 Modena Mini LED 20W 4000K Grey AW 3H
Product code: 62776 Light source power: 1x20W Info: AW 3H Luminarie luminous efficacy: 64 lm/W Luminarie luminous flux: 1275 lm Color temperature: 4000K Weight: 2.00 kg Color: Grey
€ 95,03 € 95,03 ex. VAT
pc(s)
pc(s)

PXF - Mechanical data

Type of installation Surface mounted
Housing material Policarbonate

PXF - Optical data

Diffuser color White
Louver/shutter OPAL
Diffuser material Opal/mat plastic

PXF - Electrical data

Light source LED
Number of light sources 1
Type of equipment AC
Voltage rating 230 V
Light source included Yes
Type of LED LG6030
SELV Yes
Igniter/starter Not required

PXF - Light data

Light color White
Class of luminarie I
Light distribution DI

PXF - Certificates

Degree of protection (IP) IP54
Class of protection I
Energy class A+
CE Yes
Light source protection Yes
Impact resistance IK10

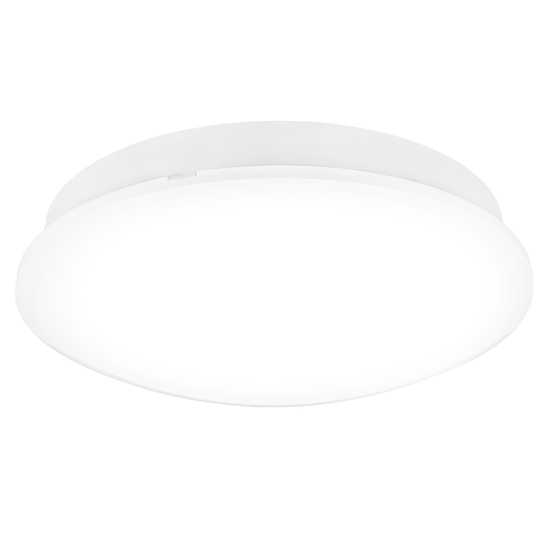

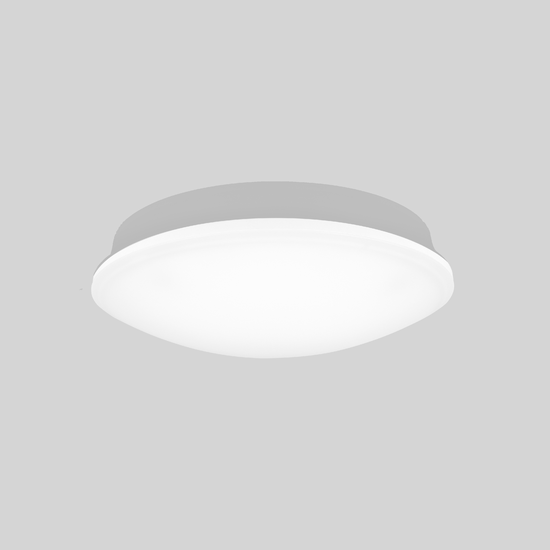

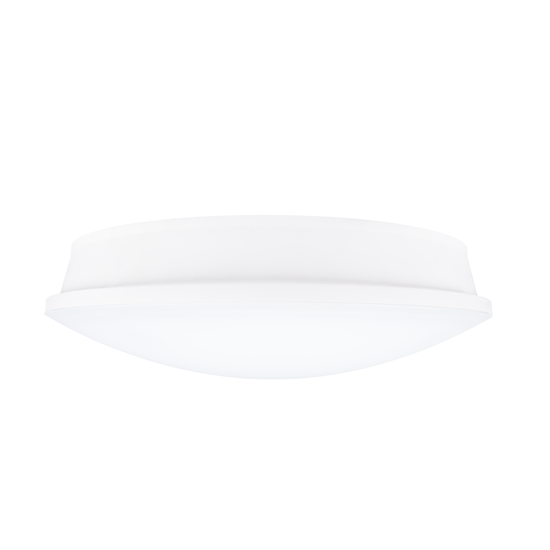

Modern plafond Modena Mini is an extension of Modena family of luminaires. Highly aesthetic and characteristic for great parameters: resistance to external conditions and UV rays with IP54 degree of protection. Available with AW 3H emergency module. Possibility of application of motion sensor or day light sensor.

Materials: white version: base and diffuser made of white UV proof polycarbonate, grey version: grey base and white diffuser made of UV proof polycarbonate

Installation: ceiling mounted, wall mounted

Power: 230 V

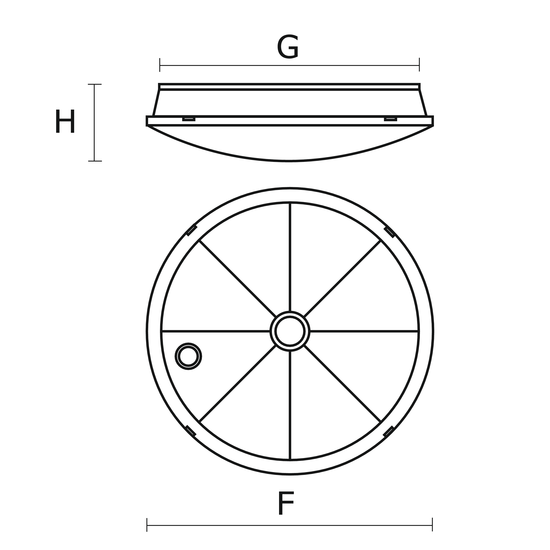

HF
90 315

H - Height / Depth
F - Outer diameter

Used marks:


SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum

OPAL - opal lampshade
PRM - prismatic lampshade
MPRM -  microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass

DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution

NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling

EVG - electronic ballast
VVG - magnetic ballast

NM - non maintained
M - maintained
