PXF - Mechanical data |
|
| Type of installation | Pole mounted |
| Housing material | Aluminum |
PXF - Optical data |
|
| Reflector | High gloss |
| Diffuser color | None |
| Diffuser material | Opal glass |
PXF - Electrical data |
|
| Light source | LED |
| Number of light sources | 1 |
| Type of equipment | Not required |
| Voltage rating | 230 V |
| Light source included | Yes |
| Type of LED | VS |
| SELV | Yes |
| Light source power | 9W |
| Luminarie power | 9 W |
PXF - Infromations |
|
| Color | Anthracite |
| Operating temperature range | -20 ... 40 ° |
PXF - Light data |
|
| Light color | White |
| Color rendering index | 80 |
| Class of luminarie | I |
| Light distribution | DI |
PXF - Certificates |
|
| Degree of protection (IP) | IP65 |
| Class of protection | I |
| Energy class | A |
| CE | Yes |
| Light source protection | Yes |
| Impact resistance | IK08 |

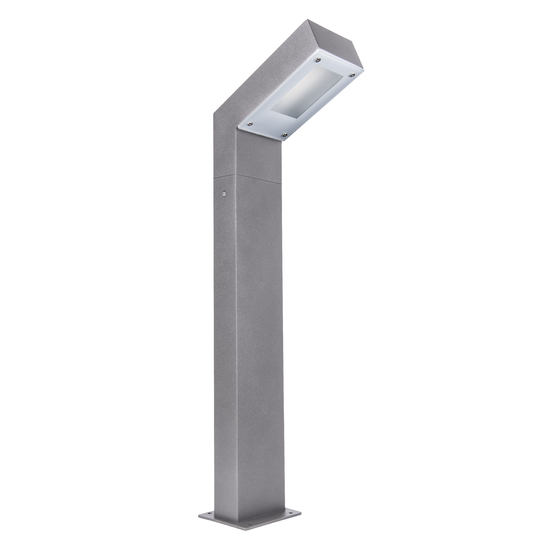

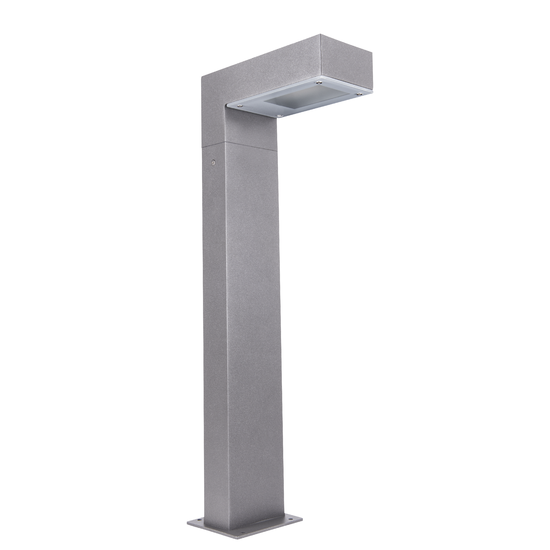

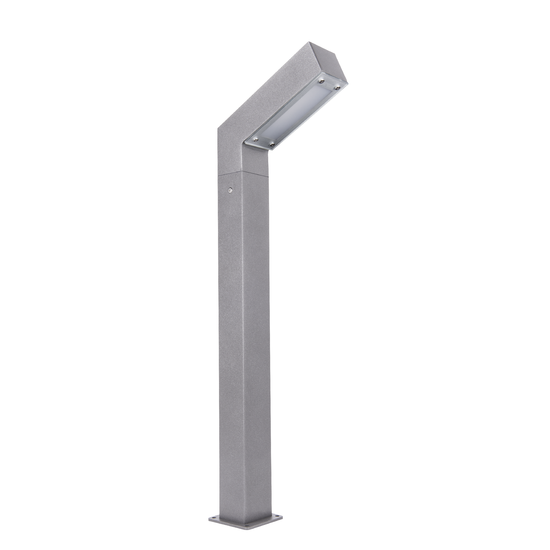

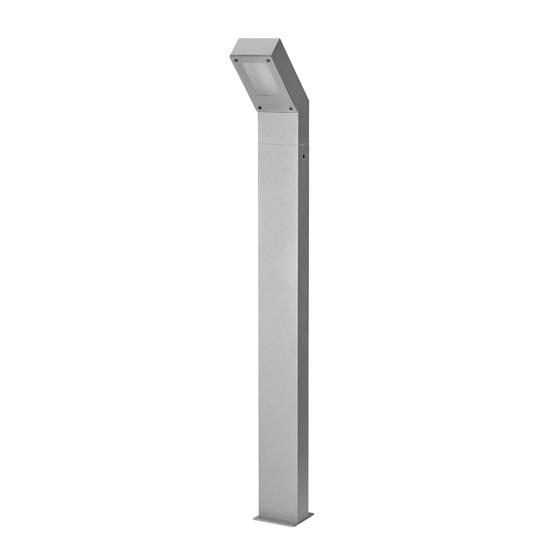

Luminaire designed for LED light sources in the form of a rectanle pillar. Various colors, dimensions and slopes available as a standard. Perfect solution for discreet lighting of buildings surroundings, paths and gardens.
Materials: housing made of aluminum profile painted with a paint resistant to external conditions (standard color: graphite, other colours on request, frosted glass
Installation: for the ground
Power: 230 V

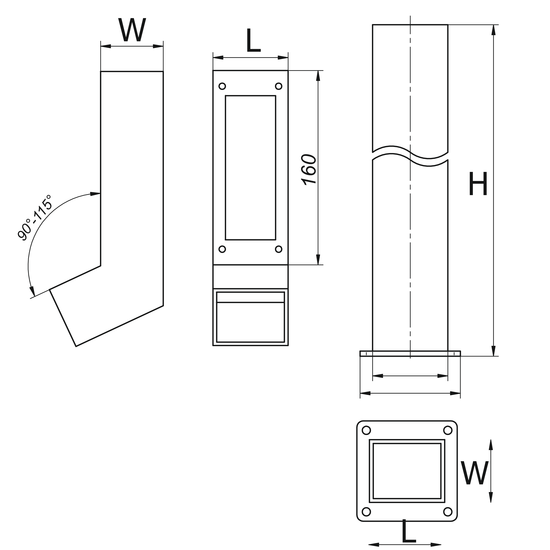

| L | W | H | |
|---|---|---|---|
| PX4059001 9W | 60 | 50 | 170 |
| PX4059008 9W | 60 | 50 | 170 |
| PX4059015 9W | 100 | 50 | 120 |
| PX4059022 9W | 100 | 50 | 120 |
| PX4059029 9W | 100 | 50 | 170 |
| PX4059036 9W | 100 | 50 | 170 |
L - Length
W - Width
H - Height / Depth
Used marks:
SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum
OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass
DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution
NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling
EVG - electronic ballast
VVG - magnetic ballast
NM - non maintained
M - maintained
