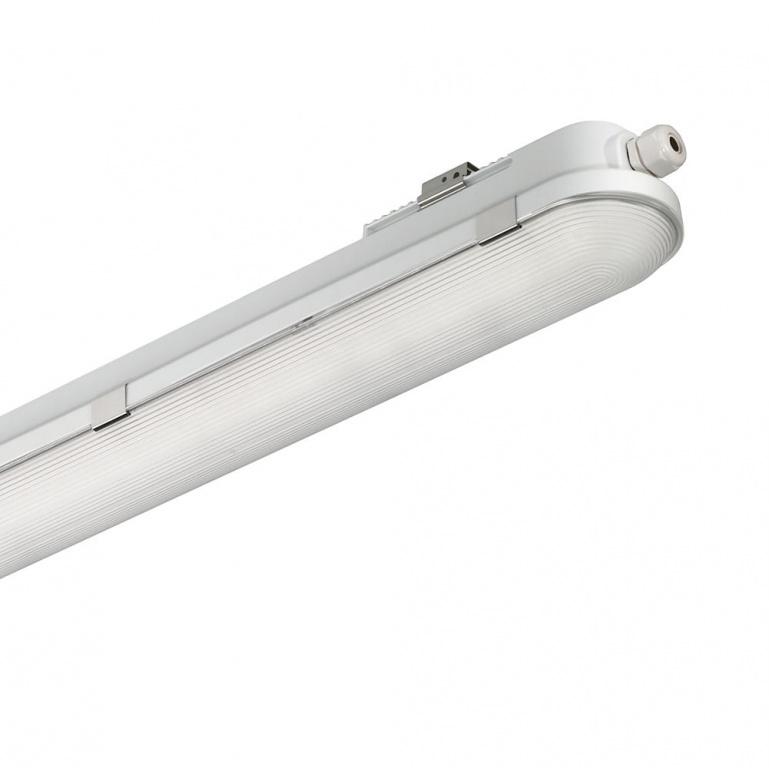

LED luminaire CoreLine Waterproof Fluorescent Hermetic Luminaires

From € 82,81 incl. VAT
From € 82,81 ex. VAT

See variants (5)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 5

WT120C LED18S/840 PSU L600

Karta produktu PDF

Product code: 60467 Dimmable: No [No] Full product code: 910500453335 Full product name: WT120C LED18S/840 PSU L600 Order code: 910500453335 Order product name: WT120C LED18S/840 PSU L600 Pieces per pack: 0 Bar code on outerbox - EAN3: 8718291840459 Packs per outerbox: 1 Logistic code(s) - 12NC: 910500453335 Net weight per piece: 0.930 kg see more »

Product family code: WT120C [WT120C] Number of light sources: 1 [1 pc] Lamp family code: LED18S [LED Module, system flux 1800 lm] Light source color: 840 [840 neutral white] Optical cover/lens type: PC [Polycarbonate] Ingress protection code: IP65 [Dust penetration-protected, jet-proof] Input voltage: 220-240 V [220 to 240 V] Protection class IEC: CLI [Safety class I] Mech. impact protection code: IK08 [5 J vandal-protected] Color: GR [Gray] CE mark: CE [CE mark] Flammability mark: F [For mounting on normally flammable surfaces] Glow-wire test: 850/30 [Temperature 850 °C, duration 30 s] Light source replaceable: false [No] Connection: PIP [Push-in connector and pull relief] Driver included: true [Yes] Driver/power unit/transformer: PSU [Power supply unit] Housing material: PC [Polycarbonate] Input frequency: 50-60 Hz [50 to 60 Hz] Initial input power: 19 W [19 W] Initial LED luminaire efficacy: 95 Lm/W Initial luminous flux: 1800 Lm Init. Color Rendering Index: > 80 [> 80] Init. Corr. Color Temperature: 4000 [4000 K] Initial chromaticy: (0.38, 0.38) SDCM Driver failure rate at 5000 h: 1 % Median useful life L80B50: 50000 hr Ambient temperature range: -20 to +35°C [-20 to +35 °C] Average ambient temperature: T25 [+25 °C] Suitable for random switching: Yes [Yes (relates to presence/ movement detection and daylight harvesting)] Optic material: PC [Polycarbonate] Optical cover/lens material: PC [Polycarbonate] Median useful life L90B50: 25000 hr Length: L600 [600 mm] « hide more

€ 82,81 € 82,81 ex. VAT

WT120C LED22S/840 PSU L1200

Karta produktu PDF

Product code: 60468 Dimmable: No [No] Full product code: 910500453336 Full product name: WT120C LED22S/840 PSU L1200 Order code: 910500453336 Order product name: WT120C LED22S/840 PSU L1200 Pieces per pack: 0 Bar code on outerbox - EAN3: 8718291840466 Packs per outerbox: 1 Logistic code(s) - 12NC: 910500453336 Net weight per piece: 1.530 kg see more »

Product family code: WT120C [WT120C] Number of light sources: 1 [1 pc] Lamp family code: LED22S [LED Module, system flux 2200 lm] Light source color: 840 [840 neutral white] Optical cover/lens type: PC [Polycarbonate] Ingress protection code: IP65 [Dust penetration-protected, jet-proof] Input voltage: 220-240 V [220 to 240 V] Protection class IEC: CLI [Safety class I] Mech. impact protection code: IK08 [5 J vandal-protected] Color: GR [Gray] CE mark: CE [CE mark] Flammability mark: F [For mounting on normally flammable surfaces] Glow-wire test: 850/30 [Temperature 850 °C, duration 30 s] Light source replaceable: false [No] Connection: PIP [Push-in connector and pull relief] Driver included: true [Yes] Driver/power unit/transformer: PSU [Power supply unit] Housing material: PC [Polycarbonate] Input frequency: 50-60 Hz [50 to 60 Hz] Initial input power: 23 W [23 W] Initial LED luminaire efficacy: 96 Lm/W Initial luminous flux: 2200 Lm Init. Color Rendering Index: > 80 [> 80] Init. Corr. Color Temperature: 4000 [4000 K] Initial chromaticy: (0.38, 0.38) SDCM Driver failure rate at 5000 h: 1 % Median useful life L80B50: 50000 hr Ambient temperature range: -20 to +35°C [-20 to +35 °C] Average ambient temperature: T25 [+25 °C] Suitable for random switching: Yes [Yes (relates to presence/ movement detection and daylight harvesting)] Optic material: PC [Polycarbonate] Optical cover/lens material: PC [Polycarbonate] Median useful life L90B50: 25000 hr Length: L1200 [1200 mm] « hide more

€ 104,28 € 104,28 ex. VAT

WT120C LED40S/840 PSU L1200

Karta produktu PDF

Product code: 60470 Dimmable: No [No] Full product code: 910500453338 Full product name: WT120C LED40S/840 PSU L1200 Order code: 910500453338 Order product name: WT120C LED40S/840 PSU L1200 Pieces per pack: 0 Bar code on outerbox - EAN3: 8718291840480 Packs per outerbox: 1 Logistic code(s) - 12NC: 910500453338 Net weight per piece: 1.530 kg see more »

Product family code: WT120C [WT120C] Number of light sources: 1 [1 pc] Lamp family code: LED40S [LED Module, system flux 4000 lm] Light source color: 840 [840 neutral white] Optical cover/lens type: PC [Polycarbonate] Ingress protection code: IP65 [Dust penetration-protected, jet-proof] Input voltage: 220-240 V [220 to 240 V] Protection class IEC: CLI [Safety class I] Mech. impact protection code: IK08 [5 J vandal-protected] Color: GR [Gray] CE mark: CE [CE mark] Flammability mark: F [For mounting on normally flammable surfaces] Glow-wire test: 850/30 [Temperature 850 °C, duration 30 s] Light source replaceable: false [No] Connection: PIP [Push-in connector and pull relief] Driver included: true [Yes] Driver/power unit/transformer: PSU [Power supply unit] Housing material: PC [Polycarbonate] Input frequency: 50-60 Hz [50 to 60 Hz] Initial input power: 41 W [41 W] Initial LED luminaire efficacy: 98 Lm/W Initial luminous flux: 4000 Lm Init. Color Rendering Index: > 80 [> 80] Init. Corr. Color Temperature: 4000 [4000 K] Initial chromaticy: (0.38, 0.38) SDCM Driver failure rate at 5000 h: 1 % Median useful life L80B50: 50000 hr Ambient temperature range: -20 to +35°C [-20 to +35 °C] Average ambient temperature: T25 [+25 °C] Suitable for random switching: Yes [Yes (relates to presence/ movement detection and daylight harvesting)] Optic material: PC [Polycarbonate] Optical cover/lens material: PC [Polycarbonate] Median useful life L90B50: 25000 hr Length: L1200 [1200 mm] « hide more

€ 116,55 € 116,55 ex. VAT

WT120C LED34S/840 PSU L1500

Karta produktu PDF

Product code: 60469 Dimmable: No [No] Full product code: 910500453337 Full product name: WT120C LED34S/840 PSU L1500 Order code: 910500453337 Order product name: WT120C LED34S/840 PSU L1500 Pieces per pack: 0 Bar code on outerbox - EAN3: 8718291840473 Packs per outerbox: 1 Logistic code(s) - 12NC: 910500453337 Net weight per piece: 1.820 kg see more »

Product family code: WT120C [WT120C] Number of light sources: 1 [1 pc] Lamp family code: LED34S [LED Module, system flux 3400 lm] Light source color: 840 [840 neutral white] Optical cover/lens type: PC [Polycarbonate] Ingress protection code: IP65 [Dust penetration-protected, jet-proof] Input voltage: 220-240 V [220 to 240 V] Protection class IEC: CLI [Safety class I] Mech. impact protection code: IK08 [5 J vandal-protected] Color: GR [Gray] CE mark: CE [CE mark] Flammability mark: F [For mounting on normally flammable surfaces] Glow-wire test: 850/30 [Temperature 850 °C, duration 30 s] Light source replaceable: false [No] Connection: PIP [Push-in connector and pull relief] Driver included: true [Yes] Driver/power unit/transformer: PSU [Power supply unit] Housing material: PC [Polycarbonate] Input frequency: 50-60 Hz [50 to 60 Hz] Initial input power: 29 W [29 W] Initial LED luminaire efficacy: 117 Lm/W Initial luminous flux: 3400 Lm Init. Color Rendering Index: > 80 [> 80] Init. Corr. Color Temperature: 4000 [4000 K] Initial chromaticy: (0.38, 0.38) SDCM Driver failure rate at 5000 h: 1 % Median useful life L80B50: 50000 hr Ambient temperature range: -20 to +35°C [-20 to +35 °C] Average ambient temperature: T25 [+25 °C] Suitable for random switching: Yes [Yes (relates to presence/ movement detection and daylight harvesting)] Optic material: PC [Polycarbonate] Optical cover/lens material: PC [Polycarbonate] Median useful life L90B50: 25000 hr Length: L1500 [1500 mm] « hide more

€ 127,28 € 127,28 ex. VAT

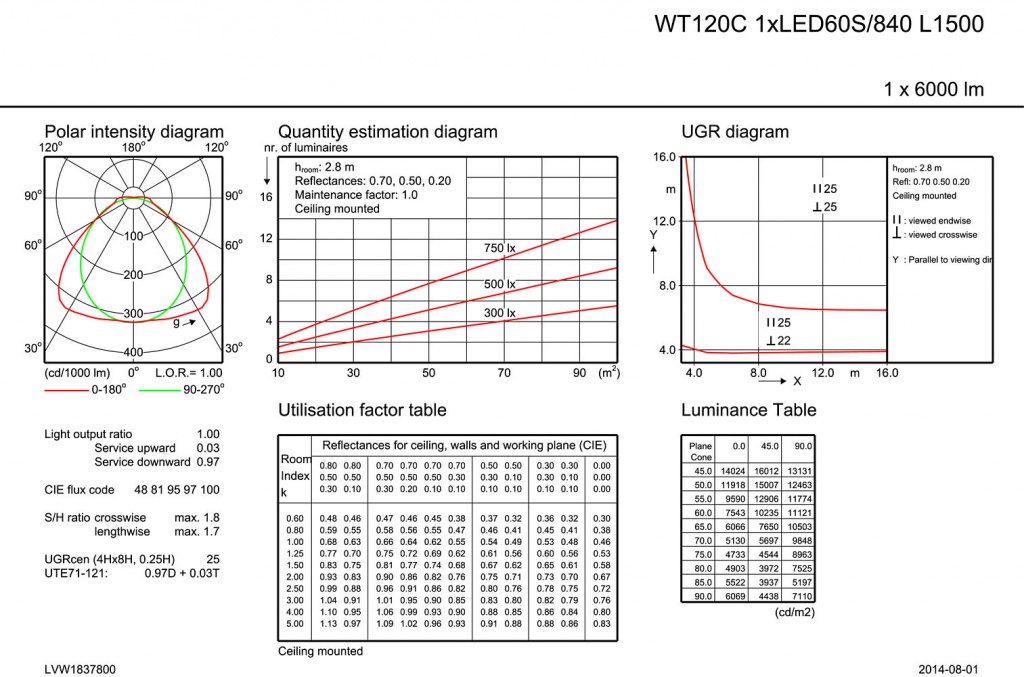

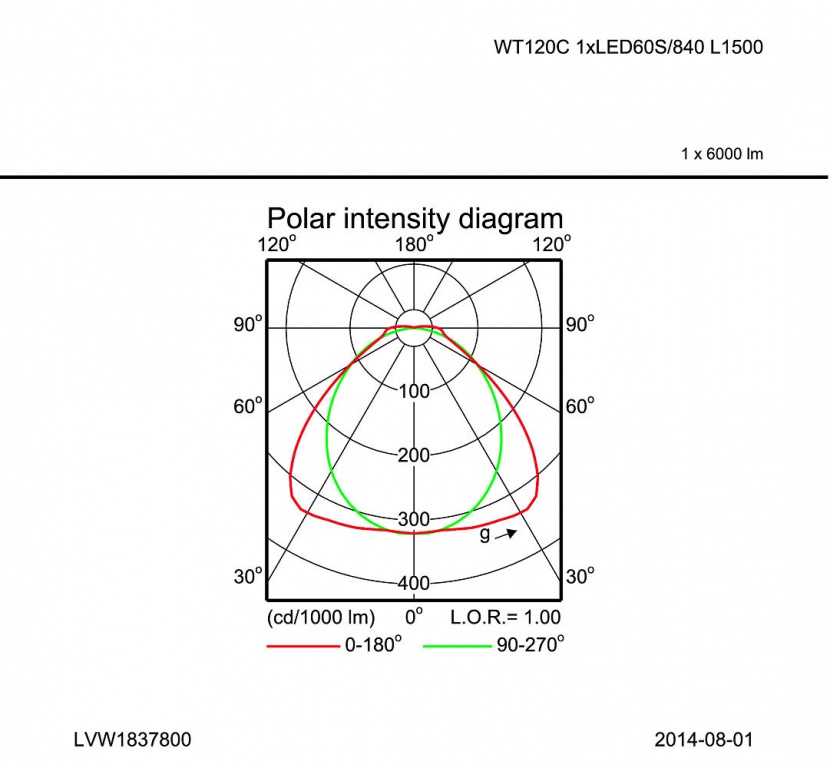

WT120C LED60S/840 PSU L1500

Karta produktu PDF

Product code: 60471 Dimmable: No [No] Full product code: 910500453339 Full product name: WT120C LED60S/840 PSU L1500 Order code: 910500453339 Order product name: WT120C LED60S/840 PSU L1500 Pieces per pack: 0 Bar code on outerbox - EAN3: 8718291840497 Packs per outerbox: 1 Logistic code(s) - 12NC: 910500453339 Net weight per piece: 1.820 kg see more »

Product family code: WT120C [WT120C] Number of light sources: 1 [1 pc] Lamp family code: LED60S [LED Module, system flux 6000 lm] Light source color: 840 [840 neutral white] Optical cover/lens type: PC [Polycarbonate] Ingress protection code: IP65 [Dust penetration-protected, jet-proof] Input voltage: 220-240 V [220 to 240 V] Protection class IEC: CLI [Safety class I] Mech. impact protection code: IK08 [5 J vandal-protected] Color: GR [Gray] CE mark: CE [CE mark] Flammability mark: F [For mounting on normally flammable surfaces] Glow-wire test: 850/30 [Temperature 850 °C, duration 30 s] Light source replaceable: false [No] Connection: PIP [Push-in connector and pull relief] Driver included: true [Yes] Driver/power unit/transformer: PSU [Power supply unit] Housing material: PC [Polycarbonate] Input frequency: 50-60 Hz [50 to 60 Hz] Initial input power: 57 W [57 W] Initial LED luminaire efficacy: 105 Lm/W Initial luminous flux: 6000 Lm Init. Color Rendering Index: > 80 [> 80] Init. Corr. Color Temperature: 4000 [4000 K] Initial chromaticy: (0.38, 0.38) SDCM Driver failure rate at 5000 h: 1 % Median useful life L80B50: 50000 hr Ambient temperature range: -20 to +35°C [-20 to +35 °C] Average ambient temperature: T25 [+25 °C] Suitable for random switching: Yes [Yes (relates to presence/ movement detection and daylight harvesting)] Optic material: PC [Polycarbonate] Optical cover/lens material: PC [Polycarbonate] Median useful life L90B50: 25000 hr Length: L1500 [1500 mm] « hide more

€ 131,88 € 131,88 ex. VAT

Description / FAQ Warranty

Whether for a new building or renovation of an existing space, customers want lighting solutions that provide quality of light and substantial energy and maintenance savings. The new CoreLine Waterproof range of LED products can be used to replace traditional waterproof luminaires with fluorescent lamps. The process of selecting, installing and maintaining is so easy – it’s a simple switch.

Features

Reliable integrated LED technology, ensuring maintenance-free installation and a long lifetime

Can be used to replace traditional waterproof luminaires ranging from 18 to 58 W TL-D

Wide-beam light distribution

Diffuser with optical element ensures visual comfort

Ceiling-mounted bracket and suspension hooks included; installation can be made vandal-proof by additional screw fixation of mounting brackets

Applications

Parking garages

Warehouses

General lighting
