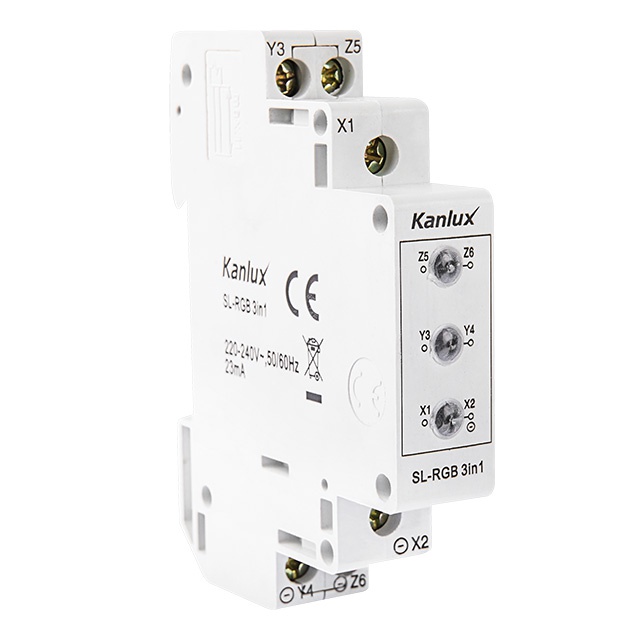

LED control light SL-RGB 3in1 LED control lights

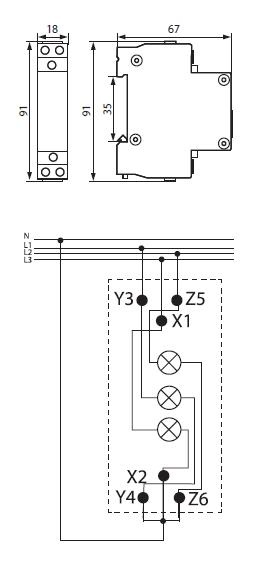

LED control light Kanlux SL-RGB 3in1 - technical drawing

Unavailable

Rated frequency 50/60Hz
conformity with European standards
applicable indoors
protection against solid objects over 12mm
weight 68g
mounting on 35mm DIN rail
permissible surrounding temperature from -5 to max 40 C degrees
cable cross section: 1-4mm2
rated voltage 220/240V~
rated current 23mA
wattage 0,6W
light source 3 led SMD
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Manual Catalogue page

Score

rate product

Kanlux Parameters
	Rated frequency 50/60Hz
	conformity with European standards
	applicable indoors
	protection against solid objects over 12mm
	weight 68g
	mounting on 35mm DIN rail
	permissible surrounding temperature from -5 to max 40 C degrees
	cable cross section: 1-4mm2
	rated voltage 220/240V~
	rated current 23mA
	wattage 0,6W
	light source 3 led SMD
	number of fields/modules
	240 pcs per inner box

compliance with EN60947-1/EN60947-5-1 standards
used for light signalling of voltage presence

LED control light SL-RGB 3in1

Rated 5.0/5 based on 1 customer reviews

https://www.electrico24.eu/uploads/assortment_images/a-17593-150708.jpg

Automation / LED control lights

Kanlux https://www.electrico24.eu/uploads/producer_logos/15832148e335629866499737d3b75205.png

LED control light SL-RGB 3in1

12.26 PLN available
