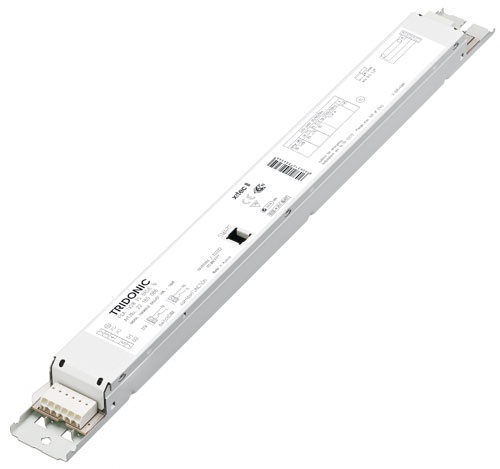

PCA T5 BASIC lp xitec II, 14 - 80 W Fluorescent Electronic Gear

Tridonic - parametry
	CE
	EAC
	EL
	EMCVDE
	ENEC
	RCM
	RoHs
AC voltage range	198 – 264 V
DC voltage range	176 – 280 V (lamp start ≥ 198 V DC)
Mains frequency	0 / 50 / 60 Hz
Overvoltage protection	320 V AC, 1 h
Dimming range	10 – 100 %
Type of protection	IP20
Typ. power input on stand-by	< 0.2 W
Mains voltage range	220 – 240 V
Operating frequency	~ 40 – 130 kHz
Lamp start possible from	10 %
Protective hot restart	0.5 s for AC / 0.2 s for DC

• Processor-controlled ballast with xitec II inside
• Highest possible energy class CELMA EEI = A1 BAT (1)
• Noise-free precise control via DSI signal, switchDIM or corridorFUNCTION
• Nominal life-time up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
• 5-year guarantee

Interfaces

• DSI
• switchDIM (with memory function)
• corridorFUNCTION (3 preprogrammed profiles)
• Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs

Functions

• Intelligent Temperature Guard (overtemperature protection)
• Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
• Optimum filament heating in any dimmer setting
• Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept)
• corridorFUNCTION with ambient light control
• Automatically triggered emergency lighting value in DC mode, 15 %
• For emergency lighting systems as per EN 50172
• Automatic start after replacement of defective lamps
• Automatic shutdown if the lamp is faulty

• ⁽¹⁾ According to the EU directives on ecodesign requirements (EC) No. 245/2009 and (EC) No. 347/2010.
