PC T8 TOP lp, PC T8 TOP sl, 18 - 58 W Fluorescent Electronic Gear

From € 10,48 incl. VAT
From € 10,48 ex. VAT
See variants (7)
  • CCC CCC
  • CE CE
  • EL EL
  • ENEC ENEC
  • GOST GOST
  • RCM RCM
  • RoHs RoHs
  • AC voltage range 198 – 264 V
  • DC voltage range 176 – 280 V (lamp start ≥ 198 V DC)
  • Mains frequency 0 / 50 / 60 Hz
  • Overvoltage protection 320 V AC, 1 h
  • Type of protection IP20
  • ▼ see full specification ▼

Select your product from the 7

 PC 1x18 T8 TOP sl
Product code: 72359 Weight per pc.: 0.148 kg tc point max.: 65 °C Hole spacing D: 220 mm Packaging, carton: 50 pc(s). DimensionsL x W x H: 230 x 30 x 28 mm Packaging, low volume: 1,050 pc(s). Lamp type: T8 Lamp wattage: 1 x 18 W Circuit power: 19.3 W EEI: A2 see more »

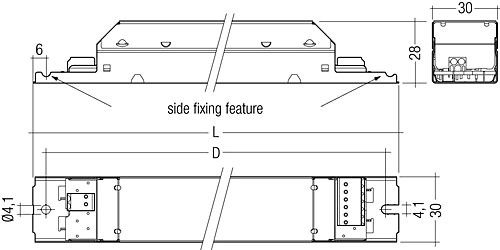

Lamp power: 16.0 W Current at 50 Hz: 0.860 A λ at 50 Hz: 0.98 Ambient tem­pera­ture ta: -25 ... +55 °C tc/ta for ≥ 50.000 h: 60/50 °C Figure: 2 Packaging, high volume: 3,150 pc(s). « hide more
€ 12,79 € 10,48 ex. VAT
szt.
szt.
 PC 1x36 T8 TOP sl
Product code: 72360 Weight per pc.: 0.148 kg tc point max.: 65 °C Hole spacing D: 220 mm Packaging, carton: 50 pc(s). DimensionsL x W x H: 230 x 30 x 28 mm Packaging, low volume: 1,050 pc(s). Lamp type: T8 Lamp wattage: 1 x 36 W Circuit power: 36.7 W EEI: A2 see more »
Lamp power: 32.0 W Current at 50 Hz: 0.165 A λ at 50 Hz: 0.99 Ambient tem­pera­ture ta: -25 ... +55 °C tc/ta for ≥ 50.000 h: 60/50 °C Figure: 2 Packaging, high volume: 3,150 pc(s). « hide more
€ 12,79 € 10,48 ex. VAT
szt.
szt.
 PC 1x58 T8 TOP sl
Product code: 72361 Weight per pc.: 0.147 kg tc point max.: 70 °C Hole spacing D: 220 mm Packaging, carton: 50 pc(s). DimensionsL x W x H: 230 x 30 x 28 mm Packaging, low volume: 1,050 pc(s). Lamp type: T8 Lamp wattage: 1 x 58 W Circuit power: 56.2 W EEI: A2 see more »
Lamp power: 50.0 W Current at 50 Hz: 0.253 A λ at 50 Hz: 0.99 Ambient tem­pera­ture ta: -25 ... +55 °C tc/ta for ≥ 50.000 h: 65/50 °C Figure: 2 Packaging, high volume: 3,150 pc(s). « hide more
€ 12,79 € 10,48 ex. VAT
szt.
szt.
 PC 2x36 T8 TOP sl
Product code: 72363 Weight per pc.: 0.215 kg tc point max.: 70 °C Hole spacing D: 270 mm Packaging, carton: 50 pc(s). DimensionsL x W x H: 280 x 30 x 28 mm Packaging, low volume: 900 pc(s). Lamp type: T8 Lamp wattage: 2 x 36 W Circuit power: 73.4 W EEI: A2 see more »
Lamp power: 64.0 W Current at 50 Hz: 0.330 A λ at 50 Hz: 0.99 Ambient tem­pera­ture ta: -25 ... +55 °C tc/ta for ≥ 50.000 h: 65/50 °C Figure: 2 Packaging, high volume: 2,700 pc(s). « hide more
€ 14,15 € 11,60 ex. VAT
szt.
szt.
 PC 2x18 T8 TOP sl
Product code: 72362 Weight per pc.: 0.174 kg tc point max.: 65 °C Hole spacing D: 270 mm Packaging, carton: 50 pc(s). DimensionsL x W x H: 280 x 30 x 28 mm Packaging, low volume: 900 pc(s). Lamp type: T8 Lamp wattage: 2 x 18 W Circuit power: 38.6 W EEI: A2 see more »
Lamp power: 32.0 W Current at 50 Hz: 0.174 A λ at 50 Hz: 0.99 Ambient tem­pera­ture ta: -25 ... +55 °C tc/ta for ≥ 50.000 h: 60/50 °C Figure: 2 Packaging, high volume: 2,700 pc(s). « hide more
€ 14,66 € 12,02 ex. VAT
szt.
szt.
 PC 2x58 T8 TOP sl
Product code: 72364 Weight per pc.: 0.212 kg tc point max.: 75 °C Hole spacing D: 270 mm Packaging, carton: 50 pc(s). DimensionsL x W x H: 280 x 30 x 28 mm Packaging, low volume: 900 pc(s). Lamp type: T8 Lamp wattage: 2 x 58 W Circuit power: 112.4 W EEI: A2 see more »
Lamp power: 100.0 W Current at 50 Hz: 0.506 A λ at 50 Hz: 0.99 Ambient tem­pera­ture ta: -25 ... +55 °C tc/ta for ≥ 50.000 h: 70/50 °C Figure: 2 Packaging, high volume: 2,700 pc(s). « hide more
€ 14,66 € 12,02 ex. VAT
szt.
szt.
 PC 3/4x18 T8 TOP lp
Product code: 72365 Weight per pc.: 0.189 kg tc point max.: 70 °C Hole spacing D: 270 mm Packaging, carton: 10 pc(s). DimensionsL x W x H: 280 x 30 x 21 mm Packaging, low volume: 960 pc(s). Lamp type: T8 Lamp wattage: 4 x 18 W Circuit power: 77.2 W EEI: A2 see more »

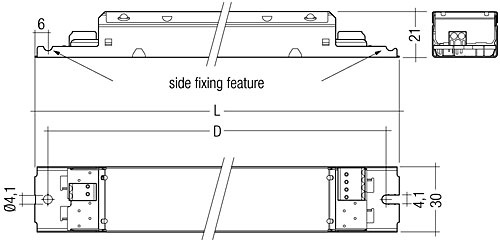

Lamp power: 64.0 W Current at 50 Hz: 0.355 A λ at 50 Hz: 0.99 Ambient tem­pera­ture ta: -25 ... +55 °C tc/ta for ≥ 50.000 h: 65/50 °C Figure: 1 Packaging, high volume: « hide more
€ 16,70 € 13,69 ex. VAT
szt.
szt.

Tridonic - parametry

tick CCC
tick CE
tick EL
tick ENEC
tick GOST
tick RCM
tick RoHs
AC voltage range 198 – 264 V
DC voltage range 176 – 280 V (lamp start ≥ 198 V DC)
Mains frequency 0 / 50 / 60 Hz
Overvoltage protection 320 V AC, 1 h
Type of protection IP20
Mains voltage range 220 – 240 V
Defined warm start ≤ 1.5 s
Operating frequency ≥ 39.5 kHz

  • CELMA Energy Efficiency Index A2
  • Nominal life-time up to 50,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
  • Large temperature range (for values see table)
  • Constant luminous flux irrespective of fluctuations in mains voltage
  • Lamp preheating for min. 30,000 starts without replacement of lamps
  • Designed for THD < 10 %
  • For luminaires of protection class I and protection class II
  • Automatic start after replacement of defective lamps
  • Safety shutdown of defective lamps and at end of lamp life
  • Push terminal for rapid automatic or manual wiring
  • For emergency lighting systems as per EN 50172
