PXF - Mechanical data |
|
| Type of installation | Ceiling mounted |
| Housing material | Steel sheet |
PXF - Electrical data |
|
| Light source | LED |
| Number of light sources | 1 |
| Type of equipment | AC |
| Voltage rating | 230 V |
| Light source included | Yes |
| Type of LED | LG5630 |
| SELV | Yes |
PXF - Infromations |
|
| Color | White |
PXF - Light data |
|
| Light color | White |
| Color rendering index | 80 |
| Class of luminarie | I |
| Light distribution | DI |
PXF - Certificates |
|
| Degree of protection (IP) | IP20 |
| Class of protection | I |
| Energy class | A+ |
| CE | Yes |
| Light source protection | Yes |
| For ceiling installation, fire class "F" (L) | Yes |
New luminaire of modern design, based on LED lamps, dedicated for ceiling or suspended mounting. Compact and adjustable Monza II LED is a great solution for both small and bigger spaces, perfect for offices, corridors and many other. The LED luminaires uses diodes of reputable manufacturers. High quality power supply provides high power factor ϕ >0,95.
Materials: powder painted housing made od steel sheets (standard color: white), end caps made of reinforced polycarbonate, opal, prismatic PRM or microprismatic diffuser made of PMMA
Installation: suspended, ceiling mounted
Accessories: Y suspension (simple, electric)
Power: 230 V
| L | W | H | |
|---|---|---|---|
| PX2250115 24W | 830 | 223 | 50 |
| PX2250122 24W | 830 | 223 | 50 |
| PX2250234 24W | 830 | 223 | 50 |
| PX2250241 47W | 1080 | 223 | 50 |
| PX2250129 47W | 1080 | 223 | 50 |
| PX2250136 47W | 1080 | 223 | 50 |
| PX2250227 24W | 830 | 223 | 50 |
| PX2250248 47W | 1080 | 223 | 50 |
| PX2250143 57W | 1330 | 223 | 50 |
| PX2250150 57W | 1330 | 223 | 50 |
| PX2250255 57W | 1330 | 223 | 50 |
| PX2250262 57W | 1330 | 223 | 50 |
| PX2250515 24W | 830 | 223 | 50 |
| PX2250522 24W | 830 | 223 | 50 |
| PX2250627 24W | 830 | 223 | 50 |
| PX2250634 24W | 830 | 223 | 50 |
| PX2250529 47W | 1080 | 223 | 50 |
| PX2250536 47W | 1080 | 223 | 50 |
| PX2250641 47W | 1080 | 223 | 50 |
| PX2250648 47W | 1080 | 223 | 50 |
| PX2250543 57W | 1330 | 223 | 50 |
| PX2250550 57W | 1330 | 223 | 50 |
| PX2250655 57W | 1330 | 223 | 50 |
| PX2250662 57W | 1330 | 223 | 50 |

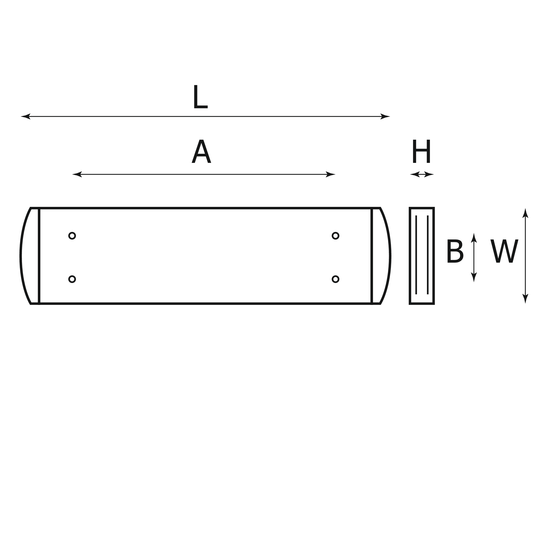

L - Length
W - Width
H - Height / Depth
Used marks:
SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum
OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass
DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution
NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling
EVG - electronic ballast
VVG - magnetic ballast
NM - non maintained
M - maintained
PXF Plexiform https://www.electrico24.eu/uploads/producer_logos/2855e4bbbfab7c351abefdfa4e5ea3b0.jpg

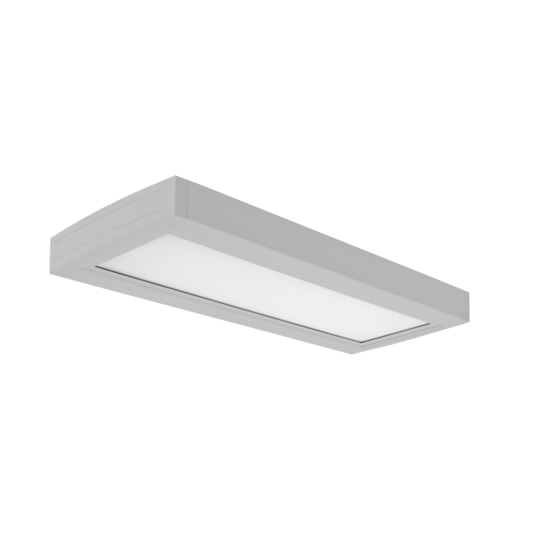

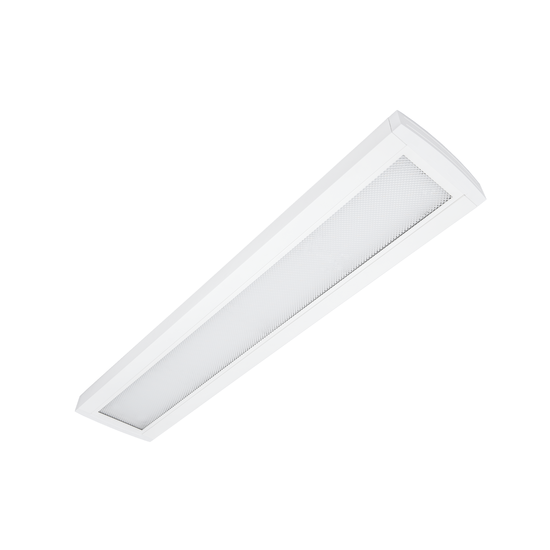

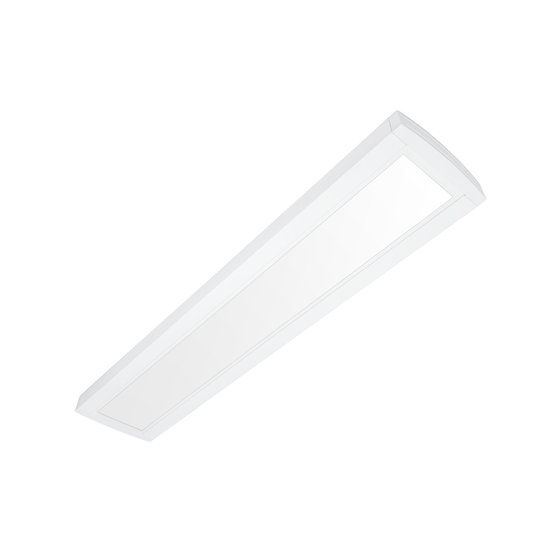

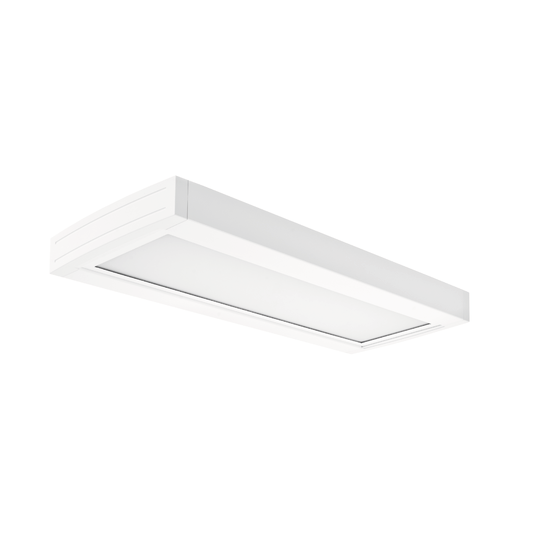

Luminaire Monza II LED
