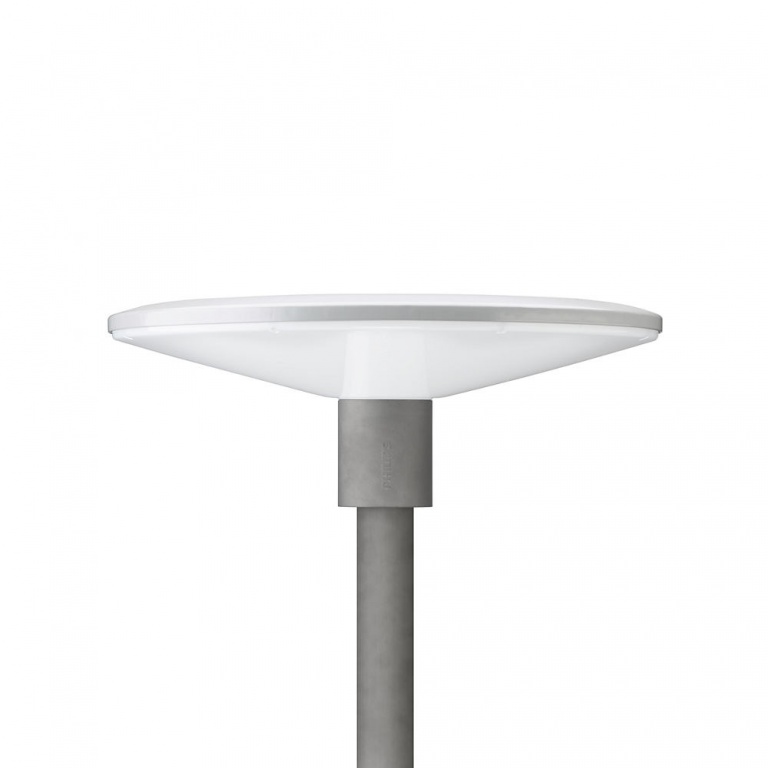

LED luminaire TownGuide LED Park / Urban Luminaires

Power factor: 0.96 - Product family code: BDP001 [BDP001] Number of light sources: 4 [4 pcs] Lamp family code: ECO50 [LED EconomyLine 5000 lm] Light source color: 830 [830 warm white] Optic type: DS [Distribution symmetrical] Optical cover/lens type: PCF [Polycarbonate bowl/cover frosted] Ingress protection code: IP66 [Dust penetration-protected, jet-proof] Input voltage: 220-240 V [220 to 240 V] Protection class IEC: II [Safety class II] Mech. impact protection code: IK10 [20 J vandal-resistant] Color: GR [Gray] Coating: No CE mark: CE [CE mark] ENEC mark: ENEC [ENEC mark] Glow-wire test: 650/5 [Temperature 650 °C, duration 5 s] Light source replaceable: true [Yes] Connection: SI [Screw connection block] Driver included: true [Yes] Driver/power unit/transformer: PSU [Power supply unit] Housing material: ALU [Aluminum] Input frequency: 50-60 Hz [50 to 60 Hz] Initial input power: 43 W [43 W] Initial LED luminaire efficacy: 69 Lm/W Initial luminous flux: 2974 Lm Init. Color Rendering Index: > 80 [> 80] Init. Corr. Color Temperature: 3000 [3000 K] Initial chromaticy: (0.43, 0.40) SDCM Driver failure rate at 5000 h: 0.05 % Ambient temperature range: -20 to +35°C [-20 to +35 °C] Average ambient temperature: T35 [+35 °C] Constant light output: No [No] Driver current: 452 mA [452 mA] Optic material: AC [Acrylate] Optical cover/lens material: PC [Polycarbonate] Median useful life L80B10: 70000 hr Parts color: RS [Spigot raw] Embedded control: No Light regulation: No Photocell: No Safety device: PCBC [PCB cover] Mounting device: 62P [Post-top for diameter 62 mm] Optical cover/lens finish: FR [Frosted] Optical cover/lens shape: CONE-FT [Conical flat] Surge protection: No [Basic surge protection 4 kV] « hide more
