Fluorescent Lamp TL Mini Standard Colours Fluorescent Lamps T5/G5

Price € 2,86 € 2,86 ex. VAT

See variants (4)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

TL Mini 13W/33-640 FAM/10X25BOX

Karta produktu PDF

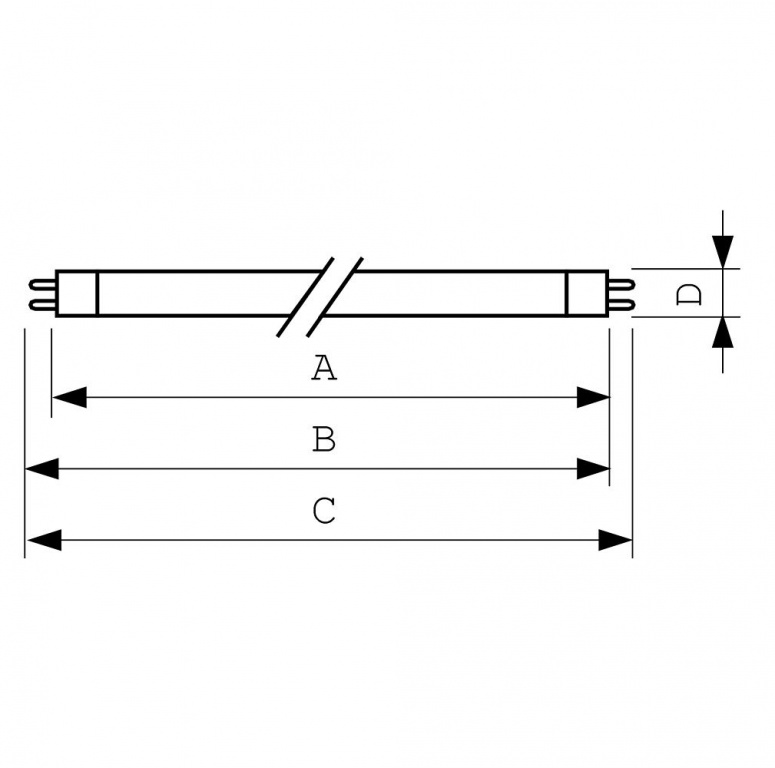

Product code: 57957 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 33-640 Color Designation (text): Cool White Color Temperature: 4100 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 14 kWh Diameter D: 16 (max) mm Overall Length C: 531.1 (max) mm see more »

Full product code: 928001503340 Full product name: TL Mini 13W/33-640 1FM Order code: 928001503340 Order product name: TL Mini 13W/33-640 1FM/10X25CC Packing configuration: 10X25CC Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500718518 Bar code on pack - EAN1: 8711500704757 Packs per outerbox: 250 Logistic code(s) - 12NC: 928001503340 Net weight per piece: 50.340 gr Bar code on intermediate packing - EAN2: 8711500718501 System Description: na Lamp Wattage: 13 W Color Rendering Index: 60 Ra8 ILCOS code: FD-13/41/2B-E-G5 Mercury (Hg) Content: 5.0 mg Insertion Length B: 521.6 (min), 524.0 (max) mm Lumen Maintenance 2000h: 85 % Chromaticity Coordinate X: 377 - Chromaticity Coordinate Y: 381 - Lumen Maintenance 5000h: 70 % Base Face to Base Face A: 516.9 (max) mm Luminous Efficacy Lamp EM: 71 Lm/W Luminous Flux Lamp EM: 930 Lm Lamp Wattage EM: 13.0 W Lamp Voltage: 90 V Lamp Current EM: 0.170 A Lumen Maintenance 10000h: 58 % Luminance Average EM: 1.10 cd/cm2 « hide more

€ 2,86 € 2,86 ex. VAT

TL Mini 13W/54-765 FAM/10X25BOX

Karta produktu PDF

Product code: 57958 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 54-765 Color Designation (text): Cool Daylight Color Temperature: 6200 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 14 kWh Diameter D: 16 (max) mm Overall Length C: 531.1 (max) mm see more »

Full product code: 928001505440 Full product name: TL Mini 13W/54-765 1FM Order code: 928001505440 Order product name: TL Mini 13W/54-765 1FM/10X25CC Packing configuration: 10X25CC Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500716736 Bar code on pack - EAN1: 8711500716712 Packs per outerbox: 250 Logistic code(s) - 12NC: 928001505440 Net weight per piece: 50.340 gr Bar code on intermediate packing - EAN2: 8711500716729 System Description: na Lamp Wattage: 13 W Color Rendering Index: 75 Ra8 ILCOS code: FD-13/62/2A-E-G5 Mercury (Hg) Content: 5.0 mg Insertion Length B: 521.6 (min), 524.0 (max) mm Lumen Maintenance 2000h: 85 % Chromaticity Coordinate X: 315 - Chromaticity Coordinate Y: 341 - Lumen Maintenance 5000h: 70 % Base Face to Base Face A: 516.9 (max) mm Luminous Efficacy Lamp EM: 57 Lm/W Luminous Flux Lamp EM: 740 Lm Lamp Wattage EM: 13.0 W Lamp Voltage: 90 V Lamp Current EM: 0.170 A Lumen Maintenance 10000h: 58 % Luminance Average EM: 0.90 cd/cm2 « hide more

€ 2,86 € 2,86 ex. VAT

TL Mini 4W/33-640 FAM/10X25BOX

Karta produktu PDF

Product code: 57959 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 33-640 Color Designation (text): Cool White Color Temperature: 4100 K Dimmable: Yes Energy Efficiency Label (EEL): B Energy consumption kWh/1000h: 5 kWh Diameter D: 16 (max) mm Overall Length C: 150.1 (max) mm see more »

Full product code: 928000003340 Full product name: TL Mini 4W/33-640 FAM Order code: 928000003340 Order product name: TL Mini 4W/33-640 FAM/10X25BOX Packing configuration: 10X25CC Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500615701 Bar code on pack - EAN1: 8711500615688 Packs per outerbox: 250 Logistic code(s) - 12NC: 928000003340 Net weight per piece: 14.000 gr Bar code on intermediate packing - EAN2: 8711500615695 System Description: na Lamp Wattage: 4 W Color Rendering Index: 60 Ra8 ILCOS code: FD-4/41/2B-E-G5 Mercury (Hg) Content: 5.0 mg Insertion Length B: 140.6 (min), 143.0 (max) mm Lumen Maintenance 2000h: 70 % Chromaticity Coordinate X: 377 - Chromaticity Coordinate Y: 381 - Lumen Maintenance 5000h: 70 % Base Face to Base Face A: 135.9 (max) mm Luminous Efficacy Lamp EM: 35 Lm/W Luminous Flux Lamp EM: 140 Lm Lamp Wattage EM: 4.5 W Lamp Voltage: 29 V Lamp Current EM: 0.170 A Lumen Maintenance 10000h: 58 % Luminance Average EM: 0.70 cd/cm2 « hide more

€ 2,86 € 2,86 ex. VAT

TL Mini 8W/54-765 FAM/10X25BOX

Karta produktu PDF

Product code: 57963 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 54-765 Color Designation (text): Cool Daylight Color Temperature: 6200 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 8 kWh Diameter D: 16 (max) mm Overall Length C: 302.5 (max) mm see more »

Full product code: 928001005440 Full product name: TL Mini 8W/54-765 FAM Order code: 928001005440 Order product name: TL Mini 8W/54-765 FAM/10X25BOX Packing configuration: 10X25CC Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500716309 Bar code on pack - EAN1: 8711500716286 Packs per outerbox: 250 Logistic code(s) - 12NC: 928001005440 Net weight per piece: 27.000 gr Bar code on intermediate packing - EAN2: 8711500716293 System Description: na Lamp Wattage: 8 W Color Rendering Index: 75 Ra8 ILCOS code: FD-8/62/2A-E-G5 Mercury (Hg) Content: 5.0 mg Insertion Length B: 293.0 (min), 295.4 (max) mm Lumen Maintenance 2000h: 80 % Chromaticity Coordinate X: 315 - Chromaticity Coordinate Y: 341 - Lumen Maintenance 5000h: 70 % Base Face to Base Face A: 288.3 (max) mm Luminous Efficacy Lamp EM: 48 Lm/W Luminous Flux Lamp EM: 340 Lm Lamp Wattage EM: 7.1 W Lamp Voltage: 56 V Lamp Current EM: 0.15 A Lumen Maintenance 10000h: 58 % Luminance Average EM: 0.75 cd/cm2 « hide more

€ 2,86 € 2,86 ex. VAT

Description / FAQ Warranty

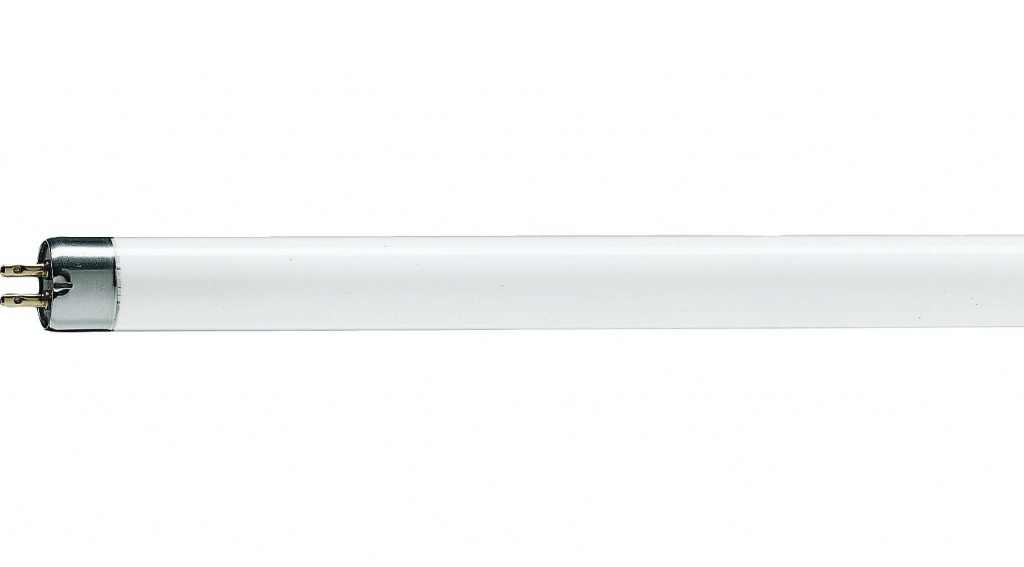

This TL Miniature lamp (tube diameter 16 mm) is a lamp with small dimensions, which enables system miniaturization and offers the possibility of operation on low-voltage DC supply. It is ideal for applications where space is limited but where color rendering and efficacy are not the most important factors, such as orientation, signage and emergency lighting.

Features

16 mm diameter tubes with moderate color rendering

Applications

Ideal for applications where space is limited and color rendering is not important

Orientation lighting

Emergency lighting
