| Line Frequency | 50/60 Hz |
| T-case maximum | 85 (max) C |
| Full product code | 913700614066 |

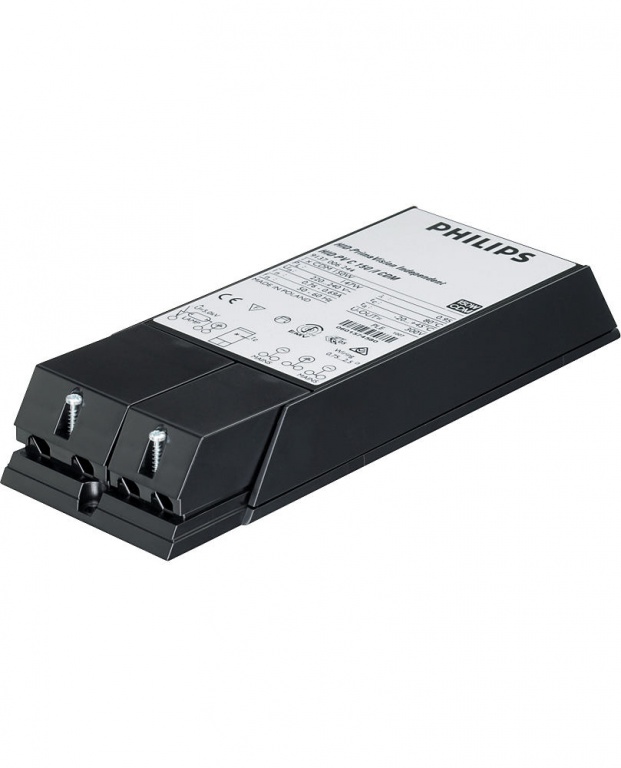

| Full product name | HID-PV C 150 /S CDM 220-240V 50/60Hz |
| Order code | 913700614066 |
| Order product name | HID-PV C 150 /S CDM 220-240V 50/60Hz |
| Packing configuration | 12 |
| Pieces per pack | 1 |
| Bar code on outerbox - EAN3 | 8711500910530 |
| Bar code on pack - EAN1 | 8711500910523 |
| Packs per outerbox | 12 |
| Logistic code(s) - 12NC | 913700614066 |
| Net weight per piece | 0.360 kg |

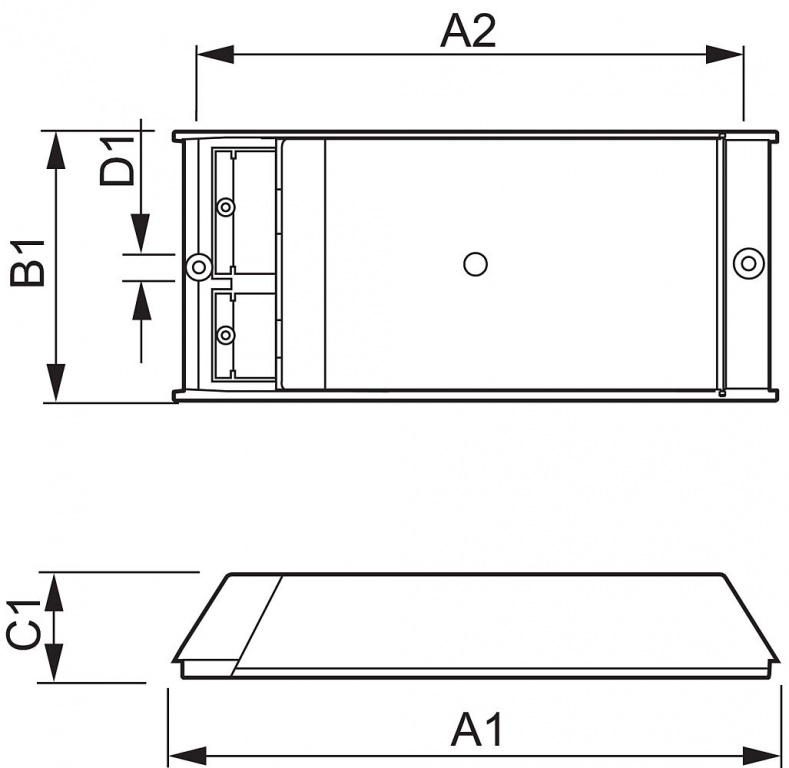

| Length A1 | 135.0 mm |
| CE marking | Yes |
| Height C1 | 32.0 mm |
| T-ambient | -20 (min), 60 (max) C |
| Width B1 | 75.0 mm |
| Fixing Hole Diameter D1 | 4.8 mm |
| Fixing Hole Distance Length A2 | 123.5 mm |
| ENEC certificate | No |
| Fixing Hole Distance Width B2 | 63.5 mm |
| Inrush current Peak | 50 (max) A |
| Earth leakage current | 0.35 (max) mA |
| Inrush current Width | .50 ms |
| T-storage | -25 (min), 85 (max) C |
| Rated Lamptype | CDM |
| Line Voltage | 220-240 V |
| Rated Ballast-Lamp Power | 150 |
| Rated Number of Lamps | 1 piece |
| T-case life | 75 C |
| Automatic restart | Yes |
| Housing | /S |
| Mains voltage safety (AC) | -18%/+10% |
| Operating frequency * | 0.14 kHz |
| Mains voltage performance (AC) | -10%/+6% |
| Power losses gear | 10 W |
| PowerFactor 100% output power | 0.95 - |
| Overvoltage protection 320Vac | 48 hr |
| Max ballast on MCB(16A type B) | 6 x |
| Cable-Cap outputwires mutual | 200 pF |
| Hum and Noise level | Inaudible |
| Striplength | 10.0-11.0 mm |
| F-marking | Yes |
| Bumps | IEC 60068-2-29 Eb |
| Vibrations | IEC 60068-2-6 Fc |
| CB Certificate | Yes |
| Constant wattage deviation | -3%/+3% |
| VDE certificate | Yes |
| Max. cable length Device/Lamp | 2.0 m |
| Connector type | Insert |
| Wcs Ballast contacts | 0.50-2.50 mm2 |
| VDE-EMV certificate | Yes |
| Suitable for Outdoor use? | No |
| Ignition Voltage | 5.0 (max) kV |
| Ignition switch-off time | 20 min |
| Active temperature protection | Yes |
| EMI 9 kHz ... 300MHz | CISPR 15 ed 7.2 |
PrimaVision Power gear is designed for optimal performance of 100 and 150 W CDM lamps – ideal where high-intensity light is key.
Features
| Loop Through feature (in independent version) |
| Low gear energy losses |
| Lamp end-of-life detection |
| High Tambient and Tcase temperatures |
| Long lifetime of 40,000 hours |
Applications
| 100 and 150 W: high-bay area, accent and decorative lighting for shops, public spaces, lobbies and offices |
| Suitable for indoor use only |
