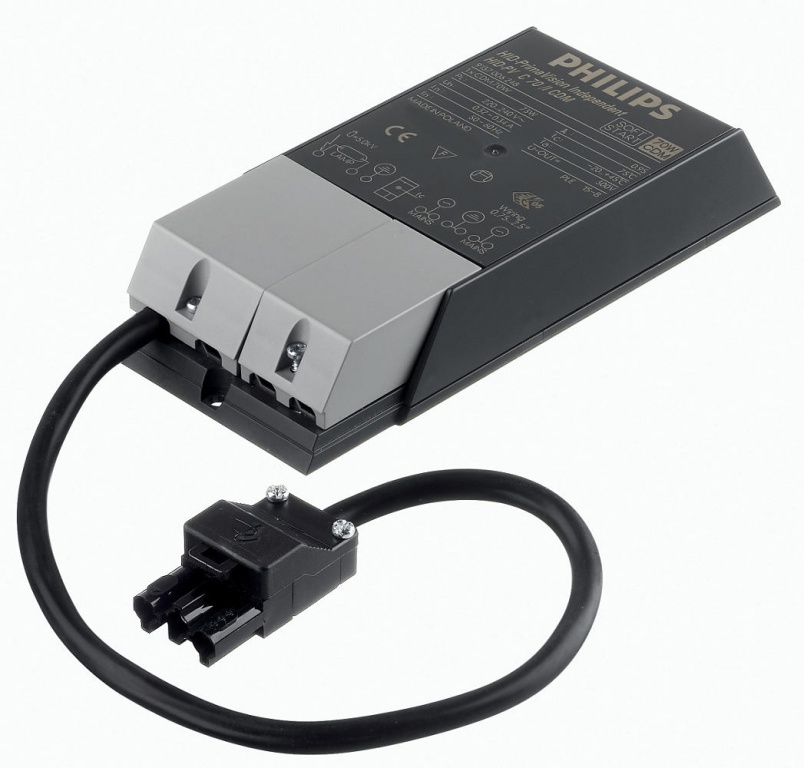

PrimaVision Compact for CDM Electronic Ballasts For Discharge Lamps

Philips HID-PV C 70 /GM CDM 220-240V 50/60Hz

From € 34,32 incl. VAT
From € 34,32 ex. VAT

See variants (2)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 2

HID-PV C 50 /S CDM 220-240V 50/60Hz

Karta produktu PDF

Product code: 58447 Line Frequency: 50/60 Hz T-case maximum: 80 (max) C Full product code: 913700664966 Full product name: HID-PV C 50 /S CDM 220-240V 50/60Hz Order code: 913700664966 Order product name: HID-PV C 50 /S CDM 220-240V 50/60Hz Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8727900933642 Bar code on pack - EAN1: 8727900933635 see more »

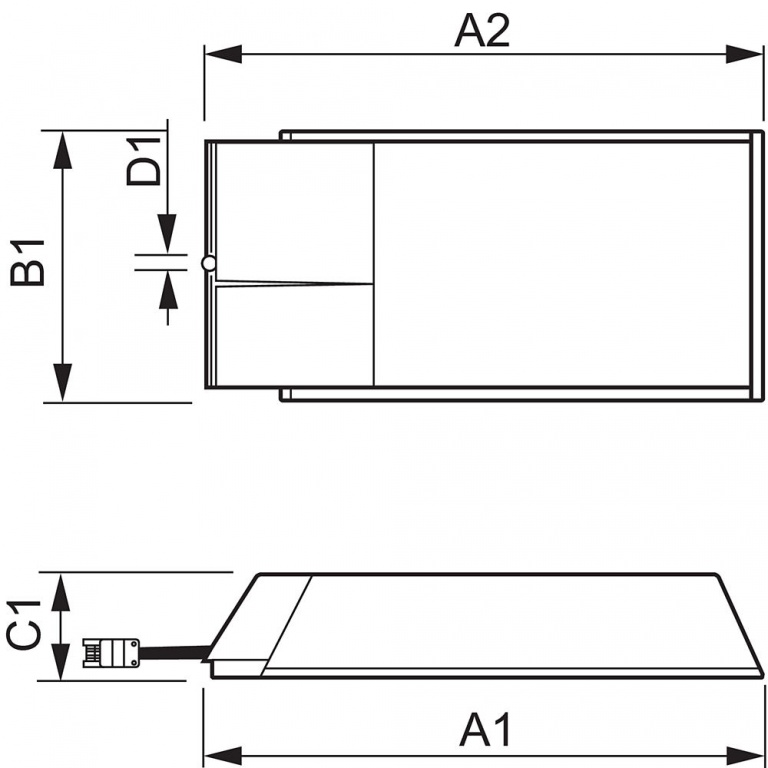

Packs per outerbox: 12 Logistic code(s) - 12NC: 913700664966 Net weight per piece: 0.240 kg Length A1: 109.6 mm CE marking: Yes Height C1: 32.2 mm T-ambient: -20 (min), 55 (max) C Width B1: 74.4 mm Lifetime 90% surv.@Tcaselife: 40000 hr Fixing Hole Diameter D1: 4.9 mm Fixing Hole Distance Length A2: 98.5 mm IP Classification: 20 Inrush current Peak: 26 (max) A Earth leakage current: 0.25 (max) mA Inrush current Width: 0.25 ms T-storage: -25 (min), 80 (max) C Rated Lamptype: CDM Line Voltage: 220-240 V Rated Ballast-Lamp Power: 50 Rated Number of Lamps: 1 piece T-case life: 80 C Approval marks: ENEC Automatic restart: Yes Housing: /S Mains voltage safety (AC): -18%/+10% Operating frequency *: 0.14 kHz Mains voltage performance (AC): -10%/+6% Power losses gear: 6 W PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Max ballast on MCB(16A type B): 24 x Cable-Cap outputwires mutual: 150 pF Hum and Noise level: 37 dB(A) Striplength: 10.0-11.0 mm Bumps: IEC 68-2-29 Eb Vibrations: IEC 68-2-6 Fc Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: IEC 928-13 Constant wattage deviation: -3%/+3% Max. cable length Device/Lamp: 1.5 m Connector type: Insert Wcs Ballast contacts: 0.50-2.50 mm2 Suitable for Outdoor use?: No Ignition Voltage: 4.0 (max) kV Ignition switch-off time: 18 min Active temperature protection: Yes EMI 9 kHz ... 300MHz: CISPR 15 ed 7.2 « hide more

€ 34,32 € 34,32 ex. VAT

HID-PV C 50 /I CDM 220-240V 50/60Hz

Karta produktu PDF

Product code: 58448 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700665166 Full product name: HID-PV C 50 /I CDM 220-240V 50/60Hz Order code: 913700665166 Order product name: HID-PV C 50 /I CDM 220-240V 50/60Hz Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8727900933666 Bar code on pack - EAN1: 8727900933659 see more »

Packs per outerbox: 12 Logistic code(s) - 12NC: 913700665166 Net weight per piece: 0.360 kg Length A1: 188.0 mm CE marking: Yes Height C1: 34.5 mm T-ambient: -20 (min), 50 (max) C Width B1: 82.7 mm Lifetime 90% surv.@Tcaselife: 40000 hr Fixing Hole Diameter D1: 4.8 mm Fixing Hole Distance Length A2: 170.0 mm IP Classification: 20 Inrush current Peak: 26 (max) A Earth leakage current: 0.25 (max) mA Inrush current Width: 0.25 ms T-storage: -25 (min), 75 (max) C Rated Lamptype: CDM Line Voltage: 220-240 V Rated Ballast-Lamp Power: 50 Rated Number of Lamps: 1 piece T-case life: 75 C Approval marks: ENEC Automatic restart: Yes Housing: /I Mains voltage safety (AC): -18%/+10% Operating frequency *: 0.14 kHz Mains voltage performance (AC): -10%/+6% Power losses gear: 6 W PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Max ballast on MCB(16A type B): 24 x Cable-Cap outputwires mutual: 150 pF Hum and Noise level: 37 dB(A) Striplength: 10.0-11.0 mm Bumps: IEC 68-2-29 Eb Vibrations: IEC 68-2-6 Fc Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: IEC 928-13 Temperature marking: F Constant wattage deviation: -3%/+3% Max. cable length Device/Lamp: 2.0 m Connector type: Insert Wcs Ballast contacts: 0.50-2.50 mm2 Suitable for Outdoor use?: No Ignition Voltage: 4.0 (max) kV Ignition switch-off time: 18 min Active temperature protection: Yes EMI 9 kHz ... 300MHz: CISPR 15 ed 7.2 « hide more

€ 39,63 € 39,63 ex. VAT

Description / FAQ Warranty

High-quality, compact and lightweight HID electronic gear for optimal and reliable performance of 20, 35, 50 and 70 W CDM lamps

Features

Minimal lamp power spread

Low gear energy losses

Lamp end-of-life detection

High Tambient and Tcase temperatures

Long lifetime of 40,000 hours

Applications

Accent and decorative lighting for shops, public spaces, lobbies and offices

Suitable for indoor use only

If you buy goods in partial package that is not currently available in our store (available on request), we reserve the rights to charge additional increments of 5 EUR ex. VAT.
