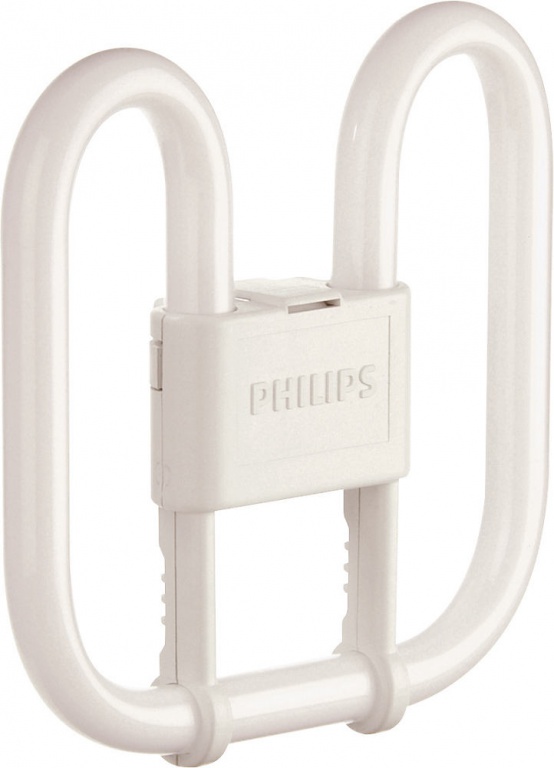

Fluorescent Lamp PL-Q 4 Pin Compact Fluorescent Lamps GR8 / GR10q

From € 5,96 incl. VAT
From € 5,96 ex. VAT

See variants (4)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

PL-Q 16W/827/4P 1CT/10BOX

Karta produktu PDF

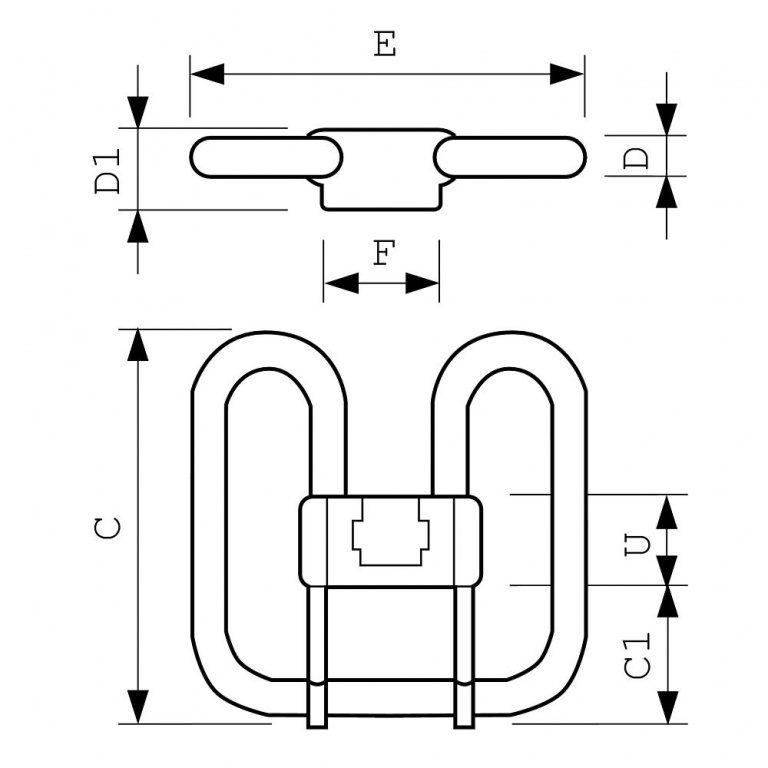

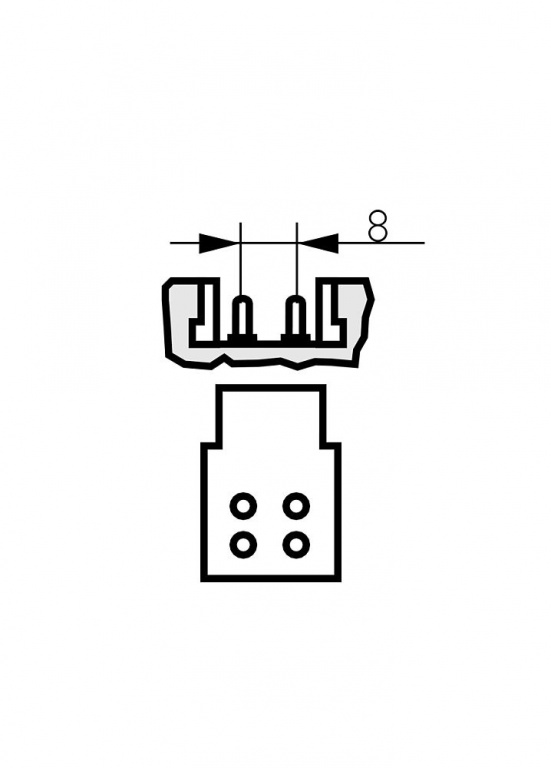

Product code: 57705 Cap-Base: GR10q Color Code: 827 [CCT of 2700K] Color Designation (text): Incandescent White Color Temperature: 2700 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 18 kWh Diameter D: 15 (max) mm Overall Length C: 141 (max) mm Full product code: 927939182740 see more »

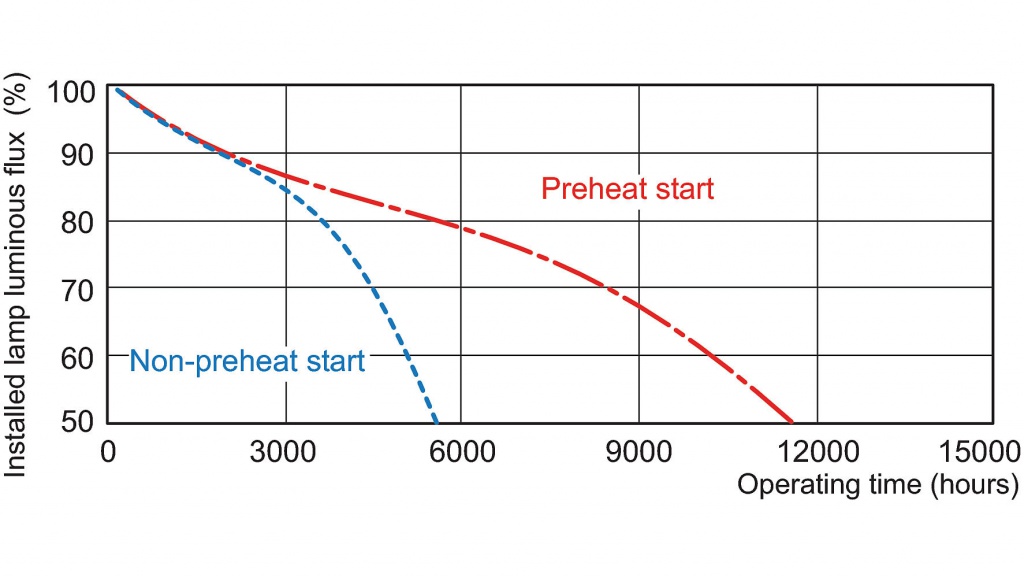

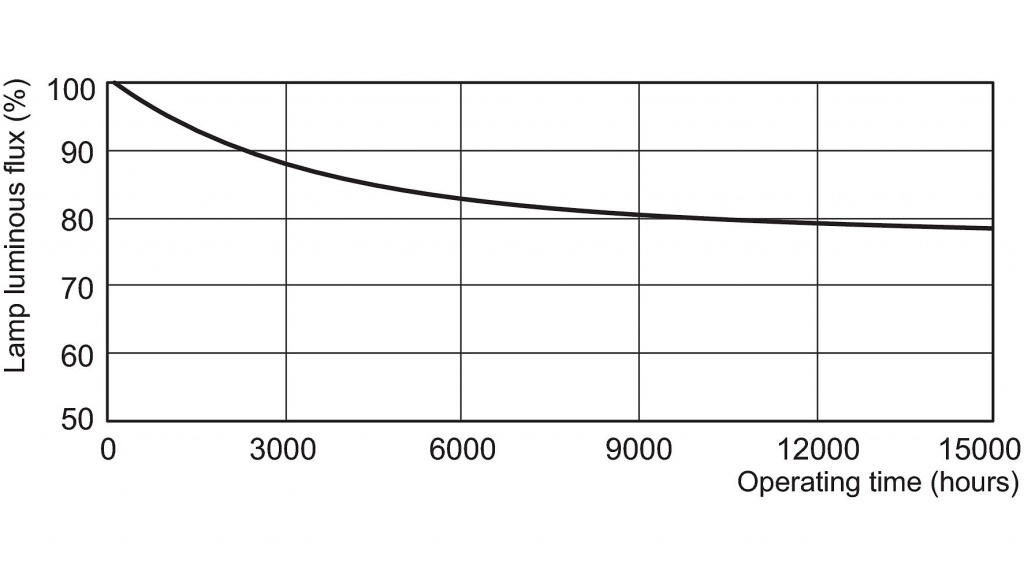

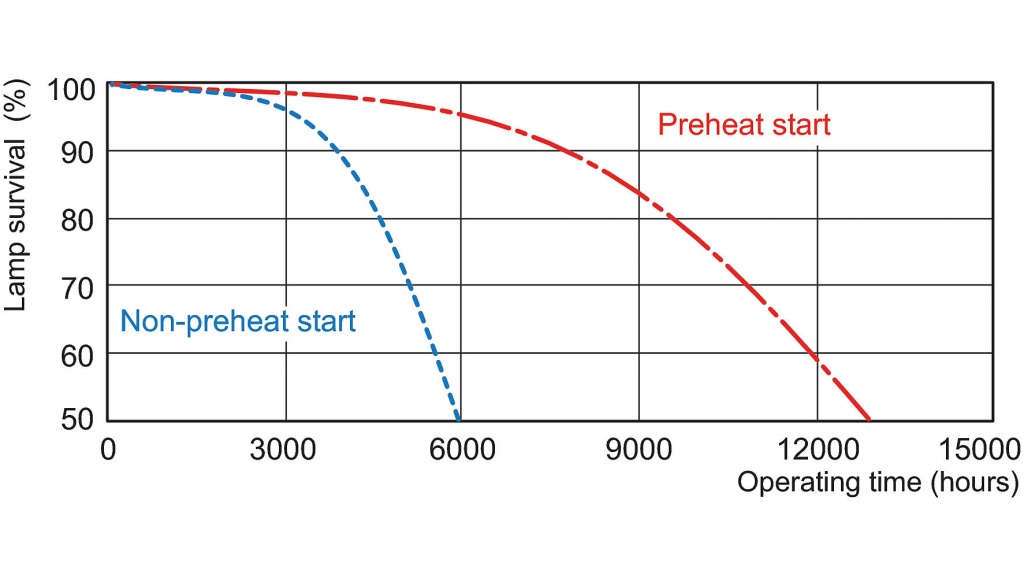

Full product name: PL-Q 16W/827/4P 1CT Order code: 927939182740 Order product name: PL-Q 16W/827/4P 1CT/10 Packing configuration: 10 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500270023 Bar code on pack - EAN1: 8711500269881 Packs per outerbox: 10 Logistic code(s) - 12NC: 927939182740 Net weight per piece: 68.000 gr Cap-Base Information: 4P Lamp Wattage: 16 W Overall Width E: 138 (max) mm Color Rendering Index: 82 Ra8 Overall Length Rim C1: 51 (max) mm ILCOS code: FSS-16/27/1B-E-GR10q Mercury (Hg) Content: 4 mg Chromaticity Coordinate X: 463 - Chromaticity Coordinate Y: 420 - Width F: 41 (max) mm Design Temperature: 25 C Lamp Wattage EM 25°C, Nominal: 16 W Lamp Current EM 25°C: 0.195 A Lamp Voltage EM 25°C: 103 V Lamp Wattage EM 25°C, Rated: 16.0 W Diameter D1: 27.5 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 98 % LSF HF Preheat 12000h Rated,3h: 60 % LSF HF Preheat 6000h Rated,3h: 95 % LSF HF Preheat 8000h Rated,3h: 89 % LSF HF Preheat 16000h Rated,3h: 22 % LLMF HF 2000h Rated: 91 % LLMF HF 4000h Rated: 86 % LLMF HF 12000h Rated: 79 % LLMF HF 6000h Rated: 83 % LLMF HF 8000h Rated: 81 % Lamp Wattage EL 25°C, Rated: 16.0 W Lamp Voltage EL 25°C: 93 V Lamp Wattage EL 25°C, Nominal: 16 W Lamp Current EL 25°C: 0.180 A LSF HF Preheat 20000h Rated,3h: 4 % LLMF HF 16000h Rated: 78 % LLMF HF 20000h Rated: 78 % Cap Length U: 40 (max) mm Lum Flux Rated HF 25°C,horiz: 1050 Lm Lum Efficacy Rated HF 25°C,hor: 66 Lm/W Lum Flux Nominal HF 25°C,horiz: 1050 Lm « hide more

€ 5,96 € 5,96 ex. VAT

PL-Q 16W/830/4P 1CT/10BOX

Karta produktu PDF

Product code: 57707 Cap-Base: GR10q Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 18 kWh Diameter D: 15 (max) mm Overall Length C: 141 (max) mm Full product code: 927939183040 see more »

Full product name: PL-Q 16W/830/4P 1CT Order code: 927939183040 Order product name: PL-Q 16W/830/4P 1CT/10BOX Packing configuration: 10 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500270030 Bar code on pack - EAN1: 8711500269898 Packs per outerbox: 10 Logistic code(s) - 12NC: 927939183040 Net weight per piece: 68.000 gr Cap-Base Information: 4P Lamp Wattage: 16 W Overall Width E: 138 (max) mm Color Rendering Index: 82 Ra8 Overall Length Rim C1: 51 (max) mm ILCOS code: FSS-16/30/1B-E-GR10q Mercury (Hg) Content: 4 mg Chromaticity Coordinate X: 440 - Chromaticity Coordinate Y: 403 - Width F: 41 (max) mm Design Temperature: 25 C Lamp Wattage EM 25°C, Nominal: 16 W Lamp Current EM 25°C: 0.195 A Lamp Voltage EM 25°C: 103 V Lamp Wattage EM 25°C, Rated: 16.0 W Diameter D1: 27.5 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 98 % LSF HF Preheat 12000h Rated,3h: 60 % LSF HF Preheat 6000h Rated,3h: 95 % LSF HF Preheat 8000h Rated,3h: 89 % LSF HF Preheat 16000h Rated,3h: 22 % LLMF HF 2000h Rated: 90 % LLMF HF 4000h Rated: 83 % LLMF HF 12000h Rated: 69 % LLMF HF 6000h Rated: 78 % LLMF HF 8000h Rated: 74 % Lamp Wattage EL 25°C, Rated: 16.0 W Lamp Voltage EL 25°C: 93 V Lamp Wattage EL 25°C, Nominal: 16 W Lamp Current EL 25°C: 0.180 A LSF HF Preheat 20000h Rated,3h: 4 % Cap Length U: 40 (max) mm Lum Flux Rated HF 25°C,horiz: 1050 Lm Lum Efficacy Rated HF 25°C,hor: 66 Lm/W Lum Flux Nominal HF 25°C,horiz: 1050 Lm « hide more

€ 5,96 € 5,96 ex. VAT

PL-Q 28W/830/4P 1CT/10BOX

Karta produktu PDF

Product code: 57713 Cap-Base: GR10q Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 31 kWh Diameter D: 24 (max) mm Overall Length C: 207 (max) mm Full product code: 927939383040 see more »

Full product name: PL-Q 28W/830/4P 1CT Order code: 927939383040 Order product name: PL-Q 28W/830/4P 1CT/10BOX Packing configuration: 10 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500270061 Bar code on pack - EAN1: 8711500269928 Packs per outerbox: 10 Logistic code(s) - 12NC: 927939383040 Net weight per piece: 127.000 gr Cap-Base Information: 4P Lamp Wattage: 28 W Overall Width E: 205 (max) mm Color Rendering Index: 82 Ra8 Overall Length Rim C1: 77 (max) mm ILCOS code: FSS-28/30/1B-E-GR10q Mercury (Hg) Content: 4 mg Chromaticity Coordinate X: 440 - Chromaticity Coordinate Y: 403 - Width F: 41 (max) mm Design Temperature: 25 C Lamp Wattage EM 25°C, Nominal: 28 W Lamp Current EM 25°C: 0.320 A Lamp Voltage EM 25°C: 108 V Lamp Wattage EM 25°C, Rated: 24.8 W Diameter D1: 33 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 98 % LSF HF Preheat 12000h Rated,3h: 60 % LSF HF Preheat 6000h Rated,3h: 95 % LSF HF Preheat 8000h Rated,3h: 89 % LSF HF Preheat 16000h Rated,3h: 22 % LLMF HF 2000h Rated: 91 % LLMF HF 4000h Rated: 86 % LLMF HF 12000h Rated: 79 % LLMF HF 6000h Rated: 83 % LLMF HF 8000h Rated: 81 % Lamp Wattage EL 25°C, Rated: 24.8 W Lamp Voltage EL 25°C: 98 V Lamp Wattage EL 25°C, Nominal: 28 W Lamp Current EL 25°C: 0.255 A LSF HF Preheat 20000h Rated,3h: 4 % LLMF HF 16000h Rated: 78 % LLMF HF 20000h Rated: 78 % Cap Length U: 49 (max) mm Lum Flux Rated HF 25°C,horiz: 2050 Lm Lum Efficacy Rated HF 25°C,hor: 83 Lm/W Lum Flux Nominal HF 25°C,horiz: 2050 Lm « hide more

€ 9,02 € 9,02 ex. VAT

PL-Q 28W/840/4P 1CT/10BOX

Karta produktu PDF

Product code: 57715 Cap-Base: GR10q Color Code: 840 [CCT of 4000K] Color Designation (text): Cool White Color Temperature: 4000 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 31 kWh Diameter D: 24 (max) mm Overall Length C: 207 (max) mm Full product code: 927939384040 see more »

Full product name: PL-Q 28W/840/4P 1CT Order code: 927939384040 Order product name: PL-Q 28W/840/4P 1CT/10 Packing configuration: 10 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500270078 Bar code on pack - EAN1: 8711500269935 Packs per outerbox: 10 Logistic code(s) - 12NC: 927939384040 Net weight per piece: 127.000 gr Cap-Base Information: 4P Lamp Wattage: 28 W Overall Width E: 205 (max) mm Color Rendering Index: 82 Ra8 Overall Length Rim C1: 77 (max) mm ILCOS code: FSS-28/40/1B-E-GR10q Mercury (Hg) Content: 4 mg Chromaticity Coordinate X: 380 - Chromaticity Coordinate Y: 380 - Width F: 41 (max) mm Design Temperature: 25 C Lamp Wattage EM 25°C, Nominal: 28 W Lamp Current EM 25°C: 0.320 A Lamp Voltage EM 25°C: 108 V Lamp Wattage EM 25°C, Rated: 24.8 W Diameter D1: 33 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 98 % LSF HF Preheat 12000h Rated,3h: 60 % LSF HF Preheat 6000h Rated,3h: 95 % LSF HF Preheat 8000h Rated,3h: 89 % LSF HF Preheat 16000h Rated,3h: 22 % LLMF HF 2000h Rated: 91 % LLMF HF 4000h Rated: 86 % LLMF HF 12000h Rated: 79 % LLMF HF 6000h Rated: 83 % LLMF HF 8000h Rated: 81 % Lamp Wattage EL 25°C, Rated: 24.8 W Lamp Voltage EL 25°C: 98 V Lamp Wattage EL 25°C, Nominal: 28 W Lamp Current EL 25°C: 0.255 A LSF HF Preheat 20000h Rated,3h: 4 % LLMF HF 16000h Rated: 78 % LLMF HF 20000h Rated: 78 % Cap Length U: 49 (max) mm Lum Flux Rated HF 25°C,horiz: 2050 Lm Lum Efficacy Rated HF 25°C,hor: 83 Lm/W Lum Flux Nominal HF 25°C,horiz: 2050 Lm « hide more

€ 9,02 € 9,02 ex. VAT

Description / FAQ Warranty

PL-Q is an efficient, square-shaped compact fluorescent lamp, typically used in decorative-lighting luminaires. While offering the advantage of energy-efficient operation, it also provides design freedom for flat ceiling or wall fixtures in particular, due to its low built-in height and uniform spread of light. The 4-pin version is designed for operation on electronic gear.

Features

4-pin base

Fluorescent tri-phosphor technology

Applications

Ideal for applications such as corridors, toilets, stairwells and reception areas
