Fluorescent Lamp PL-Q 2 Pin Compact Fluorescent Lamps GR8 / GR10q

Price € 5,96 € 5,96 ex. VAT

See variants (2)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 2

PL-Q 16W/830/2P 1CT/10BOX

Karta produktu PDF

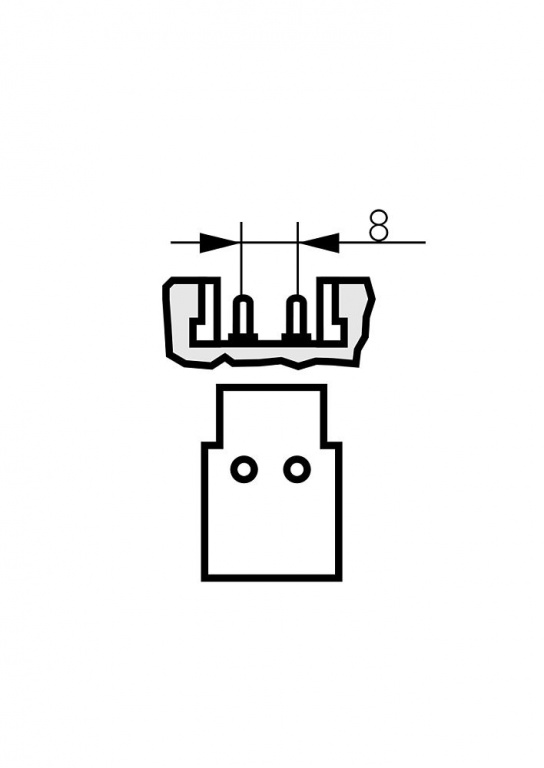

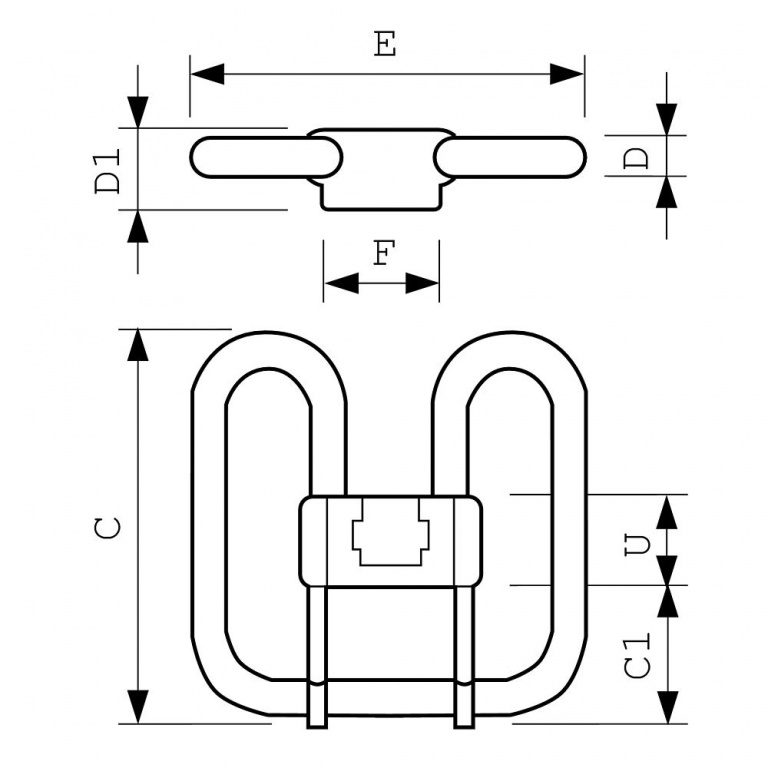

Product code: 57706 Cap-Base: GR8 Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: No Energy Efficiency Label (EEL): B Energy consumption kWh/1000h: 20 kWh Diameter D: 15 (max) mm Overall Length C: 141 (max) mm Full product code: 927939083040 see more »

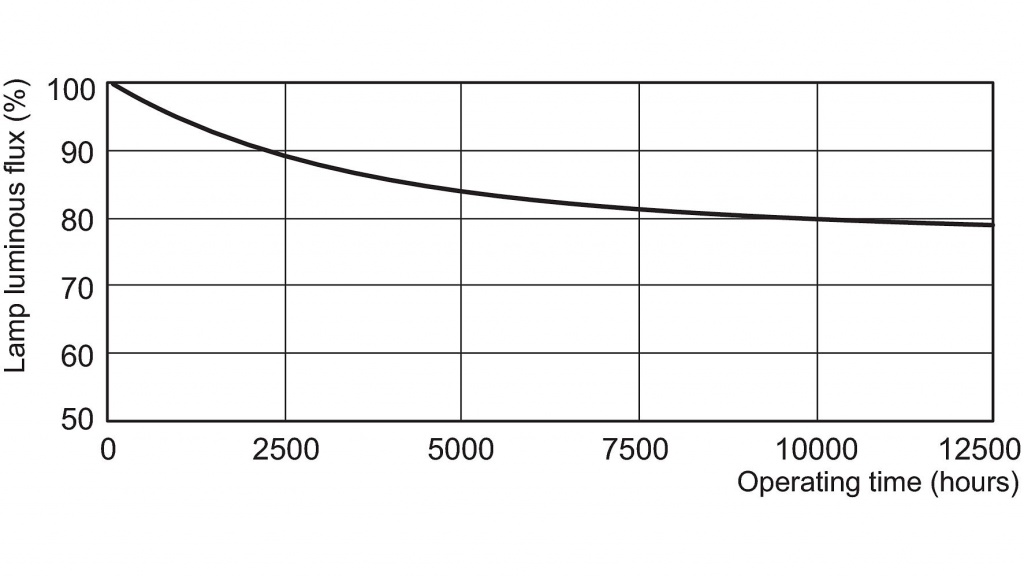

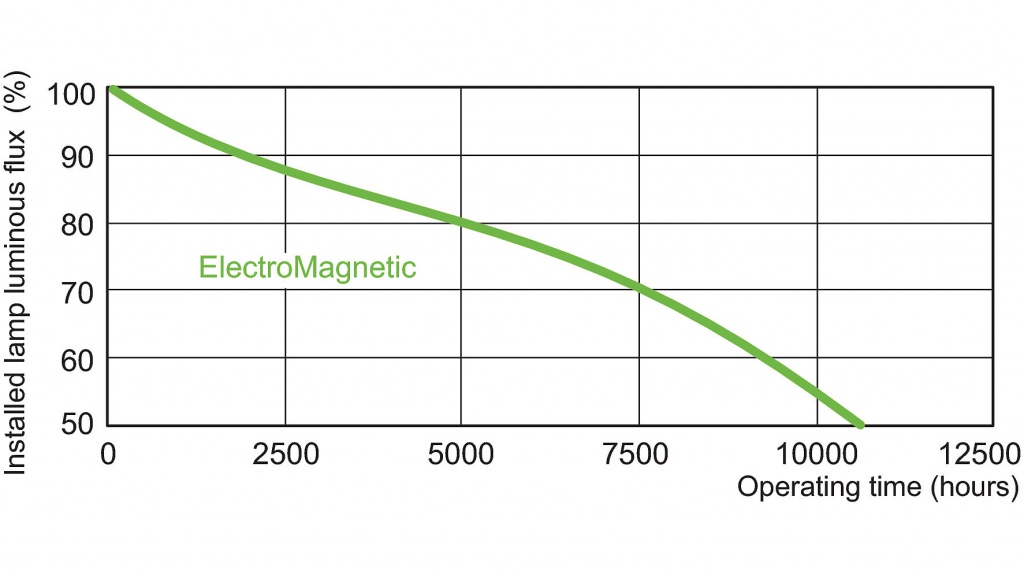

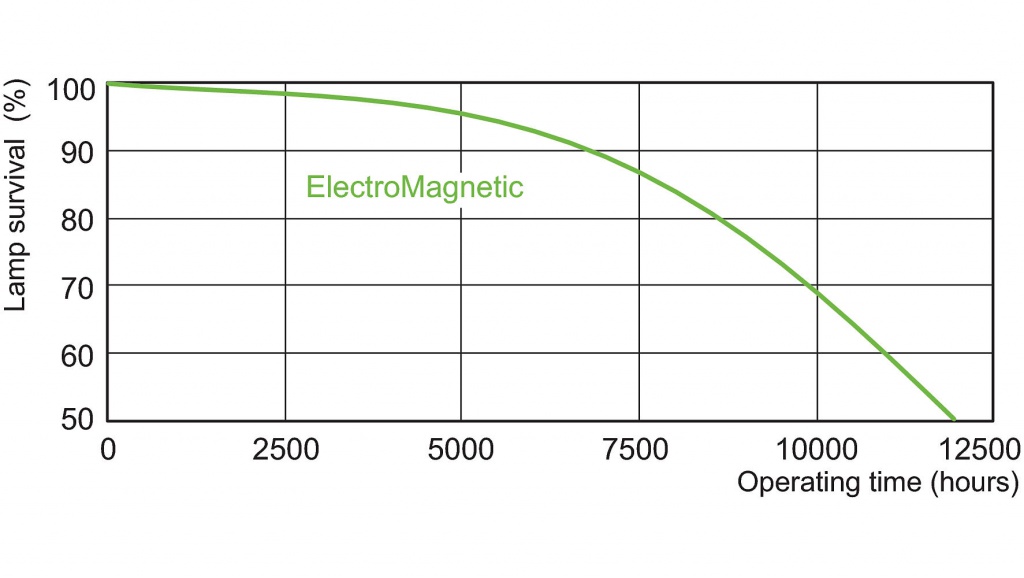

Full product name: PL-Q 16W/830/2P 1CT Order code: 927939083040 Order product name: PL-Q 16W/830/2P 1CT/10 Packing configuration: 10 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500270016 Bar code on pack - EAN1: 8711500269874 Packs per outerbox: 10 Logistic code(s) - 12NC: 927939083040 Net weight per piece: 68.000 gr Cap-Base Information: 2P Lamp Wattage: 16 W Overall Width E: 138 (max) mm Color Rendering Index: 82 Ra8 Overall Length Rim C1: 51 (max) mm ILCOS code: FSS-16/30/1B-I-GR8 Mercury (Hg) Content: 4.0 mg Chromaticity Coordinate X: 440 - Chromaticity Coordinate Y: 403 - Width F: 41 (max) mm LSF EM 2000h Rated,3h cycle: 99 % LSF EM 4000h Rated,3h cycle: 96 % LSF EM 6000h Rated,3h cycle: 89 % LSF EM 8000h Rated,3h cycle: 73 % LLMF EM 2000h Rated: 91 % Lum Efficacy Rated EM 25°C: 66 Lm/W Luminous Flux EM 25°C, Nominal: 1050 Lm Luminous Flux EM 25°C, Rated: 1050 Lm LLMF EM 4000h Rated: 85 % LLMF EM 6000h Rated: 82 % LLMF EM 8000h Rated: 80 % Design Temperature: 25 C Lamp Wattage EM 25°C, Nominal: 16 W Lamp Current EM 25°C: 0.195 A Lamp Voltage EM 25°C: 103 V Lamp Wattage EM 25°C, Rated: 16.0 W Diameter D1: 27.5 (max) mm LLMF EM 12000h Rated: 79 % LLMF EM 16000h Rated: 78 % LLMF EM 20000h Rated: 77 % Lum Efficacy Rated EM 25°C,hor: 66 Lm/W Lum Flux Nominal EM 25°C,horiz: 1050 Lm Lum Flux Rated EM 25°C,horiz: 1050 Lm Cap Length U: 40 (max) mm « hide more

€ 5,96 € 5,96 ex. VAT

PL-Q 16W/835/2P 1CT/10BOX

Karta produktu PDF

Product code: 57708 Cap-Base: GR8 Color Code: 835 [CCT of 3500K] Color Designation (text): White Color Temperature: 3500 K Dimmable: No Energy Efficiency Label (EEL): B Energy consumption kWh/1000h: 20 kWh Diameter D: 15 (max) mm Overall Length C: 141 (max) mm Full product code: 927939083540 see more »

Full product name: PL-Q 16W/835/2P 1CT Order code: 927939083540 Order product name: PL-Q 16W/835/2P 1CT/10BOX Packing configuration: 10 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500269010 Bar code on pack - EAN1: 8711500269669 Packs per outerbox: 10 Logistic code(s) - 12NC: 927939083540 Net weight per piece: 68.000 gr Cap-Base Information: 2P Lamp Wattage: 16 W Overall Width E: 138 (max) mm Color Rendering Index: 82 Ra8 Overall Length Rim C1: 51 (max) mm ILCOS code: FSS-16/35/1B-I-GR8 Mercury (Hg) Content: 4.0 mg Chromaticity Coordinate X: 409 - Chromaticity Coordinate Y: 394 - Width F: 41 (max) mm LSF EM 2000h Rated,3h cycle: 99 % LSF EM 4000h Rated,3h cycle: 96 % LSF EM 6000h Rated,3h cycle: 89 % LSF EM 8000h Rated,3h cycle: 73 % LLMF EM 2000h Rated: 91 % Lum Efficacy Rated EM 25°C: 66 Lm/W Luminous Flux EM 25°C, Nominal: 1050 Lm Luminous Flux EM 25°C, Rated: 1050 Lm LLMF EM 4000h Rated: 85 % LLMF EM 6000h Rated: 82 % LLMF EM 8000h Rated: 80 % Design Temperature: 25 C Lamp Wattage EM 25°C, Nominal: 16 W Lamp Current EM 25°C: 0.195 A Lamp Voltage EM 25°C: 103 V Lamp Wattage EM 25°C, Rated: 16.0 W Diameter D1: 27.5 (max) mm LLMF EM 12000h Rated: 79 % LLMF EM 16000h Rated: 78 % LLMF EM 20000h Rated: 77 % Lum Efficacy Rated EM 25°C,hor: 66 Lm/W Lum Flux Nominal EM 25°C,horiz: 1050 Lm Lum Flux Rated EM 25°C,horiz: 1050 Lm Cap Length U: 40 (max) mm « hide more

€ 5,96 € 5,96 ex. VAT

Description / FAQ Warranty

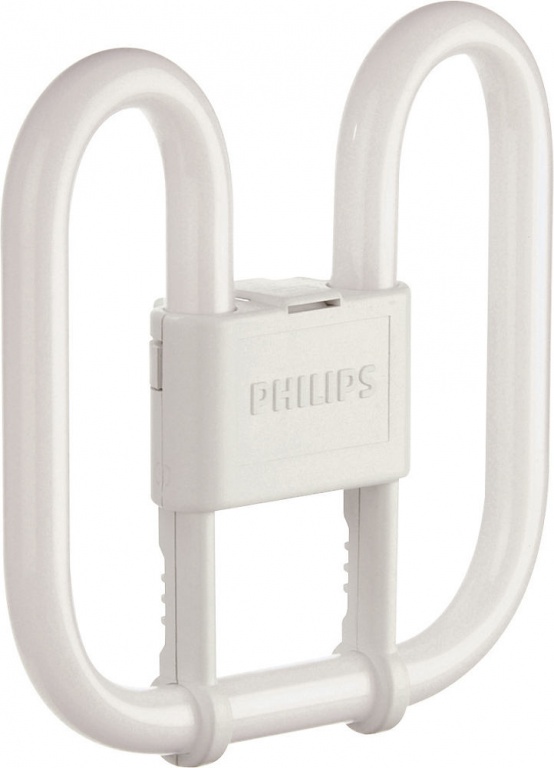

PL-Q is an efficient, square-shaped compact fluorescent lamp, typically used in decorative-lighting luminaires. While offering the advantage of energy-efficient operation, it also provides design freedom for flat ceiling or wall fixtures in particular, due to its low built-in height and uniform spread of light. The 2-pin version is designed for operation on electromagnetic gear.

Features

2-pin base with a housing incorporating the special instant starter and capacitor

Fluorescent tri-phosphor technology

Applications

Ideal for applications such as corridors, toilets, stairwells and reception areas
