Metal Halide Lamp MHN-TD Metal Halide Lamps RX7s / RX7s-24 Metal Halide Lamps Fc2

Price € 15,15 € 15,15 ex. VAT

See variants (3)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 3

MHN-TD 150W/842 RX7s 1CT/12

Karta produktu PDF

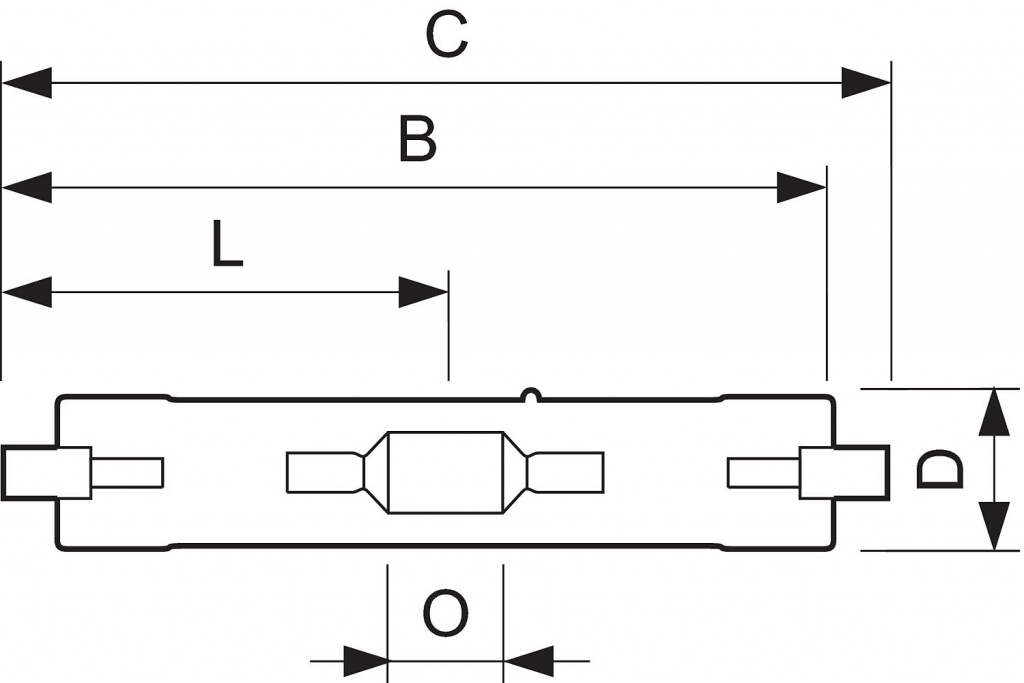

Product code: 58107 Cap-Base: RX7s Bulb: TD Color Code: 842 [CCT of 4200K] Color Designation (text): Cool White Color Temperature: 4200 K Dimmable: No Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 165 kWh Diameter D: 23.0 (max) mm Overall Length C: 135.4 (max) mm see more »

Full product code: 928076505190 Full product name: MHN-TD 150W/842 RX7s 1CT Order code: 928076505190 Order product name: MHN-TD 150W/842 RX7s 1CT/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291215370 Bar code on pack - EAN1: 8718291215363 Packs per outerbox: 12 Logistic code(s) - 12NC: 928076505190 Net weight per piece: 0.028 kg Bulb Finish: Clear Cap-Base Information: na Lamp Wattage: 150 W Operating Position: p45 [Parallel +/-45D or Horizontal(HOR)] Color Rendering Index: 85 Ra8 ILCOS code: MD/UB-150/842-H-RX7s-25/135.4 Bulb Temperature: 650 (max) C Pinch Temperature: 280 (max) C Life to 50% failures: 10500 hr Light Center Length L: 66.0 mm Mercury (Hg) Content: 13 mg Insertion Length B: 132.0 (max) mm Lumen Maintenance 2000h: 80 % Chromaticity Coordinate X: 370 - Chromaticity Coordinate Y: 370 - Lumen Maintenance 5000h: 75 % Lamp Wattage EM 25°C, Nominal: 150.0 W Lamp Wattage EM 25°C, Rated: 150.0 W Luminous Efficacy Lamp EM: 86 Lm/W Luminous Flux Lamp EM: 12900 Lm Lamp Voltage: 98 V Lamp Current EM: 1.8 A Lumen Maintenance 10000h: 70 % Luminance Average EM: 1100 cd/cm2 Life to 20% failures: 8000 hr Life to 5% failures: 5000 hr Arc Length O: 17.8 mm Diameter D [inch]: 0.89 in Light Center Length L [inch]: 2.60 in Overall Length C [inch]: 5.33 (max) in Footnotes HID: 392 [Supply volts must be +/- 5% of rated ballast line volts for reactor type and +/- 10% for CWA or electronic ballasts.] Ignition Peak Voltage: 3500 (min) V « hide more

€ 15,15 € 15,15 ex. VAT

MHN-TD 70W/730 RX7s 1CT/12

Karta produktu PDF

Product code: 58108 Cap-Base: RX7s Bulb: TD Color Code: 730 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: No Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 77 kWh Diameter D: 19.5 (max) mm Overall Length C: 117.6 (max) mm see more »

Full product code: 928482400092 Full product name: MHN-TD 70W/730 RX7s 1CT Order code: 928482400092 Order product name: MHN-TD 70W/730 RX7s 1CT/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291215318 Bar code on pack - EAN1: 8718291215301 Packs per outerbox: 12 Logistic code(s) - 12NC: 928482400092 Net weight per piece: 0.028 kg Bulb Finish: Clear Cap-Base Information: na Lamp Wattage: 70 W Operating Position: p45 [Parallel +/-45D or Horizontal(HOR)] Color Rendering Index: 70 Ra8 ILCOS code: MD/UB-70/730-H-RX7s-22/117.6 Bulb Temperature: 500 (max) C Pinch Temperature: 280 (max) C Life to 50% failures: 9000 hr Light Center Length L: 57.0 mm Mercury (Hg) Content: 13.4 mg Insertion Length B: 114.2 (max) mm Lumen Maintenance 2000h: 65 % Chromaticity Coordinate X: 434 - Chromaticity Coordinate Y: 400 - Lumen Maintenance 5000h: 60 % Lamp Wattage EM 25°C, Nominal: 70.0 W Lamp Wattage EM 25°C, Rated: 75.0 W Luminous Efficacy Lamp EM: 80 Lm/W Luminous Flux Lamp EM: 6000 Lm Lamp Voltage: 90 V Lamp Current EM: 0.98 A Lumen Maintenance 10000h: 55 % Luminance Average EM: 1600 cd/cm2 Life to 20% failures: 7000 hr Life to 5% failures: 5000 hr Arc Length O: 7.7 mm Diameter D [inch]: 0.75 in Light Center Length L [inch]: 2.24 in Overall Length C [inch]: 4.63 (max) in Footnotes HID: 374 [Performance may not be satisfactory unless operated within specified operating positions. (374)] Ignition Peak Voltage: 1800 (min) V « hide more

€ 15,15 € 15,15 ex. VAT

MHN-TD 70W/842 RX7s 1CT/12

Karta produktu PDF

Product code: 58109 Cap-Base: RX7s Bulb: TD Color Code: 842 [CCT of 4200K] Color Designation (text): Cool White Color Temperature: 4200 K Dimmable: No Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 82 kWh Diameter D: 19.5 (max) mm Overall Length C: 117.6 (max) mm see more »

Full product code: 928070205190 Full product name: MHN-TD 70W/842 RX7s 1CT Order code: 928070205190 Order product name: MHN-TD 70W/842 RX7s 1CT/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291215332 Bar code on pack - EAN1: 8718291215325 Packs per outerbox: 12 Logistic code(s) - 12NC: 928070205190 Net weight per piece: 0.028 kg Bulb Finish: Clear Cap-Base Information: na Lamp Wattage: 70 W Operating Position: p45 [Parallel +/-45D or Horizontal(HOR)] Color Rendering Index: 80 Ra8 ILCOS code: MD/UB-70/842-H-RX7s-22/117.6 Bulb Temperature: 500 (max) C Pinch Temperature: 280 (max) C Life to 50% failures: 10500 hr Light Center Length L: 57.0 mm Mercury (Hg) Content: 11 mg Insertion Length B: 114.2 (max) mm Lumen Maintenance 2000h: 85 % Chromaticity Coordinate X: 370 - Chromaticity Coordinate Y: 370 - Lumen Maintenance 5000h: 80 % Lamp Wattage EM 25°C, Nominal: 70.0 W Lamp Wattage EM 25°C, Rated: 75.0 W Luminous Efficacy Lamp EM: 76 Lm/W Luminous Flux Lamp EM: 5700 Lm Lamp Voltage: 90 V Lamp Current EM: 1.0 A Lumen Maintenance 10000h: 75 % Luminance Average EM: 1500 cd/cm2 Life to 20% failures: 8000 hr Life to 5% failures: 5000 hr Arc Length O: 7.7 mm Diameter D [inch]: 0.75 in Light Center Length L [inch]: 2.24 in Overall Length C [inch]: 4.63 (max) in Footnotes HID: 392 [Supply volts must be +/- 5% of rated ballast line volts for reactor type and +/- 10% for CWA or electronic ballasts.] Ignition Peak Voltage: 1800 (min) V « hide more

€ 15,15 € 15,15 ex. VAT

Description / FAQ Warranty

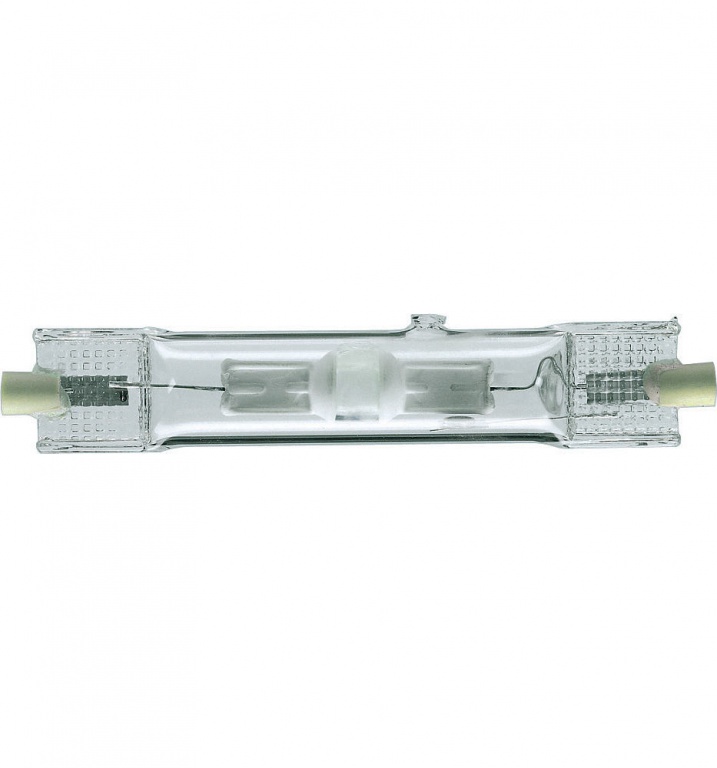

Double-ended quartz Metal-halide lamp

Features

Quartz discharge tube containing high-pressure mercury and a mixture of dysprosium, holmium and thulium halides (4200 K) or tin iodide (3000 K), with sodium and thallium added for color correction and arc stabilization

Double-ended lamps housed in a tubular clear UV-Block quartz evacuated outer envelope

Restricted burning position

Applications

Indoors - accent lighting, general lighting in downlighters, e.g. in shops and malls

Downlighters, uplighters and wall-washers, e.g. in shops and malls

Outdoors - floodlighting monuments, facades and billboards
