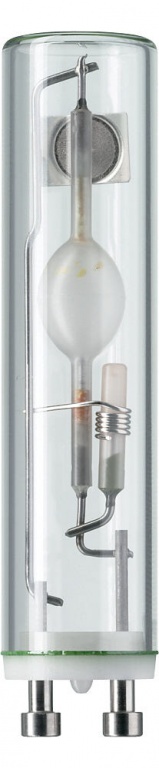

Metal halide lamp MASTERColour CDM-Tm Mini GU6.5 Metal Halide Lamps GU6.5

Product code: 58185
Price € 37,17 incl. VAT
€ 37,17 netto
pc(s)
pc(s)

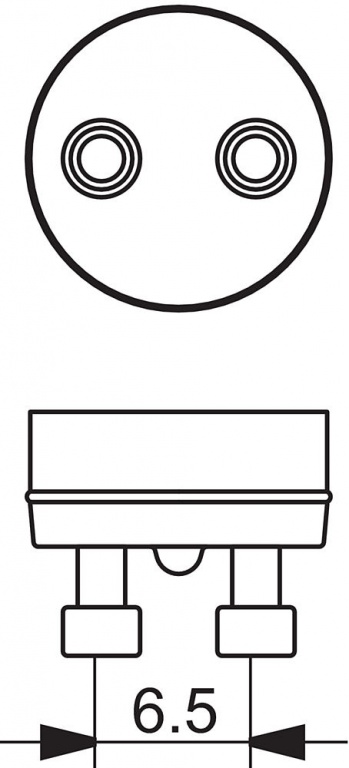

  • Cap-Base GU6.5 [GU6.5]
  • Bulb T-4
  • Color Code 830 [CCT of 3000K]
  • Color Designation (text) Warm White
  • Color Temperature 3000 K
  • Dimmable No
  • Energy Efficiency Label (EEL) A+
  • Energy consumption kWh/1000h 22 kWh

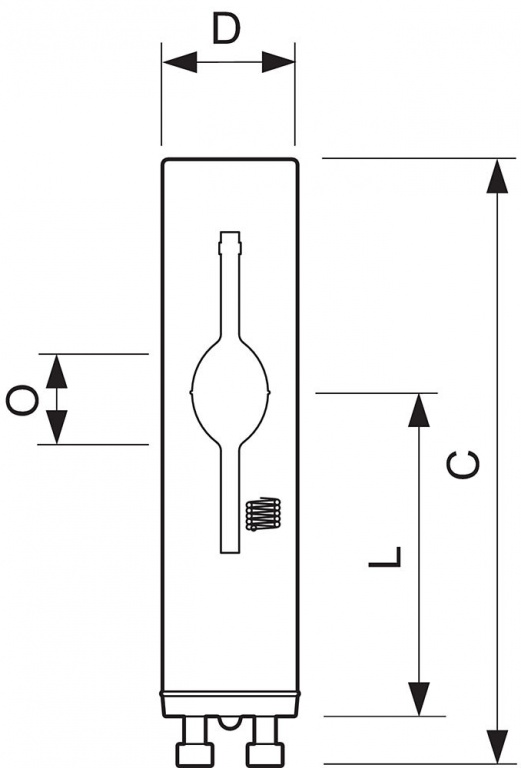

  • Diameter D 13.3 (max) mm
  • Overall Length C 56.7 (max) mm
  • Full product code 928183505130
  • Full product name MASTERColour CDM-Tm Mini GU6.5 20W/830 1CT
  • ▼ see full specification ▼
Miniature, single-ended ceramic metal halide lamp GU6.5 twist-lock lamp base, according to global IEC standard

1 variant available

 MASTERC CDM-Tm Mini GU6.5 20W/830 1CT/12
Product code: 58185 Cap-Base: GU6.5 [GU6.5] Bulb: T-4 Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: No Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 22 kWh Diameter D: 13.3 (max) mm Overall Length C: 56.7 (max) mm see more »
Full product code: 928183505130 Full product name: MASTERColour CDM-Tm Mini GU6.5 20W/830 1CT Order code: 928183505130 Order product name: MASTERC CDM-Tm Mini GU6.5 20W/830 1CT/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8727900890846 Bar code on pack - EAN1: 8727900890839 Packs per outerbox: 12 Logistic code(s) - 12NC: 928183505130 Net weight per piece: 0.007 kg Bulb Finish: Clear Lamp Wattage: 20 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 81 (min), 84 (nom) Ra8 ILCOS code: MT/UB-20/830-H-GU6.5-13.3/52 Cap-Base Temperature: 250 (max) C Bulb Temperature: 380 (max) C Life to 50% failures: 15000 hr Color Temperature Technical: 2950 K Light Center Length L: 29.7 (min), 30 (nom), 30.3 (max) mm Mercury (Hg) Content: 3.5 mg Lumen Maintenance 2000h: 87 % Chromaticity Coordinate X: 0.436 - Chromaticity Coordinate Y: 0.396 - Lumen Maintenance 5000h: 83 % Lamp Wattage EL 25°C, Rated: 20.0 W Lamp Wattage EL 25°C, Nominal: 20.0 W Lamp Voltage: 94 V Lumen Maintenance 10000h: 78 % Lumen Maintenance 15000h: 75 % Damage Factor D/fc: 0.5 (max) - Life to 20% failures: 12000 hr Life to 5% failures: 9000 hr Arc Length O: 3.5 mm Luminous Efficacy Lamp EL: 90 Lm/W Luminous Flux Lamp EL: 1800 Lm System Power EL: 23.5 W Ignition Time: 30 (max) s Lamp Current EL: 0.215 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Diameter D [inch]: 0.5 in Light Center Length L [inch]: 1.18 in Overall Length C [inch]: 2.25 (max) in Life to 10% failures: 10000 hr Design Mean Lumens EL: 1400 Lm PET (NIOSH): 8 (min) h500lx Lumen Maintenance 1000h: 91 % Lumen Maintenance 4000h: 84 % Lumen Maintenance 12000h: 77 % Lumen Maintenance 8000h: 80 % « hide more
€ 37,17 € 37,17 ex. VAT
pc(s)
pc(s)
Cap-Base GU6.5 [GU6.5]
Bulb T-4
Color Code 830 [CCT of 3000K]
Color Designation (text) Warm White
Color Temperature 3000 K
Dimmable No
Energy Efficiency Label (EEL) A+
Energy consumption kWh/1000h 22 kWh
Diameter D 13.3 (max) mm
Overall Length C 56.7 (max) mm
Full product code 928183505130
Full product name MASTERColour CDM-Tm Mini GU6.5 20W/830 1CT
Order code 928183505130
Order product name MASTERC CDM-Tm Mini GU6.5 20W/830 1CT/12
Packing configuration 12
Pieces per pack 1
Bar code on outerbox - EAN3 8727900890846
Bar code on pack - EAN1 8727900890839
Packs per outerbox 12
Logistic code(s) - 12NC 928183505130
Net weight per piece 0.007 kg
Bulb Finish Clear
Lamp Wattage 20 W
Operating Position any [Any or Universal (U)]
Color Rendering Index 81 (min), 84 (nom) Ra8
ILCOS code MT/UB-20/830-H-GU6.5-13.3/52
Cap-Base Temperature 250 (max) C
Bulb Temperature 380 (max) C

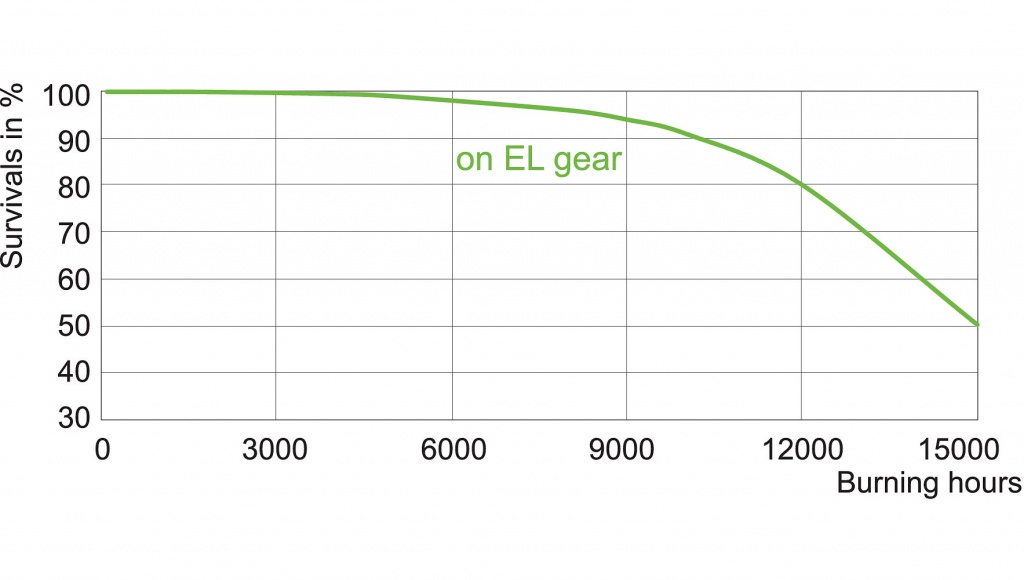

Life to 50% failures 15000 hr
Color Temperature Technical 2950 K
Light Center Length L 29.7 (min), 30 (nom), 30.3 (max) mm
Mercury (Hg) Content 3.5 mg

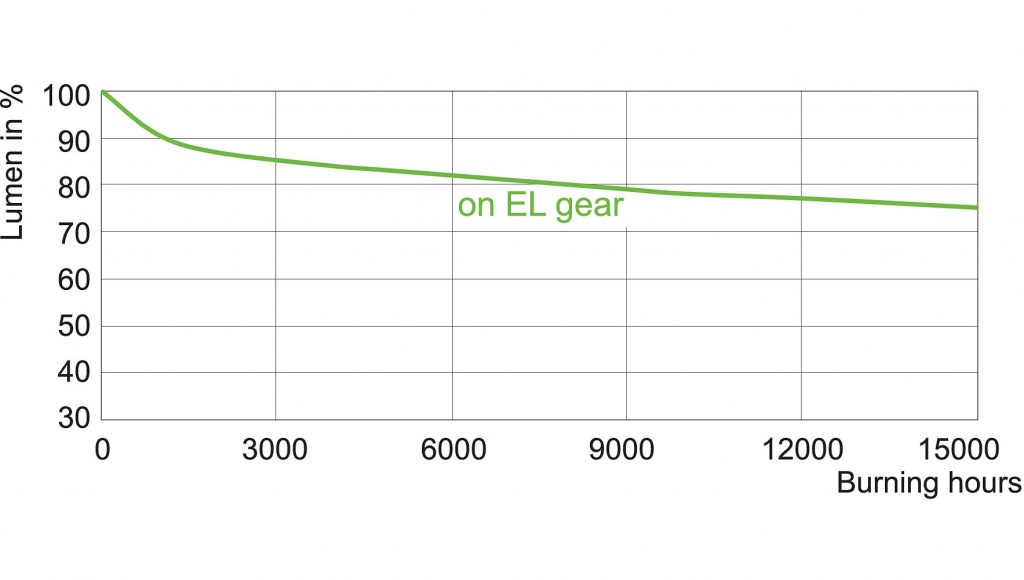

Lumen Maintenance 2000h 87 %
Chromaticity Coordinate X 0.436 -
Chromaticity Coordinate Y 0.396 -
Lumen Maintenance 5000h 83 %
Lamp Wattage EL 25°C, Rated 20.0 W
Lamp Wattage EL 25°C, Nominal 20.0 W
Lamp Voltage 94 V
Lumen Maintenance 10000h 78 %
Lumen Maintenance 15000h 75 %
Damage Factor D/fc 0.5 (max) -
Life to 20% failures 12000 hr
Life to 5% failures 9000 hr
Arc Length O 3.5 mm
Luminous Efficacy Lamp EL 90 Lm/W
Luminous Flux Lamp EL 1800 Lm
System Power EL 23.5 W
Ignition Time 30 (max) s
Lamp Current EL 0.215 A
Re-ignition Time [min] 15 (max) min

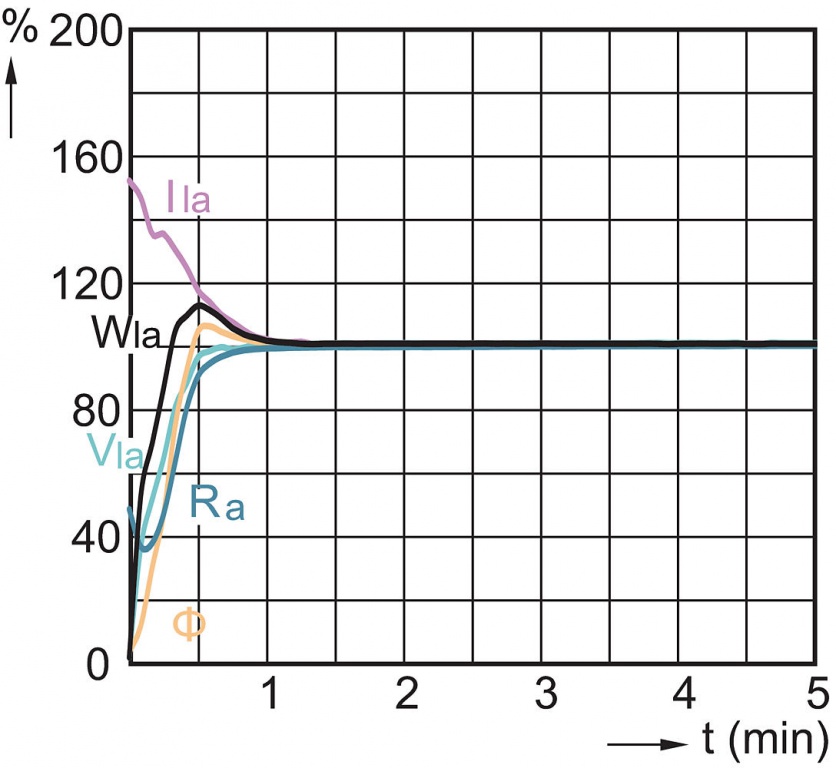

Run-up time 90% 3 (max) min
Diameter D [inch] 0.5 in
Light Center Length L [inch] 1.18 in
Overall Length C [inch] 2.25 (max) in
Life to 10% failures 10000 hr
Design Mean Lumens EL 1400 Lm
PET (NIOSH) 8 (min) h500lx
Lumen Maintenance 1000h 91 %
Lumen Maintenance 4000h 84 %
Lumen Maintenance 12000h 77 %
Lumen Maintenance 8000h 80 %

Miniature, single-ended ceramic metal halide lamp GU6.5 twist-lock lamp base, according to global IEC standard

Features

Crisp, white sparkling light
Good color rendering for the 20W lamp, excellent color rendering for the 35W lamp
Best-in-class lumen efficacy and unrivalled lumen maintenance
Miniature size allows design of compact luminaires with high beam intensities for mounting close to illuminated object
Easy replacement due to standard robust twist-lock socket

Applications

Accent and display lighting with a sparkling effect
Decorative outdoor floodlighting
