MASTERColour CDM-TC Elite Metal Halide Lamps G8.5

Philips MASTERC CDM-TC Elite 35W/930 G8.5 1CT/12

Price € 30,95 € 30,95 ex. VAT

See variants (5)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 5

MASTERC CDM-TC Elite 35W/930 G8.5 1CT/12

Karta produktu PDF

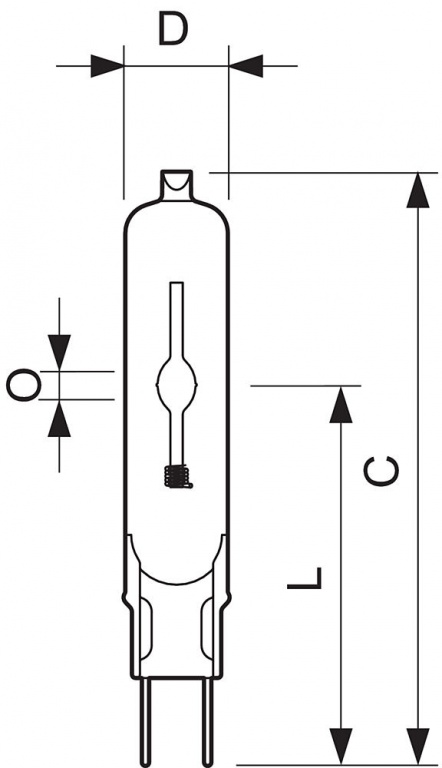

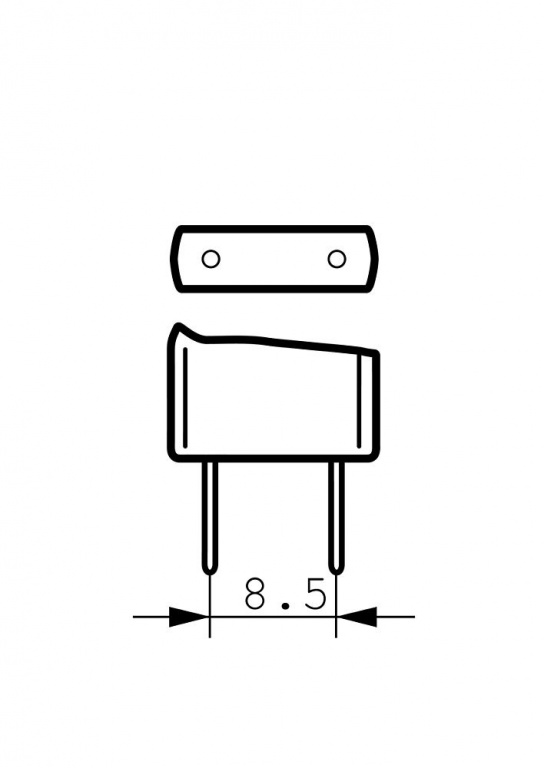

Product code: 58160 Cap-Base: G8.5 Bulb: T14 [T 14 mm] Color Code: 930 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: No Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 42 kWh Diameter D: 15 (max) mm Overall Length C: 85 (max) mm see more »

Full product code: 928189105131 Full product name: MASTERColour CDM-TC Elite 35W/930 G8.5 1CT Order code: 928189105131 Order product name: MASTERC CDM-TC Elite 35W/930 G8.5 1CT/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8727900911503 Bar code on pack - EAN1: 8727900911497 Packs per outerbox: 12 Logistic code(s) - 12NC: 928189105131 Net weight per piece: 0.009 kg Bulb Finish: Clear Lamp Wattage: 35 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 87 (min), 90 (nom) Ra8 ILCOS code: MT/UB-35/930-H-G8.5-17/85 Bulb Temperature: 500 (max) C Pinch Temperature: 300 (max) C Color Temperature Technical: 2970 K Light Center Length L: 51 (min), 52 (nom), 53 (max) mm Mercury (Hg) Content: 4.7 mg Chromaticity Coordinate X: 0.435 - Chromaticity Coordinate Y: 0.396 - Lamp Wattage EL 25°C, Rated: 39.0 W Lamp Wattage EL 25°C, Nominal: 35.0 W Lamp Voltage: 85 V Damage Factor D/fc: 0.3 (max) - Arc Length O: 4.8 mm Luminous Efficacy Lamp EL: 102 Lm/W Luminous Flux Lamp EL: 4000 Lm System Power EL: 43 W Ignition Time: 30 (max) s Lamp Current EL: 0.460 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Diameter D [inch]: 0.6 (max) in Light Center Length L [inch]: 2 (min), 2.45 (nom), 2.9 (max) in Overall Length C [inch]: 3.3 (max) in Life to 10% failures EL: 10000 hr Life to 20% failures EL: 12000 hr Life to 5% failures EL: 9000 hr Life to 50% failures EL: 15000 hr Lumen Maintenance EL 2000h: 93 % Design Mean Lumens EL: 3300 Lm Lumen Maintenance EL 12000h: 78 % PET (NIOSH): 8 (min) h500lx Lumen Maintenance EL 5000h: 88 % Lumen Maintenance EL 10000h: 80 % « hide more

€ 30,95 € 30,95 ex. VAT

MASTERC CDM-TC Elite 35W/942 G8.5 1CT

Karta produktu PDF

Product code: 58161 Cap-Base: G8.5 Bulb: T14 [T 14 mm] Color Code: 942 [CCT of 4200K] Color Designation (text): Cool White Color Temperature: 4200 K Dimmable: No Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 42 kWh Diameter D: 15 (max) mm Overall Length C: 85 (max) mm see more »

Full product code: 928193805131 Full product name: MASTERColour CDM-TC Elite 35W/942 G8.5 1CT Order code: 928193805131 Order product name: MASTERC CDM-TC Elite 35W/942 G8.5 1CT Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291163671 Bar code on pack - EAN1: 8718291163664 Packs per outerbox: 12 Logistic code(s) - 12NC: 928193805131 Net weight per piece: 0.009 kg Bulb Finish: Clear Lamp Wattage: 35 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 85 (min), 88 (nom) Ra8 ILCOS code: MT/UB-35/942-H-G8.5-17/85 Bulb Temperature: 500 (max) C Pinch Temperature: 300 (max) C Color Temperature Technical: 4200 K Light Center Length L: 51 (min), 52 (nom), 53 (max) mm Mercury (Hg) Content: 4.3 mg Chromaticity Coordinate X: 0.371 - Chromaticity Coordinate Y: 0.366 - Lamp Wattage EL 25°C, Rated: 39.0 W Lamp Wattage EL 25°C, Nominal: 35.0 W Lamp Voltage: 84 V Damage Factor D/fc: 0.5 (max) - Arc Length O: 4.8 mm Luminous Efficacy Lamp EL: 95 Lm/W Luminous Flux Lamp EL: 3700 Lm System Power EL: 43 W Ignition Time: 30 (max) s Lamp Current EL: 0.5 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Diameter D [inch]: 0.6 (max) in Light Center Length L [inch]: 2 (min), 2.45 (nom), 2.9 (max) in Overall Length C [inch]: 3.3 (max) in Life to 10% failures EL: 10000 hr Life to 20% failures EL: 12000 hr Life to 5% failures EL: 9000 hr Life to 50% failures EL: 15000 hr Lumen Maintenance EL 2000h: 92 % Design Mean Lumens EL: 3200 Lm Lumen Maintenance EL 12000h: 76 % PET (NIOSH): 8 (min) h500lx Lumen Maintenance EL 5000h: 86 % Lumen Maintenance EL 10000h: 77 % « hide more

€ 30,95 € 30,95 ex. VAT

MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12

Karta produktu PDF

Product code: 58162 Cap-Base: G8.5 Bulb: T14 [T 14 mm] Color Code: 930 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: No Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 55 kWh Diameter D: 15 (max) mm Overall Length C: 85 (max) mm see more »

Full product code: 928191805131 Full product name: MASTERColour CDM-TC Elite 50W/930 G8.5 1CT Order code: 928191805131 Order product name: MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8727900930634 Bar code on pack - EAN1: 8727900930627 Packs per outerbox: 12 Logistic code(s) - 12NC: 928191805131 Net weight per piece: 0.010 kg Bulb Finish: Clear Lamp Wattage: 50 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 87 (min), 90 (nom) Ra8 ILCOS code: MT/UB-50/930-H-G8.5-17/85 Bulb Temperature: 550 (max) C Pinch Temperature: 350 (max) C Color Temperature Technical: 2970 K Light Center Length L: 51 (min), 52 (nom), 53 (max) mm Mercury (Hg) Content: 6.4 mg Chromaticity Coordinate X: 0.435 - Chromaticity Coordinate Y: 0.396 - Lamp Wattage EL 25°C, Rated: 50.0 W Lamp Wattage EL 25°C, Nominal: 50.0 W Lamp Voltage: 90 V Damage Factor D/fc: 0.3 (max) - Arc Length O: 6 mm Luminous Efficacy Lamp EL: 106 Lm/W Luminous Flux Lamp EL: 5400 Lm System Power EL: 56 W Ignition Time: 30 (max) s Lamp Current EL: 0.59 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Diameter D [inch]: 0.6 (max) in Light Center Length L [inch]: 2 (min), 2.45 (nom), 2.9 (max) in Overall Length C [inch]: 3.3 (max) in Life to 10% failures EL: 10000 hr Life to 20% failures EL: 12000 hr Life to 5% failures EL: 9000 hr Life to 50% failures EL: 15000 hr Lumen Maintenance EL 2000h: 95 % Design Mean Lumens EL: 4750 Lm Lumen Maintenance EL 12000h: 82 % PET (NIOSH): 8 (min) h500lx Lumen Maintenance EL 5000h: 88 % Lumen Maintenance EL 10000h: 83 % « hide more

€ 30,95 € 30,95 ex. VAT

MASTERC CDM-TC Elite 70W/930 G8.5 1CT/12

Karta produktu PDF

Product code: 58164 Cap-Base: G8.5 Bulb: T14 [T 14 mm] Color Code: 930 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: No Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 80 kWh Diameter D: 15 (max) mm Overall Length C: 85 (max) mm see more »

Full product code: 928189505131 Full product name: MASTERColour CDM-TC Elite 70W/930 G8.5 1CT Order code: 928189505131 Order product name: MASTERC CDM-TC Elite 70W/930 G8.5 1CT/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8727900911541 Bar code on pack - EAN1: 8727900911534 Packs per outerbox: 12 Logistic code(s) - 12NC: 928189505131 Net weight per piece: 0.010 kg Bulb Finish: Clear Lamp Wattage: 70 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 87 (min), 90 (nom) Ra8 ILCOS code: MT/UB-70/930-H-G8.5-17/85 Bulb Temperature: 550 (max) C Pinch Temperature: 350 (max) C Color Temperature Technical: 2970 K Light Center Length L: 51 (min), 52 (nom), 53 (max) mm Mercury (Hg) Content: 6.6 mg Chromaticity Coordinate X: 0.435 - Chromaticity Coordinate Y: 0.396 - Lamp Wattage EL 25°C, Rated: 73.0 W Lamp Wattage EL 25°C, Nominal: 70.0 W Lamp Voltage: 85 V Damage Factor D/fc: 0.3 (max) - Arc Length O: 7.15 mm Luminous Efficacy Lamp EL: 105 Lm/W Luminous Flux Lamp EL: 7700 Lm System Power EL: 83 W Ignition Time: 30 (max) s Lamp Current EL: 0.86 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Diameter D [inch]: 0.6 (max) in Light Center Length L [inch]: 2 (min), 2.45 (nom), 2.9 (max) in Overall Length C [inch]: 3.3 (max) in Life to 10% failures EL: 10000 hr Life to 20% failures EL: 12000 hr Life to 5% failures EL: 9000 hr Life to 50% failures EL: 15000 hr Lumen Maintenance EL 2000h: 95 % Design Mean Lumens EL: 6650 Lm Lumen Maintenance EL 12000h: 82 % PET (NIOSH): 8 (min) h500lx Lumen Maintenance EL 5000h: 88 % Lumen Maintenance EL 10000h: 83 % « hide more

€ 30,95 € 30,95 ex. VAT

MASTERC CDM-TC Elite 70W/942 G8.5 1CT

Karta produktu PDF

Product code: 58165 Cap-Base: G8.5 Bulb: T14 [T 14 mm] Color Code: 942 [CCT of 4200K] Color Designation (text): Cool White Color Temperature: 4200 K Dimmable: No Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 80 kWh Diameter D: 15 (max) mm Overall Length C: 85 (max) mm see more »

Full product code: 928193905131 Full product name: MASTERColour CDM-TC Elite 70W/942 G8.5 1CT Order code: 928193905131 Order product name: MASTERC CDM-TC Elite 70W/942 G8.5 1CT Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291163695 Bar code on pack - EAN1: 8718291163688 Packs per outerbox: 12 Logistic code(s) - 12NC: 928193905131 Net weight per piece: 0.009 kg Bulb Finish: Clear Lamp Wattage: 70 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 87 (min), 90 (nom) Ra8 ILCOS code: MT/UB-70/942-H-G8.5-17/85 Bulb Temperature: 500 (max) C Pinch Temperature: 300 (max) C Color Temperature Technical: 4200 K Light Center Length L: 51 (min), 52 (nom), 53 (max) mm Mercury (Hg) Content: 6 mg Chromaticity Coordinate X: 0.371 - Chromaticity Coordinate Y: 0.366 - Lamp Wattage EL 25°C, Rated: 73.0 W Lamp Wattage EL 25°C, Nominal: 70.0 W Lamp Voltage: 84 V Damage Factor D/fc: 0.5 (max) - Arc Length O: 7.15 mm Luminous Efficacy Lamp EL: 101 Lm/W Luminous Flux Lamp EL: 7400 Lm System Power EL: 80 W Ignition Time: 30 (max) s Lamp Current EL: 0.89 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Diameter D [inch]: 0.6 (max) in Light Center Length L [inch]: 2 (min), 2.45 (nom), 2.9 (max) in Overall Length C [inch]: 3.3 (max) in Life to 10% failures EL: 10000 hr Life to 20% failures EL: 12000 hr Life to 5% failures EL: 9000 hr Life to 50% failures EL: 15000 hr Lumen Maintenance EL 2000h: 92 % Design Mean Lumens EL: 6500 Lm Lumen Maintenance EL 12000h: 76 % PET (NIOSH): 8 (min) h500lx Lumen Maintenance EL 5000h: 86 % Lumen Maintenance EL 10000h: 77 % « hide more

€ 30,95 € 30,95 ex. VAT

Description / FAQ Warranty

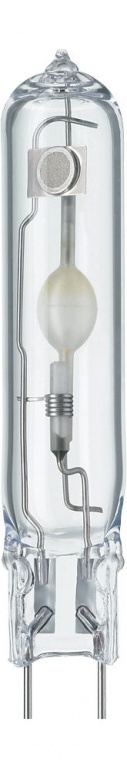

Compact, single-ended, very high-efficiency, long-life ceramic metal-halide discharge lamp producing crisp white sparkling light with high color rendering

Features

Crisp white sparkling light

Excellent color rendering, with extra red

High efficacy with unparalleled lumen maintenance

Stable color performance over lifetime

UV-blocking glass

Applications

Accent and display lighting in retail

General and decorative indoor lighting

Outdoor area lighting

If you buy goods in partial package that is not currently available in our store (available on request), we reserve the rights to charge additional increments of 5 EUR ex. VAT.
