Metal Halide Lamp MASTERColour CDM-TC Metal Halide Lamps G8.5

Philips MASTERC CDM-TC 20W/830 G8.5 1CT/12

Price € 27,91 € 27,91 ex. VAT

See variants (5)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 5

MASTERC CDM-TC - 70W/842 G8.5 1CT/12

Karta produktu PDF

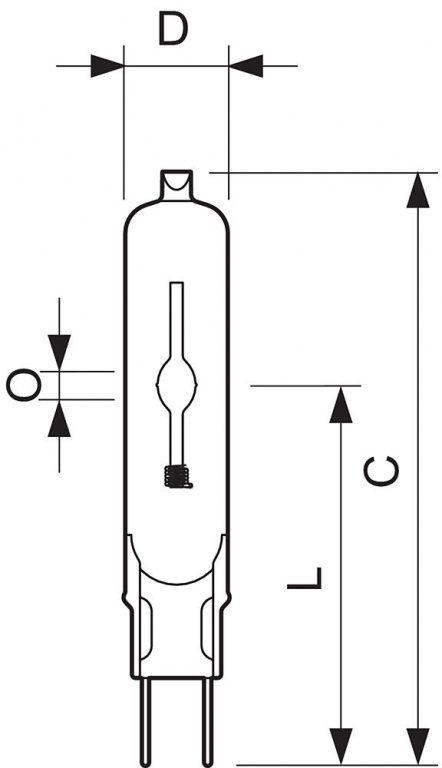

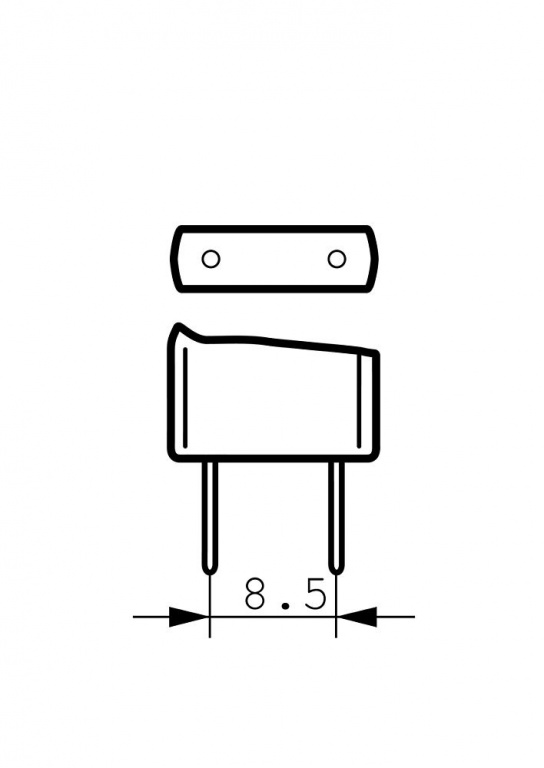

Product code: 58125 Cap-Base: G8.5 Bulb: T14 [T 14 mm] Color Code: 842 [CCT of 4200K] Color Designation (text): Cool White Color Temperature: 4200 K Dimmable: No Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 80 kWh Diameter D: 15 (max) mm Overall Length C: 85 (max) mm see more »

Full product code: 928094605131 Full product name: MASTERColour CDM-TC - 70W/842 G8.5 1CT Order code: 928094605131 Order product name: MASTERC CDM-TC - 70W/842 G8.5 1CT/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500212764 Bar code on pack - EAN1: 8711500212757 Packs per outerbox: 12 Logistic code(s) - 12NC: 928094605131 Net weight per piece: 0.010 kg Bulb Finish: Clear Lamp Wattage: 70 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 89 Ra8 ILCOS code: MT/UB-70/842-H-G8.5-17/85 Bulb Material: UV-Block Quartz Bulb Temperature: 700 (max) C Pinch Temperature: 300 (max) C Color Temperature Technical: 4200 K Light Center Length L: 51 (min), 52 (nom), 53 (max) mm Mercury (Hg) Content: 7 mg Chromaticity Coordinate X: 0.362 - Chromaticity Coordinate Y: 0.363 - Lamp Wattage EL 25°C, Rated: 73.0 W Lamp Wattage EL 25°C, Nominal: 70.0 W Lamp Voltage: 88 V Damage Factor D/fc: 0.5 (max) - Arc Length O: 5 mm Luminous Efficacy Lamp EL: 79 Lm/W Luminous Flux Lamp EL: 5800 Lm Ignition Time: 30 (max) s Lamp Current EL: 0.830 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Light Center Length L [inch]: 2 in Overall Length C [inch]: 3.34375 (max) in Life to 10% failures EL: 8000 hr Life to 20% failures EL: 9000 hr Life to 5% failures EL: 6000 hr Life to 50% failures EL: 12000 hr Lumen Maintenance EL 2000h: 80 % Design Mean Lumens EL: 4300 Lm PET (NIOSH): 8 (min) h500lx Lumen Maintenance EL 5000h: 75 % Lumen Maintenance EL 10000h: 65 % « hide more

€ 27,91 € 27,91 ex. VAT

MASTERC CDM-TC 20W/830 G8.5 1CT/12

Karta produktu PDF

Product code: 58121 Cap-Base: G8.5 Bulb: T14 [T 14 mm] Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 2980 K Dimmable: No Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 22 kWh Diameter D: 15 (max) mm Overall Length C: 85 (max) mm see more »

Full product code: 928183405125 Full product name: MASTERColour CDM-TC 20W/830 G8.5 1CT Order code: 928183405125 Order product name: MASTERC CDM-TC 20W/830 G8.5 1CT/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8727900871593 Bar code on pack - EAN1: 8727900871586 Packs per outerbox: 12 Logistic code(s) - 12NC: 928183405125 Net weight per piece: 9.000 gr Bulb Finish: Clear Lamp Wattage: 20 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 85 Ra8 ILCOS code: MT/UB-20/830-H-G8.5-17/85 Bulb Material: UV-Block Quartz Bulb Temperature: 320 (max) C Pinch Temperature: 300 (max) C Color Temperature Technical: 2980 K Light Center Length L: 51 (min), 52 (nom), 53 (max) mm Mercury (Hg) Content: 3.5 mg Chromaticity Coordinate X: 0.434 - Chromaticity Coordinate Y: 0.391 - Lamp Wattage EL 25°C, Rated: 20.0 W Lamp Wattage EL 25°C, Nominal: 20.0 W Lamp Voltage: 94 V Damage Factor D/fc: 0.4 (max) - Arc Length O: 4 mm Luminous Efficacy Lamp EL: 90 Lm/W Luminous Flux Lamp EL: 1800 Lm System Power EL: 23.5 W Ignition Time: 30 (max) s Lamp Current EL: 0.215 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Diameter D [inch]: 0.55 in Overall Length C [inch]: 3.346 (max) in Life to 10% failures EL: 10000 hr Life to 20% failures EL: 12000 hr Life to 5% failures EL: 9000 hr Life to 50% failures EL: 15000 hr Lumen Maintenance EL 2000h: 87 % Design Mean Lumens EL: 1400 Lm Lumen Maintenance EL 12000h: 77 % PET (NIOSH): 8 (min) h500lx Lumen Maintenance EL 5000h: 83 % Lumen Maintenance EL 10000h: 78 % « hide more

€ 27,91 € 27,91 ex. VAT

MASTERC CDM-TC 35W/830 G8.5 1CT/12

Karta produktu PDF

Product code: 58122 Cap-Base: G8.5 Bulb: T14 [T 14 mm] Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: No Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 41 kWh Diameter D: 15 (max) mm Overall Length C: 85 (max) mm see more »

Full product code: 928085205125 Full product name: MASTERColour CDM-TC 35W/830 G8.5 1CT Order code: 928085205125 Order product name: MASTERC CDM-TC 35W/830 G8.5 1CT/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500200013 Bar code on pack - EAN1: 8711500200006 Packs per outerbox: 12 Logistic code(s) - 12NC: 928085205125 Net weight per piece: 10.000 gr Bulb Finish: Clear Lamp Wattage: 35 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 81 Ra8 ILCOS code: MT/UB-35/830-H-G8.5-17/85 Bulb Material: UV-Block Quartz Bulb Temperature: 500 (max) C Pinch Temperature: 300 (max) C Color Temperature Technical: 3000 K Light Center Length L: 51 (min), 52 (nom), 53 (max) mm Mercury (Hg) Content: 3 mg Chromaticity Coordinate X: 0.432 - Chromaticity Coordinate Y: 0.394 - Lamp Wattage EM 25°C, Nominal: 35.0 W Lamp Wattage EM 25°C, Rated: 38.0 W Lamp Wattage EL 25°C, Rated: 39.0 W Lamp Wattage EL 25°C, Nominal: 35.0 W Luminous Efficacy Lamp EM: 79 Lm/W Luminous Flux Lamp EM: 3000 Lm Lamp Voltage: 88 V Lamp Current EM: 0.53 A Damage Factor D/fc: 0.3 (max) - Arc Length O: 5 mm Luminous Efficacy Lamp EL: 79 Lm/W Luminous Flux Lamp EL: 3100 Lm System Power EL: 44 W Ignition Time: 30 (max) s Lamp Current EL: 0.47 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Diameter D [inch]: 0.5 in Light Center Length L [inch]: 2 in Overall Length C [inch]: 3.34375 (max) in Life to 10% failures EL: 8000 hr Life to 20% failures EL: 9000 hr Life to 5% failures EL: 6000 hr Life to 50% failures EL: 12000 hr Lumen Maintenance EL 2000h: 80 % Design Mean Lumens EL: 2200 Lm PET (NIOSH): 8 (min) h500lx Ignition Peak Voltage: 3500 (min) V System Power EM: 47 W Life to 5% failures EM: 6000 hr Life to 20% failures EM: 9000 hr Lumen Maintenance EM 2000h: 70 % Lumen Maintenance EL 5000h: 65 % Lumen Maintenance EM 5000h: 55 % Design Mean Lumens EM: 1850 Lm Lumen Maintenance EL 10000h: 50 % Lumen Maintenance EM 10000h: 35 % « hide more

€ 27,91 € 27,91 ex. VAT

MASTERC CDM-TC 35W/842 G8.5 1CT/12

Karta produktu PDF

Product code: 58123 Cap-Base: G8.5 Bulb: T14 [T 14 mm] Color Code: 842 [CCT of 4200K] Color Designation (text): Cool White Color Temperature: 4200 K Dimmable: No Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 41 kWh Diameter D: 15 (max) mm Overall Length C: 85 (max) mm see more »

Full product code: 928093805125 Full product name: MASTERColour CDM-TC 35W/842 G8.5 1CT Order code: 928093805125 Order product name: MASTERC CDM-TC 35W/842 G8.5 1CT/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500209580 Bar code on pack - EAN1: 8711500209573 Packs per outerbox: 12 Logistic code(s) - 12NC: 928093805125 Net weight per piece: 10.000 gr Bulb Finish: Clear Lamp Wattage: 35 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 85 Ra8 ILCOS code: MT/UB-35/842-H-G8.5-17/85 Bulb Material: UV-Block Quartz Bulb Temperature: 500 (max) C Pinch Temperature: 300 (max) C Color Temperature Technical: 4200 K Light Center Length L: 51 (min), 52 (nom), 53 (max) mm Mercury (Hg) Content: 2.7 mg Chromaticity Coordinate X: 0.374 - Chromaticity Coordinate Y: 0.369 - Lamp Wattage EL 25°C, Rated: 39.0 W Lamp Wattage EL 25°C, Nominal: 35.0 W Lamp Voltage: 85 V Damage Factor D/fc: 0.5 (max) - Arc Length O: 5 mm Luminous Efficacy Lamp EL: 79 Lm/W Luminous Flux Lamp EL: 3100 Lm System Power EL: 44 W Ignition Time: 30 (max) s Lamp Current EL: 0.46 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Diameter D [inch]: 0.5 in Light Center Length L [inch]: 2 in Overall Length C [inch]: 3.34375 (max) in Life to 10% failures EL: 8000 hr Life to 20% failures EL: 9000 hr Life to 5% failures EL: 6000 hr Life to 50% failures EL: 12000 hr Lumen Maintenance EL 2000h: 85 % PET (NIOSH): 8 (min) h500lx Lumen Maintenance EL 5000h: 80 % Lumen Maintenance EL 10000h: 70 % « hide more

€ 27,91 € 27,91 ex. VAT

MASTERC CDM-TC 70W/830 G8.5 1CT/12

Karta produktu PDF

Product code: 58124 Cap-Base: G8.5 Bulb: T14 [T 14 mm] Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: No Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 80 kWh Diameter D: 15 (max) mm Overall Length C: 85 (max) mm see more »

Full product code: 928086505131 Full product name: MASTERColour CDM-TC 70W/830 G8.5 1CT Order code: 928086505131 Order product name: MASTERC CDM-TC 70W/830 G8.5 1CT/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500201683 Bar code on pack - EAN1: 8711500201676 Packs per outerbox: 12 Logistic code(s) - 12NC: 928086505131 Net weight per piece: 0.010 kg Bulb Finish: Clear Lamp Wattage: 70 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 83 Ra8 ILCOS code: MT/UB-70/830-H-G8.5-17/85 Bulb Material: UV-Block Quartz Bulb Temperature: 550 (max) C Pinch Temperature: 300 (max) C Color Temperature Technical: 2915 K Light Center Length L: 51 (min), 52 (nom), 53 (max) mm Mercury (Hg) Content: 4.5 mg Chromaticity Coordinate X: 0.439 - Chromaticity Coordinate Y: 0.398 - Lamp Wattage EL 25°C, Rated: 73.0 W Lamp Wattage EL 25°C, Nominal: 70.0 W Lamp Voltage: 83 V Damage Factor D/fc: 0.3 (max) - Arc Length O: 7 mm Luminous Efficacy Lamp EL: 88 Lm/W Luminous Flux Lamp EL: 6400 Lm System Power EL: 83 W Ignition Time: 30 (max) s Lamp Current EL: 0.87 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Diameter D [inch]: 0.5 in Light Center Length L [inch]: 2 in Overall Length C [inch]: 3.34375 (max) in Life to 10% failures EL: 8000 hr Life to 20% failures EL: 9000 hr Life to 5% failures EL: 6000 hr Life to 50% failures EL: 12000 hr Lumen Maintenance EL 2000h: 85 % Design Mean Lumens EL: 5100 Lm PET (NIOSH): 8 (min) h500lx Ignition Peak Voltage: 3500 (min) V Lumen Maintenance EL 5000h: 75 % Lumen Maintenance EL 10000h: 65 % « hide more

€ 27,91 € 27,91 ex. VAT

Description / FAQ Warranty

If you buy goods in partial package that is not currently available in our store (available on request), we reserve the rights to charge additional increments of 5 EUR ex. VAT.
