Metal halide lamp MASTERColour CDM-Rm Elite Mini Metal Halide Lamps GX10 / MR16

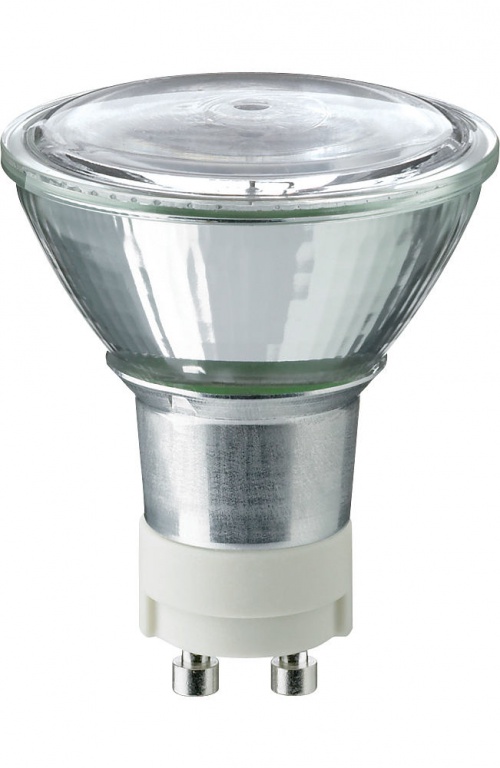

Philips CDM-Rm Elite Mini 35W/930 GX10 MR16 10D

Price € 50,79 € 50,79 ex. VAT

See variants (3)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 3

CDM-Rm Elite Mini 35W/930 GX10 MR16 10D

Karta produktu PDF

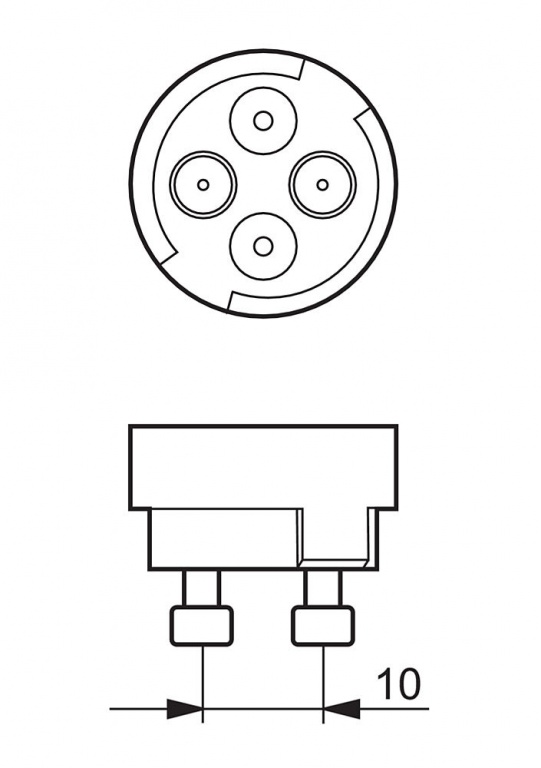

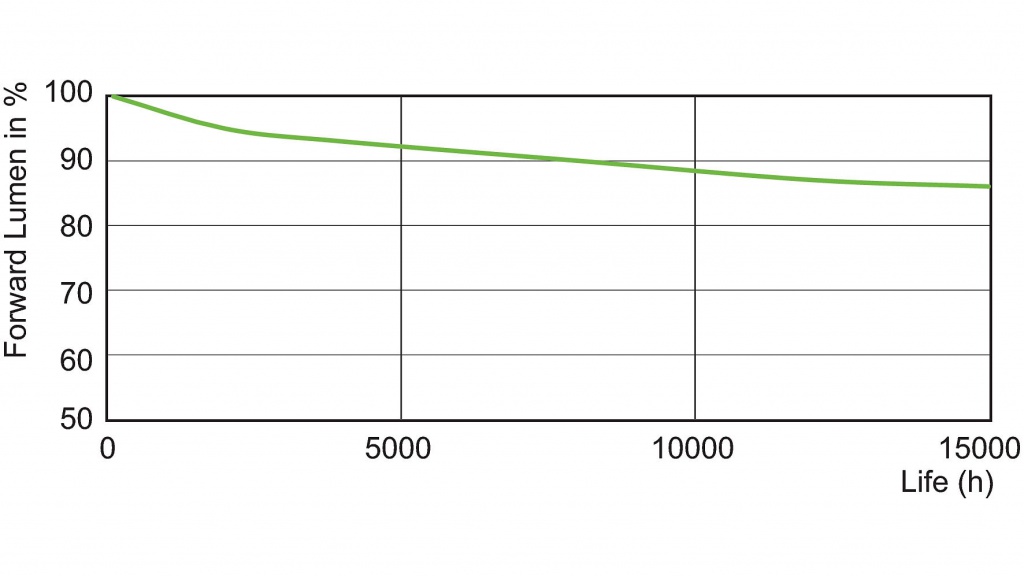

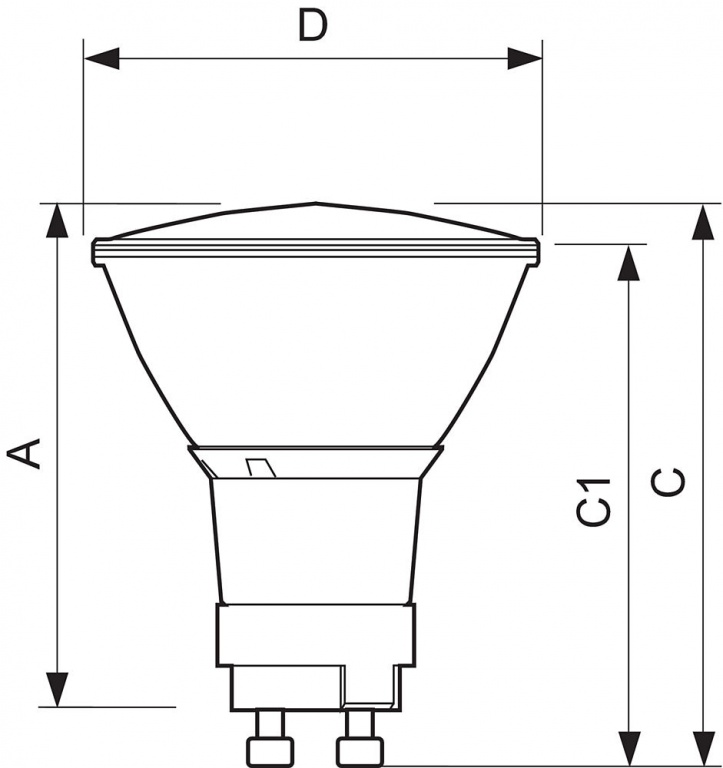

Product code: 58191 Cap-Base: GX10 Bulb: MR16 [2inch/50mm] Color Code: 930 [CCT of 3000K] Color Temperature: 3000 K LLMF - end nominal lifetime: 86 % Dimmable: No Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 43 kWh Switching cycle: 1350X Diameter D: 50 (nom), 51 (max) mm see more »

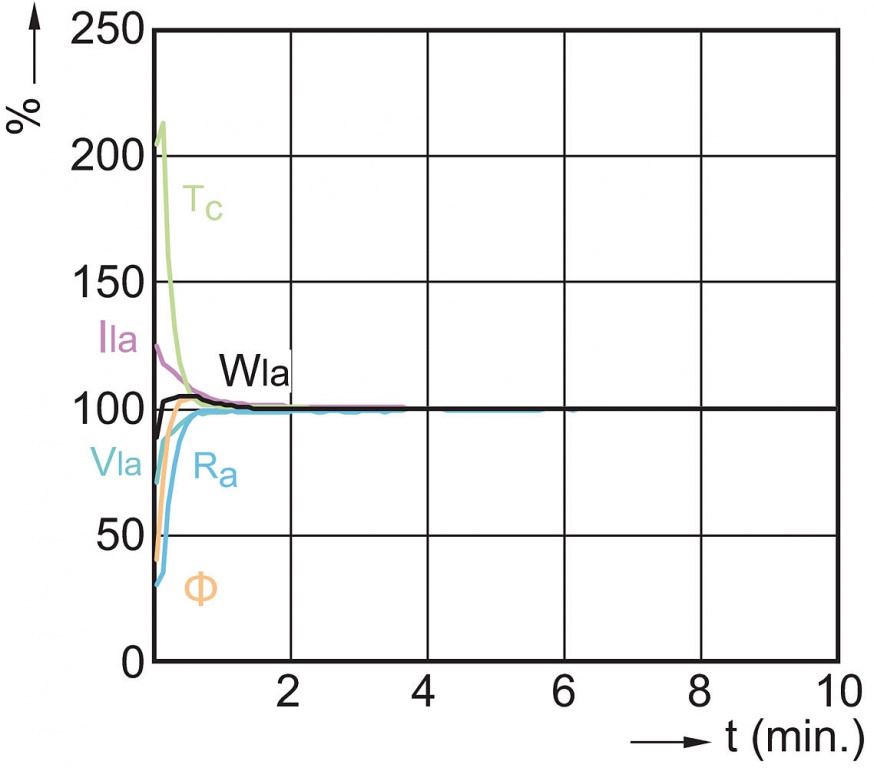

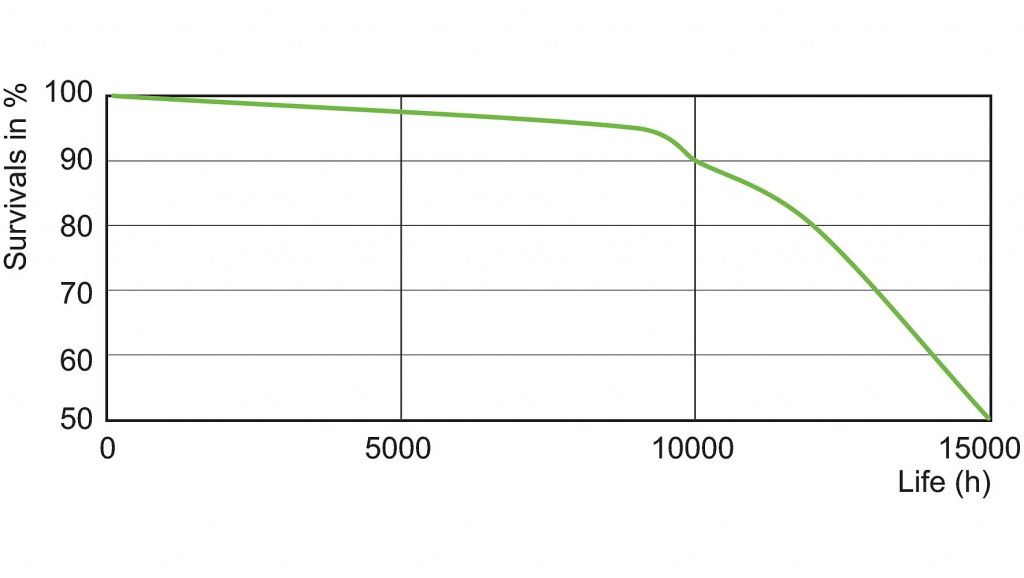

Overall Length C: 62.75 (nom), 65.4 (max) mm Full product code: 928194605330 Full product name: MASTERColour CDM-Rm Elite Mini 35W/930 GX10 MR16 10D Order code: 928194605330 Order product name: CDM-Rm Elite Mini 35W/930 GX10 MR16 10D Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291162971 Bar code on pack - EAN1: 8718291162964 Packs per outerbox: 12 Logistic code(s) - 12NC: 928194605330 Net weight per piece: 0.048 kg Warm-up Time to 60% Light Outp: 120 s Beam Angle: 10 D Luminous Intensity: 20000 cd Luminous flux in 90° cone: 2150 Lm Lamp Wattage: 35 W Operating Position: any [Any or Universal (U)] Beam Angle Technical: 9 (min), 12 (nom), 15 (max) D Color Rendering Index: 90 (min), 91 (nom) Ra8 Overall Length Rim C1: 60.9 (max) mm ILCOS code: MRS/UB-35/930-H-GX10-51/54.5/10 Life to 50% failures: 15000 hr Color Temperature Technical: 3000 K Mercury (Hg) Content: 4.7 mg Chromaticity Coordinate X: 0.439 - Chromaticity Coordinate Y: 0.403 - Lamp Wattage EL 25°C, Rated: 39.0 W Lamp Voltage: 87 V Damage Factor D/fc: 0.4 (max) - Life to 20% failures: 12000 hr Life to 5% failures: 9000 hr System Power EL: 43 W Ignition Time: 30 (max) s Lamp Current EL: 0.450 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Reference Length A: 59 (max) mm Life to 10% failures: 10000 hr Design Mean Lumens EL: 2200 Lm PET (NIOSH): 8 (min) h500lx Lamp Wattage EL: 35 W Forward Luminous Output: 2200 (min), 2400 (nom) Lm Forward Lum Maintenance 2000h: 95 % Forward Luminous Efficacy: 61.5 Lm/W Forward Lum Maintenance 4000h: 93 % Forward Lum Maintenance 8000h: 90 % Forward Lum Maintenance 12000h: 87 % Forward Lum Maintenance 15000h: 86 % Reflector Neck Temperature: 315 (max) C « hide more

€ 50,79 € 50,79 ex. VAT

CDM-Rm Elite Mini 35W/930 GX10 MR16 25D

Karta produktu PDF

Product code: 58192 Cap-Base: GX10 Bulb: MR16 [2inch/50mm] Color Code: 930 [CCT of 3000K] Color Temperature: 3000 K LLMF - end nominal lifetime: 86 % Dimmable: No Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 43 kWh Switching cycle: 1350X Diameter D: 50 (nom), 51 (max) mm see more »

Overall Length C: 62.75 (nom), 65.4 (max) mm Full product code: 928194705330 Full product name: MASTERColour CDM-Rm Elite Mini 35W/930 GX10 MR16 25D Order code: 928194705330 Order product name: CDM-Rm Elite Mini 35W/930 GX10 MR16 25D Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291163015 Bar code on pack - EAN1: 8718291163008 Packs per outerbox: 12 Logistic code(s) - 12NC: 928194705330 Net weight per piece: 0.048 kg Warm-up Time to 60% Light Outp: 120 s Beam Angle: 25 D Luminous Intensity: 8500 cd Luminous flux in 90° cone: 2150 Lm Lamp Wattage: 35 W Operating Position: any [Any or Universal (U)] Beam Angle Technical: 16.5 (min), 22 (nom), 27.5 (max) D Color Rendering Index: 90 (min), 91 (nom) Ra8 Overall Length Rim C1: 60.9 (max) mm ILCOS code: MRS/UB-35/930-H-GX10-51/54.5/25 Life to 50% failures: 15000 hr Color Temperature Technical: 3000 K Mercury (Hg) Content: 4.7 mg Chromaticity Coordinate X: 0.439 - Chromaticity Coordinate Y: 0.403 - Lamp Wattage EL 25°C, Rated: 39.0 W Lamp Voltage: 87 V Damage Factor D/fc: 0.4 (max) - Life to 20% failures: 12000 hr Life to 5% failures: 9000 hr System Power EL: 43 W Ignition Time: 30 (max) s Lamp Current EL: 0.450 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Reference Length A: 59 (max) mm Life to 10% failures: 10000 hr Design Mean Lumens EL: 2200 Lm PET (NIOSH): 8 (min) h500lx Lamp Wattage EL: 35 W Forward Luminous Output: 2200 (min), 2400 (nom) Lm Forward Lum Maintenance 2000h: 95 % Forward Luminous Efficacy: 61.5 Lm/W Forward Lum Maintenance 4000h: 93 % Forward Lum Maintenance 8000h: 90 % Forward Lum Maintenance 12000h: 87 % Forward Lum Maintenance 15000h: 86 % Reflector Neck Temperature: 315 (max) C « hide more

€ 50,79 € 50,79 ex. VAT

CDM-Rm Elite Mini 35W/930 GX10 MR16 40D

Karta produktu PDF

Product code: 58193 Cap-Base: GX10 Bulb: MR16 [2inch/50mm] Color Code: 930 [CCT of 3000K] Color Temperature: 3000 K LLMF - end nominal lifetime: 86 % Dimmable: No Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 43 kWh Switching cycle: 1350X Diameter D: 50 (nom), 51 (max) mm see more »

Overall Length C: 62.75 (nom), 65.4 (max) mm Full product code: 928194805330 Full product name: MASTERColour CDM-Rm Elite Mini 35W/930 GX10 MR16 40D Order code: 928194805330 Order product name: CDM-Rm Elite Mini 35W/930 GX10 MR16 40D Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291163077 Bar code on pack - EAN1: 8718291163060 Packs per outerbox: 12 Logistic code(s) - 12NC: 928194805330 Net weight per piece: 0.048 kg Warm-up Time to 60% Light Outp: 120 s Beam Angle: 40 D Luminous Intensity: 4400 cd Luminous flux in 90° cone: 2150 Lm Lamp Wattage: 35 W Operating Position: any [Any or Universal (U)] Beam Angle Technical: 27 (min), 36 (nom), 45 (max) D Color Rendering Index: 90 (min), 91 (nom) Ra8 Overall Length Rim C1: 60.9 (max) mm ILCOS code: MRS/UB-35/930-H-GX10-51/54.5/40 Life to 50% failures: 15000 hr Color Temperature Technical: 3000 K Mercury (Hg) Content: 4.7 mg Chromaticity Coordinate X: 0.439 - Chromaticity Coordinate Y: 0.403 - Lamp Wattage EL 25°C, Rated: 39.0 W Lamp Voltage: 87 V Damage Factor D/fc: 0.4 (max) - Life to 20% failures: 12000 hr Life to 5% failures: 9000 hr System Power EL: 43 W Ignition Time: 30 (max) s Lamp Current EL: 0.450 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Reference Length A: 59 (max) mm Life to 10% failures: 10000 hr Design Mean Lumens EL: 2200 Lm PET (NIOSH): 8 (min) h500lx Lamp Wattage EL: 35 W Forward Luminous Output: 2200 (min), 2400 (nom) Lm Forward Lum Maintenance 2000h: 95 % Forward Luminous Efficacy: 61.5 Lm/W Forward Lum Maintenance 4000h: 93 % Forward Lum Maintenance 8000h: 90 % Forward Lum Maintenance 12000h: 87 % Forward Lum Maintenance 15000h: 86 % Reflector Neck Temperature: 315 (max) C « hide more

€ 50,79 € 50,79 ex. VAT

Description / FAQ Warranty

Mini, very high-efficiency Ceramic Metal Halide discharge reflector lamp producing crisp white sparkling light with high color rendering

Features

Crisp white sparkling light

Excellent color rendering, with extra red

High efficacy with unparalleled lumen maintenance

Mini design fitting in open luminaires

UV-blocking front glass

Applications

Accent and display lighting in retail

General and decorative indoor lighting

If you buy goods in partial package that is not currently available in our store (available on request), we reserve the rights to charge additional increments of 5 EUR ex. VAT.
