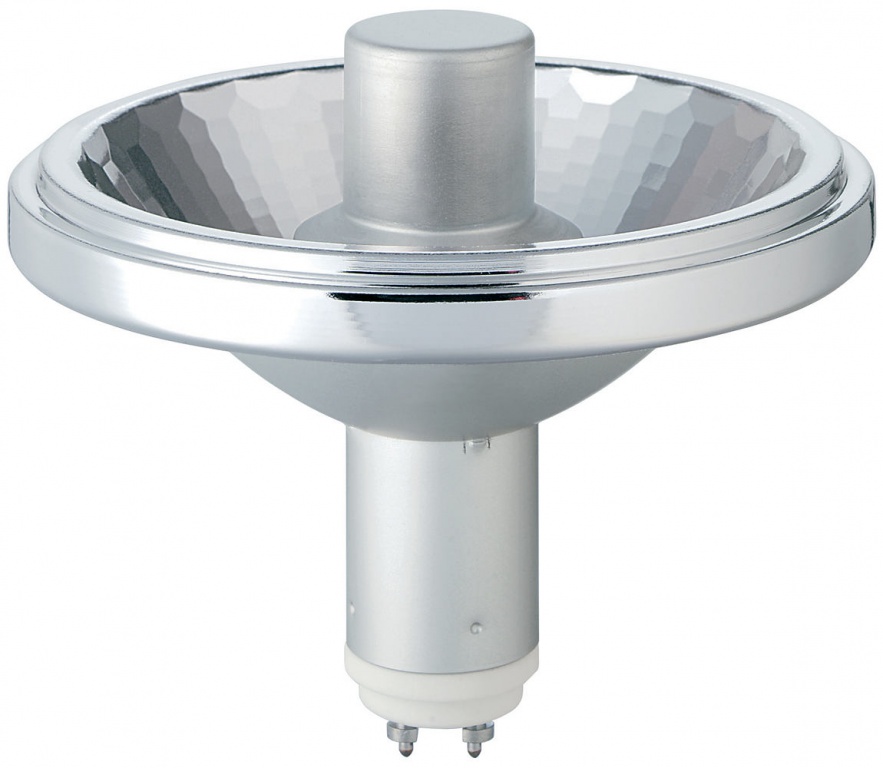

Metal Halide Lamp MASTERColour CDM-R111 Metal Halide Lamps GX8.5 R111

Philips MASTERC CDM-R111 20W/830 GX8.5 10D 1CT/6

Price € 65,97 € 65,97 ex. VAT

See variants (4)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

MASTERC CDM-R111 35W/942 GX8.5 24D 1CT

Karta produktu PDF

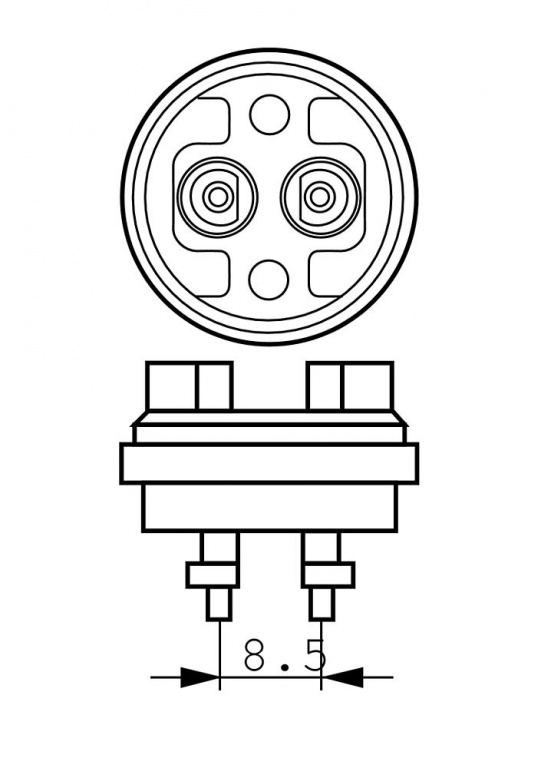

Product code: 58146 Cap-Base: GX8.5 Bulb: R111 [R 111mm] Color Code: 942 [CCT of 4200K] Color Designation (text): Cool White Color Temperature: 4200 K LLMF - end nominal lifetime: 65 % Dimmable: No Energy Efficiency Label (EEL): B Energy consumption kWh/1000h: 43 kWh Switching cycle: 800X see more »

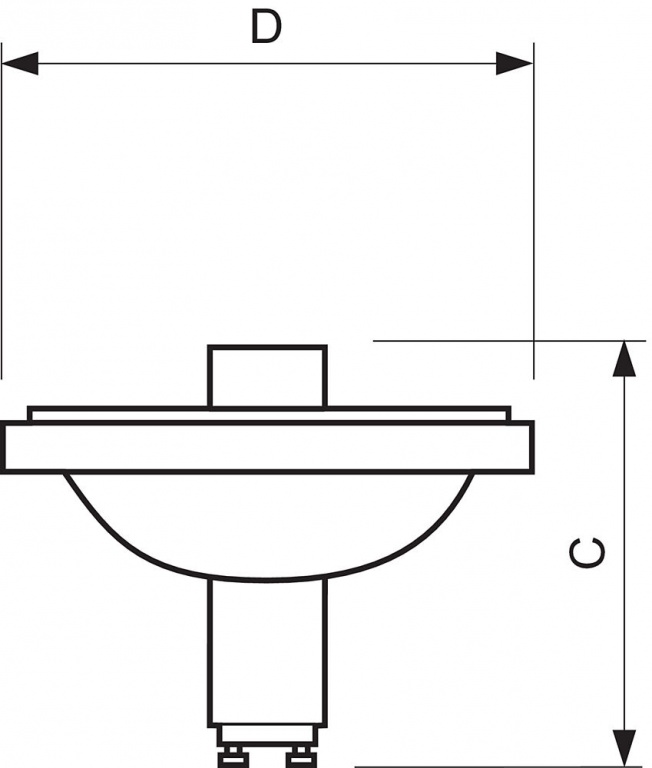

Diameter D: 111 (max) mm Overall Length C: 95 (max) mm Full product code: 928096505330 Full product name: MASTERColour CDM-R111 35W/942 GX8.5 24D 1CT Order code: 928096505330 Order product name: MASTERC CDM-R111 35W/942 GX8.5 24D 1CT Packing configuration: 6 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500213884 Bar code on pack - EAN1: 8711500213877 Packs per outerbox: 6 Logistic code(s) - 12NC: 928096505330 Net weight per piece: 0.095 kg Warm-up Time to 60% Light Outp: 120 s Bulb Finish: Reflector Beam Angle: 24 D Luminous Intensity: 7500 cd Luminous flux in 90° cone: 1300 Lm Beam Description: Narrow Flood Lamp Wattage: 35 W Operating Position: any [Any or Universal (U)] Beam Angle Technical: 18 (min), 23 (nom), 28 (max) D Color Rendering Index: 93 Ra8 ILCOS code: MRS/UB-35/942-H-GX8.5-111/88/24 Color Temperature Technical: 4225 K Mercury (Hg) Content: 3.0 mg Chromaticity Coordinate X: 0.370 - Chromaticity Coordinate Y: 0.365 - Lamp Wattage EL 25°C, Rated: 39.0 W Lamp Voltage: 86 V Damage Factor D/fc: 0.4 (max) - Luminous Flux Lamp EL: 1350 Lm System Power EL: 44 W Ignition Time: 30 (max) s Lamp Current EL: 0.46 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Overall Length C [inch]: 3.75 (max) in Life to 10% failures EL: 6500 hr Life to 20% failures EL: 7000 hr Life to 5% failures EL: 6000 hr Life to 50% failures EL: 9000 hr PET (NIOSH): 8 (min) h500lx Lamp Wattage EL: 35 W « hide more

€ 65,97 € 65,97 ex. VAT

MASTERC CDM-R111 35W/942 GX8.5 40D 1CT/6

Karta produktu PDF

Product code: 58147 Cap-Base: GX8.5 Bulb: R111 [R 111mm] Color Code: 942 [CCT of 4200K] Color Designation (text): Cool White Color Temperature: 4200 K LLMF - end nominal lifetime: 65 % Dimmable: No Energy Efficiency Label (EEL): B Energy consumption kWh/1000h: 43 kWh Switching cycle: 800X see more »

Diameter D: 111 (max) mm Overall Length C: 95 (max) mm Full product code: 928096605330 Full product name: MASTERColour CDM-R111 35W/942 GX8.5 40D 1CT Order code: 928096605330 Order product name: MASTERC CDM-R111 35W/942 GX8.5 40D 1CT Packing configuration: 6 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500213907 Bar code on pack - EAN1: 8711500213891 Packs per outerbox: 6 Logistic code(s) - 12NC: 928096605330 Net weight per piece: 0.095 kg Warm-up Time to 60% Light Outp: 120 s Bulb Finish: Reflector Beam Angle: 40 D Luminous Intensity: 4000 cd Luminous flux in 90° cone: 1300 Lm Beam Description: Flood [Flood] Lamp Wattage: 35 W Operating Position: any [Any or Universal (U)] Beam Angle Technical: 27 (min), 36 (nom), 45 (max) D Color Rendering Index: 93 Ra8 ILCOS code: MRS/UB-35/942-H-GX8.5-111/88/40 Color Temperature Technical: 4225 K Mercury (Hg) Content: 3.0 mg Chromaticity Coordinate X: 0.370 - Chromaticity Coordinate Y: 0.365 - Lamp Wattage EL 25°C, Rated: 39.0 W Lamp Voltage: 86 V Damage Factor D/fc: 0.4 (max) - Luminous Flux Lamp EL: 1350 Lm System Power EL: 44 W Ignition Time: 30 (max) s Lamp Current EL: 0.46 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Overall Length C [inch]: 3.75 (max) in Life to 10% failures EL: 6500 hr Life to 20% failures EL: 7000 hr Life to 5% failures EL: 6000 hr Life to 50% failures EL: 9000 hr PET (NIOSH): 8 (min) h500lx Lamp Wattage EL: 35 W « hide more

€ 65,97 € 65,97 ex. VAT

MASTERC CDM-R111 70W/942 GX8.5 24D 1CT/6

Karta produktu PDF

Product code: 58144 Cap-Base: GX8.5 Bulb: R111 [R 111mm] Color Code: 942 [CCT of 4200K] Color Designation (text): Cool White Color Temperature: 4200 K LLMF - end nominal lifetime: 60 % Dimmable: No Energy Efficiency Label (EEL): B Energy consumption kWh/1000h: 80 kWh Switching cycle: 1000X see more »

Diameter D: 111 (max) mm Overall Length C: 95 (max) mm Full product code: 928096905330 Full product name: MASTERColour CDM-R111 70W/942 GX8.5 24D 1CT Order code: 928096905330 Order product name: MASTERC CDM-R111 70W/942 GX8.5 24D 1CT Packing configuration: 6 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500213945 Bar code on pack - EAN1: 8711500213938 Packs per outerbox: 6 Logistic code(s) - 12NC: 928096905330 Net weight per piece: 0.095 kg Warm-up Time to 60% Light Outp: 120 s Bulb Finish: Reflector Beam Angle: 24 D Luminous Intensity: 14500 cd Luminous flux in 90° cone: 2800 Lm Beam Description: Narrow Flood Lamp Wattage: 70 W Operating Position: any [Any or Universal (U)] Beam Angle Technical: 18 (min), 23 (nom), 28 (max) D Color Rendering Index: 96 Ra8 ILCOS code: MRS/UB-70/942-H-GX8.5-111/88/24 Color Temperature Technical: 3900 K Mercury (Hg) Content: 6.3 mg Chromaticity Coordinate X: 0.381 - Chromaticity Coordinate Y: 0.370 - Lamp Wattage EL 25°C, Rated: 73.0 W Lamp Voltage: 92 V Damage Factor D/fc: 0.3 (max) - Luminous Flux Lamp EL: 2850 Lm System Power EL: 83 W Ignition Time: 30 (max) s Lamp Current EL: 0.80 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Overall Length C [inch]: 3.6 (max) in Life to 10% failures EL: 8500 hr Life to 20% failures EL: 9500 hr Life to 5% failures EL: 7500 hr Life to 50% failures EL: 11000 hr PET (NIOSH): 8 (min) h500lx Lamp Wattage EL: 70 W « hide more

€ 65,97 € 65,97 ex. VAT

MASTERC CDM-R111 70W/942 GX8.5 40D 1CT/6

Karta produktu PDF

Product code: 58145 Cap-Base: GX8.5 Bulb: R111 [R 111mm] Color Code: 942 [CCT of 4200K] Color Designation (text): Cool White Color Temperature: 4200 K LLMF - end nominal lifetime: 60 % Dimmable: No Energy Efficiency Label (EEL): B Energy consumption kWh/1000h: 80 kWh Switching cycle: 1000X see more »

Diameter D: 111 (max) mm Overall Length C: 95 (max) mm Full product code: 928098105330 Full product name: MASTERColour CDM-R111 70W/942 GX8.5 40D 1CT Order code: 928098105330 Order product name: MASTERC CDM-R111 70W/942 GX8.5 40D 1CT Packing configuration: 6 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500213969 Bar code on pack - EAN1: 8711500213952 Packs per outerbox: 6 Logistic code(s) - 12NC: 928098105330 Net weight per piece: 0.095 kg Warm-up Time to 60% Light Outp: 120 s Bulb Finish: Reflector Beam Angle: 40 D Luminous Intensity: 8000 cd Luminous flux in 90° cone: 2800 Lm Beam Description: Flood [Flood] Lamp Wattage: 70 W Operating Position: any [Any or Universal (U)] Beam Angle Technical: 27 (min), 36 (nom), 45 (max) D Color Rendering Index: 96 Ra8 ILCOS code: MRS/UB-70/942-H-GX8.5-111/88/40 Color Temperature Technical: 3900 K Mercury (Hg) Content: 6.3 mg Chromaticity Coordinate X: 0.381 - Chromaticity Coordinate Y: 0.370 - Lamp Wattage EL 25°C, Rated: 73.0 W Lamp Voltage: 92 V Damage Factor D/fc: 0.3 (max) - Luminous Flux Lamp EL: 2850 Lm System Power EL: 83 W Ignition Time: 30 (max) s Lamp Current EL: 0.80 A Re-ignition Time [min]: 15 (max) min Run-up time 90%: 3 (max) min Overall Length C [inch]: 3.6 (max) in Life to 10% failures EL: 8500 hr Life to 20% failures EL: 9500 hr Life to 5% failures EL: 7500 hr Life to 50% failures EL: 11000 hr PET (NIOSH): 8 (min) h500lx Lamp Wattage EL: 70 W « hide more

€ 65,97 € 65,97 ex. VAT

Description / FAQ Warranty

The MASTERColour CDM-R111 combines the trendy look of the 111 mm aluminium reflector halogen lamps with the long life, high energy efficiency and crisp white light of MASTERColour CDM.

Features

High lamp efficacy

Long lamp lifetime compared to incandescent and halogen lamps

The ceramic discharge tube is optimally and stable positioned in the reflector

Twist & Lock system

UV-Block burner capsule

Anti-glare cap design

Applications

Accent and decorative lighting: display lighting with sparkling, theatrical effects, even in surroundings with very high background ambient light levels like shop windows

General lighting: in downlighters, a warm and comfortable atmosphere can be created

If you buy goods in partial package that is not currently available in our store (available on request), we reserve the rights to charge additional increments of 5 EUR ex. VAT.
