Fluorescent Lamp MASTER TL5 High Output Fluorescent Lamps T5/G5

From € 3,92 incl. VAT
From € 3,92 ex. VAT

See variants (14)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 14

MASTER TL5 HO 24W/830 SLV/40

Karta produktu PDF

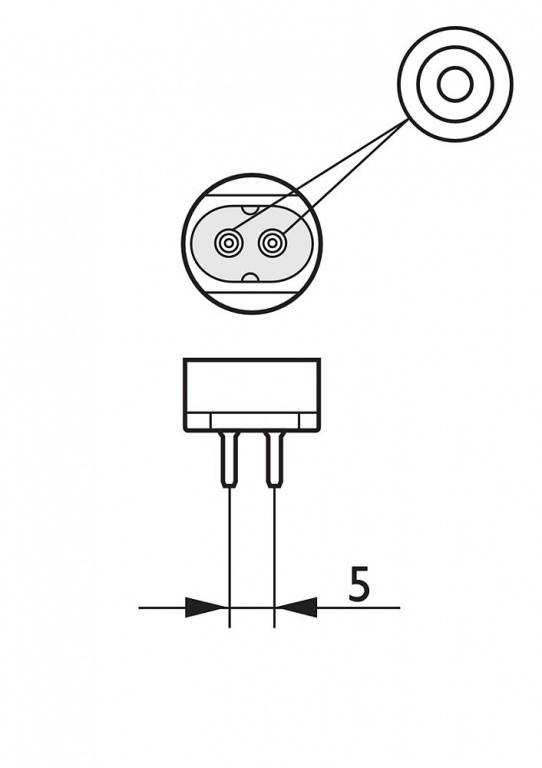

Product code: 57989 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 25 kWh Diameter D: 17 (max) mm Overall Length C: 563.2 (max) mm see more »

Full product code: 927928083061 Full product name: MASTER TL5 HO 24W/830 1SL Order code: 927928083061 Order product name: MASTER TL5 HO 24W/830 1SL/20 Packing configuration: 20 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500264794 Bar code on pack - EAN1: 8711500639585 Packs per outerbox: 20 Logistic code(s) - 12NC: 927928083061 Net weight per piece: 54.000 gr Cap-Base Information: Green Plate System Description: High Output Lamp Wattage: 24 W Color Rendering Index: 80 (min), 82 (nom), 85 (max) Ra8 ILCOS code: FDH-24/30/1B-L/P-G5-16/550 Mercury (Hg) Content: 1.4 mg Insertion Length B: 553.7 (min), 556.1 (max) mm Chromaticity Coordinate X: 440 - Chromaticity Coordinate Y: 403 - Design Temperature: 35 C Base Face to Base Face A: 549.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 99 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 1700 Lm Luminous Flux EL 25°C, Rated: 1700 Lm LLMF HF 2000h Rated: 96 % LLMF HF 4000h Rated: 95 % LLMF HF 12000h Rated: 92 % LLMF HF 6000h Rated: 94 % LLMF HF 8000h Rated: 93 % Lamp Wattage EL 25°C, Rated: 22.5 W Lamp Voltage EL 25°C: 77 V Lamp Wattage EL 25°C, Nominal: 24.0 W Lamp Current EL 25°C: 0.295 A Lum Efficacy Rated HF 25°C: 76 Lm/W LSF HF Preheat 20000h Rated,3h: 84 % LLMF HF 16000h Rated: 91 % LLMF HF 20000h Rated: 90 % Calibration Current: 0.300 A HF Generator Rated Voltage: 150 V Resistor: 250 ohm Luminous Flux Lamp EL 35°C: 1950 Lm Lum Efficacy Rated HF 35°C: 87 Lm/W Lamp Voltage EL 35°C: 75 V Lamp Wattage EL 35°C: 22.5 W Lamp Current EL 35°C: 0.300 A « hide more

€ 3,92 € 3,92 ex. VAT

MASTER TL5 HO 24W/840 SLV/40

Karta produktu PDF

Product code: 57990 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 840 [CCT of 4000K] Color Designation (text): Cool White Color Temperature: 4000 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 25 kWh Diameter D: 17 (max) mm Overall Length C: 563.2 (max) mm see more »

Full product code: 927928084055 Full product name: MASTER TL5 HO 24W/840 1SL Order code: 927928084055 Order product name: MASTER TL5 HO 24W/840 1SL/40 Packing configuration: 40 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500867841 Bar code on pack - EAN1: 8711500639608 Packs per outerbox: 40 Logistic code(s) - 12NC: 927928084055 Net weight per piece: 54.000 gr Cap-Base Information: Green Plate System Description: High Output Lamp Wattage: 24 W Color Rendering Index: 80 (min), 82 (nom), 85 (max) Ra8 ILCOS code: FDH-24/40/1B-L/P-G5-16/550 Mercury (Hg) Content: 1.4 mg Insertion Length B: 553.7 (min), 556.1 (max) mm Chromaticity Coordinate X: 380 - Chromaticity Coordinate Y: 380 - Design Temperature: 35 C Base Face to Base Face A: 549.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 99 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 1700 Lm Luminous Flux EL 25°C, Rated: 1700 Lm LLMF HF 2000h Rated: 96 % LLMF HF 4000h Rated: 95 % LLMF HF 12000h Rated: 92 % LLMF HF 6000h Rated: 94 % LLMF HF 8000h Rated: 93 % Lamp Wattage EL 25°C, Rated: 22.5 W Lamp Voltage EL 25°C: 77 V Lamp Wattage EL 25°C, Nominal: 24.0 W Lamp Current EL 25°C: 0.295 A Lum Efficacy Rated HF 25°C: 76 Lm/W LSF HF Preheat 20000h Rated,3h: 84 % LLMF HF 16000h Rated: 91 % LLMF HF 20000h Rated: 90 % Calibration Current: 0.300 A HF Generator Rated Voltage: 150 V Resistor: 250 ohm Luminous Flux Lamp EL 35°C: 1950 Lm Lum Efficacy Rated HF 35°C: 87 Lm/W Lamp Voltage EL 35°C: 75 V Lamp Wattage EL 35°C: 22.5 W Lamp Current EL 35°C: 0.300 A « hide more

€ 3,92 € 3,92 ex. VAT

MASTER TL5 HO 24W/865 SLV/40

Karta produktu PDF

Product code: 57991 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 865 [CCT of 6500K] Color Designation (text): Cool Daylight Color Temperature: 6500 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 25 kWh Diameter D: 17 (max) mm Overall Length C: 563.2 (max) mm see more »

Full product code: 927928086555 Full product name: MASTER TL5 HO 24W/865 1SL Order code: 927928086555 Order product name: MASTER TL5 HO 24W/865 1SL/40 Packing configuration: 40 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500867858 Bar code on pack - EAN1: 8711500643933 Packs per outerbox: 40 Logistic code(s) - 12NC: 927928086555 Net weight per piece: 53.000 gr Cap-Base Information: Green Plate System Description: High Output Lamp Wattage: 24 W Color Rendering Index: 80 (min), 82 (nom), 85 (max) Ra8 ILCOS code: FDH-24/65/1B-L/P-G5-16/550 Mercury (Hg) Content: 1.4 mg Insertion Length B: 553.7 (min), 556.1 (max) mm Chromaticity Coordinate X: 313 - Chromaticity Coordinate Y: 337 - Design Temperature: 35 C Base Face to Base Face A: 549.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 99 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 1575 Lm Luminous Flux EL 25°C, Rated: 1575 Lm LLMF HF 2000h Rated: 96 % LLMF HF 4000h Rated: 95 % LLMF HF 12000h Rated: 92 % LLMF HF 6000h Rated: 94 % LLMF HF 8000h Rated: 93 % Lamp Wattage EL 25°C, Rated: 22.5 W Lamp Voltage EL 25°C: 77 V Lamp Wattage EL 25°C, Nominal: 24.0 W Lamp Current EL 25°C: 0.295 A Lum Efficacy Rated HF 25°C: 72 Lm/W LSF HF Preheat 20000h Rated,3h: 84 % LLMF HF 16000h Rated: 91 % LLMF HF 20000h Rated: 90 % Calibration Current: 0.300 A HF Generator Rated Voltage: 150 V Resistor: 250 ohm Luminous Flux Lamp EL 35°C: 1825 Lm Lum Efficacy Rated HF 35°C: 81 Lm/W Lamp Voltage EL 35°C: 75 V Lamp Wattage EL 35°C: 22.5 W Lamp Current EL 35°C: 0.300 A « hide more

€ 3,92 € 3,92 ex. VAT

MASTER TL5 HO 39W/830 SLV/40

Karta produktu PDF

Product code: 58001 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 42 kWh Diameter D: 17 (max) mm Overall Length C: 863.2 (max) mm see more »

Full product code: 927928583055 Full product name: MASTER TL5 HO 39W/830 1SL Order code: 927928583055 Order product name: MASTER TL5 HO 39W/830 1SL/40 Packing configuration: 40 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500260031 Bar code on pack - EAN1: 8711500639622 Packs per outerbox: 40 Logistic code(s) - 12NC: 927928583055 Net weight per piece: 80.500 gr Cap-Base Information: Green Plate System Description: High Output Lamp Wattage: 39 W Color Rendering Index: 80 (min), 82 (nom), 85 (max) Ra8 ILCOS code: FDH-39/30/1B-L/P-G5-16/850 Mercury (Hg) Content: 1.4 mg Insertion Length B: 853.7 (min), 856.1 (max) mm Chromaticity Coordinate X: 440 - Chromaticity Coordinate Y: 403 - Design Temperature: 35 C Base Face to Base Face A: 849.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 99 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 3100 Lm Luminous Flux EL 25°C, Rated: 3100 Lm LLMF HF 2000h Rated: 96 % LLMF HF 4000h Rated: 95 % LLMF HF 12000h Rated: 92 % LLMF HF 6000h Rated: 94 % LLMF HF 8000h Rated: 93 % Lamp Wattage EL 25°C, Rated: 38.0 W Lamp Voltage EL 25°C: 118 V Lamp Wattage EL 25°C, Nominal: 39.0 W Lamp Current EL 25°C: 0.325 A Lum Efficacy Rated HF 25°C: 82 Lm/W LSF HF Preheat 20000h Rated,3h: 84 % LLMF HF 16000h Rated: 91 % LLMF HF 20000h Rated: 90 % Calibration Current: 0.340 A HF Generator Rated Voltage: 224 V Resistor: 330 ohm Luminous Flux Lamp EL 35°C: 3500 Lm Lum Efficacy Rated HF 35°C: 92 Lm/W Lamp Voltage EL 35°C: 112 V Lamp Wattage EL 35°C: 38.0 W Lamp Current EL 35°C: 0.340 A « hide more

€ 4,08 € 4,08 ex. VAT

MASTER TL5 HO 39W/840 SLV/40

Karta produktu PDF

Product code: 58002 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 840 [CCT of 4000K] Color Designation (text): Cool White Color Temperature: 4000 K Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 42 kWh Diameter D: 17 (max) mm Overall Length C: 863.2 (max) mm see more »

Full product code: 927928584055 Full product name: MASTER TL5 HO 39W/840 1SL Order code: 927928584055 Order product name: MASTER TL5 HO 39W/840 1SL/40 Packing configuration: 40 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500868398 Bar code on pack - EAN1: 8711500639646 Packs per outerbox: 40 Logistic code(s) - 12NC: 927928584055 Net weight per piece: 80.500 gr Cap-Base Information: Green Plate System Description: High Output Lamp Wattage: 39 W Color Rendering Index: 80 (min), 82 (nom), 85 (max) Ra8 ILCOS code: FDH-39/40/1B-L/P-G5-16/850 Mercury (Hg) Content: 1.4 mg Insertion Length B: 853.7 (min), 856.1 (max) mm Chromaticity Coordinate X: 380 - Chromaticity Coordinate Y: 380 - Design Temperature: 35 C Base Face to Base Face A: 849.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 99 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 3100 Lm Luminous Flux EL 25°C, Rated: 3100 Lm LLMF HF 2000h Rated: 96 % LLMF HF 4000h Rated: 95 % LLMF HF 12000h Rated: 92 % LLMF HF 6000h Rated: 94 % LLMF HF 8000h Rated: 93 % Lamp Wattage EL 25°C, Rated: 38.0 W Lamp Voltage EL 25°C: 118 V Lamp Wattage EL 25°C, Nominal: 39.0 W Lamp Current EL 25°C: 0.325 A Lum Efficacy Rated HF 25°C: 82 Lm/W LSF HF Preheat 20000h Rated,3h: 84 % LLMF HF 16000h Rated: 91 % LLMF HF 20000h Rated: 90 % Calibration Current: 0.340 A HF Generator Rated Voltage: 224 V Resistor: 330 ohm Luminous Flux Lamp EL 35°C: 3500 Lm Lum Efficacy Rated HF 35°C: 92 Lm/W Lamp Voltage EL 35°C: 112 V Lamp Wattage EL 35°C: 38.0 W Lamp Current EL 35°C: 0.340 A « hide more

€ 4,08 € 4,08 ex. VAT

MASTER TL5 HO 39W/865 SLV/40

Karta produktu PDF

Product code: 58003 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 865 [CCT of 6500K] Color Designation (text): Cool Daylight Color Temperature: 6500 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 42 kWh Diameter D: 17 (max) mm Overall Length C: 863.2 (max) mm see more »

Full product code: 927928586555 Full product name: MASTER TL5 HO 39W/865 1SL Order code: 927928586555 Order product name: MASTER TL5 HO 39W/865 1SL/40 Packing configuration: 40 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500868503 Bar code on pack - EAN1: 8711500643872 Packs per outerbox: 40 Logistic code(s) - 12NC: 927928586555 Net weight per piece: 80.500 gr Cap-Base Information: Green Plate System Description: High Output Lamp Wattage: 39 W Color Rendering Index: 80 (min), 82 (nom), 85 (max) Ra8 ILCOS code: FDH-39/65/1B-L/P-G5-16/850 Mercury (Hg) Content: 1.4 mg Insertion Length B: 853.7 (min), 856.1 (max) mm Chromaticity Coordinate X: 313 - Chromaticity Coordinate Y: 337 - Design Temperature: 35 C Base Face to Base Face A: 849.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 99 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 2875 Lm Luminous Flux EL 25°C, Rated: 2875 Lm LLMF HF 2000h Rated: 96 % LLMF HF 4000h Rated: 95 % LLMF HF 12000h Rated: 92 % LLMF HF 6000h Rated: 94 % LLMF HF 8000h Rated: 93 % Lamp Wattage EL 25°C, Rated: 38.0 W Lamp Voltage EL 25°C: 118 V Lamp Wattage EL 25°C, Nominal: 39.0 W Lamp Current EL 25°C: 0.325 A Lum Efficacy Rated HF 25°C: 76 Lm/W LSF HF Preheat 20000h Rated,3h: 84 % LLMF HF 16000h Rated: 91 % LLMF HF 20000h Rated: 90 % Calibration Current: 0.340 A HF Generator Rated Voltage: 224 V Resistor: 330 ohm Luminous Flux Lamp EL 35°C: 3250 Lm Lum Efficacy Rated HF 35°C: 86 Lm/W Lamp Voltage EL 35°C: 112 V Lamp Wattage EL 35°C: 38.0 W Lamp Current EL 35°C: 0.340 A « hide more

€ 4,08 € 4,08 ex. VAT

MASTER TL5 HO 49W/830 SLV/40

Karta produktu PDF

Product code: 57994 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 54 kWh Diameter D: 17 (max) mm Overall Length C: 1463.2 (max) mm see more »

Full product code: 927927583055 Full product name: MASTER TL5 HO 49W/830 1SL Order code: 927927583055 Order product name: MASTER TL5 HO 49W/830 1SL/40 Packing configuration: 40 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500867711 Bar code on pack - EAN1: 8711500639547 Packs per outerbox: 40 Logistic code(s) - 12NC: 927927583055 Net weight per piece: 128.700 gr Cap-Base Information: Green Plate System Description: High Output Lamp Wattage: 49 W Color Rendering Index: 80 (min), 82 (nom), 85 (max) Ra8 ILCOS code: FDH-49/30/1B-L/P-G5-16/1450 Mercury (Hg) Content: 1.4 mg Insertion Length B: 1453.7 (min), 1456.1 (max) mm Chromaticity Coordinate X: 440 - Chromaticity Coordinate Y: 403 - Design Temperature: 35 C Base Face to Base Face A: 1449.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 99 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 4375 Lm Luminous Flux EL 25°C, Rated: 4375 Lm LLMF HF 2000h Rated: 96 % LLMF HF 4000h Rated: 95 % LLMF HF 12000h Rated: 92 % LLMF HF 6000h Rated: 94 % LLMF HF 8000h Rated: 93 % Lamp Wattage EL 25°C, Rated: 49.2 W Lamp Voltage EL 25°C: 195 V Lamp Wattage EL 25°C, Nominal: 49.0 W Lamp Current EL 25°C: 0.255 A Lum Efficacy Rated HF 25°C: 89 Lm/W LSF HF Preheat 20000h Rated,3h: 84 % LLMF HF 16000h Rated: 91 % LLMF HF 20000h Rated: 90 % Calibration Current: 0.255 A HF Generator Rated Voltage: 390 V Resistor: 765 ohm Luminous Flux Lamp EL 35°C: 4900 Lm Lum Efficacy Rated HF 35°C: 99 Lm/W Lamp Voltage EL 35°C: 191 V Lamp Wattage EL 35°C: 49.3 W Lamp Current EL 35°C: 0.260 A « hide more

€ 4,33 € 4,33 ex. VAT

MASTER TL5 HO 49W/840 SLV/40

Karta produktu PDF

Product code: 57995 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 840 [CCT of 4000K] Color Designation (text): Cool White Color Temperature: 4000 K Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 54 kWh Diameter D: 17 (max) mm Overall Length C: 1463.2 (max) mm see more »

Full product code: 927927584055 Full product name: MASTER TL5 HO 49W/840 1SL Order code: 927927584055 Order product name: MASTER TL5 HO 49W/840 1SL/40 Packing configuration: 40 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500867728 Bar code on pack - EAN1: 8711500639561 Packs per outerbox: 40 Logistic code(s) - 12NC: 927927584055 Net weight per piece: 128.700 gr Cap-Base Information: Green Plate System Description: High Output Lamp Wattage: 49 W Color Rendering Index: 80 (min), 82 (nom), 85 (max) Ra8 ILCOS code: FDH-49/40/1B-L/P-G5-16/1450 Mercury (Hg) Content: 1.4 mg Insertion Length B: 1453.7 (min), 1456.1 (max) mm Chromaticity Coordinate X: 380 - Chromaticity Coordinate Y: 380 - Design Temperature: 35 C Base Face to Base Face A: 1449.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 99 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 4375 Lm Luminous Flux EL 25°C, Rated: 4375 Lm LLMF HF 2000h Rated: 96 % LLMF HF 4000h Rated: 95 % LLMF HF 12000h Rated: 92 % LLMF HF 6000h Rated: 94 % LLMF HF 8000h Rated: 93 % Lamp Wattage EL 25°C, Rated: 49.2 W Lamp Voltage EL 25°C: 195 V Lamp Wattage EL 25°C, Nominal: 49.0 W Lamp Current EL 25°C: 0.255 A Lum Efficacy Rated HF 25°C: 89 Lm/W LSF HF Preheat 20000h Rated,3h: 84 % LLMF HF 16000h Rated: 90 % LLMF HF 20000h Rated: 90 % Calibration Current: 0.255 A HF Generator Rated Voltage: 390 V Resistor: 765 ohm Luminous Flux Lamp EL 35°C: 4900 Lm Lum Efficacy Rated HF 35°C: 99 Lm/W Lamp Voltage EL 35°C: 191 V Lamp Wattage EL 35°C: 49.3 W Lamp Current EL 35°C: 0.260 A « hide more

€ 4,33 € 4,33 ex. VAT

MASTER TL5 HO 49W/865 SLV/40

Karta produktu PDF

Product code: 57996 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 865 [CCT of 6500K] Color Designation (text): Cool Daylight Color Temperature: 6500 K Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 54 kWh Diameter D: 17 (max) mm Overall Length C: 1463.2 (max) mm see more »

Full product code: 927927586555 Full product name: MASTER TL5 HO 49W/865 1SL Order code: 927927586555 Order product name: MASTER TL5 HO 49W/865 1SL/40 Packing configuration: 40 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500867735 Bar code on pack - EAN1: 8711500643896 Packs per outerbox: 40 Logistic code(s) - 12NC: 927927586555 Net weight per piece: 128.700 gr Cap-Base Information: Green Plate System Description: High Output Lamp Wattage: 49 W Color Rendering Index: 80 (min), 82 (nom), 85 (max) Ra8 ILCOS code: FDH-49/65/1B-L/P-G5-16/1450 Mercury (Hg) Content: 1.4 mg Insertion Length B: 1453.7 (min), 1456.1 (max) mm Chromaticity Coordinate X: 313 - Chromaticity Coordinate Y: 337 - Design Temperature: 35 C Base Face to Base Face A: 1449.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 99 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 4075 Lm Luminous Flux EL 25°C, Rated: 4075 Lm LLMF HF 2000h Rated: 96 % LLMF HF 4000h Rated: 95 % LLMF HF 12000h Rated: 92 % LLMF HF 6000h Rated: 94 % LLMF HF 8000h Rated: 93 % Lamp Wattage EL 25°C, Rated: 49.2 W Lamp Voltage EL 25°C: 195 V Lamp Wattage EL 25°C, Nominal: 49.0 W Lamp Current EL 25°C: 0.255 A Lum Efficacy Rated HF 25°C: 83 Lm/W LSF HF Preheat 20000h Rated,3h: 84 % LLMF HF 16000h Rated: 91 % LLMF HF 20000h Rated: 90 % Calibration Current: 0.255 A HF Generator Rated Voltage: 390 V Resistor: 765 ohm Luminous Flux Lamp EL 35°C: 4550 Lm Lum Efficacy Rated HF 35°C: 92 Lm/W Lamp Voltage EL 35°C: 191 V Lamp Wattage EL 35°C: 49.3 W Lamp Current EL 35°C: 0.260 A « hide more

€ 4,33 € 4,33 ex. VAT

MASTER TL5 HO 54W/830 SLV/40

Karta produktu PDF

Product code: 57998 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 59 kWh Diameter D: 17 (max) mm Overall Length C: 1163.2 (max) mm see more »

Full product code: 927929083055 Full product name: MASTER TL5 HO 54W/830 1SL Order code: 927929083055 Order product name: MASTER TL5 HO 54W/830 1SL/40 Packing configuration: 40 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500868824 Bar code on pack - EAN1: 8711500643162 Packs per outerbox: 40 Logistic code(s) - 12NC: 927929083055 Net weight per piece: 104.500 gr Cap-Base Information: Green Plate System Description: High Output Lamp Wattage: 54 W Color Rendering Index: 80 (min), 85 (nom), 85 (max) Ra8 ILCOS code: FDH-54/30/1B-L/P-G5-16/1150 Mercury (Hg) Content: 1.4 mg Insertion Length B: 1153.7 (min), 1156.1 (max) mm Chromaticity Coordinate X: 440 - Chromaticity Coordinate Y: 403 - Design Temperature: 35 C Base Face to Base Face A: 1149.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 99 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 4450 Lm Luminous Flux EL 25°C, Rated: 4450 Lm LLMF HF 2000h Rated: 96 % LLMF HF 4000h Rated: 95 % LLMF HF 12000h Rated: 92 % LLMF HF 6000h Rated: 94 % LLMF HF 8000h Rated: 93 % Lamp Wattage EL 25°C, Rated: 54.1 W Lamp Voltage EL 25°C: 120 V Lamp Wattage EL 25°C, Nominal: 54.0 W Lamp Current EL 25°C: 0.455 A Lum Efficacy Rated HF 25°C: 82 Lm/W LSF HF Preheat 20000h Rated,3h: 84 % LLMF HF 16000h Rated: 91 % LLMF HF 20000h Rated: 90 % Calibration Current: 0.460 A HF Generator Rated Voltage: 235 V Resistor: 255 ohm Luminous Flux Lamp EL 35°C: 5000 Lm Lum Efficacy Rated HF 35°C: 93 Lm/W Lamp Voltage EL 35°C: 118 V Lamp Wattage EL 35°C: 53.8 W Lamp Current EL 35°C: 0.460 A « hide more

€ 4,33 € 4,33 ex. VAT

MASTER TL5 HO 54W/865 SLV/40

Karta produktu PDF

Product code: 57992 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 865 [CCT of 6500K] Color Designation (text): Cool Daylight Color Temperature: 6500 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 59 kWh Diameter D: 17 (max) mm Overall Length C: 1163.2 (max) mm see more »

Full product code: 927929086555 Full product name: MASTER TL5 HO 54W/865 1SL Order code: 927929086555 Order product name: MASTER TL5 HO 54W/865 1SL/40 Packing configuration: 40 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500868848 Bar code on pack - EAN1: 8711500643919 Packs per outerbox: 40 Logistic code(s) - 12NC: 927929086555 Net weight per piece: 104.500 gr Cap-Base Information: Green Plate System Description: High Output Lamp Wattage: 54 W Color Rendering Index: 80 (min), 85 (nom), 85 (max) Ra8 ILCOS code: FDH-54/65/1B-L/P-G5-16/1150 Mercury (Hg) Content: 1.4 mg Insertion Length B: 1153.7 (min), 1156.1 (max) mm Chromaticity Coordinate X: 313 - Chromaticity Coordinate Y: 337 - Design Temperature: 35 C Base Face to Base Face A: 1149.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 99 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 4150 Lm Luminous Flux EL 25°C, Rated: 4150 Lm LLMF HF 2000h Rated: 96 % LLMF HF 4000h Rated: 95 % LLMF HF 12000h Rated: 92 % LLMF HF 6000h Rated: 94 % LLMF HF 8000h Rated: 93 % Lamp Wattage EL 25°C, Rated: 54.1 W Lamp Voltage EL 25°C: 120 V Lamp Wattage EL 25°C, Nominal: 54.0 W Lamp Current EL 25°C: 0.455 A Lum Efficacy Rated HF 25°C: 77 Lm/W LSF HF Preheat 20000h Rated,3h: 84 % LLMF HF 16000h Rated: 91 % LLMF HF 20000h Rated: 90 % Calibration Current: 0.460 A HF Generator Rated Voltage: 235 V Resistor: 255 ohm Luminous Flux Lamp EL 35°C: 4650 Lm Lum Efficacy Rated HF 35°C: 86 Lm/W Lamp Voltage EL 35°C: 118 V Lamp Wattage EL 35°C: 53.8 W Lamp Current EL 35°C: 0.460 A « hide more

€ 4,33 € 4,33 ex. VAT

MASTER TL5 HO 80W/830 SLV/40

Karta produktu PDF

Product code: 58004 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 88 kWh Diameter D: 17 (max) mm Overall Length C: 1463.2 (max) mm see more »

Full product code: 927929583057 Full product name: MASTER TL5 HO 80W/830 1SL Order code: 927929583057 Order product name: MASTER TL5 HO 80W/830 1SL/40 Packing configuration: 40 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500868855 Bar code on pack - EAN1: 8711500710406 Packs per outerbox: 40 Logistic code(s) - 12NC: 927929583057 Net weight per piece: 158.450 gr Cap-Base Information: Green Plate System Description: High Output Lamp Wattage: 80 W Color Rendering Index: 80 (min), 82 (nom), 85 (max) Ra8 ILCOS code: FDH-80/30/1B-L/P-G5-16/1450 Mercury (Hg) Content: 1.4 mg Insertion Length B: 1453.7 (min), 1456.1 (max) mm Chromaticity Coordinate X: 440 - Chromaticity Coordinate Y: 403 - Design Temperature: 35 C Base Face to Base Face A: 1449.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 99 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 6550 Lm Luminous Flux EL 25°C, Rated: 6550 Lm LLMF HF 2000h Rated: 96 % LLMF HF 4000h Rated: 95 % LLMF HF 12000h Rated: 92 % LLMF HF 6000h Rated: 94 % LLMF HF 8000h Rated: 93 % Lamp Wattage EL 25°C, Rated: 79.8 W Lamp Voltage EL 25°C: 152 V Lamp Wattage EL 25°C, Nominal: 80.0 W Lamp Current EL 25°C: 0.530 A Lum Efficacy Rated HF 25°C: 82 Lm/W LSF HF Preheat 20000h Rated,3h: 84 % LLMF HF 16000h Rated: 91 % LLMF HF 20000h Rated: 90 % Calibration Current: 0.550 A HF Generator Rated Voltage: 290 V Resistor: 260 ohm Luminous Flux Lamp EL 35°C: 7000 Lm Lum Efficacy Rated HF 35°C: 88 Lm/W Lamp Voltage EL 35°C: 145 V Lamp Wattage EL 35°C: 80.0 W Lamp Current EL 35°C: 0.555 A « hide more

€ 4,73 € 4,73 ex. VAT

MASTER TL5 HO 80W/840 SLV/40

Karta produktu PDF

Product code: 58005 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 840 [CCT of 4000K] Color Designation (text): Cool White Color Temperature: 4000 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 88 kWh Diameter D: 17 (max) mm Overall Length C: 1463.2 (max) mm see more »

Full product code: 927929584057 Full product name: MASTER TL5 HO 80W/840 1SL Order code: 927929584057 Order product name: MASTER TL5 HO 80W/840 1SL/40 Packing configuration: 40 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500868862 Bar code on pack - EAN1: 8711500710451 Packs per outerbox: 40 Logistic code(s) - 12NC: 927929584057 Net weight per piece: 128.700 gr Cap-Base Information: Green Plate System Description: High Output Lamp Wattage: 80 W Color Rendering Index: 80 (min), 82 (nom), 85 (max) Ra8 ILCOS code: FDH-80/40/1B-L/P-G5-16/1450 Mercury (Hg) Content: 1.4 mg Insertion Length B: 1453.7 (min), 1456.1 (max) mm Chromaticity Coordinate X: 380 - Chromaticity Coordinate Y: 380 - Design Temperature: 35 C Base Face to Base Face A: 1449.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 99 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 6550 Lm Luminous Flux EL 25°C, Rated: 6550 Lm LLMF HF 2000h Rated: 96 % LLMF HF 4000h Rated: 95 % LLMF HF 12000h Rated: 92 % LLMF HF 6000h Rated: 94 % LLMF HF 8000h Rated: 93 % Lamp Wattage EL 25°C, Rated: 79.8 W Lamp Voltage EL 25°C: 152 V Lamp Wattage EL 25°C, Nominal: 80.0 W Lamp Current EL 25°C: 0.530 A Lum Efficacy Rated HF 25°C: 82 Lm/W LSF HF Preheat 20000h Rated,3h: 84 % LLMF HF 16000h Rated: 91 % LLMF HF 20000h Rated: 90 % Calibration Current: 0.550 A HF Generator Rated Voltage: 290 V Resistor: 260 ohm Luminous Flux Lamp EL 35°C: 7000 Lm Lum Efficacy Rated HF 35°C: 88 Lm/W Lamp Voltage EL 35°C: 145 V Lamp Wattage EL 35°C: 80.0 W Lamp Current EL 35°C: 0.555 A « hide more

€ 4,73 € 4,73 ex. VAT

MASTER TL5 HO 80W/865 SLV/40

Karta produktu PDF

Product code: 58006 Cap-Base: G5 Bulb: T5 [16 mm] Color Code: 865 [CCT of 6500K] Color Designation (text): Cool Daylight Color Temperature: 6500 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 88 kWh Diameter D: 17 (max) mm Overall Length C: 1463.2 (max) mm see more »

Full product code: 927929586557 Full product name: MASTER TL5 HO 80W/865 1SL Order code: 927929586557 Order product name: MASTER TL5 HO 80W/865 1SL/40 Packing configuration: 40 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500868879 Bar code on pack - EAN1: 8711500710475 Packs per outerbox: 40 Logistic code(s) - 12NC: 927929586557 Net weight per piece: 132.000 gr Cap-Base Information: Green Plate System Description: High Output Lamp Wattage: 80 W Color Rendering Index: 80 (min), 82 (nom), 85 (max) Ra8 ILCOS code: FDH-80/65/1B-L/P-G5-16/1450 Mercury (Hg) Content: 1.4 mg Insertion Length B: 1453.7 (min), 1456.1 (max) mm Chromaticity Coordinate X: 313 - Chromaticity Coordinate Y: 337 - Design Temperature: 35 C Base Face to Base Face A: 1449.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 99 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 6300 Lm Luminous Flux EL 25°C, Rated: 6300 Lm LLMF HF 2000h Rated: 96 % LLMF HF 4000h Rated: 95 % LLMF HF 12000h Rated: 92 % LLMF HF 6000h Rated: 94 % LLMF HF 8000h Rated: 93 % Lamp Wattage EL 25°C, Rated: 79.8 W Lamp Voltage EL 25°C: 152 V Lamp Wattage EL 25°C, Nominal: 80.0 W Lamp Current EL 25°C: 0.530 A Lum Efficacy Rated HF 25°C: 79 Lm/W LSF HF Preheat 20000h Rated,3h: 84 % LLMF HF 16000h Rated: 91 % LLMF HF 20000h Rated: 90 % Calibration Current: 0.550 A HF Generator Rated Voltage: 290 V Resistor: 260 ohm Luminous Flux Lamp EL 35°C: 6650 Lm Lum Efficacy Rated HF 35°C: 83 Lm/W Lamp Voltage EL 35°C: 145 V Lamp Wattage EL 35°C: 80.0 W Lamp Current EL 35°C: 0.555 A « hide more

€ 4,73 € 4,73 ex. VAT

Description / FAQ Warranty

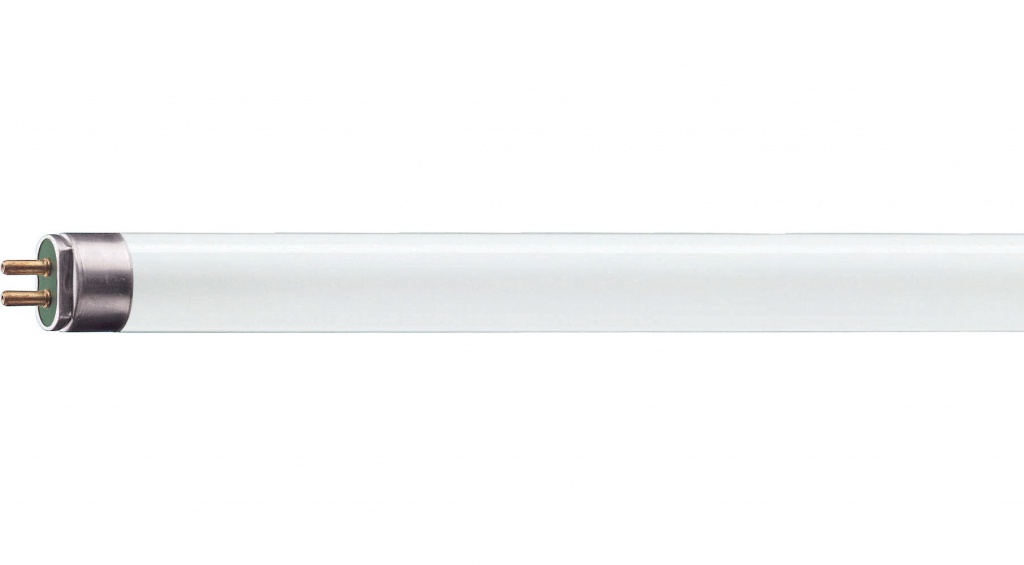

This TL5 lamp (tube diameter 16 mm) offers high light output. The TL5 HO lamp is optimized for installations requiring high light output and offers excellent lumen maintenance and color rendering. Application areas vary from offices and industry to schools and retail environments.

Features

40% thinner than TL-D lamps

Designed for high llight output and system miniaturization

Highly efficient 3-band fluorescent coating in combination with precoating

Specifically designed for operation with electronic gear and well-suited for dimming

Maximum light output reached at approximately 35 °C in free-burning position if an electronic driver with cut-off feature is used

Can be ignited from -15 to +50 °C

Applications

The combination of a compact lamp and high lumen package of the MASTER TL5 HO offers exciting opportunities for architectural lighting and customized solutions

Offers economic solutions with high-ceiling lighting in shops, industry and department stores

The high luminous flux gives optimal results in aesthetic pendants and furniture-mounted luminaires in offices, workshops, restaurants and reception areas
