Price € 4,08 incl. VAT
€ 4,08 netto
-

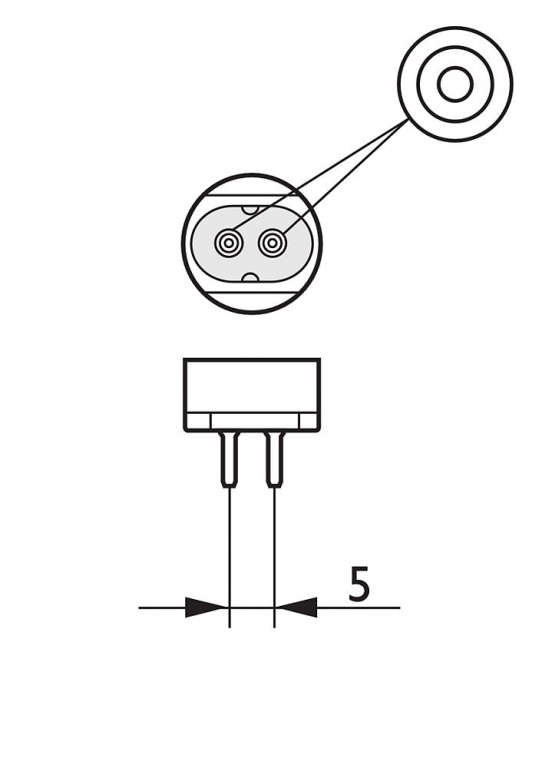

Cap-Base G5
-
Bulb T5 [16 mm]
-
Color Code 827 [CCT of 2700K]
-
Color Designation (text) Incandescent White
-
Color Temperature 2700 K
-
Dimmable Yes
-
Energy Efficiency Label (EEL) A
-
Energy consumption kWh/1000h 8 kWh
-

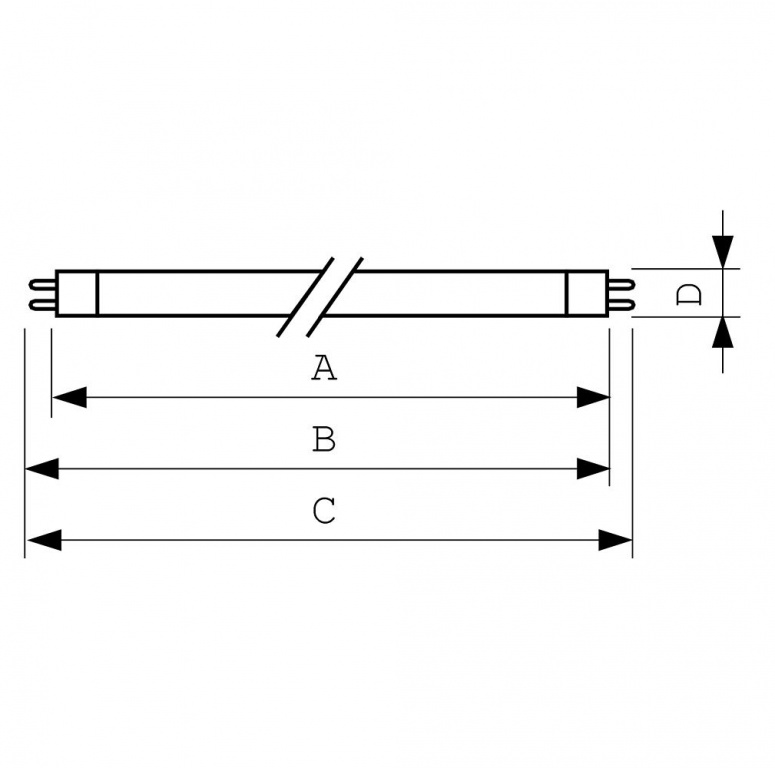

Diameter D 16 (max) mm
-
Overall Length C 302.5 (max) mm
-
Full product code 928001008250
-

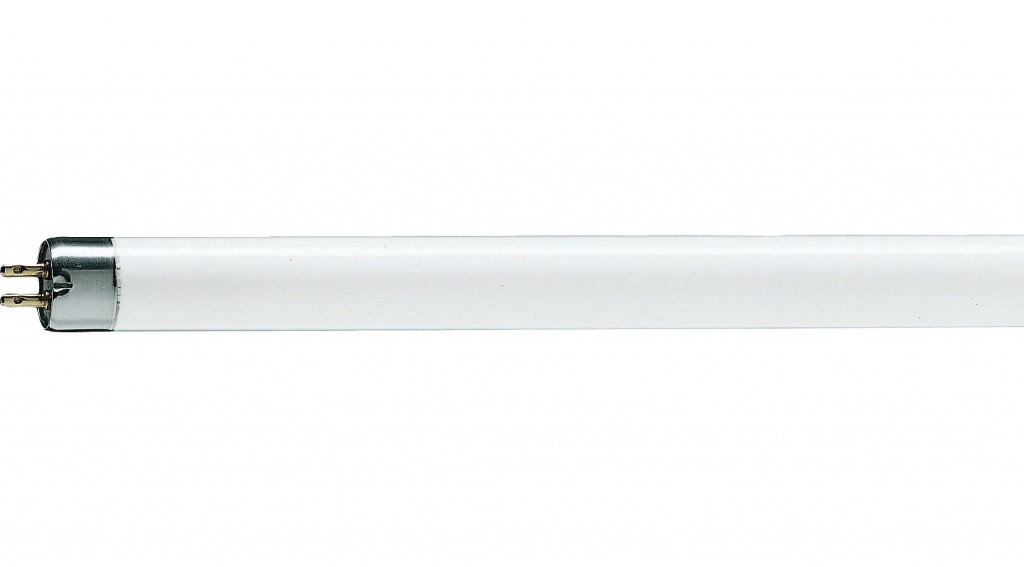

Full product name MASTER TL Mini Super 80 8W/827 1FM
-
▼ see full specification ▼
This TL Miniature lamp (tube diameter 16 mm) is a lamp with small dimensions, which enables system miniaturization and offers the possibility of operation on low-voltage DC supply. It is ideal for applications where better color rendering and efficacy (than standard colors) are required and where space is limited, e.g. halls, staircase lighting in apartment buildings, built into furniture, mirror and cupboard lighting, signage and emergency lighting.
Cap-Base |
G5 |
Bulb |
T5 [16 mm] |
Color Code |
827 [CCT of 2700K] |
Color Designation (text) |
Incandescent White |
Color Temperature |
2700 K |
Dimmable |
Yes |
Energy Efficiency Label (EEL) |
A |
Energy consumption kWh/1000h |
8 kWh |
Diameter D |
16 (max) mm |
Overall Length C |
302.5 (max) mm |
Full product code |
928001008250 |
Full product name |
MASTER TL Mini Super 80 8W/827 1FM |
Order code |
928001008250 |
Order product name |
MST TL Mini 8W/827 1FM/10X25CC |
Packing configuration |
10X25CC |
Pieces per pack |
1 |
Bar code on outerbox - EAN3 |
8711500716361 |
Bar code on pack - EAN1 |
8711500704740 |
Packs per outerbox |
250 |
Logistic code(s) - 12NC |
928001008250 |
Net weight per piece |
27.000 gr |
Bar code on intermediate packing - EAN2 |
8711500706416 |
Lamp Wattage |
8 W |
Color Rendering Index |
82 Ra8 |
ILCOS code |
FD-8/27/1B-E-G5 |
Mercury (Hg) Content |
4.4 mg |
Insertion Length B |
293.0 (min), 295.4 (max) mm |
Lumen Maintenance 2000h |
85 % |
Chromaticity Coordinate X |
469 - |
Chromaticity Coordinate Y |
416 - |
Lumen Maintenance 5000h |
77 % |
Base Face to Base Face A |
288.3 (max) mm |
Luminous Efficacy Lamp EM |
59 Lm/W |
Luminous Flux Lamp EM |
470 Lm |
Lamp Wattage EM |
7.1 W |
Lamp Voltage |
56 V |
Lamp Current EM |
0.15 A |
Lumen Maintenance 10000h |
71 % |
Luminance Average EM |
1.05 cd/cm2 |
This TL Miniature lamp (tube diameter 16 mm) is a lamp with small dimensions, which enables system miniaturization and offers the possibility of operation on low-voltage DC supply. It is ideal for applications where better color rendering and efficacy (than standard colors) are required and where space is limited, e.g. halls, staircase lighting in apartment buildings, built into furniture, mirror and cupboard lighting, signage and emergency lighting.
Features
Small diameter tubes |
Highly efficient 3-band fluorescent coating |
Possibility for operation on low-voltage DC supply |
Applications
Ideal for applications where space is limited and requiring better color rendering and efficacy than standard colors, i.e.: hall and staircase lighting in apartment buildings, built into furniture, mirror and cupboard lighting, emergency lighting |
