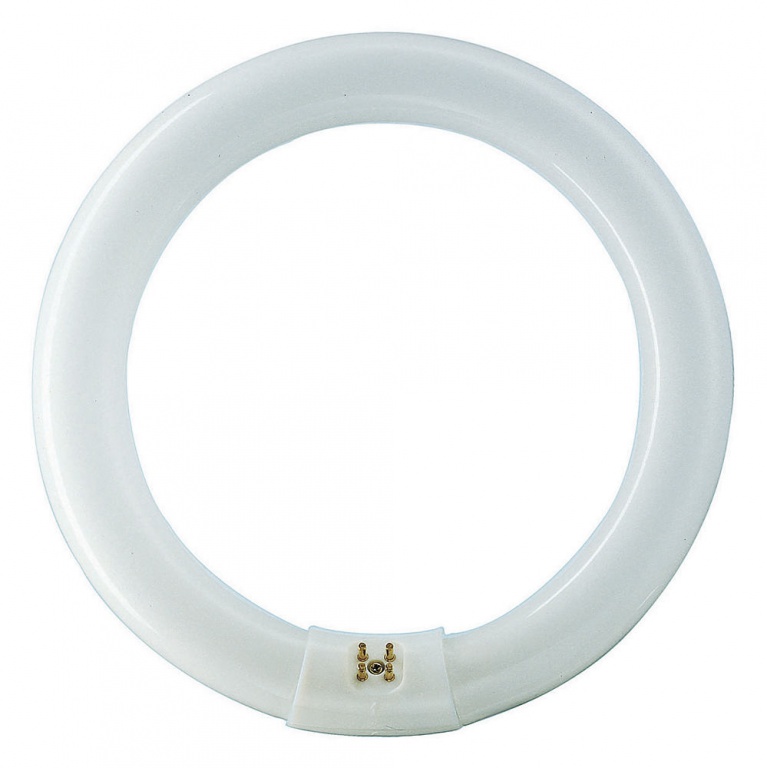

Fluorescent Lamp MASTER TL-E Circular Super 80 Circular Fluorescent Lamps

Price € 8,56 € 8,56 ex. VAT

See variants (3)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 3

TL-E 22W/865 1CT/12

Karta produktu PDF

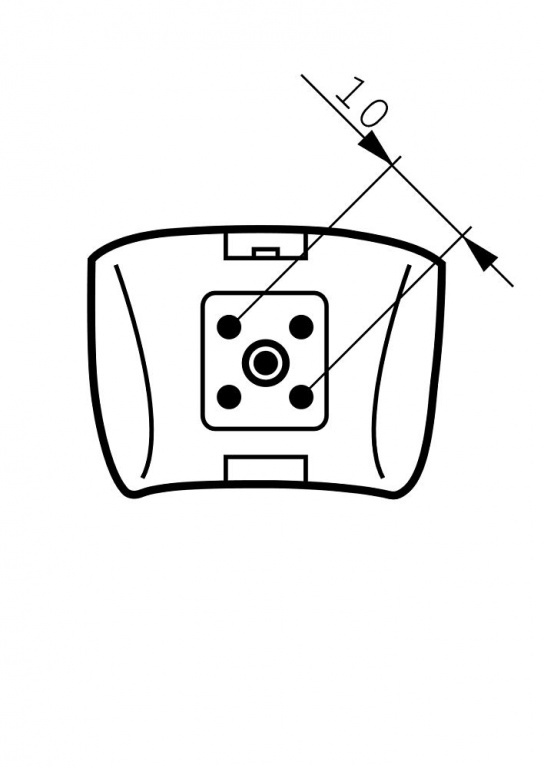

Product code: 57945 Cap-Base: G10q Bulb: C-T9 [C-T 29 mm] Color Code: 865 [CCT of 6500K] Color Designation (text): Cool Daylight Color Temperature: 6500 K Dimmable: Yes Energy Efficiency Label (EEL): B Energy consumption kWh/1000h: 24 kWh Diameter D: 27.1 (min), 30.9 (max) mm Full product code: 928026286570 see more »

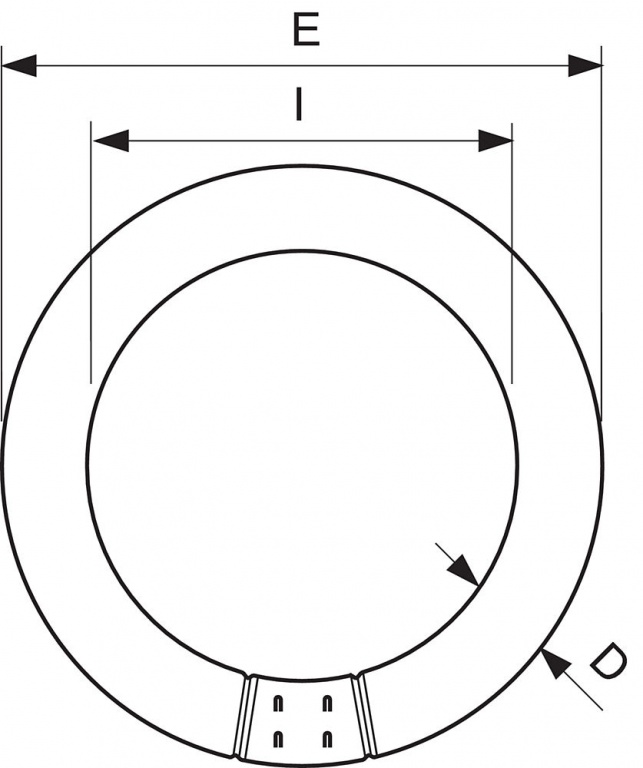

Full product name: MASTER TL-E Circular Super 80 22W/865 1CT Order code: 928026286570 Order product name: MASTER TL-E Circular 22W/865 1CT/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8727900840544 Bar code on pack - EAN1: 8727900840537 Packs per outerbox: 12 Logistic code(s) - 12NC: 928026286570 Net weight per piece: 0.110 kg Lamp Wattage: 22 W Overall Width E: 203.2 (min), 215.9 (max) mm Color Rendering Index: 85 Ra8 ILCOS code: FSC-22/65/1B-E-G10q-29/210 Mercury (Hg) Content: 8 mg Chromaticity Coordinate X: 313 - Chromaticity Coordinate Y: 337 - LSF EM 2000h Rated,3h cycle: 98 % LSF EM 4000h Rated,3h cycle: 77 % LSF EM 6000h Rated,3h cycle: 60 % LSF EM 8000h Rated,3h cycle: 45 % LLMF EM 2000h Rated: 90 % Lum Efficacy Rated EM 25°C: 57 Lm/W Luminous Flux EM 25°C, Nominal: 1250 Lm Luminous Flux EM 25°C, Rated: 1250 Lm LLMF EM 4000h Rated: 87 % LLMF EM 6000h Rated: 85 % LLMF EM 8000h Rated: 84 % Design Temperature: 25 C Lamp Wattage EM 25°C, Nominal: 22 W Lamp Current EM 25°C: 0.400 A Lamp Voltage EM 25°C: 62 V Lamp Wattage EM 25°C, Rated: 22.0 W Luminance Average EM: 0.85 cd/cm2 Inner Width I: 147.6 (min), 157.2 (max) mm « hide more

€ 8,56 € 8,56 ex. VAT

TL-E 32W/830 1CT/12

Karta produktu PDF

Product code: 57946 Cap-Base: G10q Bulb: C-T9 [C-T 29 mm] Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 35 kWh Diameter D: 27.1 (min), 30.9 (max) mm Full product code: 928026383074 see more »

Full product name: MASTER TL-E Circular Super 80 32W/830 1CT Order code: 928026383074 Order product name: MASTER TL-E Circular 32W/830 1CT/20 Packing configuration: 20 Pieces per pack: 1 Bar code on outerbox - EAN3: 8727900813593 Bar code on pack - EAN1: 8711500559678 Packs per outerbox: 20 Logistic code(s) - 12NC: 928026383074 Net weight per piece: 0.180 kg Lamp Wattage: 32 W Overall Width E: 299.0 (min), 303.5 (max) mm Color Rendering Index: 85 Ra8 ILCOS code: FSC-32/30/1B-E-G10q-29/299 Mercury (Hg) Content: 8 mg Chromaticity Coordinate X: 438 - Chromaticity Coordinate Y: 403 - LSF EM 2000h Rated,3h cycle: 98 % LSF EM 4000h Rated,3h cycle: 77 % LSF EM 6000h Rated,3h cycle: 60 % LSF EM 8000h Rated,3h cycle: 45 % LLMF EM 2000h Rated: 90 % Lum Efficacy Rated EM 25°C: 74 Lm/W Luminous Flux EM 25°C, Nominal: 2375 Lm Luminous Flux EM 25°C, Rated: 2375 Lm LLMF EM 4000h Rated: 87 % LLMF EM 6000h Rated: 85 % LLMF EM 8000h Rated: 84 % Design Temperature: 25 C Lamp Wattage EM 25°C, Nominal: 32 W Lamp Current EM 25°C: 0.450 A Lamp Voltage EM 25°C: 81 V Lamp Wattage EM 25°C, Rated: 32.0 W Luminance Average EM: 0.85 cd/cm2 Inner Width I: 241.0 (min), 246.0 (max) mm « hide more

€ 8,56 € 8,56 ex. VAT

TL-E 32W/840 1CT/12

Karta produktu PDF

Product code: 57947 Cap-Base: G10q Bulb: C-T9 [C-T 29 mm] Color Code: 840 [CCT of 4000K] Color Designation (text): Cool White Color Temperature: 4000 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 35 kWh Diameter D: 27.1 (min), 30.9 (max) mm Full product code: 928026384074 see more »

Full product name: MASTER TL-E Circular Super 80 32W/840 1CT Order code: 928026384074 Order product name: MASTER TL-E Circular 32W/840 1CT/20 Packing configuration: 20 Pieces per pack: 1 Bar code on outerbox - EAN3: 8727900813609 Bar code on pack - EAN1: 8711500559685 Packs per outerbox: 20 Logistic code(s) - 12NC: 928026384074 Net weight per piece: 0.180 kg Lamp Wattage: 32 W Overall Width E: 299.0 (min), 303.5 (max) mm Color Rendering Index: 85 Ra8 ILCOS code: FSC-32/40/1B-E-G10q-29/299 Mercury (Hg) Content: 8 mg Chromaticity Coordinate X: 381 - Chromaticity Coordinate Y: 379 - LSF EM 2000h Rated,3h cycle: 98 % LSF EM 4000h Rated,3h cycle: 77 % LSF EM 6000h Rated,3h cycle: 60 % LSF EM 8000h Rated,3h cycle: 45 % LLMF EM 2000h Rated: 90 % Lum Efficacy Rated EM 25°C: 74 Lm/W Luminous Flux EM 25°C, Nominal: 2375 Lm Luminous Flux EM 25°C, Rated: 2375 Lm LLMF EM 4000h Rated: 87 % LLMF EM 6000h Rated: 85 % LLMF EM 8000h Rated: 84 % Design Temperature: 25 C Lamp Wattage EM 25°C, Nominal: 32 W Lamp Current EM 25°C: 0.450 A Lamp Voltage EM 25°C: 81 V Lamp Wattage EM 25°C, Rated: 32.0 W Luminance Average EM: 0.85 cd/cm2 Inner Width I: 241.0 (min), 246.0 (max) mm « hide more

€ 8,56 € 8,56 ex. VAT

Description / FAQ Warranty

This circular TL lamp (tube diameter 29 mm) enables omni-directional light distribution. It is suitable for use in a wide range of luminaires for various purposes, including decorative ones, in ‘human’ applications such as schools, offices, shops and homes, and for lighting of residential areas.

Features

Available in various color designations

Applications

Suitable for use in a wide range of luminaires for various purposes, including decorative luminaires

Ideal for ‘human' applications such as schools, offices, shops and homes

If you buy goods in partial package that is not currently available in our store (available on request), we reserve the rights to charge additional increments of 5 EUR ex. VAT.
