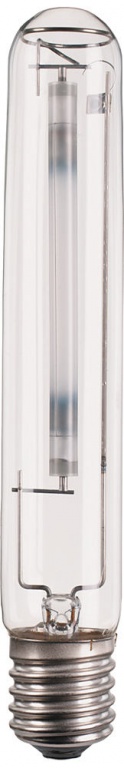

Sodium lamp MASTER SON-T PIA Plus Sodium Lamps

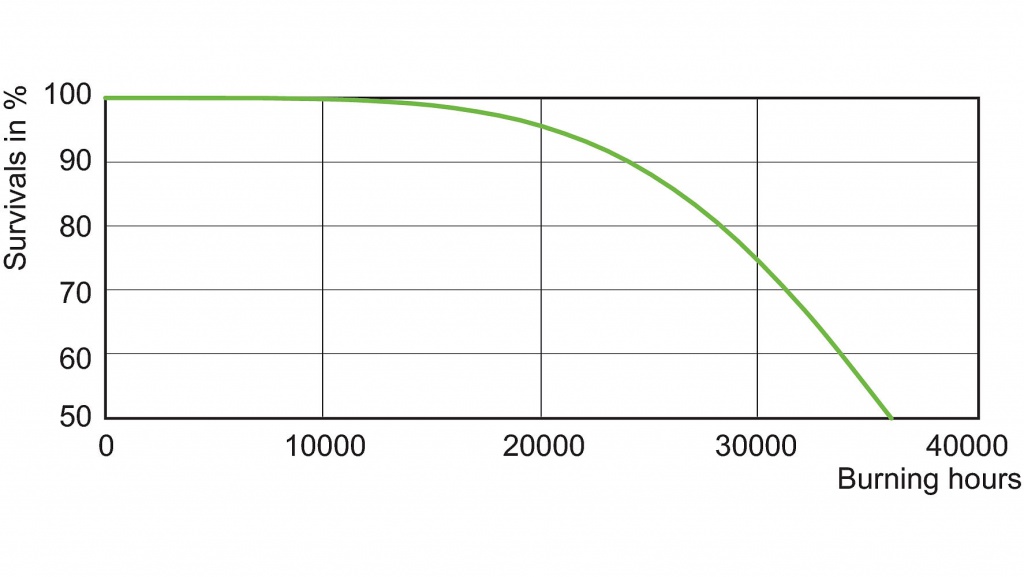

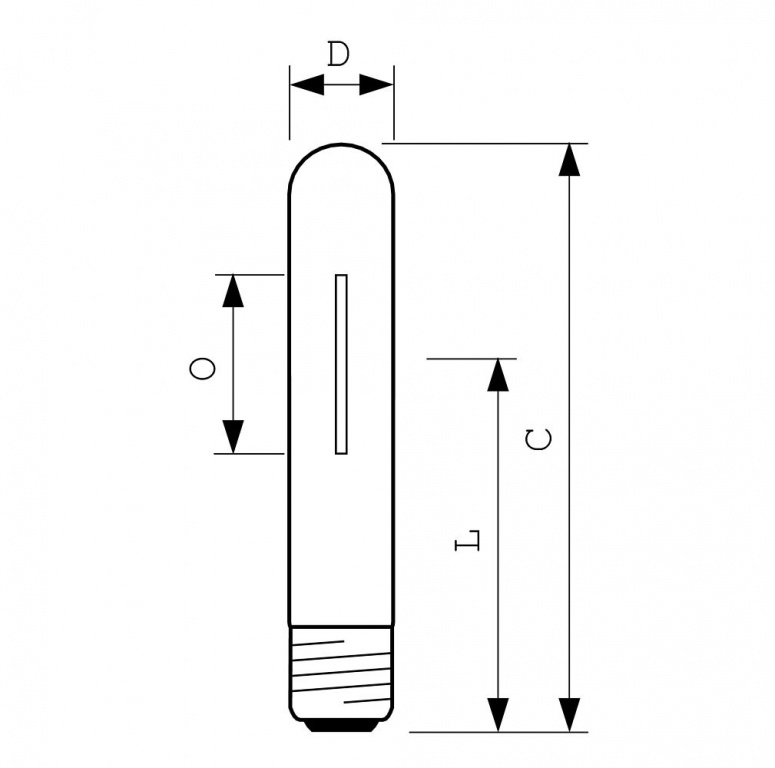

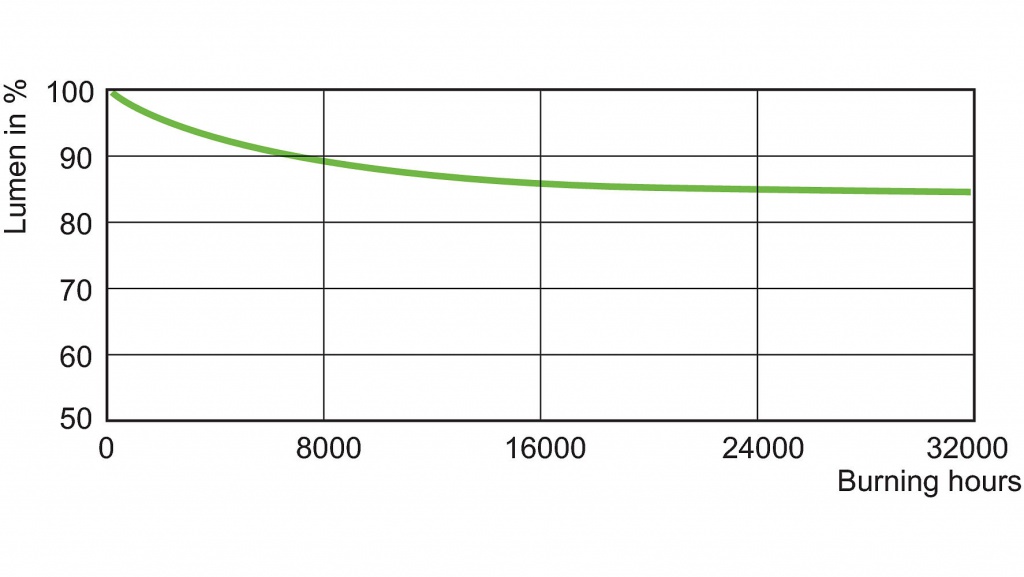

Full product code: 928151900028 Full product name: MASTER SON-T PIA Plus 50W/220 E27 1SL Order code: 928151900028 Order product name: MST SON-T PIA Plus 50W/220 E27 1SL/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500193094 Bar code on pack - EAN1: 8711500192653 Packs per outerbox: 12 Logistic code(s) - 12NC: 928151900028 Net weight per piece: 0.047 kg Bulb Finish: Clear System Description: External Ignitor Lamp Wattage: 50 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 25 (max) Ra8 ILCOS code: ST-50-H/S-E27 Cap-Base Temperature: 200 (max) C Bulb Temperature: 350 (max) C Life to 50% failures: 30000 hr Light Center Length L: 104 mm Mercury (Hg) Content: 12 mg Chromaticity Coordinate X: 540 - Chromaticity Coordinate Y: 420 - LLMF EM 2000h Rated: 92 % Lum Efficacy Rated EM 25°C: 81 Lm/W Luminous Flux EM 25°C, Rated: 4400 Lm LLMF EM 4000h Rated: 90 % LLMF EM 6000h Rated: 89 % LLMF EM 8000h Rated: 88 % Lamp Wattage EM 25°C, Nominal: 50.0 W Lamp Wattage EM 25°C, Rated: 53.0 W LLMF EM 12000h Rated: 87 % LLMF EM 16000h Rated: 86 % LLMF EM 20000h Rated: 86 % Lamp Voltage: 91 V Lamp Current EM: 0.75 A Luminance Average EM: 310 cd/cm2 Life to 20% failures: 22000 hr Life to 5% failures: 14000 hr Arc Length O: 35 mm Ignition Time: 5 (max) s Run-up time 90%: 4 (max) min LSF EM 2000h Rated,12h cycle: 99 % LSF EM 4000h Rated,12h cycle: 99 % LSF EM 6000h Rated,12h cycle: 99 % LSF EM 8000h Rated,12h cycle: 99 % LSF EM 12000h Rated,12h cycle: 96 % LSF EM 16000h Rated,12h cycle: 92 % LSF EM 20000h Rated,12h cycle: 83 % Re-ignition Time [sec]: 30 (max) s Life to 10% failures: 17000 hr Ratio scotopic/photopic lumens: 0.50 - « hide more

Full product code: 928152700028 Full product name: MASTER SON-T PIA Plus 70W/220 E27 1SL Order code: 928152700028 Order product name: MST SON-T PIA Plus 70W/220 E27 1SL/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500193131 Bar code on pack - EAN1: 8711500192660 Packs per outerbox: 12 Logistic code(s) - 12NC: 928152700028 Net weight per piece: 0.048 kg Bulb Finish: Clear System Description: External Ignitor Lamp Wattage: 70 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 25 (max) Ra8 ILCOS code: ST-70-H/S-E27 Cap-Base Temperature: 200 (max) C Bulb Temperature: 350 (max) C Life to 50% failures: 30000 hr Light Center Length L: 104 mm Mercury (Hg) Content: 12 mg Lumen Maintenance 2000h: 90 % Chromaticity Coordinate X: 540 - Chromaticity Coordinate Y: 420 - Lumen Maintenance 5000h: 86.5 % LLMF EM 2000h Rated: 90 % Lum Efficacy Rated EM 25°C: 91 Lm/W Luminous Flux EM 25°C, Rated: 6600 Lm LLMF EM 4000h Rated: 87 % LLMF EM 6000h Rated: 86 % LLMF EM 8000h Rated: 85 % Lamp Wattage EM 25°C, Nominal: 70.0 W Lamp Wattage EM 25°C, Rated: 73.0 W LLMF EM 12000h Rated: 83 % LLMF EM 16000h Rated: 82 % LLMF EM 20000h Rated: 81 % Lamp Voltage: 90 V Lamp Current EM: 0.975 A Luminance Average EM: 310 cd/cm2 Life to 20% failures: 23500 hr Life to 5% failures: 17000 hr Arc Length O: 42 mm Ignition Time: 5 (max) s Run-up time 90%: 4 (max) min LSF EM 2000h Rated,12h cycle: 99 % LSF EM 4000h Rated,12h cycle: 99 % LSF EM 6000h Rated,12h cycle: 99 % LSF EM 8000h Rated,12h cycle: 99 % LSF EM 12000h Rated,12h cycle: 99 % LSF EM 16000h Rated,12h cycle: 96 % LSF EM 20000h Rated,12h cycle: 90 % Re-ignition Time [sec]: 30 (max) s Life to 10% failures: 20000 hr Ratio scotopic/photopic lumens: 0.50 - Lumen Maintenance 20000h: 81 % « hide more

Full product code: 928151709230 Full product name: MASTER SON-T PIA Plus 100W/220 E40 1SL Order code: 928151709230 Order product name: MST SON-T PIA Plus 100W/220 E40 1SL/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500192745 Bar code on pack - EAN1: 8711500192301 Packs per outerbox: 12 Logistic code(s) - 12NC: 928151709230 Net weight per piece: 0.128 kg Bulb Finish: Clear System Description: External Ignitor Lamp Wattage: 100 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 25 (max) Ra8 ILCOS code: ST-100-H/S-E40 Cap-Base Temperature: 250 (max) C Bulb Temperature: 450 (max) C Life to 50% failures: 36000 hr Light Center Length L: 132 mm Mercury (Hg) Content: 16 mg Chromaticity Coordinate X: 535 - Chromaticity Coordinate Y: 420 - LLMF EM 2000h Rated: 98 % Lum Efficacy Rated EM 25°C: 106 Lm/W Luminous Flux EM 25°C, Rated: 10700 Lm LLMF EM 4000h Rated: 96 % LLMF EM 6000h Rated: 95 % LLMF EM 8000h Rated: 94 % Lamp Wattage EM 25°C, Nominal: 100.0 W Lamp Wattage EM 25°C, Rated: 100.0 W LLMF EM 12000h Rated: 92 % LLMF EM 16000h Rated: 90 % LLMF EM 20000h Rated: 89 % Lamp Voltage: 100 V Lamp Current EM: 1.2 A Luminance Average EM: 400 cd/cm2 Life to 20% failures: 26000 hr Life to 5% failures: 17000 hr Arc Length O: 47 mm Ignition Time: 5 (max) s Run-up time 90%: 4 (max) min LSF EM 2000h Rated,12h cycle: 100 % LSF EM 4000h Rated,12h cycle: 99 % LSF EM 6000h Rated,12h cycle: 99 % LSF EM 8000h Rated,12h cycle: 99 % LSF EM 12000h Rated,12h cycle: 98 % LSF EM 16000h Rated,12h cycle: 96 % LSF EM 20000h Rated,12h cycle: 91 % Re-ignition Time [sec]: 120 (max) s Life to 10% failures: 21000 hr Ratio scotopic/photopic lumens: 0.55 - « hide more

Full product code: 928150909230 Full product name: MASTER SON-T PIA Plus 150W/220 E40 1SL Order code: 928150909230 Order product name: MST SON-T PIA Plus 150W/220 E40 1SL/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500192721 Bar code on pack - EAN1: 8711500192295 Packs per outerbox: 12 Logistic code(s) - 12NC: 928150909230 Net weight per piece: 0.142 kg Bulb Finish: Clear System Description: External Ignitor Lamp Wattage: 150 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 25 (max) Ra8 ILCOS code: ST-150-H/S-E40 Cap-Base Temperature: 250 (max) C Bulb Temperature: 450 (max) C Life to 50% failures: 36000 hr Light Center Length L: 132 mm Mercury (Hg) Content: 16 mg Chromaticity Coordinate X: 535 - Chromaticity Coordinate Y: 420 - LLMF EM 2000h Rated: 99 % Lum Efficacy Rated EM 25°C: 116 Lm/W Luminous Flux EM 25°C, Rated: 17700 Lm LLMF EM 4000h Rated: 98 % LLMF EM 6000h Rated: 97 % LLMF EM 8000h Rated: 96 % Lamp Wattage EM 25°C, Nominal: 150.0 W Lamp Wattage EM 25°C, Rated: 154.0 W LLMF EM 12000h Rated: 96 % LLMF EM 16000h Rated: 95 % LLMF EM 20000h Rated: 94 % Lamp Voltage: 100 V Lamp Current EM: 1.8 A Luminance Average EM: 340 cd/cm2 Life to 20% failures: 28000 hr Life to 5% failures: 20500 hr Arc Length O: 61 mm Ignition Time: 5 (max) s Run-up time 90%: 4 (max) min LSF EM 2000h Rated,12h cycle: 100 % LSF EM 4000h Rated,12h cycle: 99 % LSF EM 6000h Rated,12h cycle: 99 % LSF EM 8000h Rated,12h cycle: 99 % LSF EM 12000h Rated,12h cycle: 99 % LSF EM 16000h Rated,12h cycle: 98 % LSF EM 20000h Rated,12h cycle: 95 % Re-ignition Time [sec]: 180 (max) s Life to 10% failures: 24000 hr Ratio scotopic/photopic lumens: 0.55 - « hide more

Full product code: 928144709230 Full product name: MASTER SON-T PIA Plus 250W E E40 1SL Order code: 928144709230 Order product name: MST SON-T PIA Plus 250W E E40 1SL/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500182937 Bar code on pack - EAN1: 8711500179876 Packs per outerbox: 12 Logistic code(s) - 12NC: 928144709230 Net weight per piece: 0.170 kg Bulb Finish: Clear Cap-Base Information: 45 System Description: External Ignitor Lamp Wattage: 250 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 25 (max) Ra8 ILCOS code: ST-250-H/E-E40 Cap-Base Temperature: 250 (max) C Bulb Temperature: 450 (max) C Life to 50% failures: 36000 hr Light Center Length L: 158 mm Mercury (Hg) Content: 15 mg Chromaticity Coordinate X: 530 - Chromaticity Coordinate Y: 420 - LLMF EM 2000h Rated: 99 % Lum Efficacy Rated EM 25°C: 127 Lm/W Luminous Flux EM 25°C, Rated: 33000 Lm LLMF EM 4000h Rated: 98 % LLMF EM 6000h Rated: 97 % LLMF EM 8000h Rated: 96 % Lamp Wattage EM 25°C, Nominal: 250.0 W Lamp Wattage EM 25°C, Rated: 250.0 W LLMF EM 12000h Rated: 96 % LLMF EM 16000h Rated: 95 % LLMF EM 20000h Rated: 94 % Lamp Voltage: 100 V Lamp Current EM: 3 A Luminance Average EM: 470 cd/cm2 Life to 20% failures: 28000 hr Life to 5% failures: 20500 hr Arc Length O: 64 mm Ignition Time: 10 (max) s Run-up time 90%: 5 (max) min Diameter D [inch]: 1.75 in Light Center Length L [inch]: 6.875 in Overall Length C [inch]: 11.125 (max) in LSF EM 2000h Rated,12h cycle: 100 % LSF EM 4000h Rated,12h cycle: 99 % LSF EM 6000h Rated,12h cycle: 99 % LSF EM 8000h Rated,12h cycle: 99 % LSF EM 12000h Rated,12h cycle: 99 % LSF EM 16000h Rated,12h cycle: 98 % LSF EM 20000h Rated,12h cycle: 95 % Re-ignition Time [sec]: 120 (max) s Life to 10% failures: 24000 hr Ratio scotopic/photopic lumens: 0.60 - « hide more

Full product code: 928144809227 Full product name: MASTER SON-T PIA Plus 400W E E40 1SL Order code: 928144809227 Order product name: MST SON-T PIA Plus 400W E E40 1SL/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500182951 Bar code on pack - EAN1: 8711500179883 Packs per outerbox: 12 Logistic code(s) - 12NC: 928144809227 Net weight per piece: 0.180 kg Bulb Finish: Clear System Description: External Ignitor Lamp Wattage: 400 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 25 (max) Ra8 ILCOS code: ST-400-H/E-E40 Cap-Base Temperature: 250 (max) C Bulb Temperature: 450 (max) C Life to 50% failures: 36000 hr Light Center Length L: 175 mm Mercury (Hg) Content: 20 mg Lumen Maintenance 2000h: 99 % Chromaticity Coordinate X: 525 - Chromaticity Coordinate Y: 425 - Lumen Maintenance 5000h: 96.5 % LLMF EM 2000h Rated: 99 % Lum Efficacy Rated EM 25°C: 137 Lm/W Luminous Flux EM 25°C, Rated: 55800 Lm LLMF EM 4000h Rated: 97 % LLMF EM 6000h Rated: 96 % LLMF EM 8000h Rated: 94 % Lamp Wattage EM 25°C, Nominal: 400.0 W Lamp Wattage EM 25°C, Rated: 400.0 W LLMF EM 12000h Rated: 92 % LLMF EM 16000h Rated: 90 % LLMF EM 20000h Rated: 88 % Lamp Voltage: 100 V Lamp Current EM: 4.5 A Luminance Average EM: 680 cd/cm2 Life to 20% failures: 28000 hr Life to 5% failures: 20500 hr Arc Length O: 83 mm Ignition Time: 10 (max) s Run-up time 90%: 5 (max) min LSF EM 2000h Rated,12h cycle: 100 % LSF EM 4000h Rated,12h cycle: 99 % LSF EM 6000h Rated,12h cycle: 99 % LSF EM 8000h Rated,12h cycle: 99 % LSF EM 12000h Rated,12h cycle: 99 % LSF EM 16000h Rated,12h cycle: 98 % LSF EM 20000h Rated,12h cycle: 95 % Re-ignition Time [sec]: 120 (max) s Life to 10% failures: 24000 hr Ratio scotopic/photopic lumens: 0.60 - Lumen Maintenance 20000h: 88 % « hide more

Full product code: 928158409227 Full product name: MASTER SON-T PIA Plus 600W/220 E40 1SL Order code: 928158409227 Order product name: MST SON-T PIA Plus 600W/220 E40 1SL/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500197436 Bar code on pack - EAN1: 8711500197429 Packs per outerbox: 12 Logistic code(s) - 12NC: 928158409227 Net weight per piece: 0.177 kg Bulb Finish: Clear System Description: External Ignitor Lamp Wattage: 600 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 25 (max) Ra8 ILCOS code: ST-600-H/S-E40 Cap-Base Temperature: 250 (max) C Bulb Temperature: 450 (max) C Life to 50% failures: 30000 hr Light Center Length L: 174.2 mm Mercury (Hg) Content: 24 mg Lumen Maintenance 2000h: 96 % Chromaticity Coordinate X: 526 - Chromaticity Coordinate Y: 424 - Lumen Maintenance 5000h: 90 % Luminous Flux EM 25°C, Rated: 90000 Lm Lamp Wattage EM 25°C, Nominal: 600.0 W Lamp Wattage EM 25°C, Rated: 605.0 W Luminous Efficacy Lamp EM: 148 Lm/W Lamp Voltage: 115 V Lamp Current EM: 5.8 A Life to 20% failures: 20000 hr Life to 5% failures: 12000 hr Arc Length O: 126 mm Ignition Time: 10 (max) s Run-up time 90%: 5 (max) min Re-ignition Time [sec]: 60 (max) s Life to 10% failures: 15000 hr Ratio scotopic/photopic lumens: 0.60 - Lumen Maintenance 20000h: 77 % « hide more
