Sodium Lamp MASTER SON PIA Plus Sodium Lamps

Philips MASTER SON PIA Plus 250W/220 E40 1SL/12

From € 18,83 incl. VAT
From € 18,83 ex. VAT

See variants (5)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 5

MASTER SON PIA Plus 70W/220 I E27 1CT/24

Karta produktu PDF

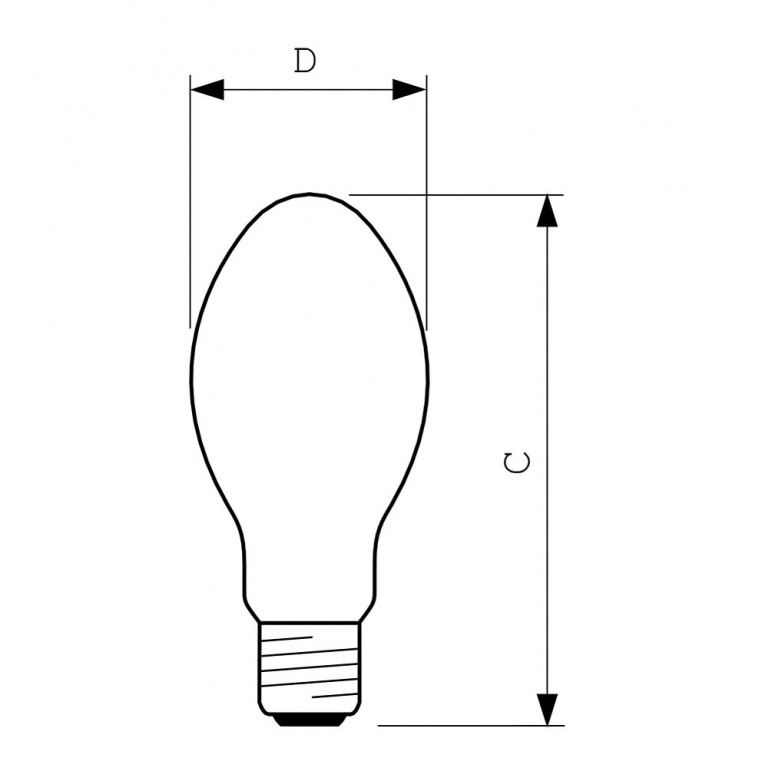

Product code: 58085 Cap-Base: E27 Bulb: B70 [B 70mm] Color Code: 220 [CCT of 2000K] Color Temperature: 1900 K Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 78 kWh Diameter D: 70 (max) mm Overall Length C: 152 (max) mm Full product code: 928150008835 see more »

Full product name: MASTER SON PIA Plus 70W/220 I E27 1CT Order code: 928150008835 Order product name: MASTER SON PIA Plus 70W/220 I E27 1CT/24 Packing configuration: 24 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500204271 Bar code on pack - EAN1: 8711500204264 Packs per outerbox: 24 Logistic code(s) - 12NC: 928150008835 Net weight per piece: 0.055 kg Bulb Finish: Coated System Description: Internal Ignitor Lamp Wattage: 70 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 25 (max) Ra8 ILCOS code: SE-70-H/I-E27 Cap-Base Temperature: 200 (max) C Bulb Temperature: 350 (max) C Life to 50% failures: 30000 hr Mercury (Hg) Content: 16 mg LLMF EM 2000h Rated: 92 % Lum Efficacy Rated EM 25°C: 82 Lm/W Luminous Flux EM 25°C, Rated: 5900 Lm LLMF EM 4000h Rated: 90 % LLMF EM 6000h Rated: 89 % LLMF EM 8000h Rated: 88 % Lamp Wattage EM 25°C, Nominal: 70.0 W Lamp Wattage EM 25°C, Rated: 71.50 W LLMF EM 12000h Rated: 87 % LLMF EM 16000h Rated: 86 % LLMF EM 20000h Rated: 86 % Lamp Voltage: 92 V Lamp Current EM: 0.980 A Luminance Average EM: 3 cd/cm2 Life to 20% failures: 22000 hr Life to 5% failures: 14000 hr Ignition Time: 60 (max) s Run-up time 90%: 5 (max) min LSF EM 2000h Rated,12h cycle: 99 % LSF EM 4000h Rated,12h cycle: 99 % LSF EM 6000h Rated,12h cycle: 99 % LSF EM 8000h Rated,12h cycle: 99 % LSF EM 12000h Rated,12h cycle: 96 % LSF EM 16000h Rated,12h cycle: 92 % LSF EM 20000h Rated,12h cycle: 83 % Re-ignition Time [sec]: 600 (max) s Life to 10% failures: 17000 hr « hide more

€ 18,83 € 18,83 ex. VAT

MASTER SON PIA Plus 100W/220 E40 1SL/12

Karta produktu PDF

Product code: 58086 Cap-Base: E40 Bulb: B75 [B 75mm] Color Code: 220 [CCT of 2000K] Color Temperature: 2000 K Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 110 kWh Diameter D: 76 (max) mm Overall Length C: 186 (max) mm Full product code: 928151608827 see more »

Full product name: MASTER SON PIA Plus 100W/220 E40 1SL Order code: 928151608827 Order product name: MASTER SON PIA Plus 100W/220 E40 1SL/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500182265 Bar code on pack - EAN1: 8711500182258 Packs per outerbox: 12 Logistic code(s) - 12NC: 928151608827 Net weight per piece: 0.125 kg Bulb Finish: Coated System Description: External Ignitor Lamp Wattage: 100 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 25 (max) Ra8 ILCOS code: SE-100-H/S-E40 Cap-Base Temperature: 200 (max) C Bulb Temperature: 350 (max) C Life to 50% failures: 36000 hr Mercury (Hg) Content: 16 mg Chromaticity Coordinate X: 535 - Chromaticity Coordinate Y: 420 - LLMF EM 2000h Rated: 98 % Lum Efficacy Rated EM 25°C: 98 Lm/W Luminous Flux EM 25°C, Rated: 10000 Lm LLMF EM 4000h Rated: 96 % LLMF EM 6000h Rated: 95 % LLMF EM 8000h Rated: 94 % Lamp Wattage EM 25°C, Nominal: 100.0 W Lamp Wattage EM 25°C, Rated: 100.0 W LLMF EM 12000h Rated: 92 % LLMF EM 16000h Rated: 90 % LLMF EM 20000h Rated: 89 % Lamp Voltage: 100 V Lamp Current EM: 1.2 A Luminance Average EM: 15 cd/cm2 Life to 20% failures: 26000 hr Life to 5% failures: 17000 hr Ignition Time: 5 (max) s Run-up time 90%: 4 (max) min LSF EM 2000h Rated,12h cycle: 100 % LSF EM 4000h Rated,12h cycle: 99 % LSF EM 6000h Rated,12h cycle: 99 % LSF EM 8000h Rated,12h cycle: 99 % LSF EM 12000h Rated,12h cycle: 98 % LSF EM 16000h Rated,12h cycle: 96 % LSF EM 20000h Rated,12h cycle: 91 % Re-ignition Time [sec]: 120 (max) s Life to 10% failures: 21000 hr Ratio scotopic/photopic lumens: 0.55 - « hide more

€ 21,44 € 21,44 ex. VAT

MASTER SON PIA Plus 150W/220 E40 1SL/12

Karta produktu PDF

Product code: 58087 Cap-Base: E40 Bulb: BD90 [BD 90mm] Color Code: 220 [CCT of 2000K] Color Temperature: 2000 K Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 169 kWh Diameter D: 91 (max) mm Overall Length C: 227 (max) mm Full product code: 928151409827 see more »

Full product name: MASTER SON PIA Plus 150W/220 E40 1SL Order code: 928151409827 Order product name: MASTER SON PIA Plus 150W/220 E40 1SL/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500182296 Bar code on pack - EAN1: 8711500182289 Packs per outerbox: 12 Logistic code(s) - 12NC: 928151409827 Net weight per piece: 0.156 kg Bulb Finish: Coated System Description: External Ignitor Lamp Wattage: 150 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 25 (max) Ra8 ILCOS code: SE-150-H/S-E40 Cap-Base Temperature: 250 (max) C Bulb Temperature: 350 (max) C Life to 50% failures: 36000 hr Mercury (Hg) Content: 15 mg Chromaticity Coordinate X: 535 - Chromaticity Coordinate Y: 420 - LLMF EM 2000h Rated: 99 % Lum Efficacy Rated EM 25°C: 108 Lm/W Luminous Flux EM 25°C, Rated: 16100 Lm LLMF EM 4000h Rated: 98 % LLMF EM 6000h Rated: 97 % LLMF EM 8000h Rated: 96 % Lamp Wattage EM 25°C, Nominal: 150.0 W Lamp Wattage EM 25°C, Rated: 154.0 W LLMF EM 12000h Rated: 96 % LLMF EM 16000h Rated: 95 % LLMF EM 20000h Rated: 94 % Lamp Voltage: 100 V Lamp Current EM: 1.8 A Luminance Average EM: 11 cd/cm2 Life to 20% failures: 28000 hr Life to 5% failures: 20500 hr Ignition Time: 5 (max) s Run-up time 90%: 4 (max) min LSF EM 2000h Rated,12h cycle: 100 % LSF EM 4000h Rated,12h cycle: 99 % LSF EM 6000h Rated,12h cycle: 99 % LSF EM 8000h Rated,12h cycle: 99 % LSF EM 12000h Rated,12h cycle: 99 % LSF EM 16000h Rated,12h cycle: 98 % LSF EM 20000h Rated,12h cycle: 95 % Re-ignition Time [sec]: 180 (max) s Life to 10% failures: 24000 hr Ratio scotopic/photopic lumens: 0.55 - « hide more

€ 24,02 € 24,02 ex. VAT

MASTER SON PIA Plus 250W/220 E40 1SL/12

Karta produktu PDF

Product code: 58088 Cap-Base: E40 Bulb: BD90 [BD 90mm] Color Code: 220 [CCT of 2000K] Color Temperature: 2000 K Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 286 kWh Diameter D: 91 (max) mm Overall Length C: 227 (max) mm Full product code: 928153309830 see more »

Full product name: MASTER SON PIA Plus 250W/220 E40 1SL Order code: 928153309830 Order product name: MASTER SON PIA Plus 250W/220 E40 1SL/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500193469 Bar code on pack - EAN1: 8711500193445 Packs per outerbox: 12 Logistic code(s) - 12NC: 928153309830 Net weight per piece: 0.170 kg Bulb Finish: Coated System Description: External Ignitor Lamp Wattage: 250 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 25 (max) Ra8 ILCOS code: SE-250-H/S-E40 Cap-Base Temperature: 250 (max) C Bulb Temperature: 350 (max) C Life to 50% failures: 36000 hr Mercury (Hg) Content: 15 mg Chromaticity Coordinate X: 530 - Chromaticity Coordinate Y: 420 - LLMF EM 2000h Rated: 99 % Lum Efficacy Rated EM 25°C: 120 Lm/W Luminous Flux EM 25°C, Rated: 30900 Lm LLMF EM 4000h Rated: 98 % LLMF EM 6000h Rated: 97 % LLMF EM 8000h Rated: 96 % Lamp Wattage EM 25°C, Nominal: 250.0 W Lamp Wattage EM 25°C, Rated: 260.0 W LLMF EM 12000h Rated: 96 % LLMF EM 16000h Rated: 95 % LLMF EM 20000h Rated: 94 % Lamp Voltage: 100 V Lamp Current EM: 2.85 A Luminance Average EM: 22 cd/cm2 Life to 20% failures: 28000 hr Life to 5% failures: 20500 hr Ignition Time: 10 (max) s Run-up time 90%: 5 (max) min LSF EM 2000h Rated,12h cycle: 100 % LSF EM 4000h Rated,12h cycle: 99 % LSF EM 6000h Rated,12h cycle: 99 % LSF EM 8000h Rated,12h cycle: 99 % LSF EM 12000h Rated,12h cycle: 99 % LSF EM 16000h Rated,12h cycle: 98 % LSF EM 20000h Rated,12h cycle: 95 % Re-ignition Time [sec]: 120 (max) s Life to 10% failures: 24000 hr Ratio scotopic/photopic lumens: 0.60 - « hide more

€ 27,42 € 27,42 ex. VAT

MASTER SON PIA Plus 400W/220 E40 1SL/12

Karta produktu PDF

Product code: 58089 Cap-Base: E40 Bulb: BD120 [BD 120mm] Color Code: 220 [CCT of 2000K] Color Temperature: 2000 K Dimmable: Yes Energy Efficiency Label (EEL): A++ Energy consumption kWh/1000h: 445 kWh Diameter D: 122 (max) mm Overall Length C: 290 (max) mm Full product code: 928153409830 see more »

Full product name: MASTER SON PIA Plus 400W/220 E40 1SL Order code: 928153409830 Order product name: MASTER SON PIA Plus 400W/220 E40 1SL/12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500195937 Bar code on pack - EAN1: 8711500193452 Packs per outerbox: 12 Logistic code(s) - 12NC: 928153409830 Net weight per piece: 0.249 kg Bulb Finish: Coated System Description: External Ignitor Lamp Wattage: 400 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 25 (max) Ra8 ILCOS code: SE-400-H/S-E40 Cap-Base Temperature: 250 (max) C Bulb Temperature: 350 (max) C Life to 50% failures: 36000 hr Mercury (Hg) Content: 20 mg Chromaticity Coordinate X: 525 - Chromaticity Coordinate Y: 425 - LLMF EM 2000h Rated: 99 % Lum Efficacy Rated EM 25°C: 136.5 Lm/W Luminous Flux EM 25°C, Rated: 55400 Lm LLMF EM 4000h Rated: 97 % LLMF EM 6000h Rated: 96 % LLMF EM 8000h Rated: 94 % Lamp Wattage EM 25°C, Nominal: 400.0 W Lamp Wattage EM 25°C, Rated: 405.0 W LLMF EM 12000h Rated: 92 % LLMF EM 16000h Rated: 90 % LLMF EM 20000h Rated: 88 % Lamp Voltage: 105 V Lamp Current EM: 4.3 A Luminance Average EM: 27 cd/cm2 Life to 20% failures: 28000 hr Life to 5% failures: 20500 hr Ignition Time: 10 (max) s Run-up time 90%: 5 (max) min LSF EM 2000h Rated,12h cycle: 100 % LSF EM 4000h Rated,12h cycle: 99 % LSF EM 6000h Rated,12h cycle: 99 % LSF EM 8000h Rated,12h cycle: 99 % LSF EM 12000h Rated,12h cycle: 99 % LSF EM 16000h Rated,12h cycle: 98 % LSF EM 20000h Rated,12h cycle: 95 % Re-ignition Time [sec]: 120 (max) s Life to 10% failures: 24000 hr Ratio scotopic/photopic lumens: 0.60 - « hide more

€ 32,60 € 32,60 ex. VAT

Description / FAQ Warranty

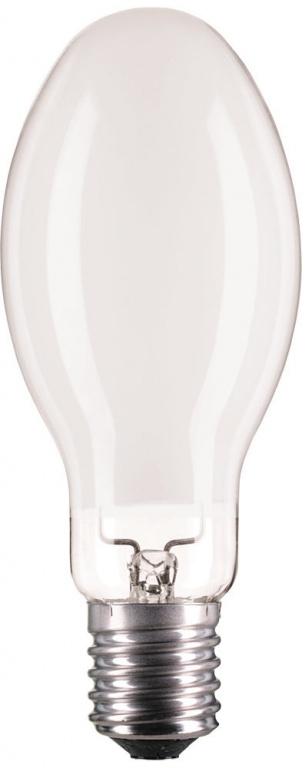

High Pressure Sodium lamp with opalized ovoid outer bulb, high output and long reliable lifetime

Features

Ovoid, white coated outer bulb

Ceramic discharge tube with Unique Philips Integrated Antenna (PIA) concept enabling long and reliable lifetime

"Plus" concept with high efficacy translates into high light output and improved lumen maintenance

Robust construction with few welding points is highly vibration- and shock-resistant, further reducing early failures and extending lamp life

Applications

Road and residential lighting

Decorative floodlighting, illumination

Industrial area lighting

Recreational sports facilities, indoor and outdoor
