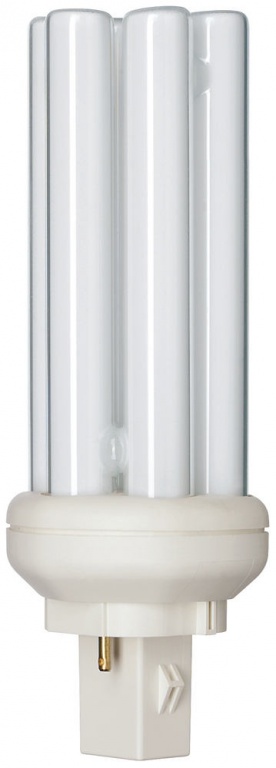

Compact Fluorescent Lamp MASTER PL-T 2 Pin Fluorescent Lamps GX24d (2-pin)

Philips MASTER PL-T 26W/827/2P 1CT/5X10BOX

Price € 7,36 € 7,36 ex. VAT

See variants (4)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

MASTER PL-T 18W/830/2P 1CT/5X10BOX

Karta produktu PDF

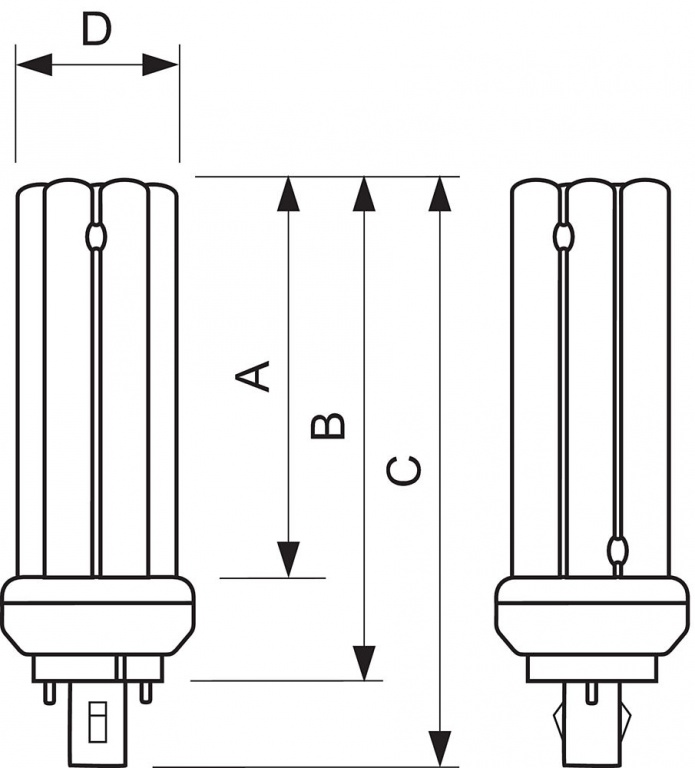

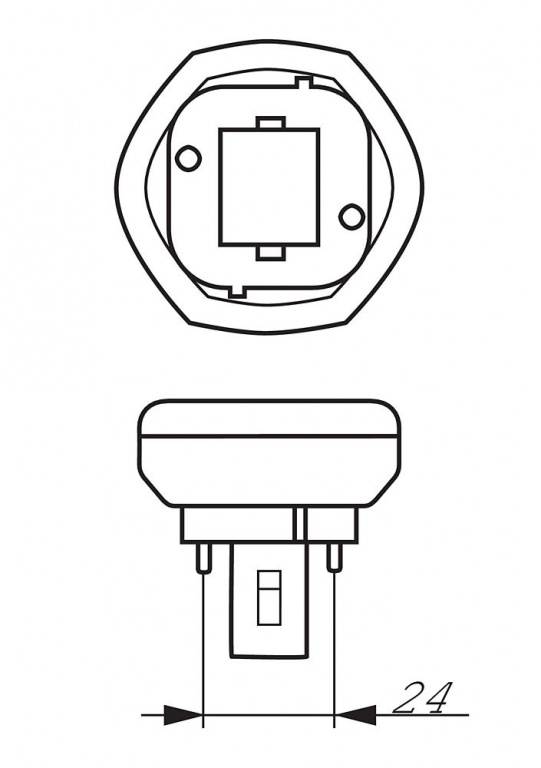

Product code: 57764 Cap-Base: GX24d-2 Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: No Energy Efficiency Label (EEL): B Energy consumption kWh/1000h: 22 kWh Diameter D: 41 (max) mm Overall Length C: 119.2 (max) mm Full product code: 927914383071 see more »

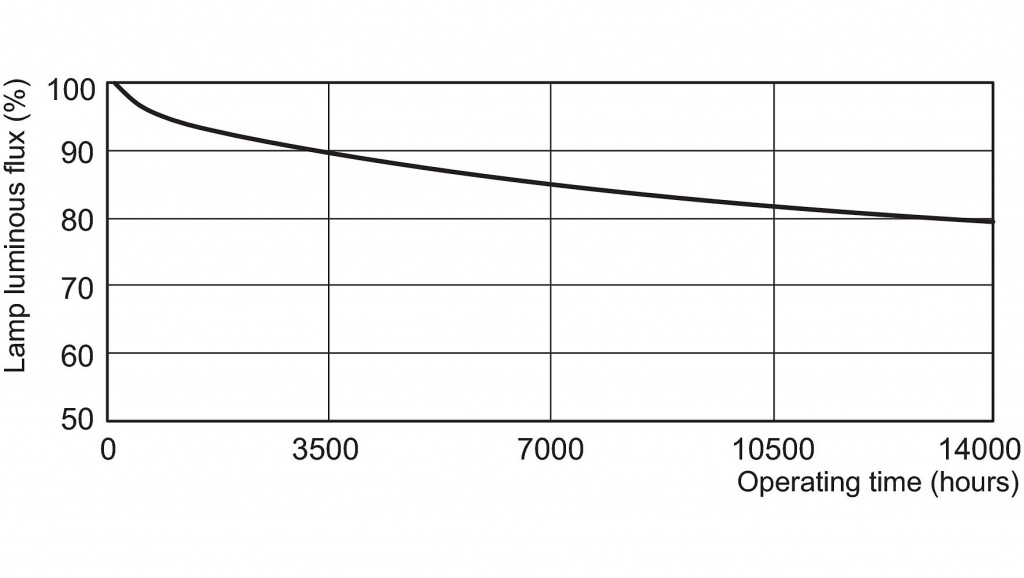

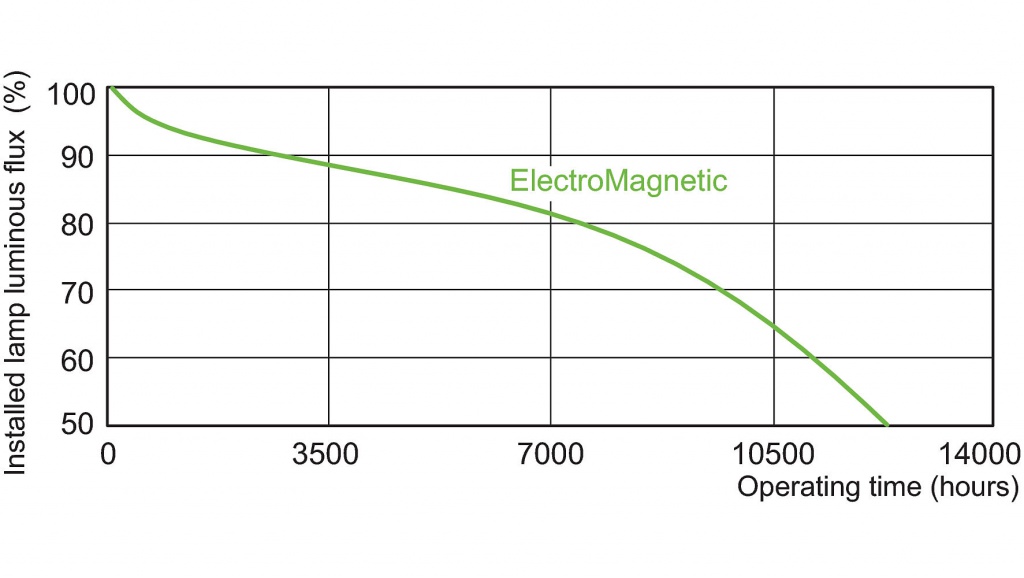

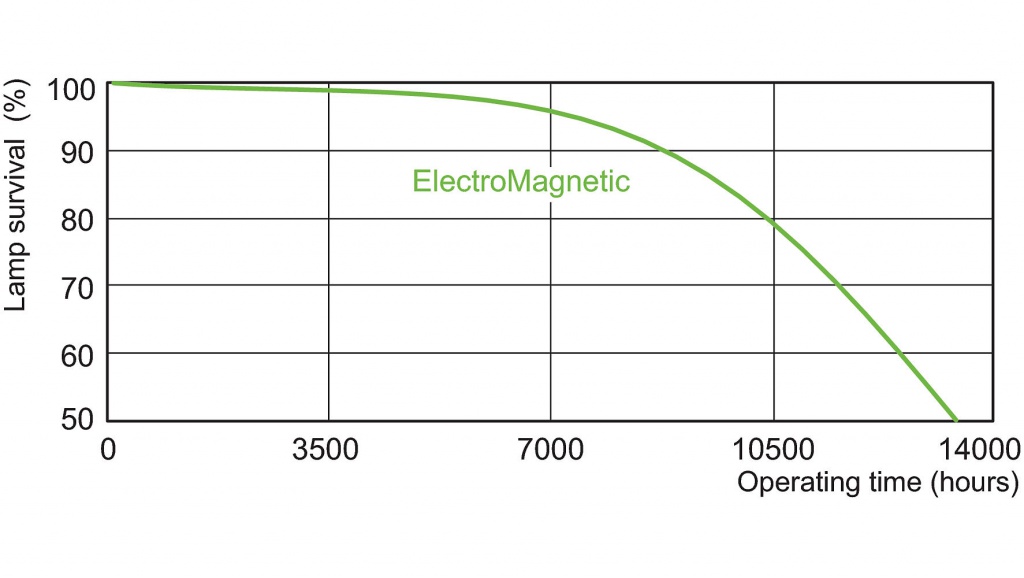

Full product name: MASTER PL-T 18W/830/2P 1CT Order code: 927914383071 Order product name: MASTER PL-T 18W/830/2P 1CT/5X10CC Packing configuration: 5X10CC Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500610591 Bar code on pack - EAN1: 8711500610508 Packs per outerbox: 50 Logistic code(s) - 12NC: 927914383071 Net weight per piece: 59.000 gr Bar code on intermediate packing - EAN2: 8711500610515 Cap-Base Information: 2P Lamp Wattage: 18 W Color Rendering Index: 82 Ra8 ILCOS code: FSM-18/30/1B-I-GX24d=2 Mercury (Hg) Content: 1.4 mg Insertion Length B: 96.0 (max) mm Chromaticity Coordinate X: 434 - Chromaticity Coordinate Y: 397 - LSF EM 2000h Rated,3h cycle: 99 % LSF EM 4000h Rated,3h cycle: 98 % LSF EM 6000h Rated,3h cycle: 92 % LSF EM 8000h Rated,3h cycle: 78 % LLMF EM 2000h Rated: 92 % Lum Efficacy Rated EM 25°C: 67 (min) Lm/W Luminous Flux EM 25°C, Nominal: 1200 Lm Luminous Flux EM 25°C, Rated: 1200 Lm LLMF EM 4000h Rated: 87 % LLMF EM 6000h Rated: 84 % LLMF EM 8000h Rated: 81 % Design Temperature: 28 C Lamp Wattage EM 25°C, Nominal: 18 W Lamp Current EM 25°C: 0.225 A Lamp Voltage EM 25°C: 100 V Lamp Wattage EM 25°C, Rated: 18.0 W Base Face to Base Face A: 71.8 (max) mm « hide more

€ 7,36 € 7,36 ex. VAT

MASTER PL-T 18W/840/2P 1CT/5X10BOX

Karta produktu PDF

Product code: 57765 Cap-Base: GX24d-2 Color Code: 840 [CCT of 4000K] Color Designation (text): Cool White Color Temperature: 4000 K Dimmable: No Energy Efficiency Label (EEL): B Energy consumption kWh/1000h: 22 kWh Diameter D: 41 (max) mm Overall Length C: 119.2 (max) mm Full product code: 927914384071 see more »

Full product name: MASTER PL-T 18W/840/2P 1CT Order code: 927914384071 Order product name: MASTER PL-T 18W/840/2P 1CT/5X10CC Packing configuration: 5X10CC Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500610751 Bar code on pack - EAN1: 8711500610614 Packs per outerbox: 50 Logistic code(s) - 12NC: 927914384071 Net weight per piece: 59.000 gr Bar code on intermediate packing - EAN2: 8711500610744 Cap-Base Information: 2P Lamp Wattage: 18 W Color Rendering Index: 82 Ra8 ILCOS code: FSM-18/40/1B-I-GX24d=2 Mercury (Hg) Content: 1.4 mg Insertion Length B: 96.0 (max) mm Chromaticity Coordinate X: 380 - Chromaticity Coordinate Y: 379 - LSF EM 2000h Rated,3h cycle: 99 % LSF EM 4000h Rated,3h cycle: 98 % LSF EM 6000h Rated,3h cycle: 92 % LSF EM 8000h Rated,3h cycle: 78 % LLMF EM 2000h Rated: 92 % Lum Efficacy Rated EM 25°C: 67 (min) Lm/W Luminous Flux EM 25°C, Nominal: 1200 Lm Luminous Flux EM 25°C, Rated: 1200 Lm LLMF EM 4000h Rated: 87 % LLMF EM 6000h Rated: 84 % LLMF EM 8000h Rated: 81 % Design Temperature: 28 C Lamp Wattage EM 25°C, Nominal: 18 W Lamp Current EM 25°C: 0.225 A Lamp Voltage EM 25°C: 100 V Lamp Wattage EM 25°C, Rated: 18.0 W Base Face to Base Face A: 71.8 (max) mm « hide more

€ 7,36 € 7,36 ex. VAT

MASTER PL-T 26W/830/2P 1CT/5X10BOX

Karta produktu PDF

Product code: 57767 Cap-Base: GX24d-3 Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: No Energy Efficiency Label (EEL): B Energy consumption kWh/1000h: 32 kWh Diameter D: 41 (max) mm Overall Length C: 134.2 (max) mm Full product code: 927914583071 see more »

Full product name: MASTER PL-T 26W/830/2P 1CT Order code: 927914583071 Order product name: MASTER PL-T 26W/830/2P 1CT/5X10CC Packing configuration: 5X10CC Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500611109 Bar code on pack - EAN1: 8711500611024 Packs per outerbox: 50 Logistic code(s) - 12NC: 927914583071 Net weight per piece: 66.000 gr Bar code on intermediate packing - EAN2: 8711500611062 Cap-Base Information: 2P Lamp Wattage: 26 W Color Rendering Index: 82 Ra8 ILCOS code: FSM-26/30/1B-I-GX24d=3 Mercury (Hg) Content: 1.4 mg Insertion Length B: 111.0 (max) mm Chromaticity Coordinate X: 436 - Chromaticity Coordinate Y: 401 - LSF EM 2000h Rated,3h cycle: 99 % LSF EM 4000h Rated,3h cycle: 98 % LSF EM 6000h Rated,3h cycle: 92 % LSF EM 8000h Rated,3h cycle: 78 % LLMF EM 2000h Rated: 92 % Lum Efficacy Rated EM 25°C: 66 (min) Lm/W Luminous Flux EM 25°C, Nominal: 1800 Lm Luminous Flux EM 25°C, Rated: 1725 Lm LLMF EM 4000h Rated: 87 % LLMF EM 6000h Rated: 84 % LLMF EM 8000h Rated: 81 % Design Temperature: 28 C Lamp Wattage EM 25°C, Nominal: 26 W Lamp Current EM 25°C: 0.335 A Lamp Voltage EM 25°C: 100 V Lamp Wattage EM 25°C, Rated: 26.0 W Base Face to Base Face A: 86.7 (max) mm « hide more

€ 7,36 € 7,36 ex. VAT

MASTER PL-T 26W/840/2P 1CT/5X10BOX

Karta produktu PDF

Product code: 57768 Cap-Base: GX24d-3 Color Code: 840 [CCT of 4000K] Color Designation (text): Cool White Color Temperature: 4000 K Dimmable: No Energy Efficiency Label (EEL): B Energy consumption kWh/1000h: 32 kWh Diameter D: 41 (max) mm Overall Length C: 134.2 (max) mm Full product code: 927914584071 see more »

Full product name: MASTER PL-T 26W/840/2P 1CT Order code: 927914584071 Order product name: MASTER PL-T 26W/840/2P 1CT/5X10CC Packing configuration: 5X10CC Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500611161 Bar code on pack - EAN1: 8711500611130 Packs per outerbox: 50 Logistic code(s) - 12NC: 927914584071 Net weight per piece: 66.000 gr Bar code on intermediate packing - EAN2: 8711500611147 Cap-Base Information: 2P Lamp Wattage: 26 W Color Rendering Index: 82 Ra8 ILCOS code: FSM-26/40/1B-I-GX24d=3 Mercury (Hg) Content: 1.4 mg Insertion Length B: 111.0 (max) mm Chromaticity Coordinate X: 380 - Chromaticity Coordinate Y: 379 - LSF EM 2000h Rated,3h cycle: 99 % LSF EM 4000h Rated,3h cycle: 98 % LSF EM 6000h Rated,3h cycle: 92 % LSF EM 8000h Rated,3h cycle: 78 % LLMF EM 2000h Rated: 92 % Lum Efficacy Rated EM 25°C: 66 (min) Lm/W Luminous Flux EM 25°C, Nominal: 1800 Lm Luminous Flux EM 25°C, Rated: 1725 Lm LLMF EM 4000h Rated: 87 % LLMF EM 6000h Rated: 84 % LLMF EM 8000h Rated: 81 % Design Temperature: 28 C Lamp Wattage EM 25°C, Nominal: 26 W Lamp Current EM 25°C: 0.335 A Lamp Voltage EM 25°C: 100 V Lamp Wattage EM 25°C, Rated: 26.0 W Base Face to Base Face A: 86.7 (max) mm « hide more

€ 7,36 € 7,36 ex. VAT

Description / FAQ Warranty

MASTER PL-T is an efficient compact fluorescent lamp, typically used in general downlights for retail, hospitality and office applications demanding higher lighting levels. The original Philips-invented bridge technology guarantees optimum performance in the application, enabling more light and higher efficacy than the bended technology. The 2-pin version is designed for operation on electromagnetic gear and is provided with a plug-in/pull-out lamp base.

Features

2-pin base with a housing incorporating the special instant starter and capacitor

Philips’ bridging technology applied

Fluorescent tri-phosphor technology

Low light depreciation over lamp life

Fast light run-up

Applications

Designed for general or supplementary lighting in professional and semi-professional environments

Ideal for use in recessed or surface mounted downlighters, wall units

If you buy goods in partial package that is not currently available in our store (available on request), we reserve the rights to charge additional increments of 5 EUR ex. VAT.
