MASTER PL-L Xtra 4 Pin Fluorescent Lamps 2G11

Philips MASTER PL-L Xtra 55W/840/4P 1CT/25

From € 11,04 incl. VAT
From € 11,04 ex. VAT

See variants (3)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 3

MASTER PL-L XTRA 24W/840/4P 1CT/25

Karta produktu PDF

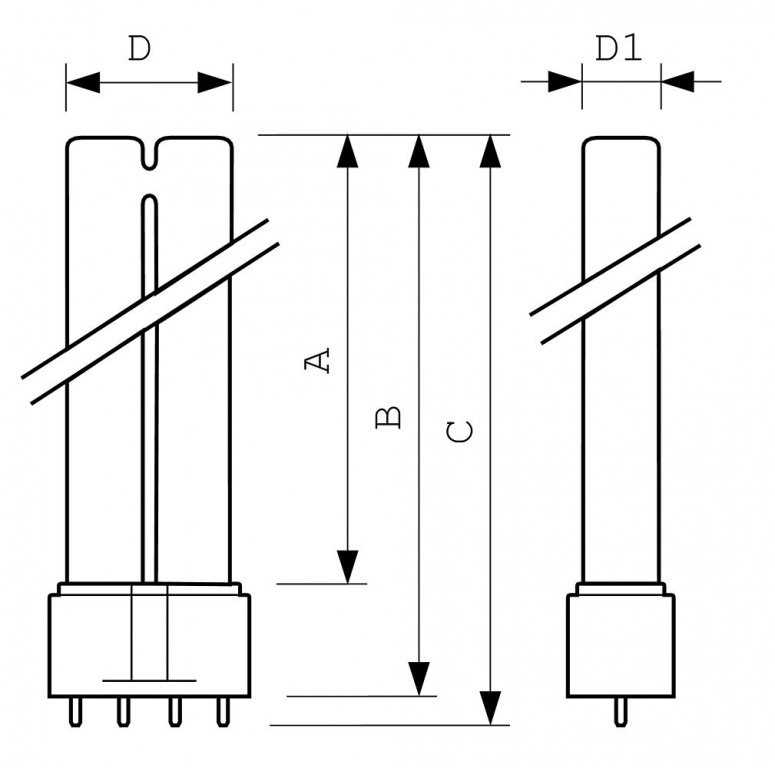

Product code: 57799 Cap-Base: 2G11 Color Code: 840 [CCT of 4000K] Color Designation (text): Cool White Color Temperature: 4000 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 26 kWh Diameter D: 39.0 (max) mm Overall Length C: 321.6 (max) mm Full product code: 927907584015 see more »

Full product name: MASTER PL-L Xtra 24W/840/4P 1CT Order code: 927907584015 Order product name: MASTER PL-L Xtra 24W/840/4P 1CT/25 Packing configuration: 25 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500267719 Bar code on pack - EAN1: 8711500267702 Packs per outerbox: 25 Logistic code(s) - 12NC: 927907584015 Net weight per piece: 82.000 gr Cap-Base Information: 4P Lamp Wattage: 24 W Color Rendering Index: 82 Ra8 ILCOS code: FSD-24/40/1B-E-2G11 Mercury (Hg) Content: 3.0 mg Insertion Length B: 315 (max) mm Chromaticity Coordinate X: 381 - Chromaticity Coordinate Y: 379 - LSF EM 2000h Rated,3h cycle: 99 % LSF EM 4000h Rated,3h cycle: 99 % LSF EM 6000h Rated,3h cycle: 98 % LSF EM 8000h Rated,3h cycle: 97 % LLMF EM 2000h Rated: 94 % LLMF EM 4000h Rated: 93 % LLMF EM 6000h Rated: 92 % LLMF EM 8000h Rated: 91 % Design Temperature: 30 C Lamp Current EM 25°C: 0.345 A Lamp Voltage EM 25°C: 87 V Base Face to Base Face A: 290 (max) mm Diameter D1: 18.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 98 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 1800 Lm Luminous Flux EL 25°C, Rated: 1800 Lm LLMF HF 2000h Rated: 95 % LLMF HF 4000h Rated: 94 % LLMF HF 12000h Rated: 91 % LLMF HF 6000h Rated: 93 % LLMF HF 8000h Rated: 92 % Lamp Wattage EL 25°C, Rated: 24.0 W Lamp Voltage EL 25°C: 87 V Lamp Wattage EL 25°C, Nominal: 24 W Lamp Current EL 25°C: 0.345 A LSF HF Preheat 20000h Rated,3h: 94 % LSF EM 12000h Rated,3h cycle: 95 % LSF EM 16000h Rated,3h cycle: 88 % LLMF EM 12000h Rated: 90 % LLMF EM 16000h Rated: 89 % LLMF EM 20000h Rated: 88 % LLMF HF 16000h Rated: 90 % LLMF HF 20000h Rated: 90 % Lum Efficacy Rated EM 25°C,hor: 75 Lm/W Lum Flux Rated EM 25°C,horiz: 1800 Lm Lum Flux Rated HF 25°C,horiz: 1800 Lm Lum Efficacy Rated HF 25°C,hor: 75 Lm/W Lum Flux Nominal HF 25°C,horiz: 1800 Lm LSF EM 20000h Rated,3h cycle: 58 % « hide more

€ 11,04 € 11,04 ex. VAT

MASTER PL-L Xtra 36W/840/4P 1CT/25

Karta produktu PDF

Product code: 57797 Cap-Base: 2G11 Color Code: 840 [CCT of 4000K] Color Designation (text): Cool White Color Temperature: 4000 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 40 kWh Diameter D: 39.0 (max) mm Overall Length C: 416.6 (max) mm Full product code: 927904784014 see more »

Full product name: MASTER PL-L Xtra 36W/840/4P 1CT Order code: 927904784014 Order product name: MASTER PL-L Xtra 36W/840/4P 1CT/25 Packing configuration: 25 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500897619 Bar code on pack - EAN1: 8711500897602 Packs per outerbox: 25 Logistic code(s) - 12NC: 927904784014 Net weight per piece: 104.000 gr Cap-Base Information: 4P Lamp Wattage: 36 W Color Rendering Index: 82 Ra8 ILCOS code: FSD-36/40/1B-E-2G11 Mercury (Hg) Content: 3.0 mg Insertion Length B: 410 (max) mm Chromaticity Coordinate X: 380 - Chromaticity Coordinate Y: 380 - LSF EM 2000h Rated,3h cycle: 99 % LSF EM 4000h Rated,3h cycle: 99 % LSF EM 6000h Rated,3h cycle: 98 % LSF EM 8000h Rated,3h cycle: 97 % LLMF EM 2000h Rated: 94 % LLMF EM 4000h Rated: 93 % LLMF EM 6000h Rated: 92 % LLMF EM 8000h Rated: 91 % Design Temperature: 30 C Lamp Current EM 25°C: 0.435 A Lamp Voltage EM 25°C: 106 V Base Face to Base Face A: 384.2 (max) mm Diameter D1: 18.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 98 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 2900 Lm Luminous Flux EL 25°C, Rated: 2900 Lm LLMF HF 2000h Rated: 95 % LLMF HF 4000h Rated: 94 % LLMF HF 12000h Rated: 91 % LLMF HF 6000h Rated: 93 % LLMF HF 8000h Rated: 92 % Lamp Wattage EL 25°C, Rated: 36.0 W Lamp Voltage EL 25°C: 90 V Lamp Wattage EL 25°C, Nominal: 36 W Lamp Current EL 25°C: 0.360 A LSF HF Preheat 20000h Rated,3h: 94 % LSF EM 12000h Rated,3h cycle: 95 % LSF EM 16000h Rated,3h cycle: 88 % LLMF EM 12000h Rated: 90 % LLMF EM 16000h Rated: 89 % LLMF EM 20000h Rated: 88 % LLMF HF 16000h Rated: 90 % LLMF HF 20000h Rated: 90 % Lum Efficacy Rated EM 25°C,hor: 81 Lm/W Lum Flux Rated EM 25°C,horiz: 2900 Lm Lum Flux Rated HF 25°C,horiz: 2900 Lm Lum Efficacy Rated HF 25°C,hor: 81 Lm/W Lum Flux Nominal HF 25°C,horiz: 2900 Lm LSF EM 20000h Rated,3h cycle: 58 % « hide more

€ 11,04 € 11,04 ex. VAT

MASTER PL-L Xtra 55W/840/4P 1CT/25

Karta produktu PDF

Product code: 57801 Cap-Base: 2G11 Color Code: 840 [CCT of 4000K] Color Designation (text): Cool White Color Temperature: 4000 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 61 kWh Diameter D: 39.0 (max) mm Overall Length C: 541.6 (max) mm Full product code: 927908884014 see more »

Full product name: MASTER PL-L Xtra 55W/840/4P 1CT Order code: 927908884014 Order product name: MASTER PL-L Xtra 55W/840/4P 1CT/25 Packing configuration: 25 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500897657 Bar code on pack - EAN1: 8711500897640 Packs per outerbox: 25 Logistic code(s) - 12NC: 927908884014 Net weight per piece: 134.000 gr Cap-Base Information: 4P System Description: High Frequency [High Frequency] Lamp Wattage: 55 W Color Rendering Index: 82 Ra8 ILCOS code: FSDH-55/40/1B-L/P-2G11 Mercury (Hg) Content: 3.0 mg Insertion Length B: 535 (max) mm Chromaticity Coordinate X: 380 - Chromaticity Coordinate Y: 380 - Design Temperature: 30 C Base Face to Base Face A: 509.2 (max) mm Diameter D1: 18.0 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 99 % LSF HF Preheat 12000h Rated,3h: 98 % LSF HF Preheat 6000h Rated,3h: 99 % LSF HF Preheat 8000h Rated,3h: 99 % LSF HF Preheat 16000h Rated,3h: 97 % Luminous Flux EL 25°C, Nominal: 4800 Lm Luminous Flux EL 25°C, Rated: 4800 Lm LLMF HF 2000h Rated: 95 % LLMF HF 4000h Rated: 94 % LLMF HF 12000h Rated: 91 % LLMF HF 6000h Rated: 93 % LLMF HF 8000h Rated: 92 % Lamp Wattage EL 25°C, Rated: 55.0 W Lamp Voltage EL 25°C: 105 V Lamp Wattage EL 25°C, Nominal: 55 W Lamp Current EL 25°C: 0.525 A LSF HF Preheat 20000h Rated,3h: 94 % LLMF HF 16000h Rated: 90 % LLMF HF 20000h Rated: 90 % Lum Flux Rated HF 25°C,horiz: 4800 Lm Lum Efficacy Rated HF 25°C,hor: 87 Lm/W Lum Flux Nominal HF 25°C,horiz: 4800 Lm Calibration Current: 0.550 A HF Generator Rated Voltage: 202 V Resistor: 185 ohm « hide more

€ 12,88 € 12,88 ex. VAT

Description / FAQ Warranty

MASTER PL-L Xtra is a medium to high-wattage linear compact fluorescent lamp, typically used for general-illumination ceiling luminaires in retail, hospitality and office applications demanding higher lighting levels. MASTER PL-L Xtra lamps furthermore provide significantly lower operating costs thanks to their lifetime, which is more than double that of a standard MASTER PL-L lamp, and their very low early failure rate. The original Philips-invented bridge technology guarantees optimum performance in the application, enabling more light and higher efficacy than the bended technology. It is designed for operation on electromagnetic as well as HF electronic gear and is provided with a plug-in/pull-out lamp base.

Features

4-pin base

Extra long lifetime and less early failures

Fluorescent tri-phosphor technology

Low light depreciation over lamp life

Applications

Designed for general lighting in shops, offices, hotels and specific task lighting, as well as outdoors in residential areas and parks

Suitable for use in applications where maintenance costs are high (high ceilings, difficult to reach): department stores, supermarkets, warehouses, production halls, tunnels and public areas
