Compact Fluorescent Lamp MASTER PL-C Xtra 4 Pin Fluorescent Lamps G24q (4-pin)

Philips MASTER PL-C Xtra 18W/830/4P 1CT/5X10BOX

Price € 11,96 € 11,96 ex. VAT

See variants (4)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

MASTER PL-C Xtra 18W/830/4P 1CT/5X10BOX

Karta produktu PDF

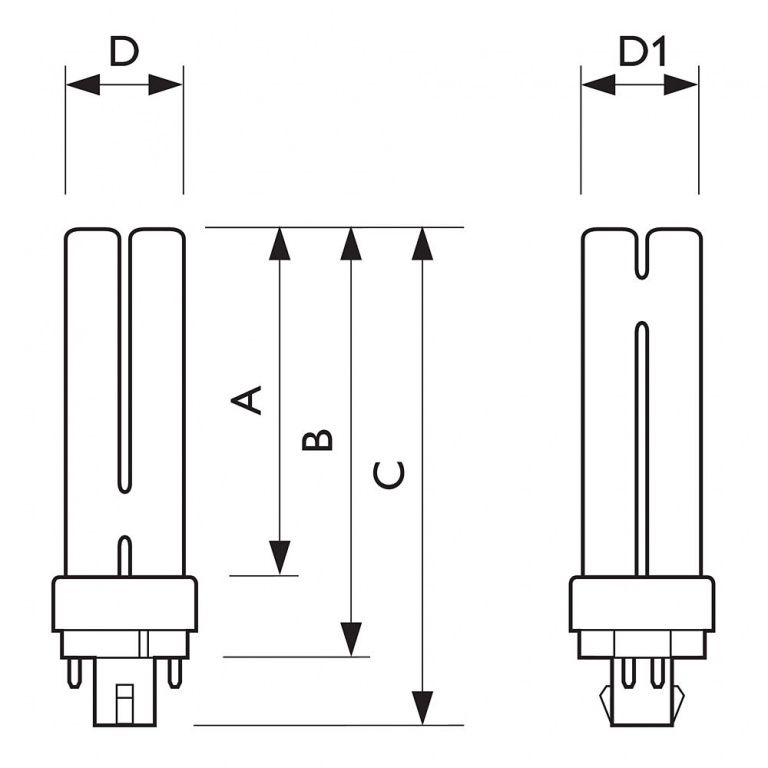

Product code: 57697 Cap-Base: G24q-2 Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 20 kWh Diameter D: 27.1 (max) mm Overall Length C: 142.9 (max) mm Full product code: 927906583014 see more »

Full product name: MASTER PL-C Xtra 18W/830/4P 1CT Order code: 927906583014 Order product name: MASTER PL-C Xtra 18W/830/4P 1CT/5X10CC Packing configuration: 5X10CC Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500950352 Bar code on pack - EAN1: 8711500950338 Packs per outerbox: 50 Logistic code(s) - 12NC: 927906583014 Net weight per piece: 55.300 gr Bar code on intermediate packing - EAN2: 8711500950345 Cap-Base Information: 4P Lamp Wattage: 18 W Color Rendering Index: 82 Ra8 ILCOS code: FSQ-18/30/1B-E-G24q=2 Mercury (Hg) Content: 3.0 mg Insertion Length B: 128.0 (max) mm Chromaticity Coordinate X: 435 - Chromaticity Coordinate Y: 400 - Lum Efficacy Rated EM 25°C: 73 Lm/W Luminous Flux EM 25°C, Nominal: 1200 Lm Luminous Flux EM 25°C, Rated: 1200 Lm Design Temperature: 28 C Lamp Wattage EM 25°C, Nominal: 17 W Lamp Current EM 25°C: 0.220 A Lamp Voltage EM 25°C: 95 V Lamp Wattage EM 25°C, Rated: 18.0 W Base Face to Base Face A: 109.7 (max) mm Diameter D1: 27.1 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 98 % LSF HF Preheat 12000h Rated,3h: 95 % LSF HF Preheat 6000h Rated,3h: 97 % LSF HF Preheat 8000h Rated,3h: 96 % LSF HF Preheat 16000h Rated,3h: 94 % Luminous Flux EL 25°C, Nominal: 1200 Lm Luminous Flux EL 25°C, Rated: 1200 Lm LLMF HF 2000h Rated: 92 % LLMF HF 4000h Rated: 88 % LLMF HF 12000h Rated: 81 % LLMF HF 6000h Rated: 86 % LLMF HF 8000h Rated: 84 % Lamp Wattage EL 25°C, Rated: 16.5 W Lamp Voltage EL 25°C: 80 V Lamp Wattage EL 25°C, Nominal: 17 W Lamp Current EL 25°C: 0.210 A Lum Efficacy Rated HF 25°C: 73 Lm/W LSF HF Preheat 20000h Rated,3h: 90 % LLMF HF 16000h Rated: 79 % LLMF HF 20000h Rated: 78 % « hide more

€ 11,96 € 11,96 ex. VAT

MASTER PL-C Xtra 18W/840/4P 1CT/5X10BOX

Karta produktu PDF

Product code: 57699 Cap-Base: G24q-2 Color Code: 840 [CCT of 4000K] Color Designation (text): Cool White Color Temperature: 4000 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 20 kWh Diameter D: 27.1 (max) mm Overall Length C: 142.9 (max) mm Full product code: 927906584014 see more »

Full product name: MASTER PL-C Xtra 18W/840/4P 1CT Order code: 927906584014 Order product name: MASTER PL-C Xtra 18W/840/4P 1CT/5X10CC Packing configuration: 5X10CC Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500950383 Bar code on pack - EAN1: 8711500950369 Packs per outerbox: 50 Logistic code(s) - 12NC: 927906584014 Net weight per piece: 55.300 gr Bar code on intermediate packing - EAN2: 8711500950376 Cap-Base Information: 4P Lamp Wattage: 18 W Color Rendering Index: 82 Ra8 ILCOS code: FSQ-18/40/1B-E-G24q=2 Mercury (Hg) Content: 3.0 mg Insertion Length B: 128.0 (max) mm Chromaticity Coordinate X: 380 - Chromaticity Coordinate Y: 380 - Lum Efficacy Rated EM 25°C: 67 Lm/W Luminous Flux EM 25°C, Nominal: 1200 Lm Luminous Flux EM 25°C, Rated: 1200 Lm Design Temperature: 28 C Lamp Wattage EM 25°C, Nominal: 17 W Lamp Current EM 25°C: 0.220 A Lamp Voltage EM 25°C: 100 V Lamp Wattage EM 25°C, Rated: 18.0 W Base Face to Base Face A: 109.7 (max) mm Diameter D1: 27.1 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 98 % LSF HF Preheat 12000h Rated,3h: 95 % LSF HF Preheat 6000h Rated,3h: 97 % LSF HF Preheat 8000h Rated,3h: 96 % LSF HF Preheat 16000h Rated,3h: 94 % Luminous Flux EL 25°C, Nominal: 1200 Lm Luminous Flux EL 25°C, Rated: 1200 Lm LLMF HF 2000h Rated: 92 % LLMF HF 4000h Rated: 88 % LLMF HF 12000h Rated: 81 % LLMF HF 6000h Rated: 86 % LLMF HF 8000h Rated: 84 % Lamp Wattage EL 25°C, Rated: 17.6 W Lamp Voltage EL 25°C: 80 V Lamp Wattage EL 25°C, Nominal: 17 W Lamp Current EL 25°C: 0.230 A Lum Efficacy Rated HF 25°C: 67 Lm/W LSF HF Preheat 20000h Rated,3h: 90 % LLMF HF 16000h Rated: 79 % LLMF HF 20000h Rated: 78 % « hide more

€ 11,96 € 11,96 ex. VAT

MASTER PL-C Xtra 26W/830/4P 1CT/5X10BOX

Karta produktu PDF

Product code: 57733 Cap-Base: G24q-3 Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 29 kWh Diameter D: 27.1 (max) mm Overall Length C: 163.9 (max) mm Full product code: 927906383014 see more »

Full product name: MASTER PL-C Xtra 26W/830/4P 1CT Order code: 927906383014 Order product name: MASTER PL-C Xtra 26W/830/4P 1CT/5X10CC Packing configuration: 5X10CC Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500898913 Bar code on pack - EAN1: 8711500898890 Packs per outerbox: 50 Logistic code(s) - 12NC: 927906383014 Net weight per piece: 60.400 gr Bar code on intermediate packing - EAN2: 8711500898906 Cap-Base Information: 4P Lamp Wattage: 26 W Color Rendering Index: 82 Ra8 ILCOS code: FSQ-26/30/1B-E-G24q=3 Mercury (Hg) Content: 3.0 mg Insertion Length B: 149.0 (max) mm Chromaticity Coordinate X: 435 - Chromaticity Coordinate Y: 400 - Lum Efficacy Rated EM 25°C: 75 Lm/W Luminous Flux EM 25°C, Nominal: 1800 Lm Luminous Flux EM 25°C, Rated: 1800 Lm Design Temperature: 28 C Lamp Wattage EM 25°C, Nominal: 26 W Lamp Current EM 25°C: 0.325 A Lamp Voltage EM 25°C: 105 V Lamp Wattage EM 25°C, Rated: 26.0 W Base Face to Base Face A: 130.7 (max) mm Diameter D1: 27.1 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 98 % LSF HF Preheat 12000h Rated,3h: 95 % LSF HF Preheat 6000h Rated,3h: 97 % LSF HF Preheat 8000h Rated,3h: 96 % LSF HF Preheat 16000h Rated,3h: 94 % Luminous Flux EL 25°C, Nominal: 1800 Lm Luminous Flux EL 25°C, Rated: 1800 Lm LLMF HF 2000h Rated: 92 % LLMF HF 4000h Rated: 88 % LLMF HF 12000h Rated: 81 % LLMF HF 6000h Rated: 86 % LLMF HF 8000h Rated: 84 % Lamp Wattage EL 25°C, Rated: 24.0 W Lamp Voltage EL 25°C: 80 V Lamp Wattage EL 25°C, Nominal: 26 W Lamp Current EL 25°C: 0.300 A Lum Efficacy Rated HF 25°C: 75 Lm/W LSF HF Preheat 20000h Rated,3h: 90 % LLMF HF 16000h Rated: 79 % LLMF HF 20000h Rated: 78 % « hide more

€ 11,96 € 11,96 ex. VAT

MASTER PL-C Xtra 26W/840/4P 1CT/5X10BOX

Karta produktu PDF

Product code: 57735 Cap-Base: G24q-3 Color Code: 840 [CCT of 4000K] Color Designation (text): Cool White Color Temperature: 4000 K Dimmable: Yes Energy Efficiency Label (EEL): A Energy consumption kWh/1000h: 29 kWh Diameter D: 27.1 (max) mm Overall Length C: 163.9 (max) mm Full product code: 927906384014 see more »

Full product name: MASTER PL-C Xtra 26W/840/4P 1CT Order code: 927906384014 Order product name: MASTER PL-C Xtra 26W/840/4P 1CT/5X10CC Packing configuration: 5X10CC Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500898944 Bar code on pack - EAN1: 8711500898920 Packs per outerbox: 50 Logistic code(s) - 12NC: 927906384014 Net weight per piece: 60.400 gr Bar code on intermediate packing - EAN2: 8711500898937 Cap-Base Information: 4P Lamp Wattage: 26 W Color Rendering Index: 82 Ra8 ILCOS code: FSQ-26/40/1B-E-G24q=3 Mercury (Hg) Content: 3.0 mg Insertion Length B: 149.0 (max) mm Chromaticity Coordinate X: 380 - Chromaticity Coordinate Y: 380 - Lum Efficacy Rated EM 25°C: 75 Lm/W Luminous Flux EM 25°C, Nominal: 1800 Lm Luminous Flux EM 25°C, Rated: 1800 Lm Design Temperature: 28 C Lamp Wattage EM 25°C, Nominal: 26 W Lamp Current EM 25°C: 0.325 A Lamp Voltage EM 25°C: 105 V Lamp Wattage EM 25°C, Rated: 26.0 W Base Face to Base Face A: 130.7 (max) mm Diameter D1: 27.1 (max) mm LSF HF Preheat 2000h Rated,3h: 99 % LSF HF Preheat 4000h Rated,3h: 98 % LSF HF Preheat 12000h Rated,3h: 95 % LSF HF Preheat 6000h Rated,3h: 97 % LSF HF Preheat 8000h Rated,3h: 96 % LSF HF Preheat 16000h Rated,3h: 94 % Luminous Flux EL 25°C, Nominal: 1800 Lm Luminous Flux EL 25°C, Rated: 1800 Lm LLMF HF 2000h Rated: 92 % LLMF HF 4000h Rated: 88 % LLMF HF 12000h Rated: 81 % LLMF HF 6000h Rated: 86 % LLMF HF 8000h Rated: 84 % Lamp Wattage EL 25°C, Rated: 24.0 W Lamp Voltage EL 25°C: 80 V Lamp Wattage EL 25°C, Nominal: 26 W Lamp Current EL 25°C: 0.300 A Lum Efficacy Rated HF 25°C: 75 Lm/W LSF HF Preheat 20000h Rated,3h: 90 % LLMF HF 16000h Rated: 79 % LLMF HF 20000h Rated: 78 % « hide more

€ 11,96 € 11,96 ex. VAT

Description / FAQ Warranty

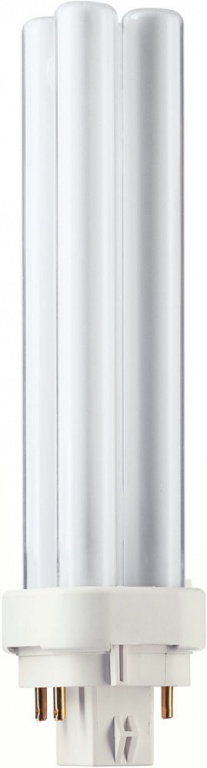

MASTER PL-C Xtra is an efficient compact fluorescent lamp, typically used in general downlights for retail, hospitality and office applications. MASTER PL-C Xtra lamps furthermore provide significantly lower operating costs thanks to their lifetime, which is more than double that of a standard MASTER PL-C lamp, and their very low early failure rate. The original Philips-invented bridge technology guarantees optimum performance in the application, enabling more light and higher efficacy than the bended technology. The 4-pin version is designed for operation on electronic HF control gear with integrated pre-heat and is provided with a plug-in/pull-out lamp base.

Features

4-pin base

Fluorescent tri-phosphor technology

Extra long lifetime and less early failures

Low light depreciation over lamp life

Applications

Designed for general or supplementary lighting in professional environments

Recessed or surface-mounted downlighters, wall units, table lamps and pendant lamps

Suitable for use in applications where maintenance costs are high (high ceilings, difficult to reach): department stores, supermarkets, warehouses, production halls and public areas
