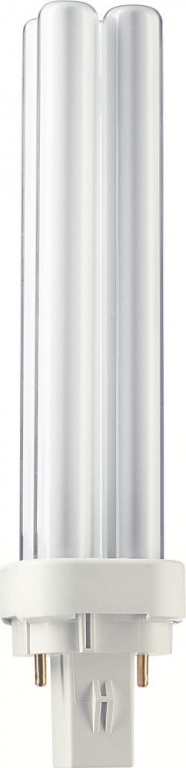

Compact Fluorescent Lamp MASTER PL-C Xtra 2 Pin Compact Fluorescent Lamps G24d (2-pin)

Philips MASTER PL-C Xtra 18W/830/2P 1CT/5X10BOX

Price € 11,96 € 11,96 ex. VAT

See variants (2)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 2

MASTER PL-C Xtra 18W/840/2P 1CT/5X10BOX

Karta produktu PDF

Product code: 57698 Cap-Base: G24d-2 Color Code: 840 [CCT of 4000K] Color Designation (text): Cool White Color Temperature: 4000 K Dimmable: No Energy Efficiency Label (EEL): B Energy consumption kWh/1000h: 22 kWh Diameter D: 27.1 (max) mm Overall Length C: 150.4 (max) mm Full product code: 927906484014 see more »

Full product name: MASTER PL-C Xtra 18W/840/2P 1CT Order code: 927906484014 Order product name: MASTER PL-C Xtra 18W/840/2P 1CT/5X10BOX Packing configuration: 5X10CC Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500950321 Bar code on pack - EAN1: 8711500950307 Packs per outerbox: 50 Logistic code(s) - 12NC: 927906484014 Net weight per piece: 57.800 gr Bar code on intermediate packing - EAN2: 8711500950314 Cap-Base Information: 2P Lamp Wattage: 18 W Color Rendering Index: 82 Ra8 ILCOS code: FSQ-18/40/1B-I-G24d=2 Mercury (Hg) Content: 3.0 mg Insertion Length B: 128.0 (max) mm Chromaticity Coordinate X: 380 - Chromaticity Coordinate Y: 380 - LSF EM 2000h Rated,3h cycle: 99 % LSF EM 4000h Rated,3h cycle: 98 % LSF EM 6000h Rated,3h cycle: 97 % LSF EM 8000h Rated,3h cycle: 95 % LLMF EM 2000h Rated: 92 % Lum Efficacy Rated EM 25°C: 67 Lm/W Luminous Flux EM 25°C, Nominal: 1200 Lm Luminous Flux EM 25°C, Rated: 1200 Lm LLMF EM 4000h Rated: 87 % LLMF EM 6000h Rated: 84 % LLMF EM 8000h Rated: 81 % Design Temperature: 28 C Lamp Wattage EM 25°C, Nominal: 17 W Lamp Current EM 25°C: 0.220 A Lamp Voltage EM 25°C: 100 V Lamp Wattage EM 25°C, Rated: 17.9 W Base Face to Base Face A: 109.7 (max) mm Diameter D1: 27.1 (max) mm LSF EM 12000h Rated,3h cycle: 90 % LSF EM 16000h Rated,3h cycle: 50 % LLMF EM 12000h Rated: 79 % LLMF EM 16000h Rated: 78 % LLMF EM 20000h Rated: 77 % « hide more

€ 11,96 € 11,96 ex. VAT

MASTER PL-C Xtra 26W/840/2P 1CT/5X10BOX

Karta produktu PDF

Product code: 57734 Cap-Base: G24d-3 Color Code: 840 [CCT of 4000K] Color Designation (text): Cool White Color Temperature: 4000 K Dimmable: No Energy Efficiency Label (EEL): B Energy consumption kWh/1000h: 32 kWh Diameter D: 27.1 (max) mm Overall Length C: 171.4 (max) mm Full product code: 927906284014 see more »

Full product name: MASTER PL-C Xtra 26W/840/2P 1CT Order code: 927906284014 Order product name: MASTER PL-C Xtra 26W/840/2P 1CT/5X10BOX Packing configuration: 5X10CC Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500898883 Bar code on pack - EAN1: 8711500898869 Packs per outerbox: 50 Logistic code(s) - 12NC: 927906284014 Net weight per piece: 64.300 gr Bar code on intermediate packing - EAN2: 8711500898876 Cap-Base Information: 2P Lamp Wattage: 26 W Color Rendering Index: 82 Ra8 ILCOS code: FSQ-26/40/1B-I-G24d=3 Mercury (Hg) Content: 3.0 mg Insertion Length B: 149.0 (max) mm Chromaticity Coordinate X: 380 - Chromaticity Coordinate Y: 380 - LSF EM 2000h Rated,3h cycle: 99 % LSF EM 4000h Rated,3h cycle: 98 % LSF EM 6000h Rated,3h cycle: 97 % LSF EM 8000h Rated,3h cycle: 95 % LLMF EM 2000h Rated: 92 % Lum Efficacy Rated EM 25°C: 68 Lm/W Luminous Flux EM 25°C, Nominal: 1800 Lm Luminous Flux EM 25°C, Rated: 1800 Lm LLMF EM 4000h Rated: 87 % LLMF EM 6000h Rated: 84 % LLMF EM 8000h Rated: 81 % Design Temperature: 28 C Lamp Wattage EM 25°C, Nominal: 26 W Lamp Current EM 25°C: 0.325 A Lamp Voltage EM 25°C: 105 V Lamp Wattage EM 25°C, Rated: 26.5 W Base Face to Base Face A: 130.7 (max) mm Diameter D1: 27.1 (max) mm LSF EM 12000h Rated,3h cycle: 90 % LSF EM 16000h Rated,3h cycle: 50 % LLMF EM 12000h Rated: 79 % LLMF EM 16000h Rated: 78 % LLMF EM 20000h Rated: 77 % « hide more

€ 11,96 € 11,96 ex. VAT

Description / FAQ Warranty

This is an efficient compact fluorescent lamp, typically used in general downlights for retail, hospitality and office applications. MASTER PL-C Xtra lamps furthermore provide significantly lower operating costs thanks to their lifetime, which is more than double that of a standard MASTER PL-C lamp, and their very low early failure rate. The original Philips-invented bridge technology guarantees optimum performance in the application, enabling more light and higher efficacy than the bended technology. The 2-pin version is designed for operation on electromagnetic gear and is provided with a plug-in/pull-out lamp base.

Features

2-pin base with a housing incorporating the special instant starter

Fluorescent tri-phosphor technology

Extra long lifetime and fewer early failures

Low light depreciation over lamp life

Applications

Designed for general or supplementary lighting in professional environments

Recessed or surface-mounted downlighters, wall units, table lamps and pendant lamps

Suitable for use in applications where maintenance costs are high (high ceilings, difficult to reach): department stores, supermarkets, warehouses, production halls and public areas

If you buy goods in partial package that is not currently available in our store (available on request), we reserve the rights to charge additional increments of 5 EUR ex. VAT.
