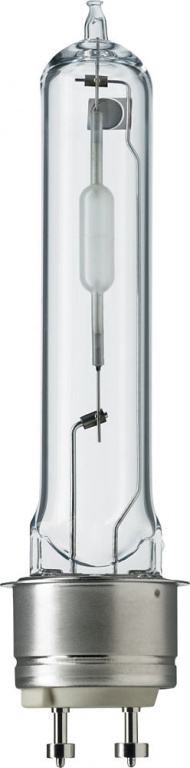

Metal halide lamp MASTER CosmoWhite CPO-TW & CPO-TW Xtra Lampy wyładowcze specjalistyczne

Philips MST CosmoWh CPO-TW Xtra 90W/728 PGZ12

From € 101,52 incl. VAT
From € 101,52 ex. VAT

See variants (4)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

MST CosmoWh CPO-TW Xtra 45W/628 PGZ12

Karta produktu PDF

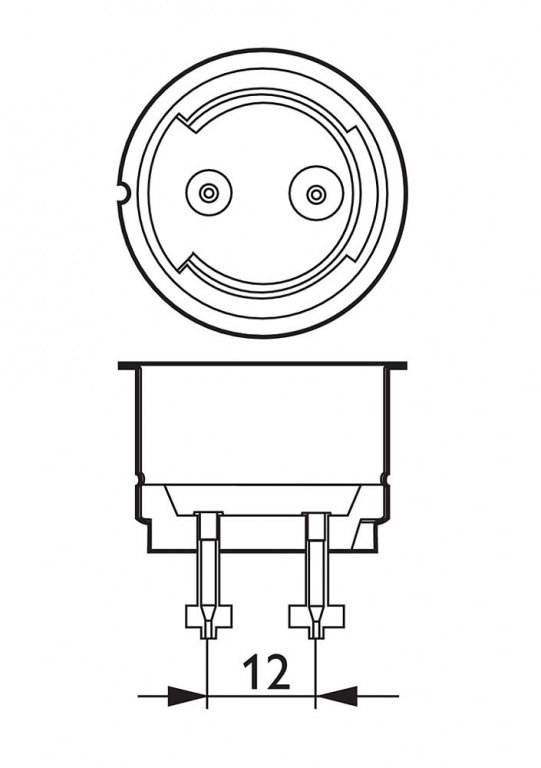

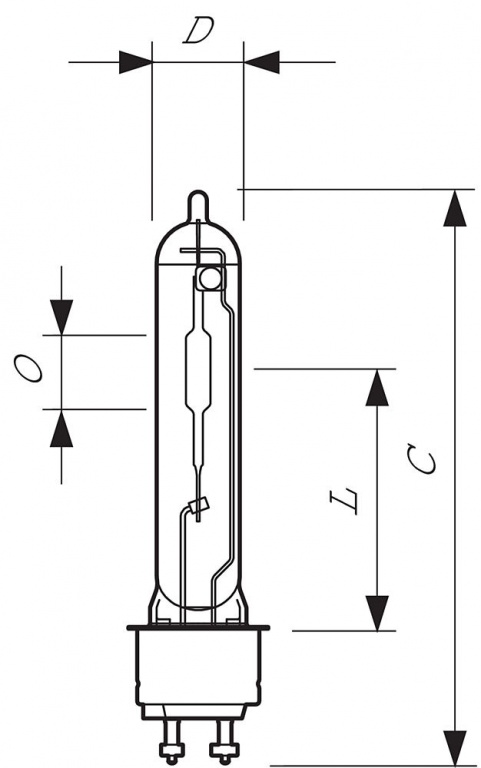

Product code: 58259 Cap-Base: PGZ12 Bulb: T19 [T 19mm] Color Code: 628 [CCT of 2800K] Color Designation (text): White Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 49 kWh Diameter D: 19 (nom), 20 (max) mm Overall Length C: 132 (max) mm Full product code: 928083805127 see more »

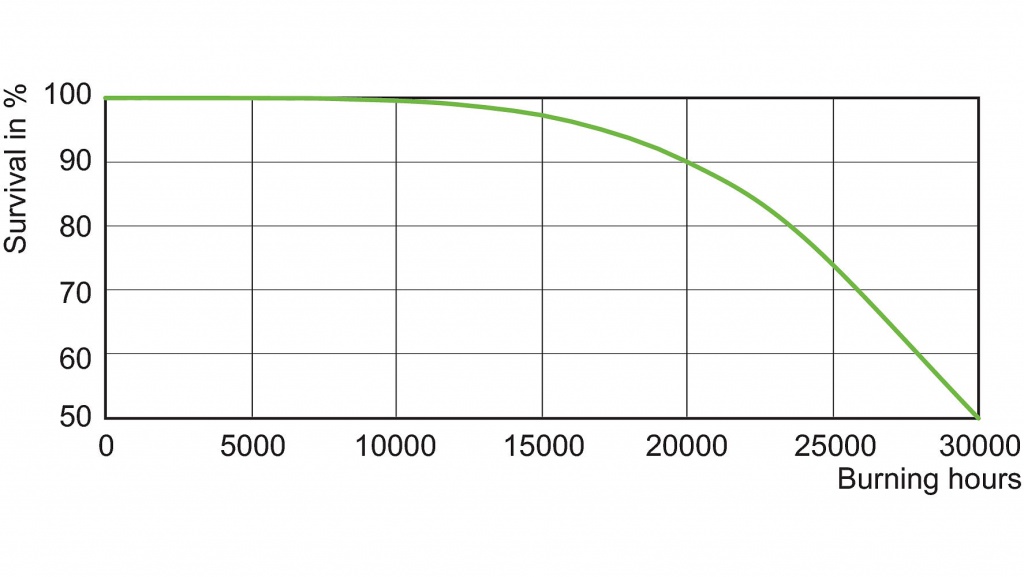

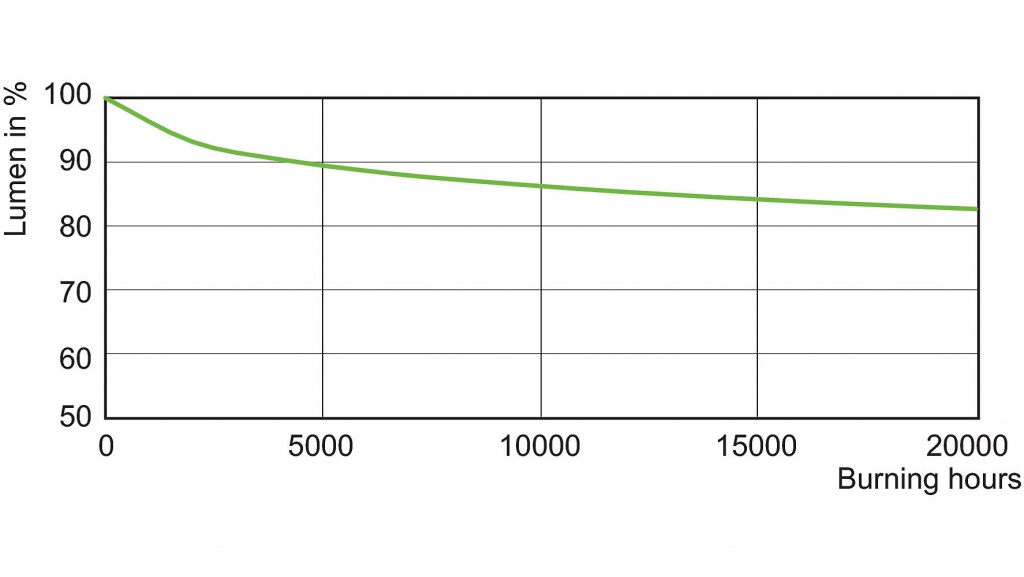

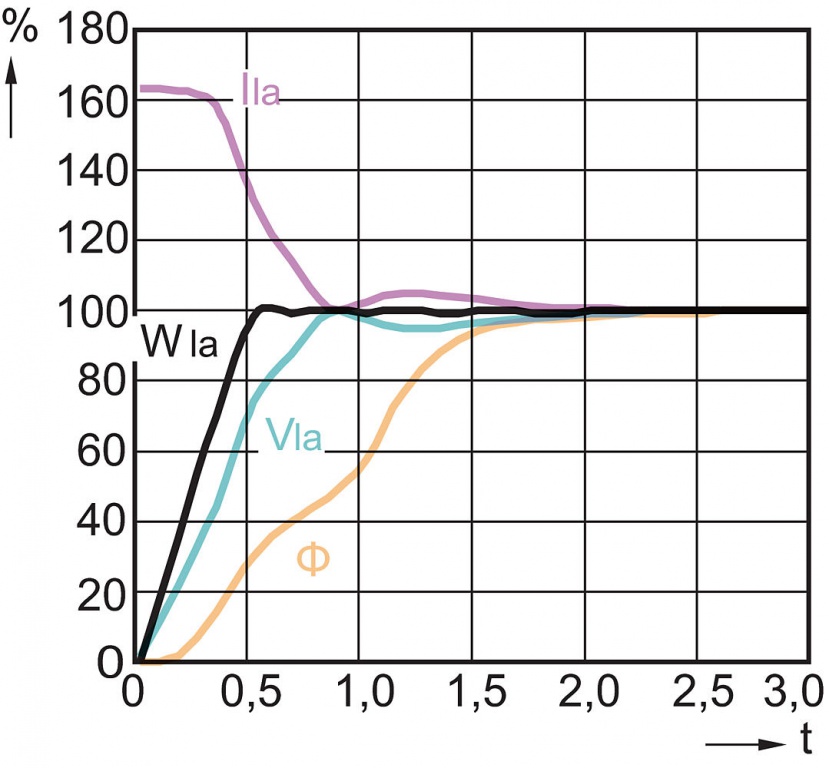

Full product name: MASTER CosmoWhite CPO-TW Xtra 45W/628 PGZ12 Order code: 928083805127 Order product name: MST CosmoWh CPO-TW Xtra 45W/628 PGZ12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291150022 Bar code on pack - EAN1: 8718291150015 Packs per outerbox: 12 Logistic code(s) - 12NC: 928083805127 Net weight per piece: 0.034 kg Bulb Finish: Clear Lamp Wattage: 45 W Operating Position: any [Any or Universal (U)] ILCOS code: MT-45/628-H-PGZ12-20/132 Cap-Base Temperature: 250 (max) C Bulb Temperature: 380 (max) C Light Center Length L: 59 mm Mercury (Hg) Content: 2.0 mg Chromaticity Coordinate X: 459 - Chromaticity Coordinate Y: 412 - Lamp Wattage EL 25°C, Rated: 45.0 W Lamp Wattage EL 25°C, Nominal: 45.0 W Lamp Voltage: 91 V Damage Factor D/fc: 0.21 - Arc Length O: 14 mm Ignition Time: 30 (max) s Lamp Current EL: 0.484 A Run-up time 90%: 4 (max) min Re-ignition Time [sec]: 900 (max) s Ratio scotopic/photopic lumens: 1.15 - PET (NIOSH): 8 (min) h500lx Life to 10% failures, horiz.: 24000 hr Life to 20% failures, horiz.: 27000 hr Life to 5% failures, horiz.: 21500 hr LSF EL 2kh Rated,12h cyc. hor: 99 % Life to 50% failures, horiz.: 32000 hr LSF EL 4kh Rated,12h cyc. hor: 99 % LSF EL 6kh Rated,12h cyc. hor: 99 % LSF EL 12kh Rated,12h cyc. hor: 99 % LSF EL 8kh Rated,12h cyc. hor: 99 % LSF EL 16kh Rated,12h cyc. hor: 99 % LSF EL 20kh Rated,12h cyc. hor: 97 % LSF EL 24kh Rated,12h cyc. hor: 90 % LSF EL 30kh Rated,12h cyc. hor: 63 % CRI @ ±60% power: 59 - Colour Temp. @ ±60% power: 2815 K Lum. Flux EL25°C, Rat. horiz.: 4950 Lm Lum Effic Rat EL 25°C horiz.: 110 Lm/W Luminous Flux @ ±60% power: 2520 Lm Color Rendering Index, horiz: 63 (min), 66 (nom) Ra8 Luminous Efficacy @ ±60% power: 84 Lm/W Color Temp. Technical, horiz.: 2725 K Color Temperature, horizontal: 2800 K LLMF EL 2000h Rated, horiz.: 92 % LLMF EL 4000h Rated, horiz.: 90 % LLMF EL 6000h Rated, horiz.: 90 % LLMF EL 12000h Rated, horiz.: 89 % LLMF EL 8000h Rated, horiz.: 90 % LLMF EL 16000h Rated, horiz.: 87 % LLMF EL 20000h Rated, horiz.: 86 % LLMF EL 24000h Rated, horiz.: 84 % LLMF EL 30000h Rated, horiz.: 82 % Chrom. Coord. X @ ±60% power: 459 - Chrom. Coord. Y @ ±60% power: 424 - Lamp Current EL at ±60% power: 309 mA « hide more

€ 101,52 € 101,52 ex. VAT

MST CosmoWh CPO-TW Xtra 60W/728 PGZ12

Karta produktu PDF

Product code: 58260 Cap-Base: PGZ12 Bulb: T19 [T 19mm] Color Code: 728 [CCT of 2800K] Color Designation (text): White Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 66 kWh Diameter D: 19 (nom), 20 (max) mm Overall Length C: 132 (max) mm Full product code: 928088505127 see more »

Full product name: MASTER CosmoWhite CPO-TW Xtra 60W/728 PGZ12 Order code: 928088505127 Order product name: MST CosmoWh CPO-TW Xtra 60W/728 PGZ12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500208521 Bar code on pack - EAN1: 8711500208514 Packs per outerbox: 12 Logistic code(s) - 12NC: 928088505127 Net weight per piece: 0.034 kg Bulb Finish: Clear Lamp Wattage: 60 W Operating Position: any [Any or Universal (U)] ILCOS code: MT-60/728-H-PGZ12-20/132 Cap-Base Temperature: 300 (max) C Bulb Temperature: 400 (max) C Light Center Length L: 59 mm Mercury (Hg) Content: 2.0 mg Chromaticity Coordinate X: 453 - Chromaticity Coordinate Y: 405 - Lamp Wattage EL 25°C, Rated: 60.0 W Lamp Wattage EL 25°C, Nominal: 60.0 W Lamp Voltage: 92 V Damage Factor D/fc: 0.17 - Arc Length O: 14 mm Ignition Time: 30 (max) s Lamp Current EL: 0.644 A Run-up time 90%: 3 (max) min Re-ignition Time [sec]: 900 (max) s Ratio scotopic/photopic lumens: 1.15 - PET (NIOSH): 8 (min) h500lx Life to 10% failures, horiz.: 24000 hr Life to 20% failures, horiz.: 27000 hr Life to 5% failures, horiz.: 21500 hr LSF EL 2kh Rated,12h cyc. hor: 99 % Life to 50% failures, horiz.: 32000 hr LSF EL 4kh Rated,12h cyc. hor: 99 % LSF EL 6kh Rated,12h cyc. hor: 99 % LSF EL 12kh Rated,12h cyc. hor: 99 % LSF EL 8kh Rated,12h cyc. hor: 99 % LSF EL 16kh Rated,12h cyc. hor: 99 % LSF EL 20kh Rated,12h cyc. hor: 97 % LSF EL 24kh Rated,12h cyc. hor: 90 % LSF EL 30kh Rated,12h cyc. hor: 63 % CRI @ ±60% power: 62 - Colour Temp. @ ±60% power: 2715 K Lum. Flux EL25°C, Rat. horiz.: 7200 Lm Lum Effic Rat EL 25°C horiz.: 120 Lm/W Luminous Flux @ ±60% power: 3240 Lm Color Rendering Index, horiz: 70 (min), 73 (nom) Ra8 Luminous Efficacy @ ±60% power: 90 Lm/W Color Temp. Technical, horiz.: 2760 K Color Temperature, horizontal: 2800 K LLMF EL 2000h Rated, horiz.: 92 % LLMF EL 4000h Rated, horiz.: 90 % LLMF EL 6000h Rated, horiz.: 90 % LLMF EL 12000h Rated, horiz.: 89 % LLMF EL 8000h Rated, horiz.: 90 % LLMF EL 16000h Rated, horiz.: 87 % LLMF EL 20000h Rated, horiz.: 86 % LLMF EL 24000h Rated, horiz.: 84 % LLMF EL 30000h Rated, horiz.: 82 % Chrom. Coord. X @ ±60% power: 461 - Chrom. Coord. Y @ ±60% power: 414 - Lamp Current EL at ±60% power: 383 mA « hide more

€ 101,52 € 101,52 ex. VAT

MST CosmoWh CPO-TW Xtra 90W/728 PGZ12

Karta produktu PDF

Product code: 58261 Cap-Base: PGZ12 Bulb: T19 [T 19mm] Color Code: 728 [CCT of 2800K] Color Designation (text): White Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 99 kWh Diameter D: 19 (nom), 20 (max) mm Overall Length C: 143 (max) mm Full product code: 928093505127 see more »

Full product name: MASTER CosmoWhite CPO-TW Xtra 90W/728 PGZ12 Order code: 928093505127 Order product name: MST CosmoWh CPO-TW Xtra 90W/728 PGZ12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500211224 Bar code on pack - EAN1: 8711500211217 Packs per outerbox: 12 Logistic code(s) - 12NC: 928093505127 Net weight per piece: 0.037 kg Bulb Finish: Clear Lamp Wattage: 90 W Operating Position: any [Any or Universal (U)] ILCOS code: MT-90/728-H-PGZ12-20/143 Cap-Base Temperature: 300 (max) C Bulb Temperature: 470 (max) C Light Center Length L: 66 mm Mercury (Hg) Content: 3.0 mg Chromaticity Coordinate X: 449 - Chromaticity Coordinate Y: 412 - Lamp Wattage EL 25°C, Rated: 90.0 W Lamp Wattage EL 25°C, Nominal: 90.0 W Lamp Voltage: 92 V Damage Factor D/fc: 0.18 - Arc Length O: 18 mm Ignition Time: 30 (max) s Lamp Current EL: 0.97 A Run-up time 90%: 4 (max) min Re-ignition Time [sec]: 900 (max) s Ratio scotopic/photopic lumens: 1.15 - PET (NIOSH): 8 (min) h500lx Life to 10% failures, horiz.: 20000 hr Life to 20% failures, horiz.: 23500 hr Life to 5% failures, horiz.: 17000 hr LSF EL 2kh Rated,12h cyc. hor: 99 % Life to 50% failures, horiz.: 30000 hr LSF EL 4kh Rated,12h cyc. hor: 99 % LSF EL 6kh Rated,12h cyc. hor: 99 % LSF EL 12kh Rated,12h cyc. hor: 99 % LSF EL 8kh Rated,12h cyc. hor: 99 % LSF EL 16kh Rated,12h cyc. hor: 96 % LSF EL 20kh Rated,12h cyc. hor: 90 % LSF EL 24kh Rated,12h cyc. hor: 78 % LSF EL 30kh Rated,12h cyc. hor: 50 % CRI @ ±60% power: 60 - Colour Temp. @ ±60% power: 2870 K Lum. Flux EL25°C, Rat. horiz.: 10800 Lm Lum Effic Rat EL 25°C horiz.: 120 Lm/W Luminous Flux @ ±60% power: 5022 Lm Color Rendering Index, horiz: 67 (min), 70 (nom) Ra8 Luminous Efficacy @ ±60% power: 93 Lm/W Color Temp. Technical, horiz.: 2870 K Color Temperature, horizontal: 2800 K LLMF EL 2000h Rated, horiz.: 94 % LLMF EL 4000h Rated, horiz.: 93 % LLMF EL 6000h Rated, horiz.: 93 % LLMF EL 12000h Rated, horiz.: 92 % LLMF EL 8000h Rated, horiz.: 93 % LLMF EL 16000h Rated, horiz.: 91 % LLMF EL 20000h Rated, horiz.: 90 % Chrom. Coord. X @ ±60% power: 454 - Chrom. Coord. Y @ ±60% power: 423 - Lamp Current EL at ±60% power: 577 mA « hide more

€ 101,52 € 101,52 ex. VAT

MST CosmoWh CPO-TW 140W/728 PGZ12 1CT/12

Karta produktu PDF

Product code: 58262 Cap-Base: PGZ12 Bulb: T19 [T 19mm] Color Code: 728 [CCT of 2800K] Color Designation (text): White Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 154 kWh Diameter D: 19 (nom), 20 (max) mm Overall Length C: 150 (max) mm Full product code: 928088805127 see more »

Full product name: MASTER CosmoWhite CPO-TW Xtra 140W/728 PGZ12 Order code: 928088805127 Order product name: MST CosmoWh CPO-TW Xtra 140W/728 PGZ12 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500208545 Bar code on pack - EAN1: 8711500208538 Packs per outerbox: 12 Logistic code(s) - 12NC: 928088805127 Net weight per piece: 0.040 kg Bulb Finish: Clear Lamp Wattage: 140 W Operating Position: any [Any or Universal (U)] ILCOS code: MT-140/728-H-PGZ12-20/150 Cap-Base Temperature: 300 (max) C Bulb Temperature: 550 (max) C Light Center Length L: 66 mm Mercury (Hg) Content: 3.9 mg Chromaticity Coordinate X: 440 - Chromaticity Coordinate Y: 413 - Lamp Wattage EL 25°C, Rated: 140.0 W Lamp Wattage EL 25°C, Nominal: 140.0 W Lamp Voltage: 94 V Damage Factor D/fc: 0.14 - Arc Length O: 22 mm Ignition Time: 30 (max) s Lamp Current EL: 1.50 A Run-up time 90%: 4 (max) min Re-ignition Time [sec]: 900 (max) s Ratio scotopic/photopic lumens: 1.30 - PET (NIOSH): 8 (min) h500lx Life to 10% failures, horiz.: 20000 hr Life to 20% failures, horiz.: 24000 hr Life to 5% failures, horiz.: 18000 hr LSF EL 2kh Rated,12h cyc. hor: 99 % Life to 50% failures, horiz.: 30000 hr LSF EL 4kh Rated,12h cyc. hor: 99 % LSF EL 6kh Rated,12h cyc. hor: 99 % LSF EL 12kh Rated,12h cyc. hor: 98 % LSF EL 8kh Rated,12h cyc. hor: 99 % LSF EL 16kh Rated,12h cyc. hor: 97 % LSF EL 20kh Rated,12h cyc. hor: 90 % LSF EL 24kh Rated,12h cyc. hor: 80 % LSF EL 30kh Rated,12h cyc. hor: 50 % CRI @ ±60% power: 59 - Colour Temp. @ ±60% power: 2900 K Lum. Flux EL25°C, Rat. horiz.: 17600 Lm Lum Effic Rat EL 25°C horiz.: 125 Lm/W Luminous Flux @ ±60% power: 7900 Lm Color Rendering Index, horiz: 72 Ra8 Luminous Efficacy @ ±60% power: 95 Lm/W Color Temp. Technical, horiz.: 3000 K Color Temperature, horizontal: 2800 K LLMF EL 2000h Rated, horiz.: 94 % LLMF EL 4000h Rated, horiz.: 93 % LLMF EL 6000h Rated, horiz.: 92 % LLMF EL 12000h Rated, horiz.: 89 % LLMF EL 8000h Rated, horiz.: 91 % LLMF EL 16000h Rated, horiz.: 88 % LLMF EL 20000h Rated, horiz.: 87 % LLMF EL 24000h Rated, horiz.: 86 % Chrom. Coord. X @ ±60% power: 455 - Chrom. Coord. Y @ ±60% power: 425 - Lamp Current EL at ±60% power: 912 mA « hide more

€ 111,03 € 111,03 ex. VAT

Description / FAQ Warranty

New-generation ceramic metal halide lamps used in Outdoor offering efficient and pleasant white light

Features

Highly efficient white light with extremely high system efficacy

Long reliable lifetime; new Xtra range offering service life of up to 6 years

Unique new burner design and positioning in combination with optimum lamp fixation (PGZ12) ensures excellent optical efficacy

Compact size: 50% smaller than SON/HPL systems

New electronic gear platform including dimming options

Applications

Urban public lighting for city centers, residential areas and roads

Lamp optimized for horizontal position; when positioned vertically, the lifetime specification is much lower (as much as - 40%)
