Metal halide lamp MASTER CityWhite CDO-TT Metal Halide Lamps E27 / E40

Philips MASTER CityWh CDO-TT Plus 70W/828 E27

From € 43,22 incl. VAT
From € 43,22 ex. VAT

See variants (5)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 5

MASTER CityWh CDO-TT Plus 50W/828 E27

Karta produktu PDF

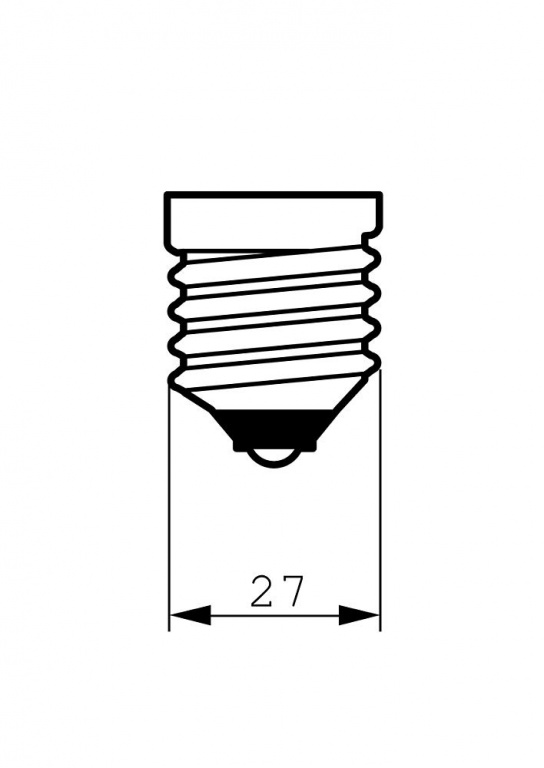

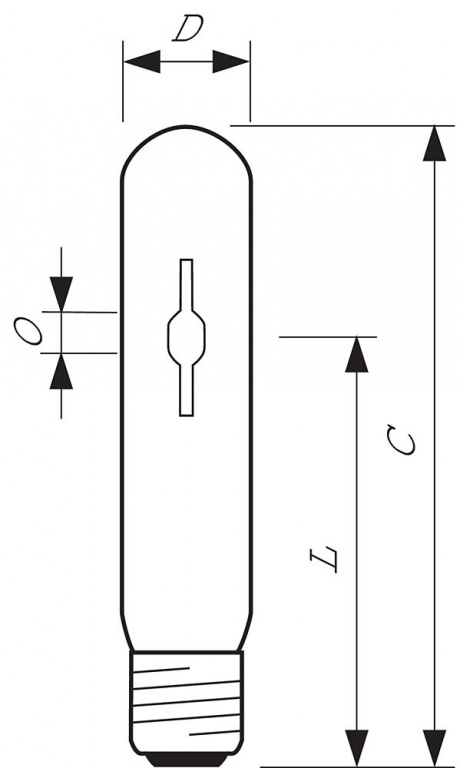

Product code: 58225 Cap-Base: E27 Bulb: T31 [T 31mm] Color Code: 828 [CCT of 2800K] Color Designation (text): Warm White Color Temperature: 2800 K Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 58 kWh Diameter D: 36 (max) mm Overall Length C: 156 (max) mm see more »

Full product code: 928082419235 Full product name: MASTER CityWhite CDO-TT Plus 50W/828 E27 Order code: 928082419235 Order product name: MASTER CityWh CDO-TT Plus 50W/828 E27 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291185628 Bar code on pack - EAN1: 8718291185611 Packs per outerbox: 12 Logistic code(s) - 12NC: 928082419235 Net weight per piece: 0.060 kg Bulb Finish: Clear Lamp Wattage: 50 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 89 Ra8 ILCOS code: MT-50/828-H-E27-39/156 Cap-Base Temperature: 200 (max) C Bulb Temperature: 350 (max) C Life to 50% failures: 20000 hr Color Temperature Technical: 2800 K Light Center Length L: 102 mm Mercury (Hg) Content: 5.10 mg Chromaticity Coordinate X: 443 - Chromaticity Coordinate Y: 395 - LLMF EM 2000h Rated: 98 % Lum Efficacy Rated EM 25°C: 104 Lm/W Luminous Flux EM 25°C, Rated: 5500 Lm LLMF EM 4000h Rated: 96 % LLMF EM 6000h Rated: 92 % LLMF EM 8000h Rated: 88 % Lamp Wattage EM 25°C, Nominal: 50.0 W Lamp Wattage EM 25°C, Rated: 53.0 W LLMF EM 12000h Rated: 80 % LLMF EM 16000h Rated: 74 % LLMF EM 20000h Rated: 71 % Lamp Voltage: 84 V Lamp Current EM: 0.760 A Life to 20% failures: 14500 hr Life to 5% failures: 9500 hr Arc Length O: 5.25 mm Ignition Time: 30 (max) s Run-up time 90%: 3 (max) min LSF EM 2000h Rated,12h cycle: 99 % LSF EM 4000h Rated,12h cycle: 99 % LSF EM 6000h Rated,12h cycle: 99 % LSF EM 8000h Rated,12h cycle: 98 % LSF EM 12000h Rated,12h cycle: 90 % LSF EM 16000h Rated,12h cycle: 74 % LSF EM 20000h Rated,12h cycle: 50 % Re-ignition Time [sec]: 720 (max) s Life to 10% failures: 12000 hr Ratio scotopic/photopic lumens: 1.30 - PET (NIOSH): 8 (min) h500lx « hide more

€ 43,22 € 43,22 ex. VAT

MASTER CityWh CDO-TT Plus 70W/828 E27

Karta produktu PDF

Product code: 58226 Cap-Base: E27 Bulb: T35 [T 35mm] Color Code: 828 [CCT of 2800K] Color Designation (text): Warm White Color Temperature: 2800 K Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 80 kWh Diameter D: 36 (max) mm Overall Length C: 156 (max) mm see more »

Full product code: 928082019235 Full product name: MASTER CityWhite CDO-TT Plus 70W/828 E27 Order code: 928082019235 Order product name: MASTER CityWh CDO-TT Plus 70W/828 E27 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291120315 Bar code on pack - EAN1: 8718291120308 Packs per outerbox: 12 Logistic code(s) - 12NC: 928082019235 Net weight per piece: 0.048 kg Bulb Finish: Clear Lamp Wattage: 70 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 90 Ra8 ILCOS code: MT-70/828-H-E27-39/156 Cap-Base Temperature: 200 (max) C Bulb Temperature: 350 (max) C Life to 50% failures: 27000 hr Color Temperature Technical: 2800 K Light Center Length L: 102 mm Mercury (Hg) Content: 6.8 mg Chromaticity Coordinate X: 446 - Chromaticity Coordinate Y: 393 - LLMF EM 2000h Rated: 95 % Lum Efficacy Rated EM 25°C: 103 Lm/W Luminous Flux EM 25°C, Rated: 7500 Lm LLMF EM 4000h Rated: 90 % LLMF EM 6000h Rated: 86 % LLMF EM 8000h Rated: 83 % Lamp Wattage EM 25°C, Nominal: 70.0 W Lamp Wattage EM 25°C, Rated: 73.0 W LLMF EM 12000h Rated: 78 % LLMF EM 16000h Rated: 74 % LLMF EM 20000h Rated: 71 % Lamp Voltage: 93 V Lamp Current EM: 1 A Life to 20% failures: 16500 hr Life to 5% failures: 9500 hr Arc Length O: 7.15 mm Ignition Time: 30 (max) s Run-up time 90%: 3 (max) min LSF EM 2000h Rated,12h cycle: 99 % LSF EM 4000h Rated,12h cycle: 99 % LSF EM 6000h Rated,12h cycle: 98 % LSF EM 8000h Rated,12h cycle: 96 % LSF EM 12000h Rated,12h cycle: 90 % LSF EM 16000h Rated,12h cycle: 81 % LSF EM 20000h Rated,12h cycle: 71 % Re-ignition Time [sec]: 720 (max) s Life to 10% failures: 12000 hr Ratio scotopic/photopic lumens: 1.30 - PET (NIOSH): 8 (min) h500lx « hide more

€ 43,22 € 43,22 ex. VAT

MASTER CityWh CDO-TT Plus 100W/828 E40

Karta produktu PDF

Product code: 58223 Cap-Base: E40 Bulb: T46 [T 46mm] Color Code: 828 [CCT of 2800K] Color Designation (text): Warm White Color Temperature: 2800 K Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 107 kWh Diameter D: 47 (max) mm Overall Length C: 211 (max) mm see more »

Full product code: 928082119231 Full product name: MASTER CityWhite CDO-TT Plus 100W/828 E40 Order code: 928082119231 Order product name: MASTER CityWh CDO-TT Plus 100W/828 E40 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291120339 Bar code on pack - EAN1: 8718291120322 Packs per outerbox: 12 Logistic code(s) - 12NC: 928082119231 Net weight per piece: 0.137 kg Bulb Finish: Clear Lamp Wattage: 100 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 88 Ra8 ILCOS code: MT-100/828-H-E40-48/211 Cap-Base Temperature: 250 (max) C Bulb Temperature: 450 (max) C Life to 50% failures: 27000 hr Color Temperature Technical: 2800 K Light Center Length L: 132 mm Mercury (Hg) Content: 11.6 mg Chromaticity Coordinate X: 445 - Chromaticity Coordinate Y: 395 - LLMF EM 2000h Rated: 95 % Lum Efficacy Rated EM 25°C: 109 Lm/W Luminous Flux EM 25°C, Rated: 10700 Lm LLMF EM 4000h Rated: 92 % LLMF EM 6000h Rated: 90 % LLMF EM 8000h Rated: 88 % Lamp Wattage EM 25°C, Nominal: 100.0 W Lamp Wattage EM 25°C, Rated: 98.0 W LLMF EM 12000h Rated: 85 % LLMF EM 16000h Rated: 82 % LLMF EM 20000h Rated: 80 % Lamp Voltage: 97 V Lamp Current EM: 1.2 A Life to 20% failures: 22500 hr Life to 5% failures: 18000 hr Arc Length O: 8.5 mm Ignition Time: 30 (max) s Run-up time 90%: 2 (max) min LSF EM 2000h Rated,12h cycle: 99 % LSF EM 4000h Rated,12h cycle: 99 % LSF EM 6000h Rated,12h cycle: 99 % LSF EM 8000h Rated,12h cycle: 99 % LSF EM 12000h Rated,12h cycle: 99 % LSF EM 16000h Rated,12h cycle: 97 % LSF EM 20000h Rated,12h cycle: 90 % Re-ignition Time [sec]: 900 (max) s Life to 10% failures: 20000 hr Ratio scotopic/photopic lumens: 1.30 - PET (NIOSH): 8 (min) h500lx « hide more

€ 47,69 € 47,69 ex. VAT

MASTER CityWh CDO-TT Plus 150W/828 E40

Karta produktu PDF

Product code: 58224 Cap-Base: E40 Bulb: T46 [T 46mm] Color Code: 828 [CCT of 2800K] Color Designation (text): Warm White Color Temperature: 2800 K Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 162 kWh Diameter D: 47 (max) mm Overall Length C: 211 (max) mm see more »

Full product code: 928082219231 Full product name: MASTER CityWhite CDO-TT Plus 150W/828 E40 Order code: 928082219231 Order product name: MASTER CityWh CDO-TT Plus 150W/828 E40 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291120353 Bar code on pack - EAN1: 8718291120346 Packs per outerbox: 12 Logistic code(s) - 12NC: 928082219231 Net weight per piece: 0.135 kg Bulb Finish: Clear Lamp Wattage: 150 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 87 Ra8 ILCOS code: MT/UB-150/828-H-E40-48/211 Cap-Base Temperature: 250 (max) C Bulb Temperature: 450 (max) C Life to 50% failures: 27000 hr Color Temperature Technical: 2800 K Light Center Length L: 132 mm Mercury (Hg) Content: 15.8 mg Chromaticity Coordinate X: 445 - Chromaticity Coordinate Y: 395 - LLMF EM 2000h Rated: 95 % Lum Efficacy Rated EM 25°C: 110 Lm/W Luminous Flux EM 25°C, Rated: 16500 Lm LLMF EM 4000h Rated: 92 % LLMF EM 6000h Rated: 90 % LLMF EM 8000h Rated: 88 % Lamp Wattage EM 25°C, Nominal: 150.0 W Lamp Wattage EM 25°C, Rated: 148.0 W LLMF EM 12000h Rated: 85 % LLMF EM 16000h Rated: 82 % LLMF EM 20000h Rated: 80 % Lamp Voltage: 98 V Lamp Current EM: 1.8 A Life to 20% failures: 22500 hr Life to 5% failures: 18000 hr Arc Length O: 10 mm Ignition Time: 30 (max) s Run-up time 90%: 3 (max) min LSF EM 2000h Rated,12h cycle: 99 % LSF EM 4000h Rated,12h cycle: 99 % LSF EM 6000h Rated,12h cycle: 99 % LSF EM 8000h Rated,12h cycle: 99 % LSF EM 12000h Rated,12h cycle: 99 % LSF EM 16000h Rated,12h cycle: 97 % LSF EM 20000h Rated,12h cycle: 90 % Re-ignition Time [sec]: 900 (max) s Life to 10% failures: 20000 hr Ratio scotopic/photopic lumens: 1.30 - PET (NIOSH): 8 (min) h500lx « hide more

€ 47,69 € 47,69 ex. VAT

MASTER CityWh CDO-TT Plus 250W/830 E40

Karta produktu PDF

Product code: 58227 Cap-Base: E40 Bulb: T46 [T 46mm] Color Code: 830 [CCT of 3000K] Color Designation (text): Warm White Color Temperature: 3000 K Dimmable: Yes Energy Efficiency Label (EEL): A+ Energy consumption kWh/1000h: 275 kWh Diameter D: 47 (max) mm Overall Length C: 257 (max) mm see more »

Full product code: 928082319230 Full product name: MASTER CityWhite CDO-TT Plus 250W/830 E40 Order code: 928082319230 Order product name: MASTER CityWh CDO-TT Plus 250W/830 E40 Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291121985 Bar code on pack - EAN1: 8718291121978 Packs per outerbox: 12 Logistic code(s) - 12NC: 928082319230 Net weight per piece: 0.161 kg Bulb Finish: Clear Lamp Wattage: 250 W Operating Position: any [Any or Universal (U)] Color Rendering Index: 88 Ra8 ILCOS code: MT-250/830-H-E40-48/260 Cap-Base Temperature: 250 (max) C Bulb Temperature: 450 (max) C Life to 50% failures: 23000 hr Color Temperature Technical: 3000 K Light Center Length L: 157 mm Mercury (Hg) Content: 25.3 mg Chromaticity Coordinate X: 426 - Chromaticity Coordinate Y: 390 - LLMF EM 2000h Rated: 95 % Lum Efficacy Rated EM 25°C: 113 Lm/W Luminous Flux EM 25°C, Rated: 28300 Lm LLMF EM 4000h Rated: 92 % LLMF EM 6000h Rated: 90 % LLMF EM 8000h Rated: 88 % Lamp Wattage EM 25°C, Nominal: 250.0 W Lamp Wattage EM 25°C, Rated: 250.0 W LLMF EM 12000h Rated: 85 % LLMF EM 16000h Rated: 82 % LLMF EM 20000h Rated: 80 % Lamp Voltage: 100 V Lamp Current EM: 2.92 A Life to 20% failures: 18500 hr Life to 5% failures: 14000 hr Arc Length O: 12.1 mm Ignition Time: 30 (max) s Run-up time 90%: 3 (max) min LSF EM 2000h Rated,12h cycle: 99 % LSF EM 4000h Rated,12h cycle: 99 % LSF EM 6000h Rated,12h cycle: 99 % LSF EM 8000h Rated,12h cycle: 99 % LSF EM 12000h Rated,12h cycle: 98 % LSF EM 16000h Rated,12h cycle: 90 % LSF EM 20000h Rated,12h cycle: 71 % Re-ignition Time [sec]: 900 (max) s Life to 10% failures: 16000 hr Ratio scotopic/photopic lumens: 1.30 - PET (NIOSH): 8 (min) h500lx « hide more

€ 78,18 € 78,18 ex. VAT

Description / FAQ Warranty

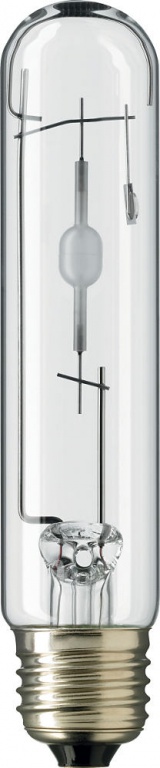

Ceramic metal halide lamp with clear tubular outer bulb shape, used in outdoor offering pleasant white light

Features

High-quality white light

Directly retrofit on HPS (SON/NAV) installations for upgrade from yellow to white light

"Plus" concept with high efficacy translates into high light output and improved lumen maintenance

Good color rendering and harmonized warm white color temperature

Dimmable

Applications

Beautification and functional lighting for City centers, shopping centers and pedestrian areas, residential areas, road lighting and floodlighting
