Ignitors Fluorescent Starters

From € 13,47 incl. VAT
From € 13,47 ex. VAT

See variants (4)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

SI 51 220-240V 50/60Hz

Karta produktu PDF

Product code: 58508 Line Frequency: 50/60 Hz T-case maximum: 80 (max) C Full product code: 913619519966 Full product name: SI 51 220-240V 50/60Hz Order code: 913619519966 Order product name: SI 51 220-240V 50/60Hz Packing configuration: 48 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500908353 Bar code on pack - EAN1: 8711500915535 see more »

Packs per outerbox: 48 Logistic code(s) - 12NC: 913619519966 Net weight per piece: 0.047 kg Length A1: 84.5 mm CE marking: Yes Height C1: 38.0 mm T-ambient: -20 (min), 75 (max) C Width B1: 41.0 mm Fixing Hole Diameter D1: 4.3 mm Fixing Hole Distance Length A2: 65.0 mm ENEC certificate: Yes T-storage: -25 (min), 80 (max) C Rated Lamptype: HPI Line Voltage: 220-240 V Rated Ballast-Lamp Power: 250/400 Rated Number of Lamps: 1 piece Housing: SNI-85 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 1.0 W Striplength: 6.0 mm Application code: 51 Response voltage: 190 V Connector type: Screw Wcs Ballast contacts: 0.70-2.50 mm2 Ignition Voltage: 0.75 (max) kV Ignition type: Parallel Number of ignition pulses: 1 x Cable-Cap wires device/lamp: 150 nF « hide more

€ 13,47 € 13,47 ex. VAT

SI 52 220-240V 50/60Hz

Karta produktu PDF

Product code: 58510 Line Frequency: 50/60 Hz T-case maximum: 80 (max) C Full product code: 913619529966 Full product name: SI 52 220-240V 50/60Hz Order code: 913619529966 Order product name: SI 52 220-240V 50/60Hz Packing configuration: 48 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500908377 Bar code on pack - EAN1: 8711500915542 see more »

Packs per outerbox: 48 Logistic code(s) - 12NC: 913619529966 Net weight per piece: 0.060 kg Length A1: 84.5 mm CE marking: Yes Height C1: 38.0 mm T-ambient: -20 (min), 75 (max) C Width B1: 41.0 mm Fixing Hole Diameter D1: 4.3 mm Fixing Hole Distance Length A2: 65.0 mm ENEC certificate: Yes T-storage: -25 (min), 80 (max) C Rated Lamptype: HPI Line Voltage: 220-240 V Rated Ballast-Lamp Power: 1000 Rated Number of Lamps: 1 piece Housing: SNI-85 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 1.0 W Striplength: 6.0 mm Application code: 52 Response voltage: 190 V Connector type: Screw Wcs Ballast contacts: 0.70-2.50 mm2 Ignition Voltage: 0.75 (max) kV Ignition type: Parallel Number of ignition pulses: 1 x Cable-Cap wires device/lamp: 35 nF « hide more

€ 13,47 € 13,47 ex. VAT

SND 57 220-240V 50/60Hz

Karta produktu PDF

Product code: 58516 Line Frequency: 50/60 Hz T-case maximum: 90 (max) C Full product code: 913700184966 Full product name: SND 57 220-240V 50/60Hz Order code: 913700184966 Order product name: SND 57 220-240V 50/60Hz Packing configuration: 48 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500930675 Bar code on pack - EAN1: 8711500930668 see more »

Packs per outerbox: 48 Logistic code(s) - 12NC: 913700184966 Net weight per piece: 0.050 kg Length A1: 84.5 mm CE marking: Yes Height C1: 38.5 mm T-ambient: -20 (min), 85 (max) C Width B1: 41.5 mm Fixing Hole Diameter D1: 4.3 mm Fixing Hole Distance Length A2: 65.0 mm ENEC certificate: Yes Rated Lamptype: SON Line Voltage: 220-240 V Rated Ballast-Lamp Power: 50/70 Rated Number of Lamps: 1 piece Housing: SNI-85 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 1.0 W Application code: 57 Maximum ignition time: 1185 (max) s Response voltage: 195 V Connector type: Screw Wcs Ballast contacts: 0.70-2.50 mm2 Ignition Voltage: 1.8 (min), 2.5 (max) kV Ignition type: Semi-Parallel Ignition Attempts: 3 - « hide more

€ 23,00 € 23,00 ex. VAT

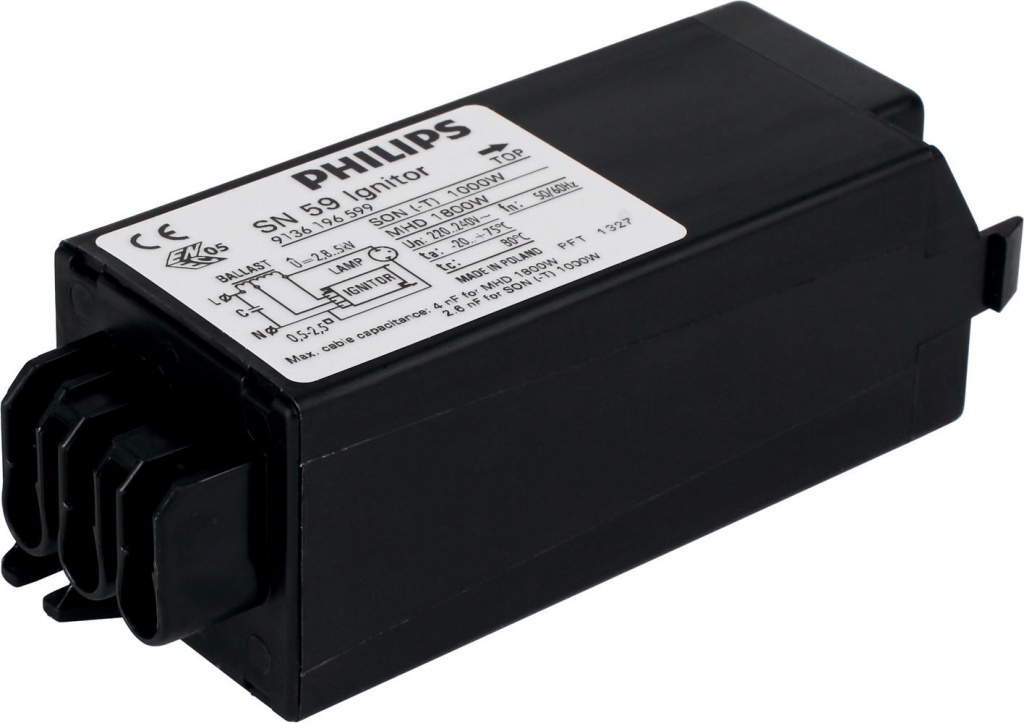

SN 59 220-240V 50/60Hz

Karta produktu PDF

Product code: 58519 Line Frequency: 50/60 Hz T-case maximum: 80 (max) C Full product code: 913619659966 Full product name: SN 59 220-240V 50/60Hz Order code: 913619659966 Order product name: SN 59 220-240V 50/60Hz Packing configuration: 20 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500913487 Bar code on pack - EAN1: 8711500915573 see more »

Packs per outerbox: 20 Logistic code(s) - 12NC: 913619659966 Net weight per piece: 0.090 kg Length A1: 114.5 mm CE marking: Yes Height C1: 38.0 mm T-ambient: -20 (min), 75 (max) C Width B1: 41.0 mm Fixing Hole Diameter D1: 4.3 mm Fixing Hole Distance Length A2: 95.0 mm ENEC certificate: Yes T-storage: -25 (min), 80 (max) C Rated Lamptype: SON/MHN Line Voltage: 220-240 V Rated Ballast-Lamp Power: 1000/1800 Rated Number of Lamps: 1 piece Housing: SNI-115 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 1.0 W Striplength: 6.0 mm Application code: 59 Response voltage: 196 V Connector type: Screw Wcs Ballast contacts: 0.70-2.50 mm2 Ignition Voltage: 5.00 (max) kV Ignition type: Semi-Parallel Number of ignition pulses: 2 x Cable-Cap wires device/lamp: 4 nF « hide more

€ 37,85 € 37,85 ex. VAT

Description / FAQ Warranty

If you buy goods in partial package that is not currently available in our store (available on request), we reserve the rights to charge additional increments of 5 EUR ex. VAT.
