HID ignitors for series systems Fluorescent Starters

From € 23,00 incl. VAT
From € 23,00 ex. VAT

See variants (3)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 3

SND 58 220-240V 50/60Hz

Karta produktu PDF

Product code: 58517 Line Frequency: 50/60 Hz T-case maximum: 90 (max) C Full product code: 913700185166 Full product name: SND 58 220-240V 50/60Hz Order code: 913700185166 Order product name: SND 58 220-240V 50/60Hz Packing configuration: 48 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500930699 Bar code on pack - EAN1: 8711500930682 see more »

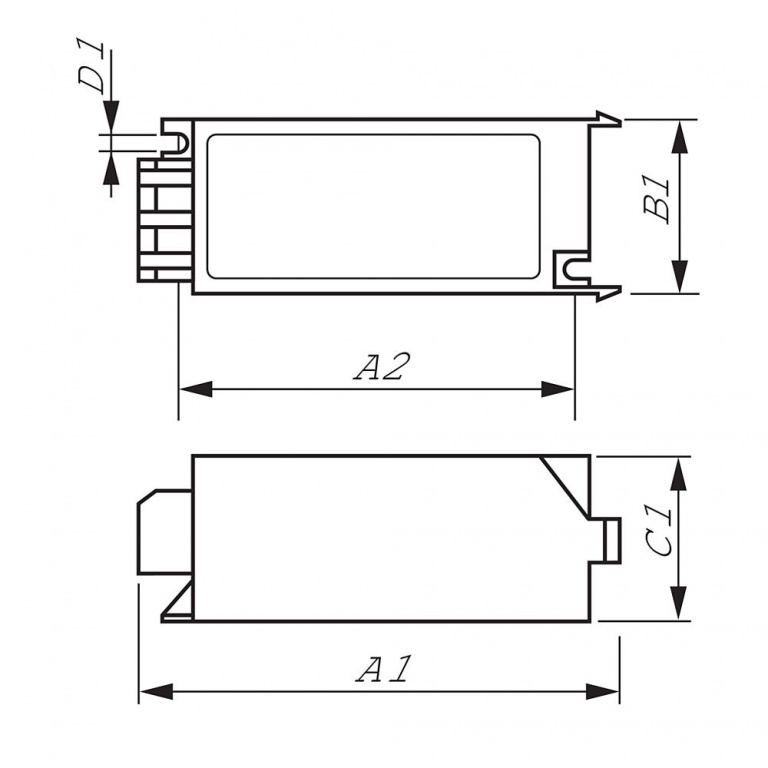

Packs per outerbox: 48 Logistic code(s) - 12NC: 913700185166 Net weight per piece: 0.050 kg Length A1: 84.5 mm CE marking: Yes Height C1: 38.5 mm T-ambient: -20 (min), 85 (max) C Width B1: 41.5 mm Fixing Hole Diameter D1: 4.3 mm Fixing Hole Distance Length A2: 65.0 mm ENEC certificate: Yes Rated Lamptype: SON/CDM/MH/HPI/HPA Line Voltage: 220-240 V Rated Ballast-Lamp Power: 35-600 Rated Number of Lamps: 1 piece Housing: SNI-85 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 1.0 W Application code: 58 Maximum ignition time: 1185 (max) s Response voltage: 195 V Connector type: Screw Wcs Ballast contacts: 0.70-2.50 mm2 Ignition Voltage: 2.8 (min), 5.0 (max) kV Ignition type: Semi-Parallel Ignition Attempts: 3 - « hide more

€ 23,00 € 23,00 ex. VAT

SI 54 380-415V 50/60Hz

Karta produktu PDF

Product code: 58511 Line Frequency: 50/60 Hz T-case maximum: 80 (max) C Full product code: 913619149966 Full product name: SI 54 380-415V 50/60Hz Order code: 913619149966 Order product name: SI 54 380-415V 50/60Hz Packing configuration: 20 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500908339 Bar code on pack - EAN1: 8711500915481 see more »

Packs per outerbox: 20 Logistic code(s) - 12NC: 913619149966 Net weight per piece: 0.083 kg Length A1: 114.5 mm CE marking: Yes Height C1: 38.0 mm T-ambient: -20 (min), 75 (max) C Width B1: 41.0 mm Fixing Hole Diameter D1: 4.3 mm Fixing Hole Distance Length A2: 95.0 mm ENEC certificate: Yes T-storage: -25 (min), 80 (max) C Rated Lamptype: HPI Line Voltage: 380-415 V Rated Ballast-Lamp Power: 2000 Rated Number of Lamps: 1 piece Housing: SNI-115 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 1.0 W Striplength: 6.0 mm Application code: 54 Response voltage: 330 V Connector type: Screw Wcs Ballast contacts: 0.70-2.50 mm2 Ignition Voltage: 1.5 (max) kV Ignition type: Parallel Number of ignition pulses: 1 x Cable-Cap wires device/lamp: 120 nF « hide more

€ 31,53 € 31,53 ex. VAT

SND 88 400V 50/60Hz

Karta produktu PDF

Product code: 58521 Line Frequency: 50/60 Hz T-case maximum: 90 (max) C Full product code: 913700615067 Full product name: SND 88 400V 50/60Hz Order code: 913700615067 Order product name: SND 88 400V 50/60Hz Packing configuration: 120 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500910356 Bar code on pack - EAN1: 8711500910349 see more »

Packs per outerbox: 120 Logistic code(s) - 12NC: 913700615067 Net weight per piece: 0.069 kg Length A1: 114.5 mm CE marking: Yes Height C1: 38.5 mm T-ambient: -20 (min), 80 (max) C Width B1: 41.5 mm Fixing Hole Diameter D1: 4.3 mm Fixing Hole Distance Length A2: 95.0 mm ENEC certificate: Yes Rated Lamptype: GP-SON Line Voltage: 400 V Rated Ballast-Lamp Power: 600 Rated Number of Lamps: 1 piece Housing: SNI-115 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 1.5 W Application code: 88 Maximum ignition time: 1185 (max) s Response voltage: 290 V Connector type: Screw Wcs Ballast contacts: 0.70-2.50 mm2 Ignition Voltage: 3.7 (min), 5.0 (max) kV Ignition type: Semi-Parallel Ignition Attempts: 3 - « hide more

€ 34,60 € 34,60 ex. VAT

Description / FAQ Warranty

HID ignitors for series systems

Features

Ignitors equipped with screw terminal blocks as standard

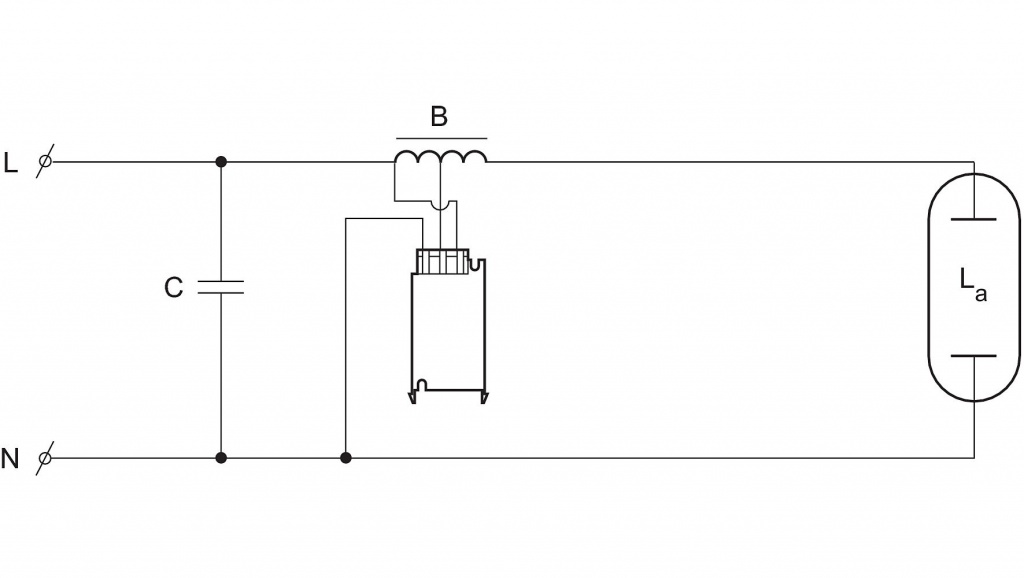

Series ignitor will only work in series circuits

Applications

Outdoor lighting (most popular application: road and tunnel lighting)
