HPI HID Electromagnetic Ballasts

Philips BSN 400 L33-TS 230V 50Hz HD3-166

From € 43,00 incl. VAT
From € 43,00 ex. VAT

See variants (2)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 2

BSN 70 L33-TS 230V 50Hz HD1-118

Karta produktu PDF

Product code: 58500 Line Frequency: 50 Hz Full product code: 913700226526 Full product name: BSN 70 L33-TS 230V 50Hz HD1-118 Order code: 913700226526 Order product name: BSN 70 L33-TS 230V 50Hz HD1-118 Packing configuration: 6 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500062154 Bar code on pack - EAN1: 8711500059680 Packs per outerbox: 6 see more »

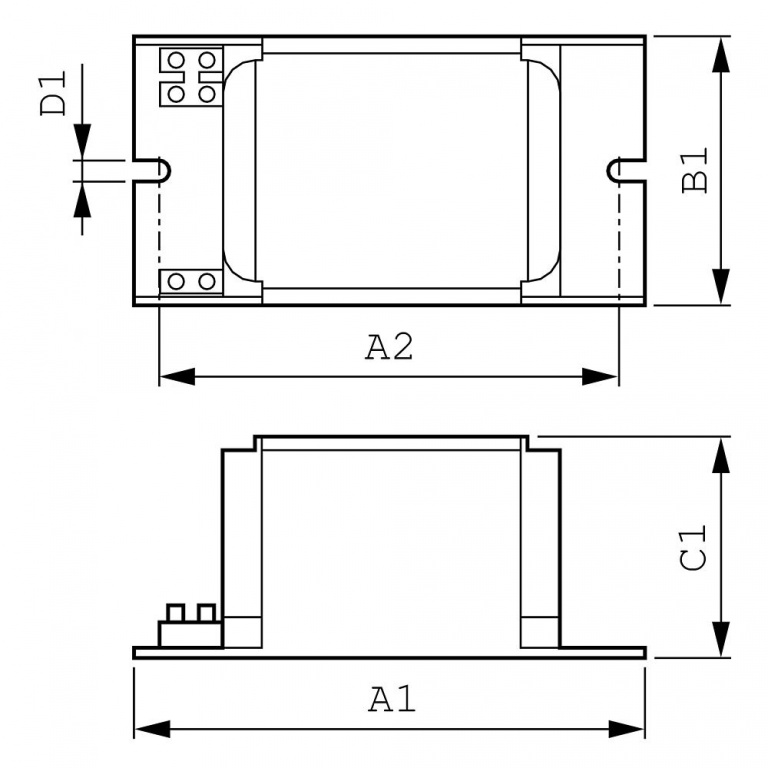

Logistic code(s) - 12NC: 913700226526 Net weight per piece: 1.280 kg Length A1: 118.0 mm CE marking: Yes Height C1: 53.0 mm Capacitor: 12µF/250V Width B1: 65.0 mm Fixing Hole Diameter D1: 6.2 mm Fixing Hole Distance Length A2: 103.0 mm ENEC certificate: Yes T-storage: -30 (min), 130 (max) C Rated Lamptype: SON/CDO Line Voltage: 230 V Rated Ballast-Lamp Power: 70 Rated Number of Lamps: 1 piece Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 11.0 W PowerFactor 100% output power: 0.87 - Striplength: 7.0 mm Application code: L33-TS Connector type: Screw Wcs Ballast contacts: 0.70-6.00 mm2 Active temperature protection: Yes Design: HD1-118 Input current with PF-correct.: 0.45 A Input current w/o PF-correct.: 1.00 A Recommended Ignitor: for SON/CDO lamps ignitor SN 57 (913619589966) OR SND57 (913700184966) or series digital SUD10 (913700195891) Delta-T normal conditions: 55 C T-winding maximum (tw): 130 (max) C PowerFactor w/o PF compens.: 0.35 - « hide more

€ 43,00 € 43,00 ex. VAT

BSN 400 L33-TS 230V 50Hz HD3-166

Karta produktu PDF

Product code: 58504 Line Frequency: 50 Hz Full product code: 913700226926 Full product name: BSN 400 L33-TS 230V 50Hz HD3-166 Order code: 913700226926 Order product name: BSN 400 L33-TS 230V 50Hz HD3-166 Packing configuration: 4 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500059772 Bar code on pack - EAN1: 8711500059765 Packs per outerbox: 4 see more »

Logistic code(s) - 12NC: 913700226926 Net weight per piece: 4.550 kg Length A1: 166.0 mm CE marking: Yes Height C1: 84.0 mm Capacitor: 45µF/250V Width B1: 102.0 mm Fixing Hole Diameter D1: 6.2 mm Fixing Hole Distance Length A2: 147.5 mm ENEC certificate: Yes T-storage: -30 (min), 130 (max) C Rated Lamptype: SON/HPI Line Voltage: 230 V Rated Ballast-Lamp Power: 400 Rated Number of Lamps: 1 piece Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 28.0 W PowerFactor 100% output power: 0.87 - Striplength: 7.0 mm Application code: L33-TS Connector type: Screw Wcs Ballast contacts: 0.70-6.00 mm2 Active temperature protection: Yes Design: HD3-166 Input current with PF-correct.: 2.20 A Input current w/o PF-correct.: 4.45 A Recommended Ignitor: for SON/CDO lamps ignitor SN 58 (913619579966) OR SND 58 (913700185166) Delta-T normal conditions: 70 C T-winding maximum (tw): 130 (max) C PowerFactor w/o PF compens.: 0.40 - « hide more

€ 95,08 € 95,08 ex. VAT

Description / FAQ Warranty

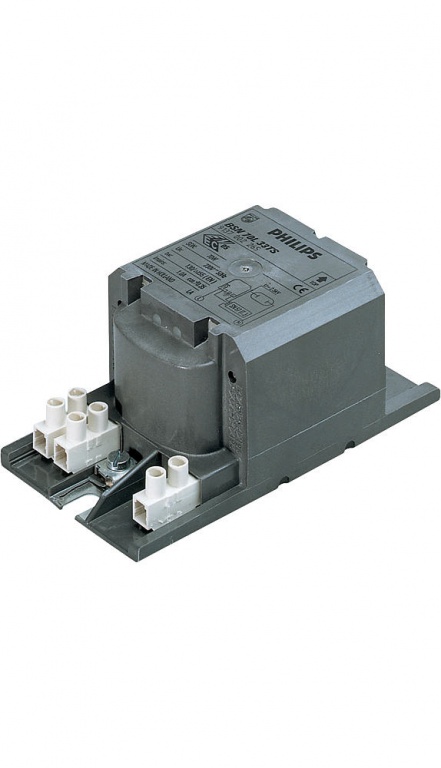

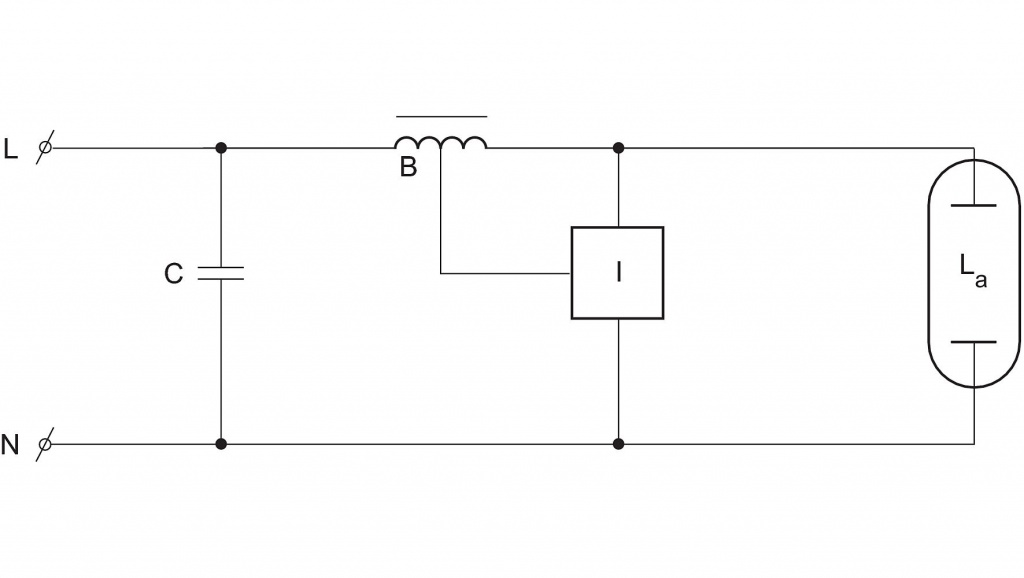

Encapsulated electromagnetic copper/iron ballasts for use with an external semi-parallel ignitor for CDM, CDO, MH, HPI (Plus) and SON lamps

Features

Encapsulated with thermoplastic polyester resin, reinforced with glass fiber

Equipped with screw terminal blocks as standard; insert contacts available upon request

Ballasts for alternative mains voltages/frequencies available upon request

Separate earth terminal (HID ‘Heavy Duty’)

Applications

Outdoor lighting (most popular application: road and tunnel lighting)

If you buy goods in partial package that is not currently available in our store (available on request), we reserve the rights to charge additional increments of 5 EUR ex. VAT.
