| Line Frequency | 50 Hz |
| Full product code | 913604920426 |
| Full product name | BHL 400 L40 230V 50Hz HD2-151 |
| Order code | 913604920426 |
| Order product name | BHL 400 L40 230V 50Hz HD2-151 |
| Packing configuration | 6 |
| Pieces per pack | 1 |
| Bar code on outerbox - EAN3 | 8711500934703 |
| Bar code on pack - EAN1 | 8711500919533 |
| Packs per outerbox | 6 |
| Logistic code(s) - 12NC | 913604920426 |
| Net weight per piece | 2.750 kg |

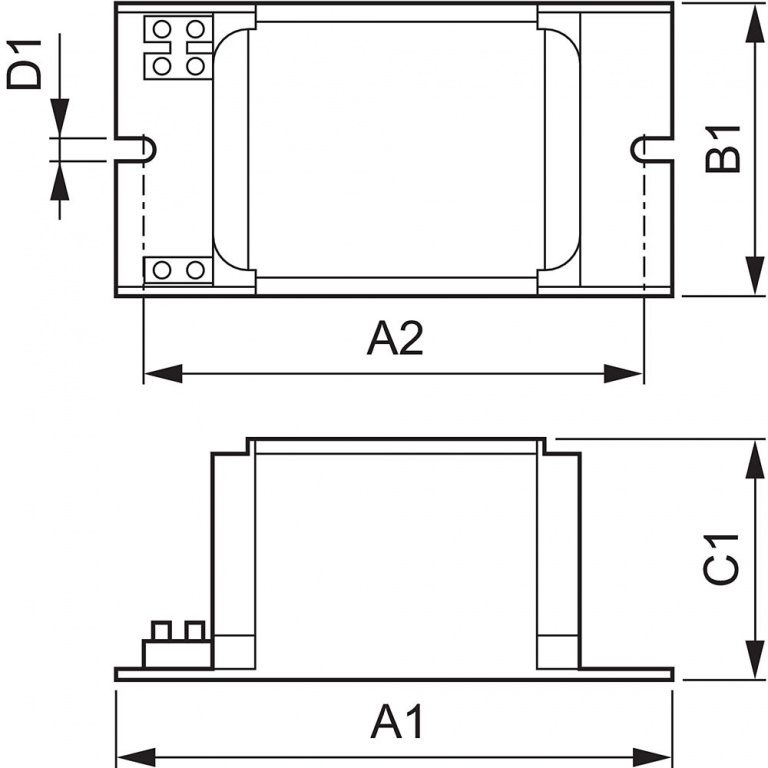

| Length A1 | 151.0 mm |
| CE marking | Yes |
| Height C1 | 66.0 mm |
| Capacitor | 45µF/250V |
| Width B1 | 81.0 mm |
| Fixing Hole Diameter D1 | 6.2 mm |
| Fixing Hole Distance Length A2 | 132.5 mm |
| ENEC certificate | Yes |
| T-storage | -30 (min), 130 (max) C |
| Rated Lamptype | HPL/HPI |
| Line Voltage | 230 V |
| Rated Ballast-Lamp Power | 400 |
| Rated Number of Lamps | 1 piece |
| Mains voltage safety (AC) | -10%/+10% |
| Mains voltage performance (AC) | -8%/+6% |
| Power losses gear | 22.0 W |
| PowerFactor 100% output power | 0.87 - |
| Striplength | 7.0 mm |
| Application code | L40 |
| Connector type | Screw |
| Wcs Ballast contacts | 0.70-6.00 mm2 |
| Design | HD2-151 |
| Input current with PF-correct. | 2.15 A |
| Input current w/o PF-correct. | 3.25 A |
| Recommended Ignitor | no ignitor for HPL-N for HPI-T ignitor SI51 (913619519966) |
| Delta-T normal conditions | 80 C |
| T-winding maximum (tw) | 130 (max) C |
| PowerFactor w/o PF compens. | 0.55 - |

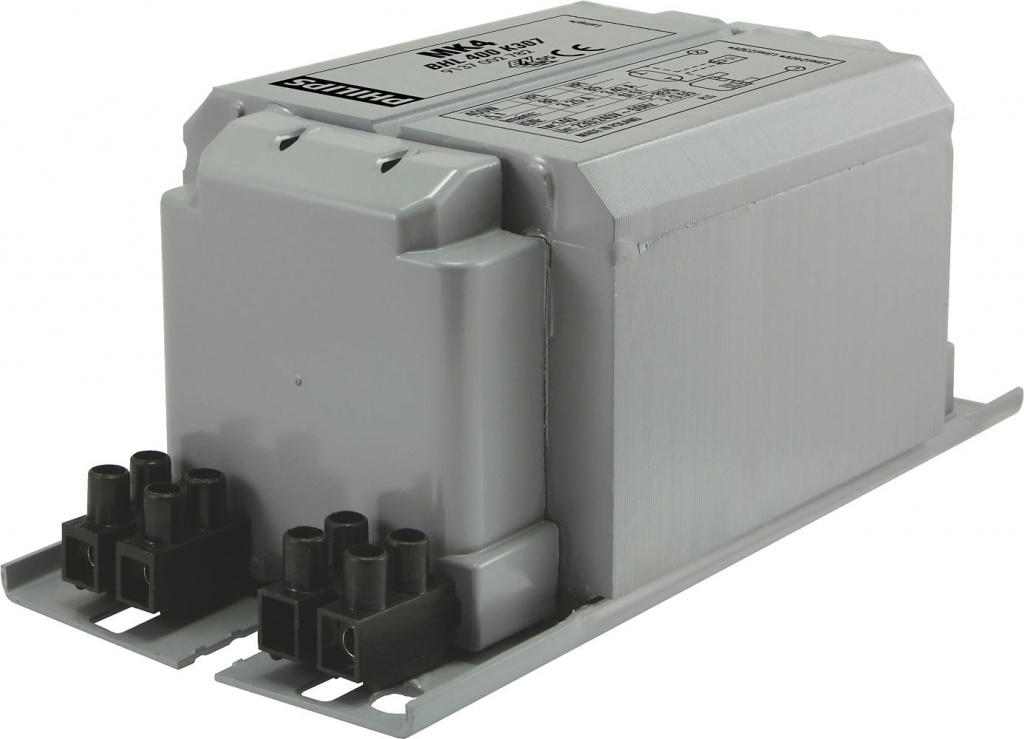

Encapsulated electromagnetic copper/iron ballasts for HPL, HPI (Plus) and SON-H lamps
Features
| Encapsulated with thermoplastic polyester resin, reinforced with glass fiber |
| Ballasts designed for mercury lamps (HPL) without using an ignitor can also be used with HPI lamps together with an ignitor |
| Equipped with screw terminal blocks as standard; insert contacts available upon request |
| Ballasts for alternative mains voltages/frequencies available upon request |
| Separate earth terminal (HID ‘Heavy Duty’) |
Applications
| Outdoor lighting |
