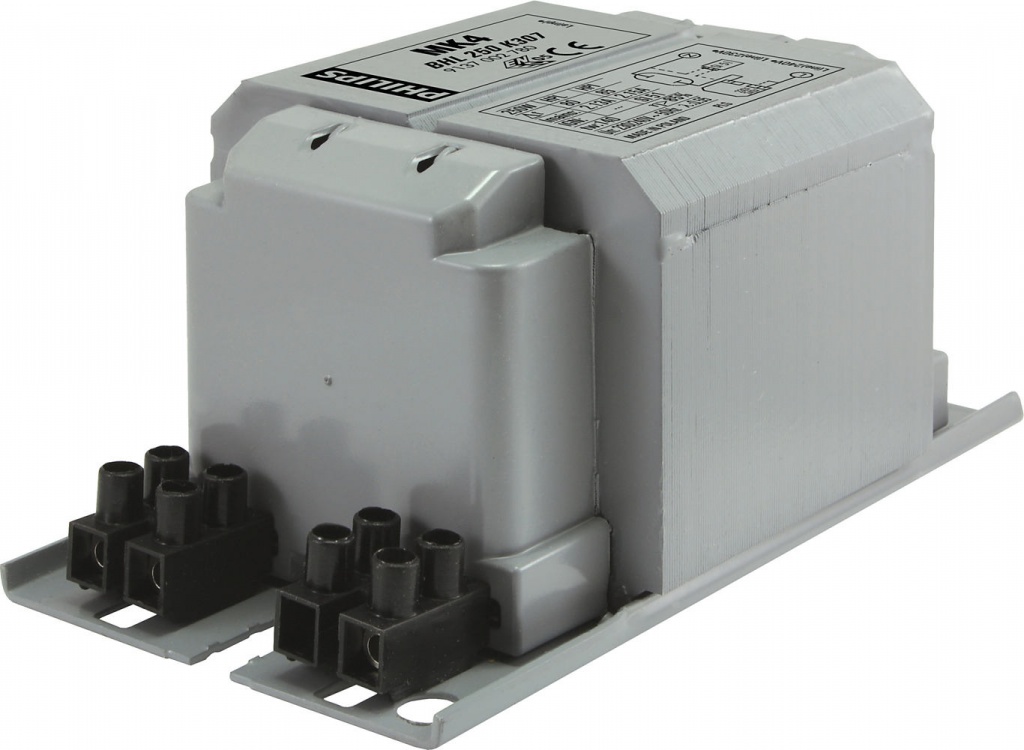

HID-Basic BHL for HPL/HPI HID Electromagnetic Ballasts

Product code: 58495
Price € 49,84 incl. VAT
€ 49,84 netto
pc(s)
pc(s)
  • Line Frequency 50 Hz
  • Full product code 913700284626
  • Full product name BHL 400 K202 230V 50Hz BC2-151
  • Order code 913700284626
  • Order product name BHL 400 K202 230V 50Hz BC2-151
  • Packing configuration 6
  • Pieces per pack 1
  • Bar code on outerbox - EAN3 8727900940770
  • Bar code on pack - EAN1 8727900940763
  • Packs per outerbox 6
  • Logistic code(s) - 12NC 913700284626
  • Net weight per piece 2.998 kg
  • ▼ see full specification ▼
Impregnated electromagnetic copper/iron ballasts for HPL, HPI (Plus) and SON-H lamps

1 variant available

 BHL 400 K202 230V 50Hz BC2-151
Product code: 58495 Line Frequency: 50 Hz Full product code: 913700284626 Full product name: BHL 400 K202 230V 50Hz BC2-151 Order code: 913700284626 Order product name: BHL 400 K202 230V 50Hz BC2-151 Packing configuration: 6 Pieces per pack: 1 Bar code on outerbox - EAN3: 8727900940770 Bar code on pack - EAN1: 8727900940763 Packs per outerbox: 6 see more »
Logistic code(s) - 12NC: 913700284626 Net weight per piece: 2.998 kg Length A1: 150.0 mm CE marking: Yes Height C1: 65.0 mm Capacitor: 45µF/250V Width B1: 76.0 mm Fixing Hole Diameter D1: 6.2 mm Fixing Hole Distance Length A2: 129.0 mm ENEC certificate: Yes T-storage: -30 (min), 130 (max) C Rated Lamptype: HPL/HPI Line Voltage: 230 V Rated Ballast-Lamp Power: 400 Rated Number of Lamps: 1 piece Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% PowerFactor 100% output power: 2.15 - Striplength: 7.0 mm Application code: K202 Connector type: Screw Wcs Ballast contacts: 2.5 mm2 Design: BC2-151 Input current with PF-correct.: 2.15 A Input current w/o PF-correct.: 3.25/3.40 A Recommended Ignitor: no ignitor for HPL-N for HPI-T ignitor SI51 (913619519966) Delta-T normal conditions: 80/85 C T-winding maximum (tw): 130 (max) C PowerFactor w/o PF compens.: 3.25 - « hide more
€ 49,84 € 49,84 ex. VAT
pc(s)
pc(s)
Line Frequency 50 Hz
Full product code 913700284626
Full product name BHL 400 K202 230V 50Hz BC2-151
Order code 913700284626
Order product name BHL 400 K202 230V 50Hz BC2-151
Packing configuration 6
Pieces per pack 1
Bar code on outerbox - EAN3 8727900940770
Bar code on pack - EAN1 8727900940763
Packs per outerbox 6
Logistic code(s) - 12NC 913700284626
Net weight per piece 2.998 kg
Length A1 150.0 mm
CE marking Yes
Height C1 65.0 mm
Capacitor 45µF/250V
Width B1 76.0 mm
Fixing Hole Diameter D1 6.2 mm
Fixing Hole Distance Length A2 129.0 mm
ENEC certificate Yes
T-storage -30 (min), 130 (max) C
Rated Lamptype HPL/HPI
Line Voltage 230 V
Rated Ballast-Lamp Power 400
Rated Number of Lamps 1 piece
Mains voltage safety (AC) -10%/+10%
Mains voltage performance (AC) -8%/+6%
PowerFactor 100% output power 2.15 -
Striplength 7.0 mm
Application code K202
Connector type Screw
Wcs Ballast contacts 2.5 mm2
Design BC2-151
Input current with PF-correct. 2.15 A
Input current w/o PF-correct. 3.25/3.40 A
Recommended Ignitor no ignitor for HPL-N for HPI-T ignitor SI51 (913619519966)
Delta-T normal conditions 80/85 C
T-winding maximum (tw) 130 (max) C
PowerFactor w/o PF compens. 3.25 -

Impregnated electromagnetic copper/iron ballasts for HPL, HPI (Plus) and SON-H lamps

Features

Ballasts designed for mercury lamps (HPL) without using an ignitor can be also used with HPI lamps together with an ignitor
Equipped with screw terminal blocks as standard; insert contacts available upon request
Earthing-while-mounting facility
Ballasts for alternative mains voltages/frequencies available upon request

Applications

Outdoor lighting
