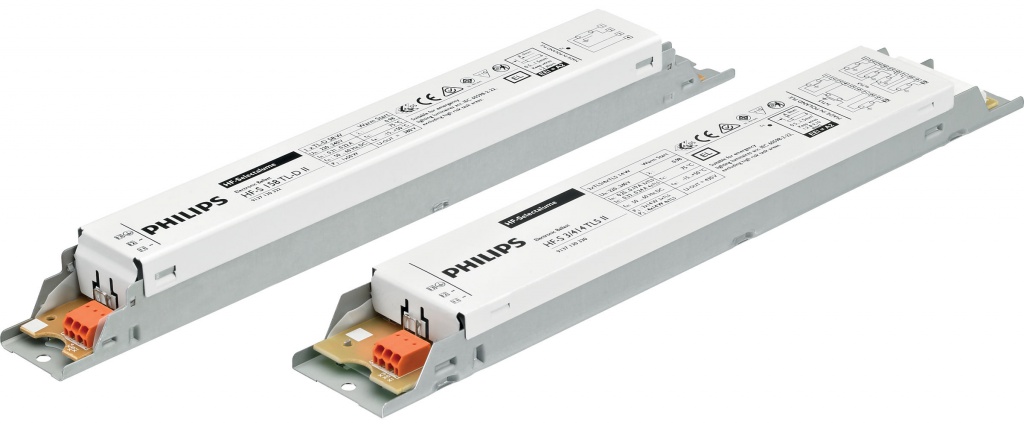

HF-Selectalume II for TL5 lamps Fluorescent Electronic Gear

Philips HF-S 3/424 TL5 II 220-240V 50/60Hz

From € 15,76 incl. VAT
From € 15,76 ex. VAT

See variants (3)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 3

HF-S 124-39 TL5 II 220-240V 50/60Hz

Karta produktu PDF

Product code: 58426 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913713034466 Full product name: HF-S 124-39 TL5 II 220-240V 50/60Hz Order code: 913713034466 Order product name: HF-S 124-39 TL5 II 220-240V 50/60Hz Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8727900939347 Bar code on pack - EAN1: 8727900939330 see more »

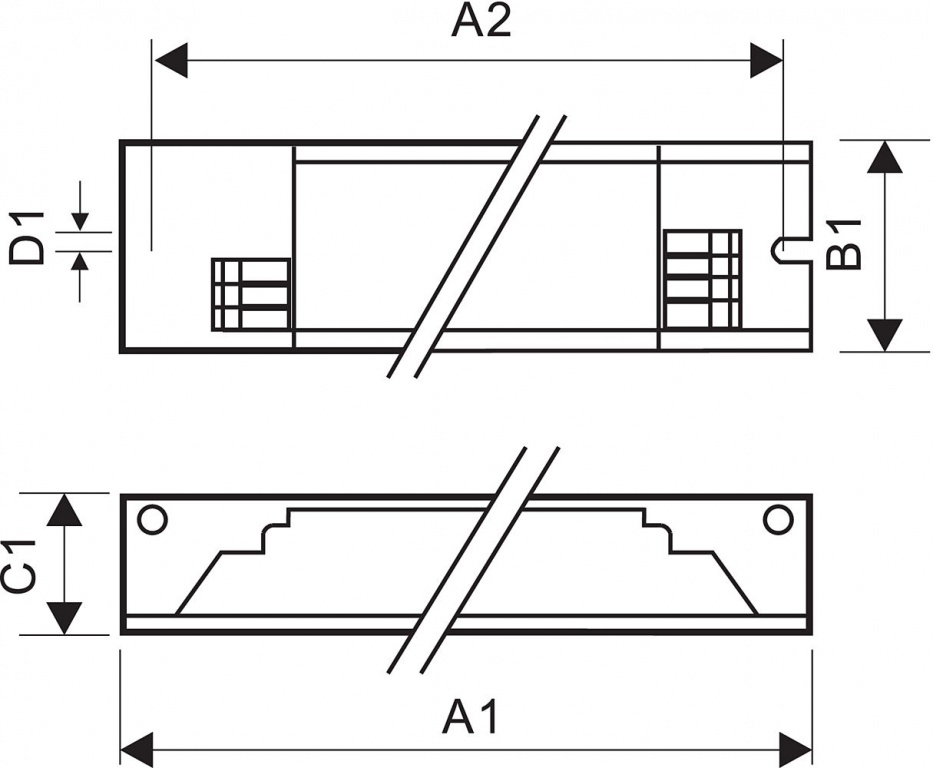

Packs per outerbox: 12 Logistic code(s) - 12NC: 913713034466 Net weight per piece: 0.190 kg Length A1: 280 mm CE marking: Yes Height C1: 21.5 mm T-ambient: -15 (min), 50 (max) C Width B1: 30 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 265 mm ENEC certificate: Yes Inrush current Peak: 20 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.28 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 220-240 V Rated Ballast-Lamp Power: 24/39 Rated Number of Lamps: 1 piece T-case life: 75 C Approval marks: CE / CCC / ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A2 Housing: L 280x30x21.5 Mains voltage safety (AC): 198-264V -10%/+10% Operating frequency *: 45 kHz Mains voltage performance (AC): 202-254V -8%/+6% Ballast Lumen Factor: 1.05 - Power losses gear: 3.5/4 W PowerFactor 100% output power: 0.98 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 - Cable-Cap outputwires mutual: 200 (max) pF Hum and Noise level: < 30 dB(A) Conn.type input terminals: WAGO 744 connector Conn.type output terminals: WAGO 744 connector [Suitable for manual wiring] Max. cable length Hot Wires: 0.75 m Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Possible, lamp wires 2m max. length [Master/Slave operation possible] Wcs Input terminals: 0.50-1.50 mm2 Wcs Output terminals: 0.50-1.50 mm2 Cable-Cap cold out-wires-earth: 200 (max) pF Cable-Cap hot out-wires-earth: 200 (max) pF F-marking: Yes Bumps: IEC 68-2-29 Eb (10G/16ms) EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc C-Tick certificate: Yes CCC certificate: Yes PSB certification: Yes TISI marking: Yes CB Certificate: Yes SIRIM approval: Yes Lamp Power on TL5: 23.5/38 Rated Lamp Power on TL5: 24/39 System Power on TL5: 27/42 Power Loss on TL5: 3.5/4 Application code: II Bal Lm Fac Emergency operation: 0.7 - Light output after 5 sec: 50% of EBLF Light output after 60 sec: 100% of EBLF Normal operating voltage (DC): 220-240 V Batt volt guaranteed ignition: 186-275 V Batt volt guaranteed operation: 176-275 V Preheat time: 1.6 s « hide more

€ 15,76 € 15,76 ex. VAT

HF-S 2 24-39 TL5 II 220-240V 50/60Hz

Karta produktu PDF

Product code: 58427 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913713034566 Full product name: HF-S 2 24-39 TL5 II 220-240V 50/60Hz Order code: 913713034566 Order product name: HF-S 2 24-39 TL5 II 220-240V 50/60Hz Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8727900939361 Bar code on pack - EAN1: 8727900939354 see more »

Packs per outerbox: 12 Logistic code(s) - 12NC: 913713034566 Net weight per piece: 0.210 kg Length A1: 280.0 mm CE marking: Yes Height C1: 21.5 mm T-ambient: -15 (min), 50 (max) C Width B1: 30.0 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.1 mm Fixing Hole Distance Length A2: 265.0 mm ENEC certificate: Yes Inrush current Peak: 30 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.35 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 220-240 V Rated Ballast-Lamp Power: 24/39 Rated Number of Lamps: 2 piece T-case life: 75 C Approval marks: CE / CCC / ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A2 Housing: L 280x30x21.5 Mains voltage safety (AC): 198-264V -10%/+10% Operating frequency *: 45 kHz Mains voltage performance (AC): 202-254V -8%/+6% Ballast Lumen Factor: 1.14 - Power losses gear: 6/7 W PowerFactor 100% output power: 0.98 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 - Cable-Cap outputwires mutual: 200 (max) pF Hum and Noise level: < 30 dB(A) Conn.type input terminals: WAGO 744 connector Conn.type output terminals: WAGO 744 connector [Suitable for manual wiring] Max. cable length Hot Wires: 0.75 m Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Possible, lamp wires 2m max. length [Master/Slave operation possible] Wcs Input terminals: 0.50-1.50 mm2 Wcs Output terminals: 0.50-1.50 mm2 Cable-Cap cold out-wires-earth: 200 (max) pF Cable-Cap hot out-wires-earth: 200 (max) pF F-marking: Yes Bumps: IEC 68-2-29 Eb (10G/16ms) EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc C-Tick certificate: Yes CCC certificate: Yes PSB certification: Yes TISI marking: Yes CB Certificate: Yes SIRIM approval: Yes Lamp Power on TL5: 50/76 Rated Lamp Power on TL5: 24/39 System Power on TL5: 56/83 Power Loss on TL5: 6.0/7.0 Application code: II Bal Lm Fac Emergency operation: 0.7 - Light output after 5 sec: 50% of EBLF Light output after 60 sec: 100% of EBLF Normal operating voltage (DC): 220-240 V Batt volt guaranteed ignition: 186-275 V Batt volt guaranteed operation: 176-275 V Preheat time: 1.6 s « hide more

€ 17,70 € 17,70 ex. VAT

HF-S 3/424 TL5 II 220-240V 50/60Hz

Karta produktu PDF

Product code: 58428 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913713034666 Full product name: HF-S 3/424 TL5 II 220-240V 50/60Hz Order code: 913713034666 Order product name: HF-S 3/424 TL5 II 220-240V 50/60Hz Packing configuration: 10 Pieces per pack: 1 Bar code on outerbox - EAN3: 8727900939385 Bar code on pack - EAN1: 8727900939378 see more »

Packs per outerbox: 10 Logistic code(s) - 12NC: 913713034666 Net weight per piece: 0.245 kg Length A1: 280 mm CE marking: Yes Height C1: 21.5 mm T-ambient: -15 (min), 50 (max) C Width B1: 39 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 265 mm ENEC certificate: Yes Inrush current Peak: 30 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.35 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 220-240 V Rated Ballast-Lamp Power: 24 Rated Number of Lamps: 3/4 piece T-case life: 75 C Approval marks: CE / CCC / ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A2 Housing: L 280x39x21.5 Mains voltage safety (AC): 198-264V -10%/+10% Operating frequency *: 45 kHz Mains voltage performance (AC): 202-254V -8%/+6% Ballast Lumen Factor: 1.11 - Power losses gear: 10.5/19 W PowerFactor 100% output power: 0.98 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 - Max ballast on MCB(16A type B): 15 x Cable-Cap outputwires mutual: 120 (max) pF Hum and Noise level: < 30 dB(A) Conn.type input terminals: WAGO 744 connector Conn.type output terminals: WAGO 744 connector [Suitable for manual wiring] Max. cable length Hot Wires: 0.75 m Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Possible, lamp wires 2m max. length [Master/Slave operation possible] Wcs Input terminals: 0.50-1.50 mm2 Wcs Output terminals: 0.50-1.50 mm2 Cable-Cap cold out-wires-earth: 120 (max) pF Cable-Cap hot out-wires-earth: 120 (max) pF F-marking: Yes Bumps: IEC 68-2-29 Eb (10G/16ms) EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc C-Tick certificate: Yes CCC certificate: Yes PSB certification: Yes TISI marking: Yes CB Certificate: Yes SIRIM approval: Yes Lamp Power on TL5: 68.5/85.0 Rated Lamp Power on TL5: 24 System Power on TL5: 79.0/104.0 Power Loss on TL5: 10.5/19.0 Application code: II Bal Lm Fac Emergency operation: 0.7 - Light output after 5 sec: 50% of EBLF Light output after 60 sec: 100% of EBLF Normal operating voltage (DC): 220-240 V Batt volt guaranteed ignition: 186-275 V Batt volt guaranteed operation: 176-275 V Preheat time: 1.6 s « hide more

€ 18,50 € 18,50 ex. VAT

Description / FAQ Warranty

HF-Selectalume II TL5 is the most cost-effective, reliable and outstanding solution for fluorescent lamps. These ballasts are part of an overall high-efficiency lighting system that may help you or your customers to achieve any international or local energy code you need to comply with. HF-Selectalume II TL5 ballasts are the ideal choice for a broad range of new construction and retrofit applications within the commercial sector, including general surface mounting or office lighting, parking garages, warehouses, waterproof and other applications.

Features

Highest CELMA Energy Efficiency Index A2 BAT*

Complies with CE, ENEC, EL, CCC marks of conformity

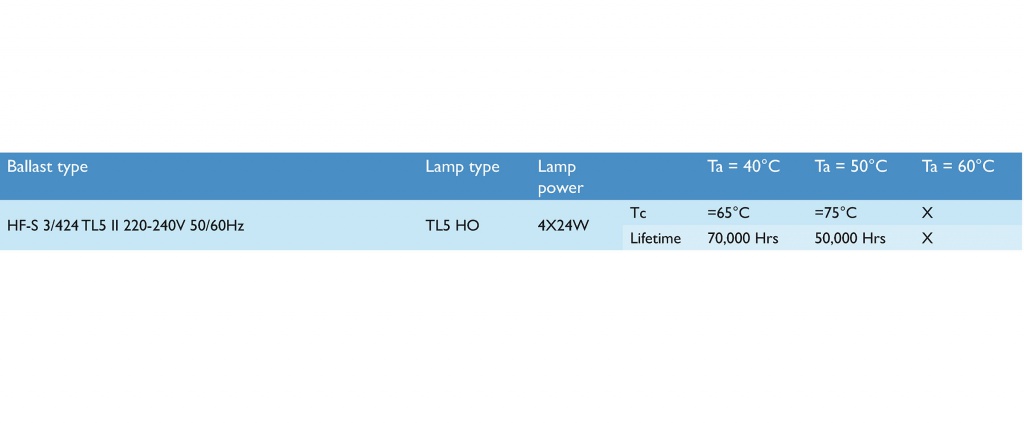

Average nominal service lifetime over 85,000 hours (at Ta 50°C) with a failure rate ≤ 0.1 % per 1,000 hours)

Optimized lamp preheating for min. 50,000 On/Off switch operations without replacement of lamps

Applications

Suitable for DC operation and emergency lighting installations; full compliance with requirements for emergency lighting according to EN 61347-2-3 -annex J

Extended lamp life in frequent-switching applications, e.g. where occupancy sensors or motion detectors are used

For luminaires of protection class I and protection class II used in office buildings, hospitals, supermarkets, department stores, industrial premises and schools
