PL-L lamps Fluorescent Electronic Gear

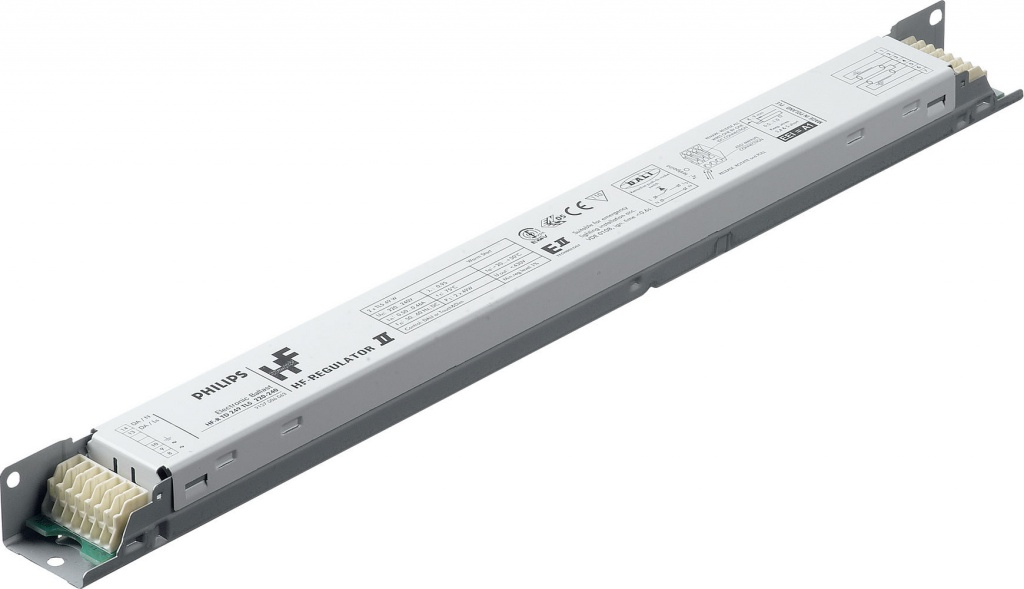

Philips HF-Ri TD 280 TL5/PL-L E+ 220-240V

From € 44,90 incl. VAT
From € 44,90 ex. VAT

See variants (8)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 8

HF-Ri TD 1 28/35/49/54 TL5 E+ 195-240V

Karta produktu PDF

Product code: 58373 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700695666 Full product name: HF-Ri TD 1 28/35/49/54 TL5 E+ 195-240V Order code: 913700695666 Order product name: HF-Ri TD 1 28/35/49/54 TL5 E+ 195-240V Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291662068 Bar code on pack - EAN1: 8718291662051 see more »

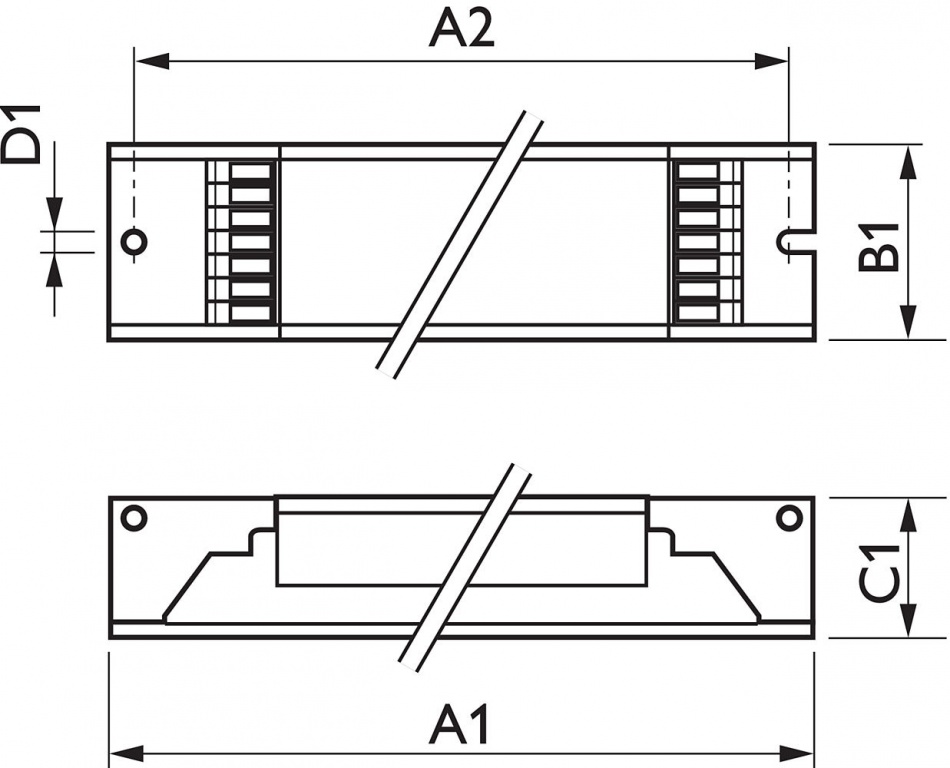

Packs per outerbox: 12 Logistic code(s) - 12NC: 913700695666 Net weight per piece: 0.261 kg Length A1: 360.0 mm CE marking: Yes Height C1: 22.0 mm T-ambient: -25 (min), 50 (max) C Width B1: 30.0 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.1 mm Fixing Hole Distance Length A2: 350.0 mm Inrush current Peak: 20 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.18 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 195-240 V Rated Ballast-Lamp Power: 28/35/49/54 Rated Number of Lamps: 1 piece T-case life: 75 (max) C Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 BAT Housing: L 359x30x21 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Ballast Lumen Factor: 1 - Power losses gear: 3.8 W PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 39 x Cable-Cap outputwires mutual: 200 (max) pF Hum and Noise level: Inaudible Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Yes [Master/Slave operation possible] Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Rated Lamp Power on TL-D: 58 Lamp Power on TL-D: 52.2 Power Loss on TL-D: 3.3 System Power on TL-D: 55.5 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Lamp Power on TL5: 29.4/36.4/51.6/54.8 Rated Lamp Power on TL5: 28/35/49/54 System Power on TL5: 32.1/39.1/55.1/57.7 Power Loss on TL5: 2.7/3.0/3.5 Application code: E+ Interface: TD Ignition Method: Warm Start Ignition time: 1 (max) s Operating frequency: 45 (min), 110 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 198-254 V Battery voltage running lamps: 176-254 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 10 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: -25 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.75 mm2 EMI 30 MHz .. 1000MHz: EN 55022 Class B Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] Standby power consumption: 0.25 (max) W Stable lamp operation temp.: > 15°C Cable-Cap outputwires to earth: 200 (max) pF Lamp Power on PL-L: 51.2 Rated Lamp Power on PL-L: 55 System Power on PL-L: 54.6 Power Loss on PL-L: 3.4 Rated Lamp Power on TL5 ECO: 25/32/45/50 Lamp Power on TL5 ECO: 26.3/30.2/45.7/50.4 Power Loss on TL5 ECO: 3.1/2.9/3.4/3.8/ Rated Lamp Power on TL-D ECO: 51 System Power on TL5 ECO: 29.4/33.1/49.1/54.2/ Lamp Power on TL-D ECO: 42.7 Power Loss on TL-D ECO: 3.1 System Power on TL-D ECO: 45.8 « hide more

€ 44,90 € 44,90 ex. VAT

HF-Ri TD 2 28/35/49/54 TL5 E+ 195-240V

Karta produktu PDF

Product code: 58374 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700695866 Full product name: HF-Ri TD 2 28/35/49/54 TL5 E+ 195-240V Order code: 913700695866 Order product name: HF-Ri TD 2 28/35/49/54 TL5 E+ 195-240V Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291662105 Bar code on pack - EAN1: 8718291662099 see more »

Packs per outerbox: 12 Logistic code(s) - 12NC: 913700695866 Net weight per piece: 0.316 kg Length A1: 360.0 mm CE marking: Yes Height C1: 22.0 mm T-ambient: -25 (min), 50 (max) C Width B1: 30.0 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.1 mm Fixing Hole Distance Length A2: 350.0 mm Inrush current Peak: 28 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.25 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 195-240 V Rated Ballast-Lamp Power: 28/35/49/54 Rated Number of Lamps: 2 piece T-case life: 75 (max) C Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 BAT Housing: L 359x30x21 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Ballast Lumen Factor: 1 - Power losses gear: 7.2 W PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 18 x Cable-Cap outputwires mutual: 200 (max) pF Hum and Noise level: Inaudible Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Yes [Master/Slave operation possible] Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Rated Lamp Power on TL-D: 58 Lamp Power on TL-D: 101.1 Power Loss on TL-D: 7.1 System Power on TL-D: 108.1 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Lamp Power on TL5: 58.9/73.6/107.2/113.4 Rated Lamp Power on TL5: 28/35/49/54 System Power on TL5: 63.0/77.9/111.4 Power Loss on TL5: 4.1/4.3/4.2/6.3 Application code: E+ Interface: TD Ignition Method: Warm Start Ignition time: 1 (max) s Operating frequency: 45 (min), 110 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 198-254 V Battery voltage running lamps: 176-254 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 10 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: -25 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.75 mm2 EMI 30 MHz .. 1000MHz: EN 55022 Class B Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] Standby power consumption: 0.25 (max) W Stable lamp operation temp.: > 15°C Cable-Cap outputwires to earth: 200 (max) pF Lamp Power on PL-L: 101.6 Rated Lamp Power on PL-L: 55 System Power on PL-L: 108.4 Power Loss on PL-L: 6.8 Rated Lamp Power on TL5 ECO: 25/32/45/50 Lamp Power on TL5 ECO: 50.8/66.5/95.6/102.7 Power Loss on TL5 ECO: 2.9/3.8/4.1/6.0 Rated Lamp Power on TL-D ECO: 51 System Power on TL5 ECO: 53.7/70.3/99.7/108.7 Lamp Power on TL-D ECO: 89.8 Power Loss on TL-D ECO: 6.0 System Power on TL-D ECO: 95.8 « hide more

€ 48,86 € 48,86 ex. VAT

HF-Ri TD 1 14/21/24/39 E+

Karta produktu PDF

Product code: 58375 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700698366 Full product name: HF-Ri TD 1 14/21/24/39 TL5 E+ 195-240V Order code: 913700698366 Order product name: HF-Ri TD 1 14/21/24/39 TL5 E+ 195-240V Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291696902 Bar code on pack - EAN1: 8718291696896 see more »

Packs per outerbox: 12 Logistic code(s) - 12NC: 913700698366 Net weight per piece: 0.261 kg Length A1: 360.0 mm CE marking: Yes Height C1: 21.0 mm T-ambient: -25 (min), 50 (max) C Width B1: 30.0 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.1 mm Fixing Hole Distance Length A2: 350.0 mm Inrush current Peak: 16.5 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.23 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 195-240 V Rated Ballast-Lamp Power: 14/21/24/39 Rated Number of Lamps: 1 piece T-case life: 75 (max) C Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 BAT Housing: L 360x30x21 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Ballast Lumen Factor: 1 - Power losses gear: 3.4 W PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 30 x Cable-Cap outputwires mutual: 200 (max) pF Hum and Noise level: Inaudible Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Yes [Master/Slave operation possible] Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Rated Lamp Power on TL-D: 36 Lamp Power on TL-D: 32 Power Loss on TL-D: 3.7 System Power on TL-D: 35.7 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Lamp Power on TL5: 13.7/20.7/23.0/36.5 Rated Lamp Power on TL5: 14/21/24/39 System Power on TL5: 16.6/23.9/26.5/40.3 Power Loss on TL5: 2.9/3.2/3.5/3.8 Application code: E+ Interface: TD Ignition Method: Warm Start Ignition time: 1 (max) s Operating frequency: 45 (min), 110 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 198-254 V Battery voltage running lamps: 176-254 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 10 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: -25 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.75 mm2 EMI 30 MHz .. 1000MHz: EN 55022 Class B Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] Standby power consumption: 0.25 (max) W Stable lamp operation temp.: > 15°C Cable-Cap outputwires to earth: 200 (max) pF Lamp Power on PL-L: 22.5/30.0/38.0 Rated Lamp Power on PL-L: 24/36/40 System Power on PL-L: 25.9/33.7/41.9 Power Loss on PL-L: 3.4/3.7/3.9 Rated Lamp Power on TL5 ECO: 13/19/20/34 Lamp Power on TL5 ECO: 12.5/19.1/20.0/33.0 Power Loss on TL5 ECO: 2.9/3.1/3.2/3.7 System Power on TL5 ECO: 15.4/22.2/23.2/36.7 « hide more

€ 50,18 € 50,18 ex. VAT

HF-Ri TD 1 35/49/80 TL5 E+ 195-240V

Karta produktu PDF

Product code: 58400 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700695766 Full product name: HF-Ri TD 1 35/49/80 TL5 E+ 195-240V Order code: 913700695766 Order product name: HF-Ri TD 1 35/49/80 TL5 E+ 195-240V Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291662082 Bar code on pack - EAN1: 8718291662075 see more »

Packs per outerbox: 12 Logistic code(s) - 12NC: 913700695766 Net weight per piece: 0.261 kg Length A1: 360.0 mm CE marking: Yes Height C1: 22.0 mm T-ambient: -25 (min), 50 (max) C Width B1: 30.0 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.1 mm Fixing Hole Distance Length A2: 350.0 mm Inrush current Peak: 28 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.25 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 195-240 V Rated Ballast-Lamp Power: 35/49/80 Rated Number of Lamps: 1 piece T-case life: 75 (max) C Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 BAT Housing: L 359x30x21 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Ballast Lumen Factor: 1 - Power losses gear: 4.5 W PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 18 x Cable-Cap outputwires mutual: 200 (max) pF Hum and Noise level: Inaudible Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Yes [Master/Slave operation possible] Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Lamp Power on TL5: 35.9/51/75.6 Rated Lamp Power on TL5: 35/49/80 System Power on TL5: 38.6/55.2/81.4 Power Loss on TL5: 2.7/4.2/5.8 Application code: E+ Interface: TD Ignition Method: Warm Start Ignition time: 1 (max) s Operating frequency: 45 (min), 110 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 198-254 V Battery voltage running lamps: 176-254 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 10 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: -25 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.75 mm2 EMI 30 MHz .. 1000MHz: EN 55022 Class B Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] Standby power consumption: 0.25 (max) W Stable lamp operation temp.: > 15°C Cable-Cap outputwires to earth: 200 (max) pF Lamp Power on PL-L: 76.3 Rated Lamp Power on PL-L: 80 System Power on PL-L: 81.9 Power Loss on PL-L: 5.6 Rated Lamp Power on TL5 ECO: 32/45/73 Lamp Power on TL5 ECO: 32.8/45.2/73.6 Power Loss on TL5 ECO: 3.5/5.4 System Power on TL5 ECO: 36.3/48.7/79 « hide more

€ 55,39 € 55,39 ex. VAT

HF-Ri TD 2 14/21/24/39 E+

Karta produktu PDF

Product code: 58376 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700698466 Full product name: HF-Ri TD 2 14/21/24/39 TL5 E+ 195-240V Order code: 913700698466 Order product name: HF-Ri TD 2 14/21/24/39 TL5 E+ 195-240V Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291696926 Bar code on pack - EAN1: 8718291696919 see more »

Packs per outerbox: 12 Logistic code(s) - 12NC: 913700698466 Net weight per piece: 0.316 kg Length A1: 360.0 mm CE marking: Yes Height C1: 21.0 mm T-ambient: -25 (min), 50 (max) C Width B1: 30.0 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.1 mm Fixing Hole Distance Length A2: 350.0 mm Inrush current Peak: 27 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.26 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 195-240 V Rated Ballast-Lamp Power: 14/21/24/39 Rated Number of Lamps: 2 piece T-case life: 75 (max) C Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 BAT Housing: L 360x30x21 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Ballast Lumen Factor: 1 - Power losses gear: 5.0 W PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 16 x Cable-Cap outputwires mutual: 200 (max) pF Hum and Noise level: Inaudible Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Yes [Master/Slave operation possible] Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Rated Lamp Power on TL-D: 36 Lamp Power on TL-D: 64.0 Power Loss on TL-D: 5.6 System Power on TL-D: 69.6 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Lamp Power on TL5: 27.4/41.4/46.0/73.0 Rated Lamp Power on TL5: 14/21/24/39 System Power on TL5: 31.2/45.7/51.1/79.1 Power Loss on TL5: 3.8/4.3/5.1/6.1 Application code: E+ Interface: TD Ignition Method: Warm Start Ignition time: 1 (max) s Operating frequency: 45 (min), 110 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 198-254 V Battery voltage running lamps: 176-254 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 10 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: -25 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.75 mm2 EMI 30 MHz .. 1000MHz: EN 55022 Class B Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] Standby power consumption: 0.25 (max) W Stable lamp operation temp.: > 15°C Cable-Cap outputwires to earth: 200 (max) pF Lamp Power on PL-L: 45.0/60.0/76.0 Rated Lamp Power on PL-L: 24/36/40 System Power on PL-L: 50.0/65.6/82.2 Power Loss on PL-L: 5.0/5.6/6.2 Rated Lamp Power on TL5 ECO: 13/19/20/34 Lamp Power on TL5 ECO: 25.0/38.2/40.0/66.0 Power Loss on TL5 ECO: 3.7/4.6/4.9/5.7 System Power on TL5 ECO: 28.7/42.8/44.9/71.7 « hide more

€ 57,08 € 57,08 ex. VAT

HF-Ri TD 3 14/24 TL5 E+ 195-240V

Karta produktu PDF

Product code: 58377 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700679066 Full product name: HF-Ri TD 3 14/24 TL5 E+ 195-240V 50/60Hz Order code: 913700679066 Order product name: HF-Ri TD 3 14/24 TL5 E+ 195-240V 50/60Hz Packing configuration: 10 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291156772 Bar code on pack - EAN1: 8718291156765 see more »

Packs per outerbox: 10 Logistic code(s) - 12NC: 913700679066 Net weight per piece: 0.377 kg Length A1: 360.0 mm CE marking: Yes Height C1: 22.0 mm T-ambient: -25 (min), 50 (max) C Width B1: 39.0 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 350.0 mm Inrush current Peak: 31 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.26 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 195-240 V Rated Ballast-Lamp Power: 14/24 Rated Number of Lamps: 3 piece T-case life: 75 (max) C Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 BAT Housing: L 360x39x22 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Ballast Lumen Factor: 1.0 - PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 16 x Cable-Cap outputwires mutual: 200 (max) pF Hum and Noise level: Inaudible Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Yes [Master/Slave operation possible] Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Rated Lamp Power on TL-D: 18 Lamp Power on TL-D: 17 Power Loss on TL-D: 6.6 System Power on TL-D: 57.6 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Lamp Power on TL5: 15/23.3 Rated Lamp Power on TL5: 14/24 System Power on TL5: 49.1/77.2 Power Loss on TL5: 4.1/7.3 Application code: E+ Interface: TD Ignition Method: Warm Start Ignition time: 1 (max) s Operating frequency: 45 (min), 110 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 198-254 V Battery voltage running lamps: 176-254 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 10 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: -25 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.75 mm2 EMI 30 MHz .. 1000MHz: EN 55022 Class B Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] Standby power consumption: 0.25 (max) W Stable lamp operation temp.: > 15°C Cable-Cap outputwires to earth: 200 (max) pF Lamp Power on PL-L: 15/22.9 Rated Lamp Power on PL-L: 18/24 System Power on PL-L: 50.3/75.2 Power Loss on PL-L: 5.3/6.5 Rated Lamp Power on TL5 ECO: 13/20 Lamp Power on TL5 ECO: 13.6/20.1 Power Loss on TL5 ECO: 2.7/6.2 Rated Lamp Power on TL-D ECO: 16 System Power on TL5 ECO: 43.5/66.5 Lamp Power on TL-D ECO: 13.7 Power Loss on TL-D ECO: 5.4 System Power on TL-D ECO: 46,5 « hide more

€ 65,82 € 65,82 ex. VAT

HF-Ri TD 4 14/24 TL5 E+ 195-240V

Karta produktu PDF

Product code: 58378 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700679166 Full product name: HF-Ri TD 4 14/24 TL5 E+ 195-240V 50/60Hz Order code: 913700679166 Order product name: HF-Ri TD 4 14/24 TL5 E+ 195-240V 50/60Hz Packing configuration: 10 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291156796 Bar code on pack - EAN1: 8718291156789 see more »

Packs per outerbox: 10 Logistic code(s) - 12NC: 913700679166 Net weight per piece: 0.392 kg Length A1: 360.0 mm CE marking: Yes Height C1: 22.0 mm T-ambient: -25 (min), 50 (max) C Width B1: 39.0 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 350.0 mm Inrush current Peak: 31 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.26 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 195-240 V Rated Ballast-Lamp Power: 14/24 Rated Number of Lamps: 4 piece T-case life: 75 (max) C Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 BAT Housing: L 360x39x22 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Ballast Lumen Factor: 1.0 - PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 16 x Cable-Cap outputwires mutual: 200 (max) pF Hum and Noise level: Inaudible Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Yes [Master/Slave operation possible] Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Rated Lamp Power on TL-D: 18 Lamp Power on TL-D: 16.6 Power Loss on TL-D: 8.6 System Power on TL-D: 75 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Lamp Power on TL5: 14.5/23.4 Rated Lamp Power on TL5: 14/24 System Power on TL5: 63.3/103.3 Power Loss on TL5: 5.3/9.7 Application code: E+ Interface: TD Ignition Method: Warm Start Ignition time: 1 (max) s Operating frequency: 45 (min), 110 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 198-254 V Battery voltage running lamps: 176-254 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 10 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: -25 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.75 mm2 EMI 30 MHz .. 1000MHz: EN 55022 Class B Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] Standby power consumption: 0.25 (max) W Stable lamp operation temp.: > 15°C Cable-Cap outputwires to earth: 200 (max) pF Lamp Power on PL-L: 15.8/22.9 Rated Lamp Power on PL-L: 18/24 System Power on PL-L: 70.6/100.3 Power Loss on PL-L: 7.4/8.7 Rated Lamp Power on TL5 ECO: 13/20 Lamp Power on TL5 ECO: 12.9/19.7 Power Loss on TL5 ECO: 3.4/8.1 Rated Lamp Power on TL-D ECO: 16 System Power on TL5 ECO: 55/86.9 Lamp Power on TL-D ECO: 14.2 Power Loss on TL-D ECO: 7.5 System Power on TL-D ECO: 64.3 « hide more

€ 65,82 € 65,82 ex. VAT

HF-Ri TD 280 TL5/PL-L E+ 220-240V

Karta produktu PDF

Product code: 58399 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700609666 Full product name: HF-R TD 280 TL5/PL-L E+ Order code: 913700609666 Order product name: HF-R TD 280 TL5/PL-L E+ Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500910691 Bar code on pack - EAN1: 8711500910677 see more »

Packs per outerbox: 12 Logistic code(s) - 12NC: 913700609666 Net weight per piece: 0.417 kg Length A1: 424 mm CE marking: Yes Height C1: 22 mm T-ambient: 15 (min), 50 (max) C Width B1: 30 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 415 mm Inrush current Peak: 35 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.35 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: TL5/PL-L Line Voltage: 220-240 V Rated Ballast-Lamp Power: 80 Rated Number of Lamps: 2 piece T-case life: 75 (max) C Approval marks: CE / ENEC / EMC / CCC Automatic restart: Yes Energy Efficiency Index: A1 Housing: L 425x30x21 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Ballast Lumen Factor: 1.0 - Power losses gear: 11.3 W PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 9 x Cable-Cap outputwires mutual: 150 (max) pF Hum and Noise level: 30 dB(A) Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Application code: E+ Interface: TD Ignition Method: Warm Start Ignition time: 0.2 (max) s Regulating level power: 1%-100% Battery voltage lamp ignition: 220 V Battery voltage running lamps: 154-276 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 5.5 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: 0 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.5 mm2 EMI 30 MHz .. 1000MHz: EN 55022 level B [Level = Class] Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] Standby power consumption: 0.25 (max) W Cable-Cap outputwires to earth: 150 (max) pF « hide more

€ 66,46 € 66,46 ex. VAT

Description / FAQ Warranty

This intelligent high-frequency electronic dimming ballast utilizes the DALI or Touch and Dim push-button protocol for fluorescent lamps. It meets A1BAT requirements, thereby pre-empting upcoming legislation. With a special command you can retrieve the system’s mains power consumption, and with another you can find out which lamp wattage is connected. Combined with controls, additional energy savings can be achieved.

Features

HF-R Intelligent recognizes what type of lamp (T5 HE, HO, ECO, TL-D, PL-L) is connected and drives it accordingly

Programmed start: flicker-free ignition < 1.0 second and striation-free operation, no stroboscopic effects. Preheating the lamp electrodes enables the lamps to be switched on and off without reducing life

Smart power ensures constant light, independent of mains fluctuations and dimming from 1 to 100%

Stop circuit is activated within 5 seconds in the event of lamp failure (safety stop), and ballast resets automatically after lamp replacement

Programmable for intelligent functionalities via Philips MultiOne: Corridor mode, Emergency DC dim level, Burn-in time

Applications

Indoor, general and task lighting applications in combination with lighting control systems (personal control, daylight linking and/or movement detection)
